Lilliput FA1019/C 10.1in 1500 Nits High Brightness Monitor

About: Lilliput FA1019/C 10.1in 1500 Nits High Brightness Monitor

The LILLIPUT FA1019/C Integrated 10.1" monitor is an industrial-grade capacitive touch monitor suitable for various field applications.

The monitor offers a 1920x1200 FHD resolution and our best-in-range 1500cdm² high brightness screen, making it suitable for a wide range of outdoor industrial and commercial applications.

It boasts a long LED panel life time of 50,000 hours, achieved through the selection of high-quality industrial-grade LCD screens.

This specific model FA1019/C can be installed as either a desktop device for control centers, a built-in monitor for production line consoles, or as a panel for a home PC system (or a home automation system like Home Assistant). It is also ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup.

Interfaces and Connectivity

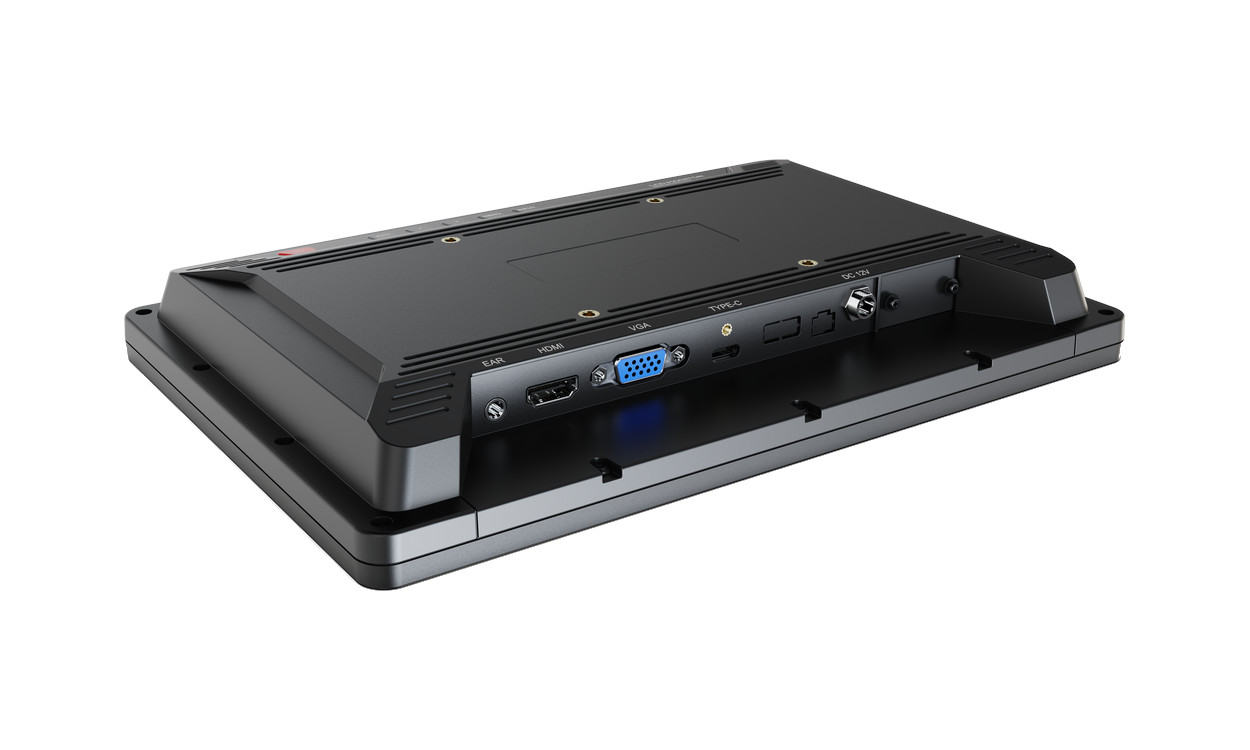

• The monitor includes rich interfaces such as HDMI, VGA, and a USB Type-C port, which simplifies wiring by transmitting both video signals and touch functions.
• Connectivity options include HDMI IN supporting up to 4K 30Hz, VGA IN up to 1080p 60Hz, and a DC power input range of 12V-24V.

Industrial Design and Mounting

• The monitor is designed for use in applications like industrial control and ordering machines with the optional folding VESA 75mm bracket for mounting on a table or fixing to the ceiling.

Specifications

• DISPLAY
  • Touch Screen: No
  • Panel: 10.1” LCD
  • Physical Resolution: 1920x1200
  • Aspect Ratio: 16:10
  • Brightness: 1500 nits
  • Contrast: 1000:1
  • Viewing Angle: 170° / 170° (H/V)
  • LED Panel Life Time: 50000h
• INPUT
  • HDMI: 1
  • VGA: 1
  • USB: 1 (USB Type-C)
• SUPPORTED FORMATS
  • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
  • VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
  • USB Type-C: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
• AUDIO IN/OUT
  • Speaker: 1
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
• POWER
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤19W (12V)
• ENVIRONMENT
  • IP Rating: IP65 (Only available for the monitor with extension cable)
  • Operating Temperature: -20°C~60°C
  • Storage Temperature: -30°C~80°C
• DIMENSION
  • Dimension (LxWxD): 9.88 x 6.69 x 1.3 inch (251mm × 170mm × 33mm)
  • Weight: 1.81 lbs (820g)

What's Included

• HDM Cable
• USB-C to C Cable (with screw)
• Power Supply
