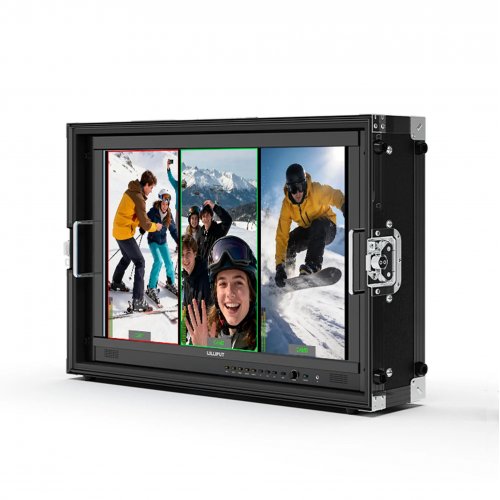

Lilliput PVM270S 27in 3G-SDI HDMI Multiview Monitor w/ Case - Gold Mount

About: Lilliput PVM270S 27in 3G-SDI HDMI Multiview Monitor w/ Case - Gold Mount

Engineered for the demands of broadcast and live environments, the Lilliput PVM270S 27-inch Full HD monitor delivers a stunning 1000 cd/m² of brightness for clear visibility in any lighting. Featuring dual 3G-SDI and triple HDMI 2.0 inputs with built-in signal cross-conversion, it integrates seamlessly into professional PGM workflows. With multi-view support, 3D LUT processing, and a suite of professional monitoring tools—including waveform and focus assist—it is the ultimate command center for efficient, real-site operation.

• 3D LUT Output
• PGM Output
• HDR
• Gammas
• Waveform
• Remote Control
• Carry Case

Input wise, it features 2x 3G-SDI and 3x HDMI 2.0 inputs, and supports signal cross-conversion to convert between the formats, enabling seamless integration into PGM workflows. Further, it supports 3D LUT processing and synchronous output for real-time color monitoring.

For multi-camera production, it supports up to 4-channels of video input with 7 customizable layouts - including both horizontal and vertical display modes.

A range of professional tools is integrated, including waveform, focus assist, false color, audio monitoring, and remote control - all to support efficient on-site operation.

Specifications

• DISPLAY
  • Panel: 27"
  • Physical Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Brightness: 1000 cd/m²
  • Contrast: 1000:1
  • Viewing Angle: 178°/178°（H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
  • Look up Table (LUT) support: 3D LUT (.cube format)
• VIDEO INPUT
  • SDI: 2x 3G-SDI
  • HDMI: 3x HDMI 2.0
• VIDEO OUTPUT
  • SDI
    • 1x 3G-SDI (for loop out)
    • 1x 3G-SDI (for PGM/LUT out)
  • HDMI
    • 1x HDMI 2.0 (for loop/PGM/LUT out)
• SUPPORTED FORMATS
  • SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
  • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • PGM/LUT Out: 1080p 24/25/30/50/60
• AUDIO IN/OUT (48kHz PCM AUDIO)
  • SDI: 2ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2
• POWER
  • Input Voltage DC 10-24V
  • Power Consumption ≤58W (10V)
  • Compatible Batteries: Anton Bauer (Gold) Mount
  • Input Voltage (battery) 14.8V nominal
• ENVIRONMENT
  • Operating Temperature: 0℃~50℃
  • Storage Temperature: -20℃~60℃
• PHYSICAL
  • Dimension (LxWxD): 25.35 x 16.11 x 2.18 inch (644 x 409.1 x 55.3mm)
  • Weight: 19.4 lbs (8.8kg)
