Lilliput BM150-12G 15.6" 4K HDMI 2.0 / 12G-SDI Monitor

About: Lilliput BM150-12G 15.6" 4K HDMI 2.0 / 12G-SDI Monitor

The Lilliput BM150-12G is a 15.6" 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

The BM150-12G has two SDI input standards - ST425-3, which uses the 4x SDI inputs to carry 1/4 of the overall screen image, and ST425-5 which allows you to knit together the 4 SDI inputs and interleave them over each other. Both of these allow for a full 4K image over the 4x 3G SDI connections.

4K Ultra-HD resolution

The BM150-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

12G SDI Input

The BM150-6G monitor has a 6G-SDI Single link input and output loop onboard. It can support 6G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.

Solid Transmission Distances

The BM150-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 6G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the "eye" in the signal wave as shown on an oscilloscope. The BM150-6G has a "tall" eye when analysed, which highlights the strength and jitter-free quality of the signal.

Image flip mode - View it your way

Integrate the monitor into your current workflow at whatever angle you choose. X flip - Y flip functionality gives you that flexibilty

6U Rackmount frame

Ideal for live feed vans and event management - the monitor is able to be mounted into a 6U rackmount frame to fit within your current equipment cabinet

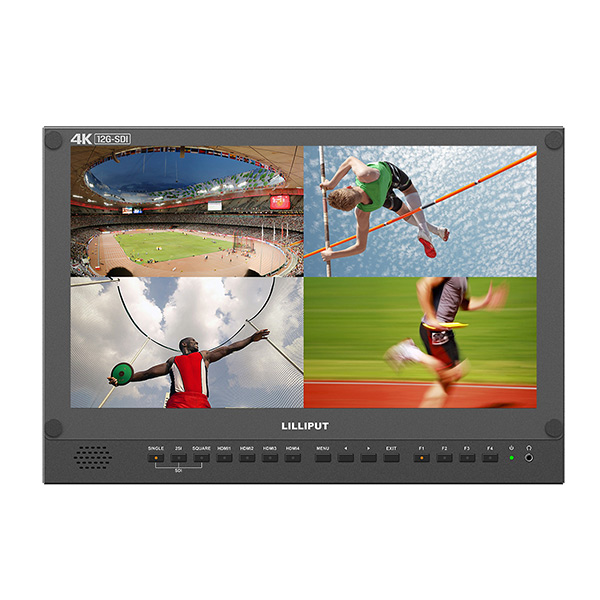

4 way split screen display

The BM150-6G monitor supports 4 independent input signals simultaneously making it easier than ever to view your set from 4 separate angles.

Precision colours with 1000:1 contrast ratio

The BM150-6G has a 1000:1 contrast ratio and 330cd/m brightness ratio, giving you sharper pictures and rich colours. Enjoy more detailed images than ever before.

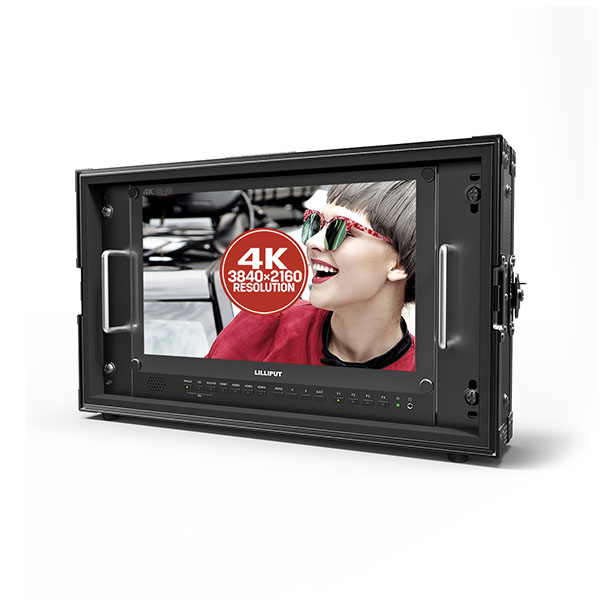

Carry-on suitcase for superior protection

The monitor comes with a specially designed flight case for greater robustness and portability. The design also allows for greater heat radiation and ensures greater reliability over longer shoots

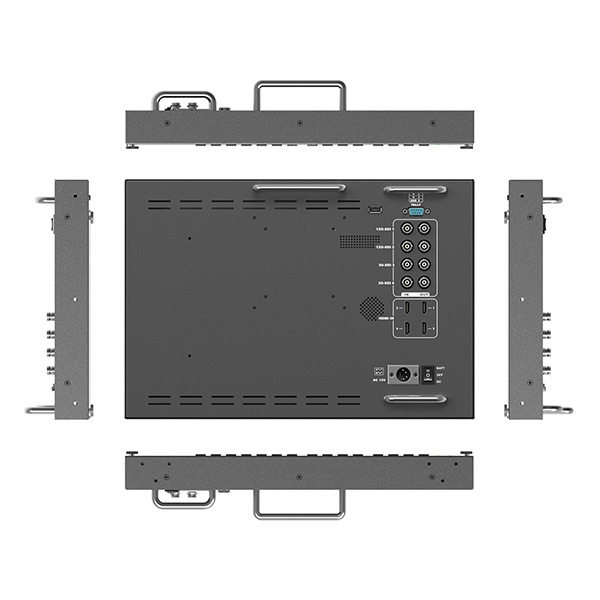

Connectivity for all video standards

The monitor comes with all of the major video standards used in commercial and the video industry. The BM150-6G connects using HDMI for 4K resolutions, and can connect using either HDMI or SDI for standard 1080p and below resolutions. This gives the ability to meet the needs of any professional display solution

Metal outer housing

An aluminium outer body provides excellent protection to extend the lifetime of your monitor, finished in black to match into most installation colour schemes.

Programmable Function keys

4 Programmable function keys on the front of the monitor allow you to shortcut to your most used functions, such as peaking, histograms, check field, image flip etc.

Wireless HDMI receiver (OPTIONAL)

With wireless HDMI (wHDI) technology you can transmit 1080p 60Hz signals direct to the monitor without the need for cables, making for a much more portable solution when on set. One transmitter can connect to multiple receiver units giving you a video village without the need for cables.

​Specifications

• Screen Size (diagonal) 15.6"
• Aspect Ratio 16:9
• Native Resolution 3840 x 2160
• Viewing Angle (degrees) 176/176
• Brightness Ratio (cd/m2) 330
• Contrast Ratio 1000:1
• Backlight LED
• Video Inputs 12G-SDI x 2 (backward compatible to 3G-SDI), 3G SDI x2,HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
• Video Outputs 3G-SDI x 1
• Audio Outputs Speaker x 2, 3.5mm Jack x 1
• Input Power DC12V - 24V (XLR)
• Operating Temperature -20 degrees - 50 degrees
• Dimensions
  • Height (mm) 267 (305 in case)
  • Width (mm) 389 (524 in case)
  • Depth (mm) 38 (170 in case)
• Weight (g) 12kg with case (3.4kg without case)
