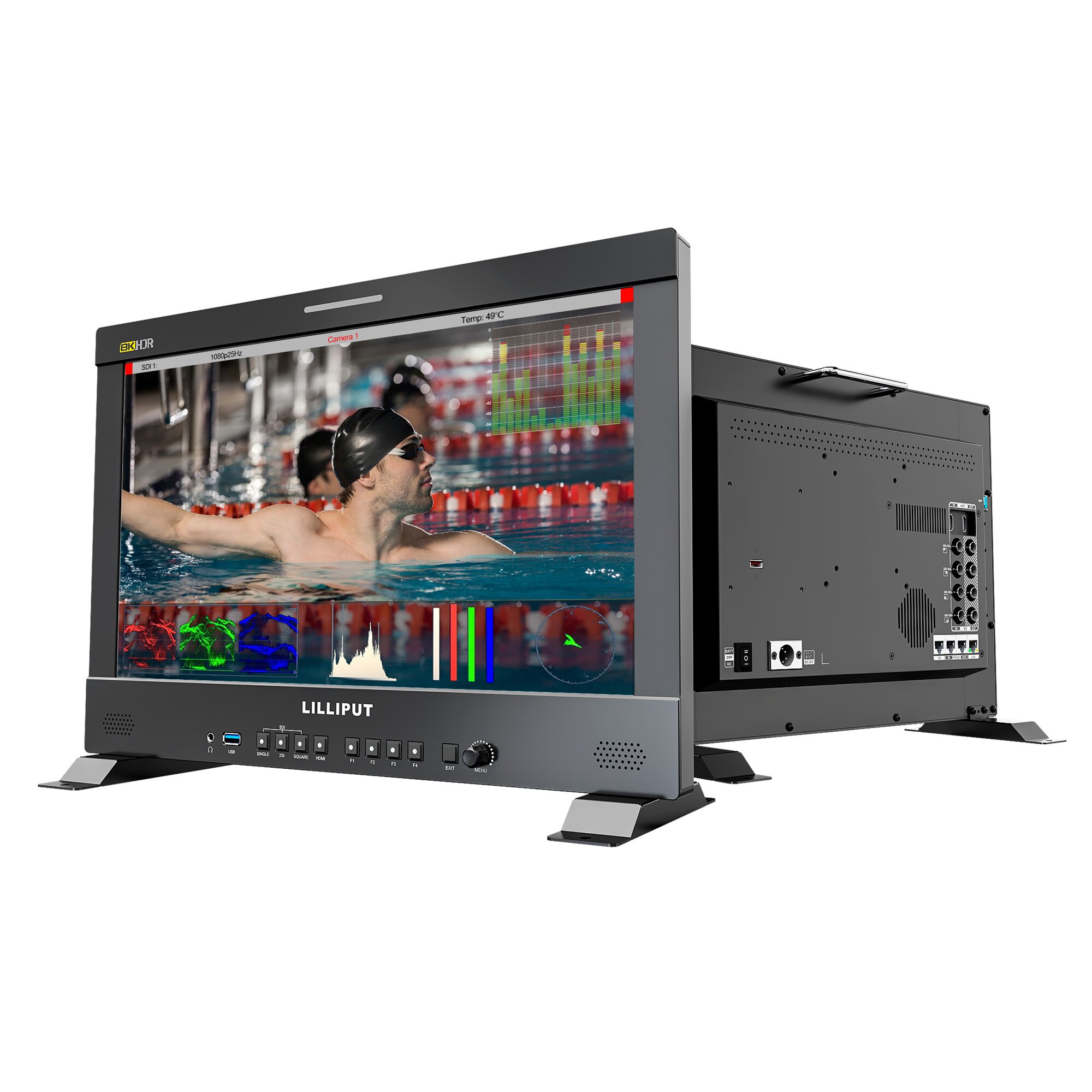

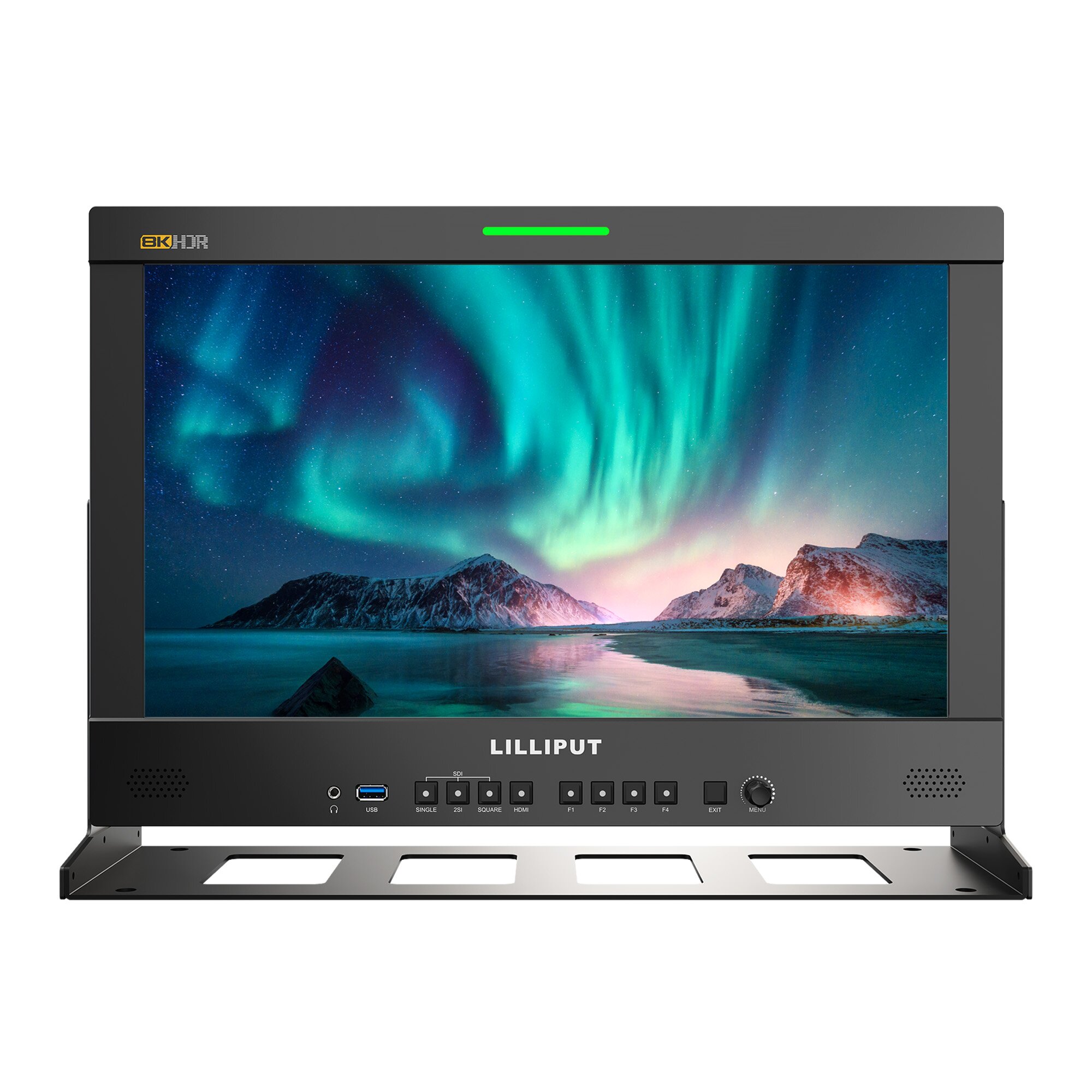

Lilliput Q18 17.3 Inch 8K 12G-SDI Production Monitor (Gold Mount)

About: Lilliput Q18 17.3 Inch 8K 12G-SDI Production Monitor (Gold Mount)

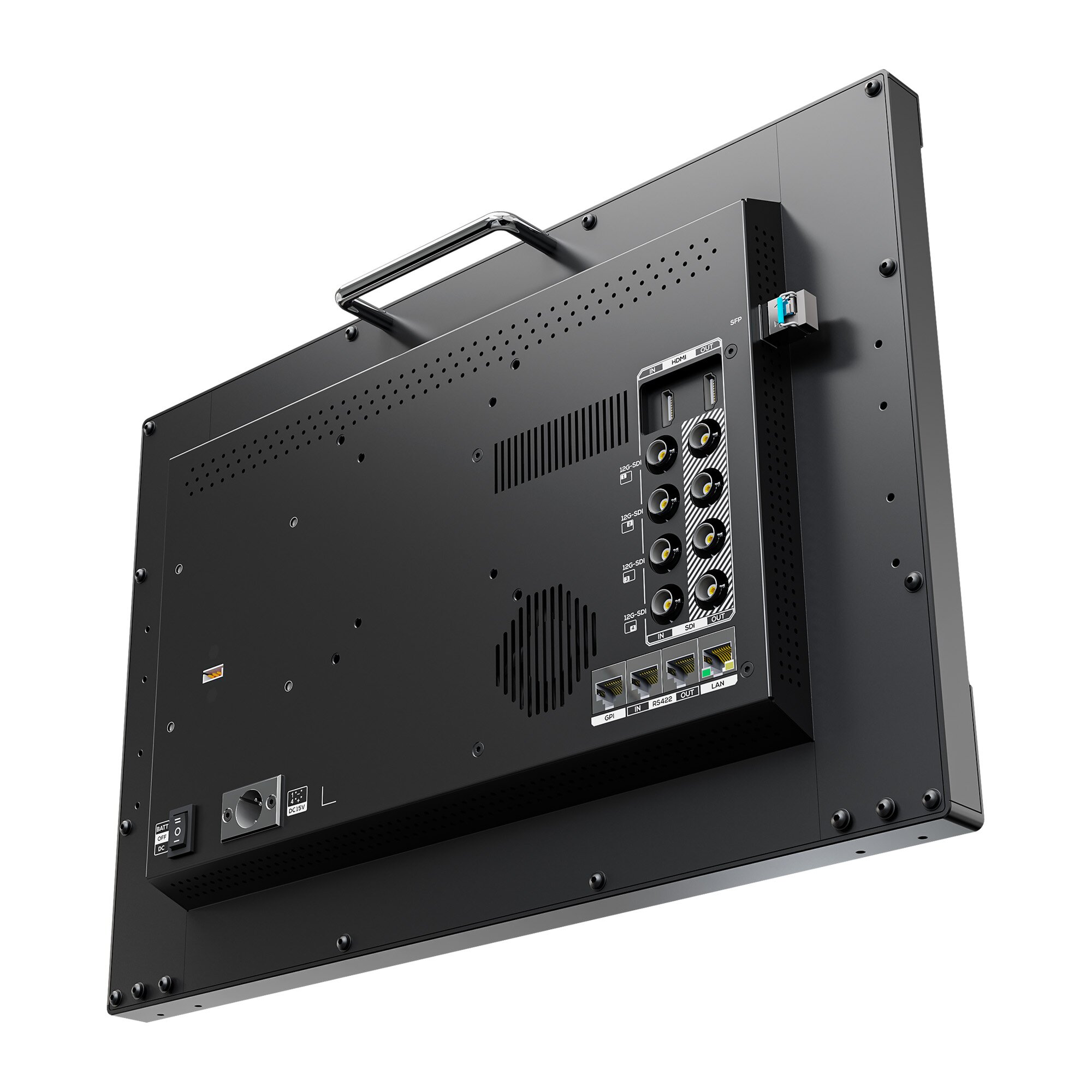

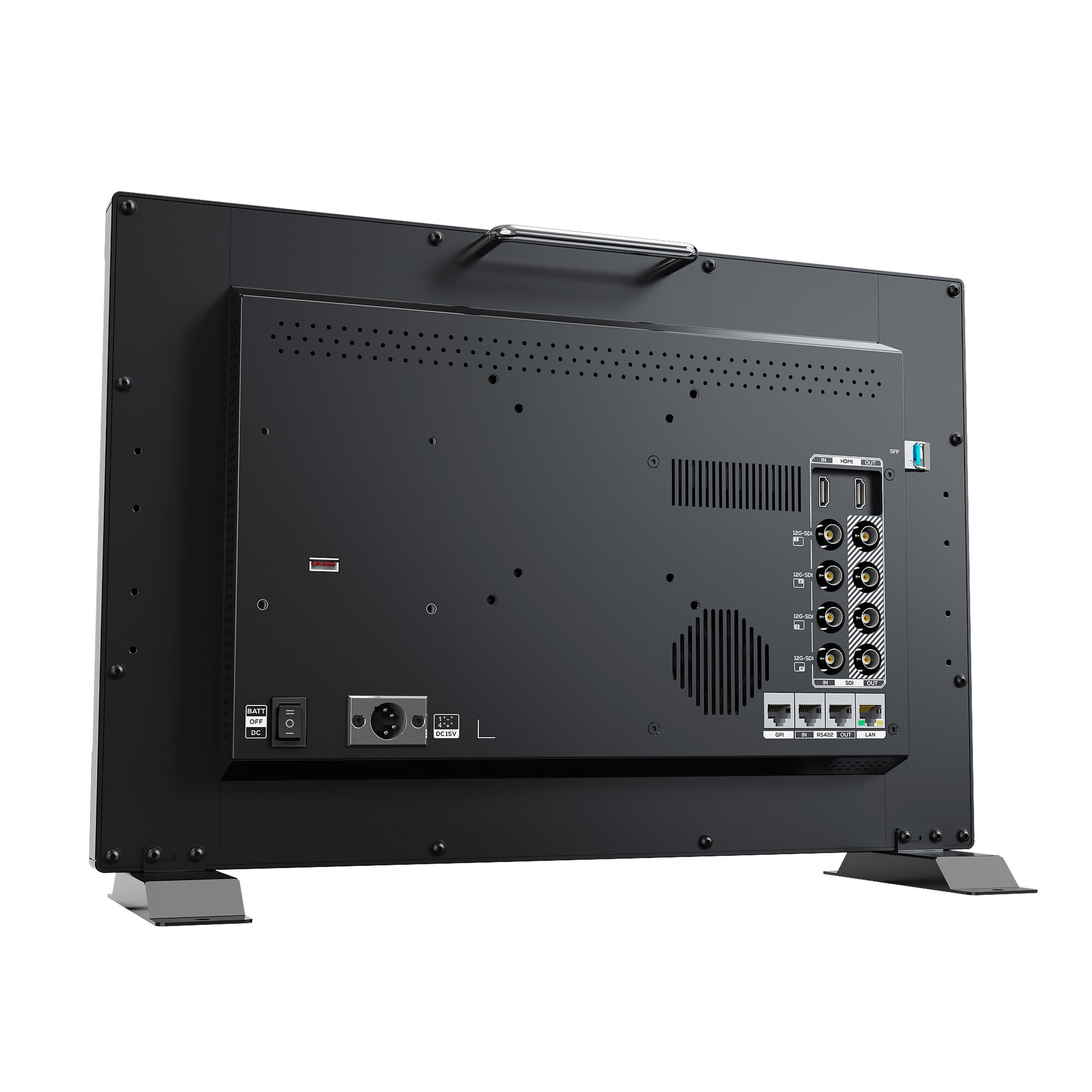

The Lilliput Q18-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.

With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.

Specifications

• Display
  • Aspect Ratio -  16:9
  • Brightness -  400 cdm²
  • Colour Space -  REC .709 and DCI-P (90%)
  • Contrast Ratio -  1200:1
  • Resolution -  3840 x 2160
  • Viewing Angle -  170° / 170°
  • HDR -  ST2084 300/1000/10000/HLG
  • LUT Support -  3D LUT (.cube format)
  • Screen Size -  17.3"
  • Supported Log Formats -  SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
• Supported Formats
  • HDMI Formats Supported -  2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
  • SDI Formats Supported -  4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
  • SFP Formats Supported -  2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
  Monitor Specification
  • Video Inputs -  SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
  • Video Outputs -  SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output
  Size
  • Dimensions -  434 x 294 x 45.7mm
  • Weight -  3.9kg
• Power
  • Input Voltage -  DC 12V - 24V
  • Power Consumption -  <= 40W (15V)
• Environment
  • Operating Temperature -  0°C - 50°C
  • Storage Temperature -  -20°C to 60°C
