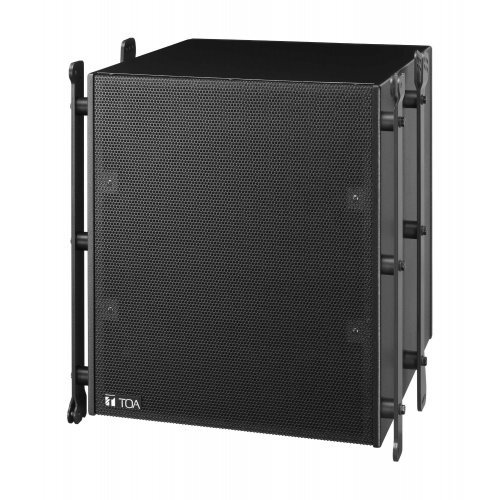

TOA Canada SR-C15B Subwoofer for SR-C8L or SR-C8S Speakers
Model: SR-C15B
About: TOA Canada SR-C15B Subwoofer for SR-C8L or SR-C8S Speakers
The SR-C15B Sub-woofer system is designed to be used in conjunction with the SR-C8L or SR-C8S Line array speaker. Recommended digital speaker processor is the DP-SP3 (option).
- 38cm (15“) subwoofer
- Input connectors include screw terminal connections and two Neutrik NL4 type sockets
- High power handling
- Enclosure equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets
- Accessory brackets for suspension and stand mounting
Specifications
- Enclosure - Bass-reflex type
- Power Handling - Continuous program: 450 W
- Rated Impedance - 8 Ω
- Sensitivity - 93 dB (1 W, 1 m)
- Frequency Response - 40 - 400 Hz (when recommended parameters are applied by the optional DP-SP3)
- Crossover Frequency - 125 Hz (when recommended parameters are applied by the optional DP-SP3)
- Speaker Component - 38 cm (15) cone-type
- Input Connector
- M4 screw terminal, distance between barriers: 10.0 mm (0.39")
- 2x Neutrik NL4MPXX
- Finish
- Enclosure: Plywood, black, urethane paint
- Front grille: Punched steel plate, black, paint
- Dimensions - 526.6 (W) x 594.8 (H) x 550 (D) mm (20.73 x 23.42" x 21.65")
- Weight - 41 kg (90.39 lb)
- Included Accessories - 4x M8 connection bolt
Reviews: TOA Canada SR-C15B Subwoofer for SR-C8L or SR-C8S Speakers
Warranty: TOA Canada SR-C15B Subwoofer for SR-C8L or SR-C8S Speakers
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
