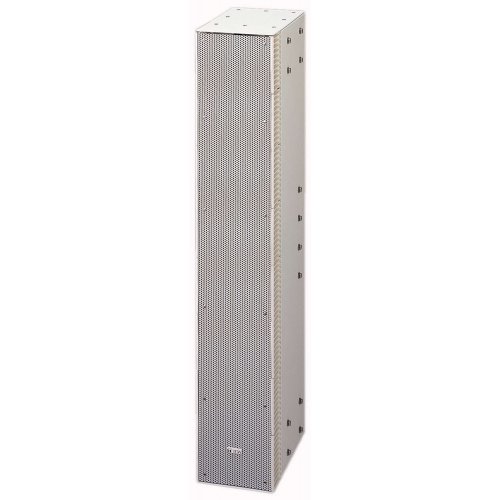

TOA Canada SR-S4L Slim Type Line Array Speaker - 0 Degree (Weatherproof)

About: TOA Canada SR-S4L Slim Type Line Array Speaker - 0 Degree (Weatherproof)

The SR-S4LWP is a weather-proof two-way line array speaker ideal for long distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.

• 2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
• Sync-Drive technology creates ideal linear sound source
• Clear sound with reduced attenuation over distance
• Speakers are reflection-free and feedback resistant
• Splashproof versions (SR-S4LWP/SR-S4SWP)
• Bi-amp or single amp drive possible
• Wide variety of mounting brackets available

Specifications

• Enclosure - Sealed type
• Power Handling
  • Continuous program: 600 W (single-amp mode)
  • Low 240 W, High 240 W (bi-amp mode)
• Rated Impedance
  • 8 Ω (single-amp mode)
  • Low 8 Ω, High 8 Ω (bi-amp mode)
• Sensitivity - 94 dB (1 W, 1 m)
• Frequency Response - 70 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)
• Crossover Frequency - 3.5 kHz
• Directivity Angle - Horizontal: 90°, Vertical: 0° (within the range of speaker height)
• Speaker Component
  • Low frequency: 10 cm cone-type x 8
  • High frequency: 2.5 cm balanced dome-type x 24
• Connected Cable - Direct cable withdrawal from internal speaker: Φ8.6 mm, conductor cross section: 1.25 m㎡, 4-core cable, 3 m
• Water Protection - IPX4
• Operating Temperature - -10 ℃ to +50 ℃
• Finish
  • Enclosure: Plywood, white, urethane coating
  • Front grille: Punched stainless steel, white, paint
• Dimensions - 160 (W) x 895 (H) x 255 (D) mm (excluding connected cable)
• Weight - 16 kg (35.27 lbs)
• Included Accessories
  • 1x Bi-amplifier drive rating label
  • 1x Bi-amplifier drive input indication label
