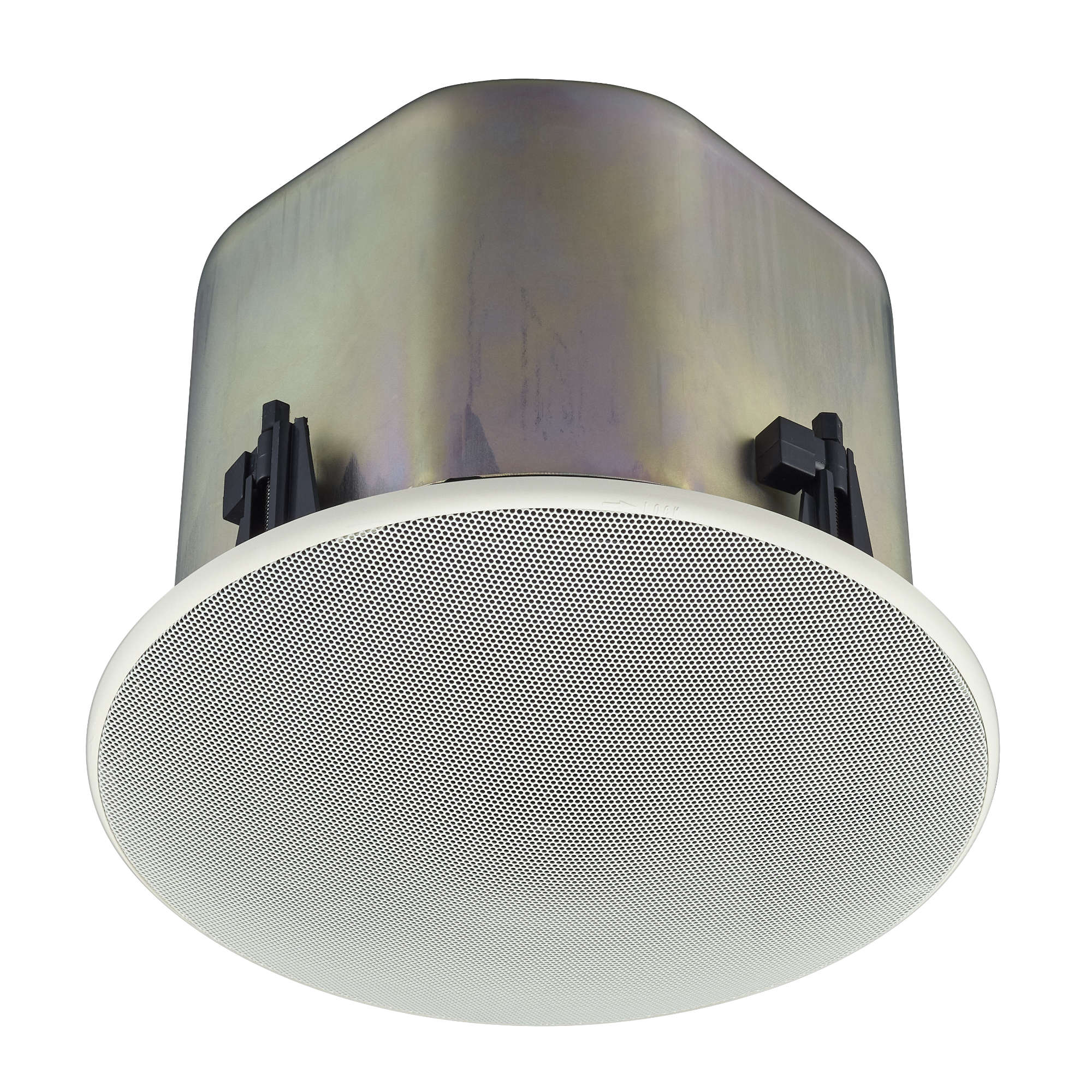

TOA Canada F-2852C Wide-Dispersion Ceiling Speaker (Single)
Model: F-2852C
About: TOA Canada F-2852C Wide-Dispersion Ceiling Speaker (Single)
The F-2852C ceiling and wall-mounted speaker covers a wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
- Ideal for high ceiling applications
- Ported bass-reflex design
- Co-axial: 6.5” cone driver and dome tweeter
- Special diffuser provides wide off-axis high frequency response
- Metal back-can and safety cable
- Removable terminal block with loop-through terminations
- Overload protection circuitry
Specifications
- Enclosure - Bass reflex type
- Rated Input - 60 W (High Impedance)
- Power Handling
- Continuous pink noise: 90 W (8 Ω)
- Continuous program: 180 W (8 Ω)
- Impedance
- 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
- 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
- 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W)
- 8 Ω
- Sensitivity - 91 dB (1 W, 1 m)
- Frequency Response - 60 Hz - 20 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB)
- At installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
- Speaker Component - High frequency: Dome-type, Low frequency: 16 cm cone-type
- Mounting Hole - Ø250 mm (Maximum ceiling thickness: 37 mm)
- Input Terminal - Removable locking connector with screw-down terminals
- (2 input terminals and 2 bridge terminals)
- Cable Requirements
- Solid copper wire: Ø0.5 - Ø1.6 mm (equivalent to AWG No. 24 - 14)
- Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14)
- Finish
- Enclosure: Steel plate, plating
- Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
- Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
- Punched net: Steel plate, white, paint
- Dimensions - Ø280 x 227 (D) mm
- Weight - 5.1 kg (including mounting accessories)
- Included Accessories
- 1x Panel
- 1x Ceiling reinforcement ring
- 1x Safety wire
- 1x Paper pattern
UPC: 4538095803801
