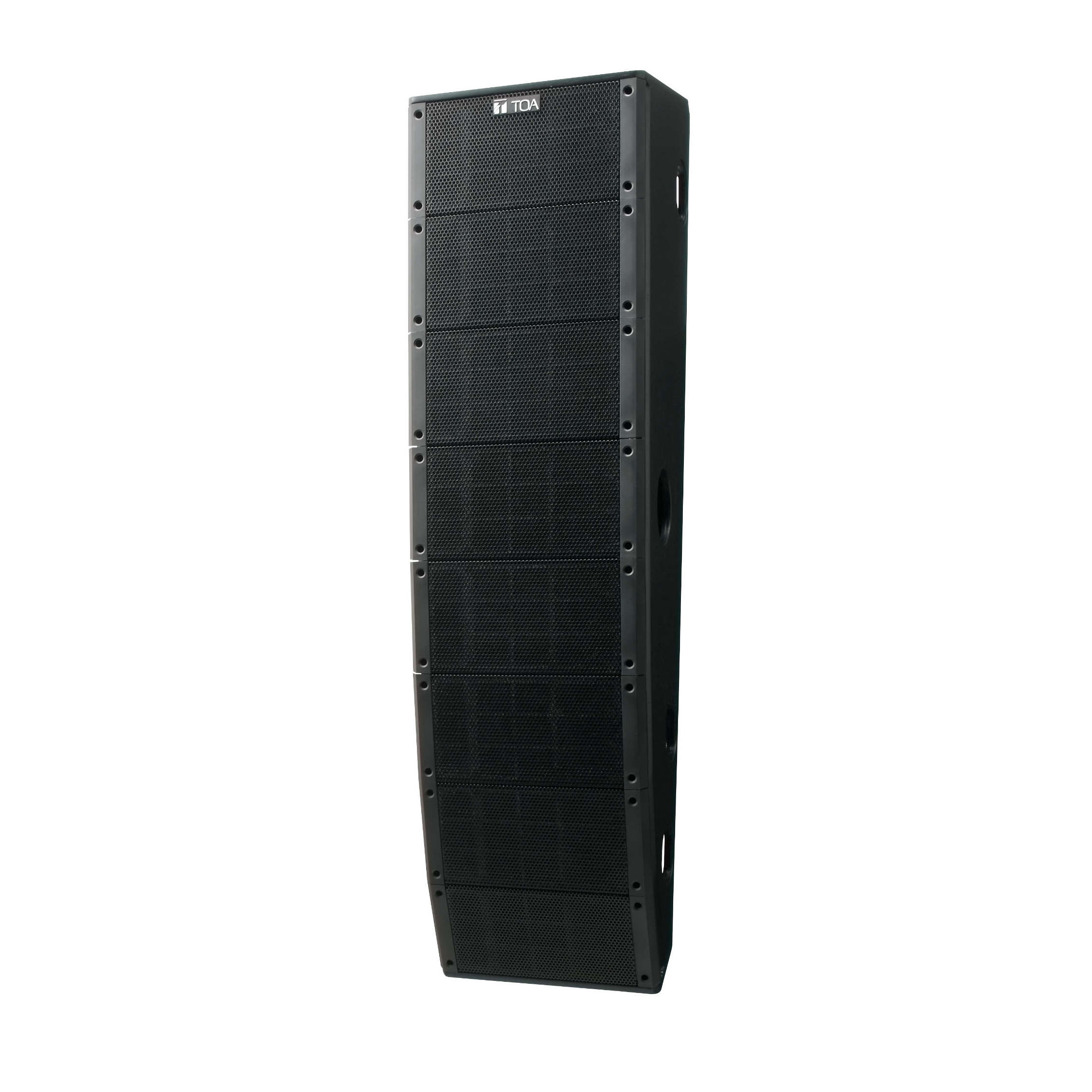

TOA Canada SR-T5 2-Way Line Array Speaker

About: TOA Canada SR-T5 2-Way Line Array Speaker

The SR-T5 is a 2-way Line Array speaker in which woofers and tweeters are arranged vertically in close proximity to each another. Its excellent speech clarity makes it ideal for installation in sports facilities with strong reverberation, such as gymnasiums. Sturdy impact-resistant construction allows the speaker to be used as a main speaker in small- or medium-scale indoor sports facilities.

• Uniform sound volume and clear audio output
• Sturdy impact-resistant construction
• Internal two-way passive crossover network circuitry for single-amplifier operation
• Speaker's downward angle adjustable with accessory mounting bracket.
• Horizontal angle adjustable in conjunction with optional SR-PB5 Wall Pan Bracket.
• Optional MT-S0601 Matching Transformer for use in high-impedance applications.
• Safety wire supplied to prevent the speaker from falling during installation work and after installation.

Specifications

• Enclosure - Bass-reflex type
• Power Handling
  • Continuous pink noise: 250 W
  • Continuous program: 750 W
• Rated Impedance - 8 Ω
• Sensitivity - 96 dB (1 W, 1 m equivalent, measured at 4 m)
• Frequency Response - 70 Hz - 20 kHz
• Crossover Frequency - 3 kHz
• Directivity Angle
  • Horizontal: 100°
  • Vertical: 35°
• Speaker Component
  • Low frequency: 13 cm (5.12") cone-type x 8
  • High frequency: Balanced dome-type x 24
• Recommended Installation Height - 4 - 5.5 m (13.12 - 18.04 ft)
  • (Speaker top, when installed in sport facilities 30 m (98.43 ft) in length)
• Adjustable Angle Range
  • Downward: 0°, 1°, 2°, 3° (when the supplied mounting bracket is used)
  • Horizontal (left or right): 5°, 10° (when the optional SR-PB5 Wall Pan Bracket
• Input Terminal - M4 screw terminal, distance between barriers: 10.0 mm (0.39")
• Finish
  • Enclosure: Plywood, black, urethane paint
  • Baffle: Polypropylene, black
  • Punched net: Steel plate, black, acrylic paint
  • Mounting bracket: Steel plate, black, acrylic paint
• Dimensions - 310 (W) x 1239 (H) x 341 (D) mm (12.2" x 48.78" x 13.43")
• Weight - 29 kg (63.93 lb) (including accessories)
• Included Accessories
  • 1x Mounting bracket A
  • 1x Mounting bracket B
  • 6x Bracket mounting bolt
  • 5x Side cover
  • 10x Side cover mounting screw
  • 1x Eye bolt
  • 1x Safety wire
