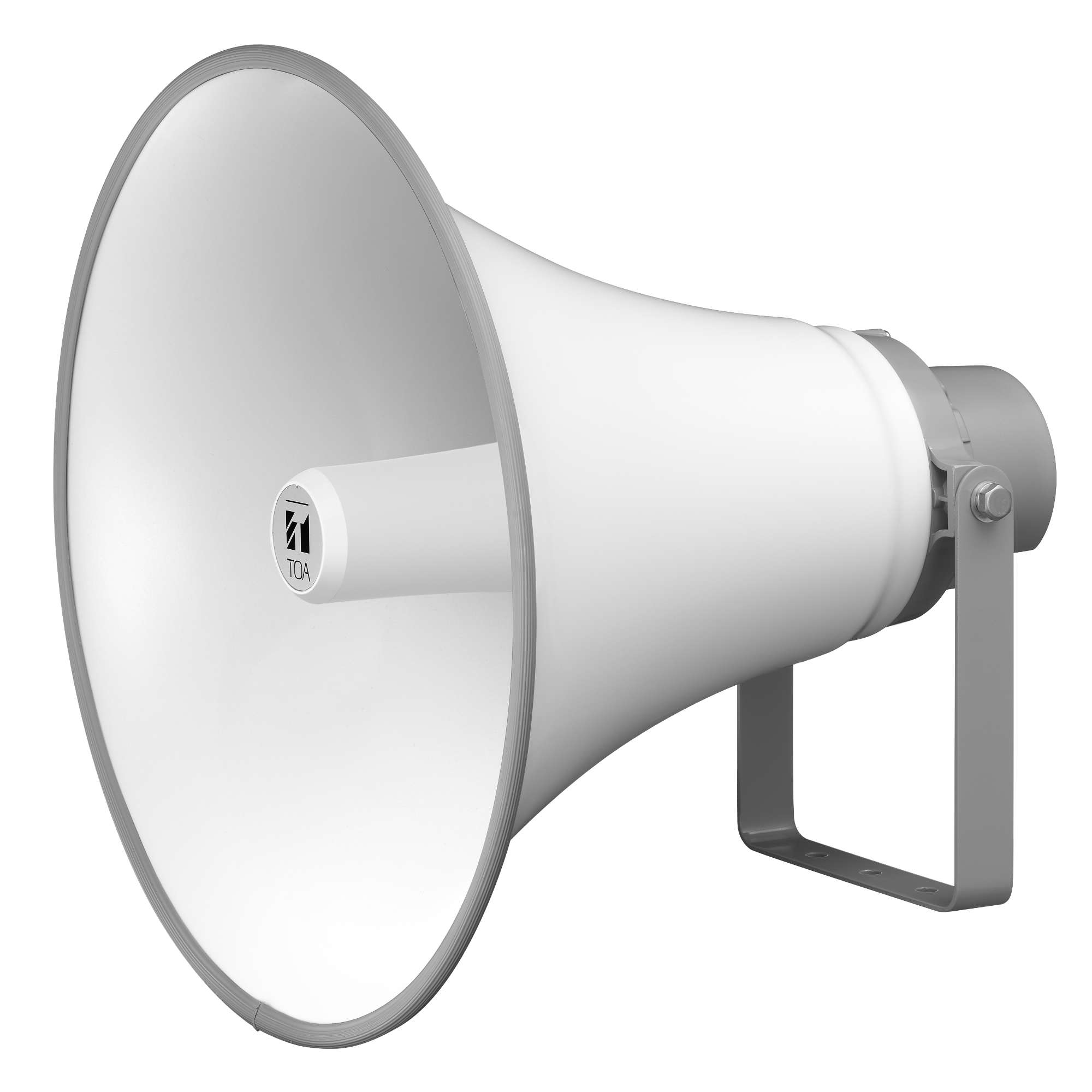

TOA Canada TC-631M 30W Public Address Horn Speaker w/ 600mm Cable
Model: TC-631M
About: TOA Canada TC-631M 30W Public Address Horn Speaker w/ 600mm Cable
The TC-631M is a highly intelligible, general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit's weatherproof capability.
- High intelligibility
- Weatherproof for outdoor application
- Stainless steel hardware (screws, bolts, nuts), and powder-coated horn and bracket ensure superb weatherproofing and corrosion-resistance
- Shock-resistant aluminum round horn
- With 600 mm cable
Specifications
- Rated Input - 30 W
- Rated Impedance
- 100 V line: 330 Ω (30 W), 670Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W),
- 1 kΩ (5 W), 2 kΩ (2.5 W)
- Sensitivity - 110 dB (1 W, 1 m)
- Frequency Response - 200 Hz - 6 kHz
- Polarity - Hot: Black, Com: White
- Dust/Water Protection - IP65
- Operating Temperature - -20 °C to +60 °C (-4 °F to 140 °F) (must be free from dew condensation)
- Finish
- Horn flare: Aluminum, off-white, powder coating
- Reflector horn: ABS resin, off-white
- Bracket holder: Aluminum, gray, powder coating
- Bracket: Steel, gray, powder coating
- Rear cover: ABS resin, gray
- Screw and bolts: Stainless steel
- Speaker Cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24) in diameter
- Dimensions - Ø500 (W) x 463 (D) mm (Ø19.69 x 18.23")
- Weight - 4.5 kg (9.92 lb)
