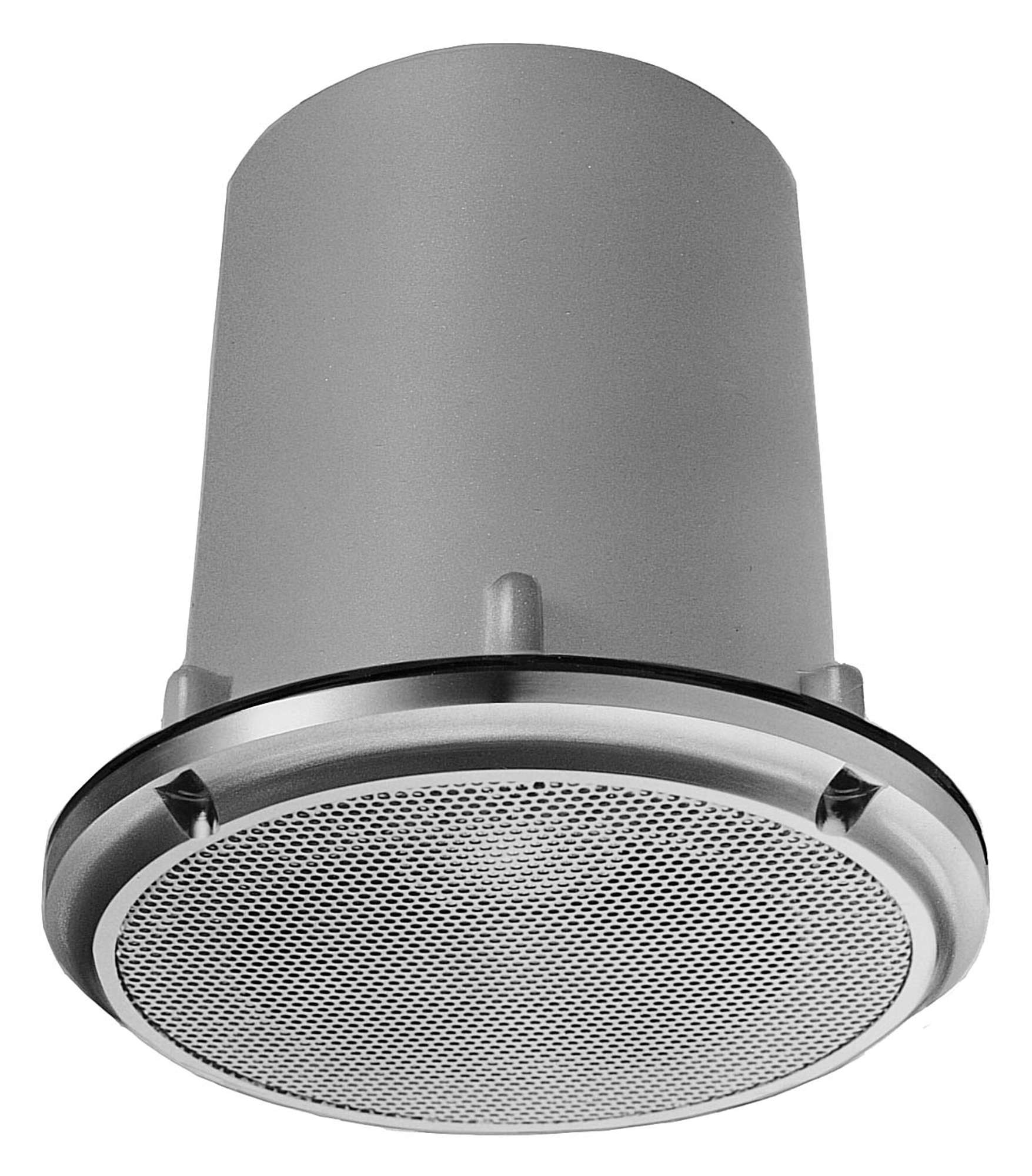

TOA Canada PC-5CL Clean Room Ceiling Speaker
Model: PC-5CL
About: TOA Canada PC-5CL Clean Room Ceiling Speaker
Full-range 8 cm, 2 kohm/5 W speaker with sealed rear chamber, and high-molecular substance speaker vibration section to prevent floating dust particles from contaminating medical, chemical, or IC/photo film production.
- Clean room speaker
- Sealed high-molecular speaker membrane to prevent floating dust particles from contaminating the environment
- Resistant against formaline
Specifications
- Enclosure
- Completely sealed type
- 0
- Rated Input - 5 W
- Rated Impedance - 100 V line: 2 kΩ (5 W), 70 V line: 2 kΩ (2.5 W)
- Sensitivity - 87 dB (1 W, 1 m)
- Frequency Response - 150 - 20,000 Hz
- Speaker Component - 8 cm cone-type (vibration section : high molecular substance)
- Mounting Hole - Φ98 mm
- Dust Particle Prevention - No dust particle is produced by the method set out in JIS B-9926.
- Operating Temperature - -20 ℃ to +55 ℃
- Finish
- Panel : Alloy-coated ABS resin
- Enclosure : ABS resin, off-white
- Punching net : Stainless steel (SUS304)
- Exposed fixing screw : Stainless steel (SUS304)
- Dimensions - Φ116 x 110 (D) mm
- Weight - 620 g
- Included Accessories
- 1x Fixing gasket
- 4x Ceiling mounting screws (Material:Stainless steel)
