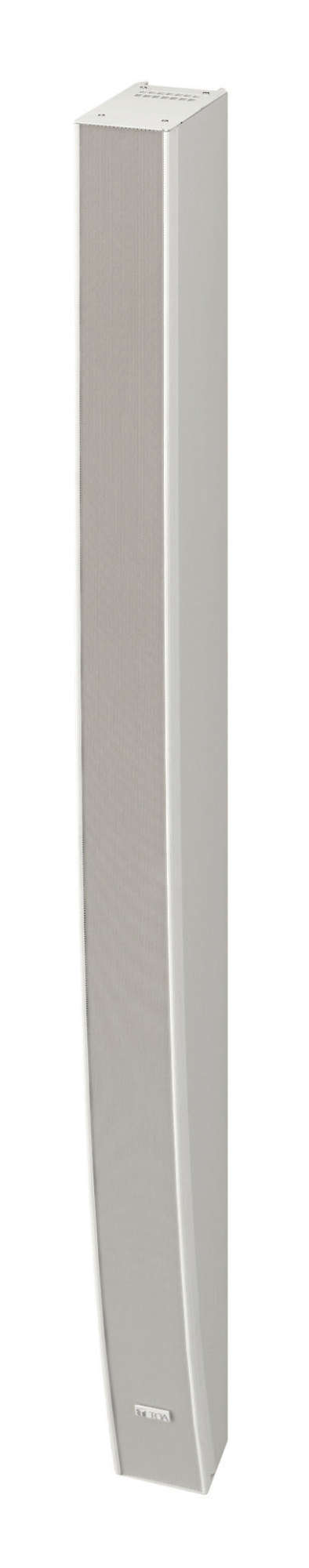

TOA Canada SR-H3S 360W Line Array Speaker - Short Distance
Model: SR-H3S
About: TOA Canada SR-H3S 360W Line Array Speaker - Short Distance
The SR-H3S Line array speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.
- Slim line array with excellent directivity
- Narrow 84 mm design allows speakers to fit in well with the interior decor of the venue
- Sync-Drive technology creates ideal linear sound source
- Clear sound with reduced attenuation over distance
- Refl ection-free and feedback resistant
- Curved speaker models for improved vertical dispersion
Specifications
- Enclosure - Bass-reflex type
- Power Handling - Continuous program: 360 W
- Rated Impedance - 8 Ω
- Sensitivity - 92 dB (1 W, 1 m equivalent, measured at 8 m)
- Frequency Response - 90 Hz - 17 kHz (when recommended parameters are applied by the optional DP-SP3)
- Directivity Angle - Horizontal: 90°, Vertical: 20°
- Speaker Component - 7 cm (2.8) cone-type x 16"
- Input Terminal - Removable input connector
- Finish
- Enclosure: MDF, white, urethane paint
- Front grille: Punched steel plate, white, acrylic paint
- Dimensions - 84 (W) x 1177.2 (H) x 157 (D) mm (3.31 x 46.35" x 6.18")
- Weight - 7.9 kg (17.42 lb)
Reviews: TOA Canada SR-H3S 360W Line Array Speaker - Short Distance
Warranty: TOA Canada SR-H3S 360W Line Array Speaker - Short Distance
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
