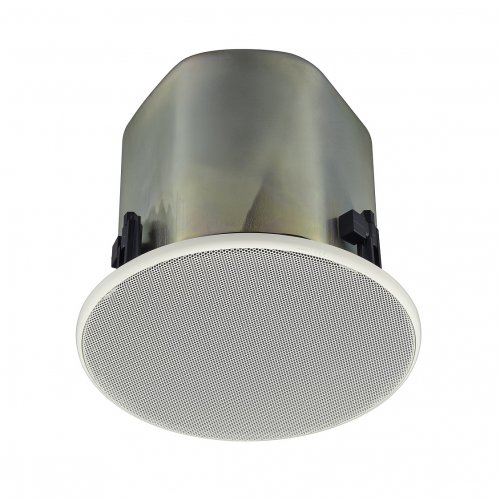

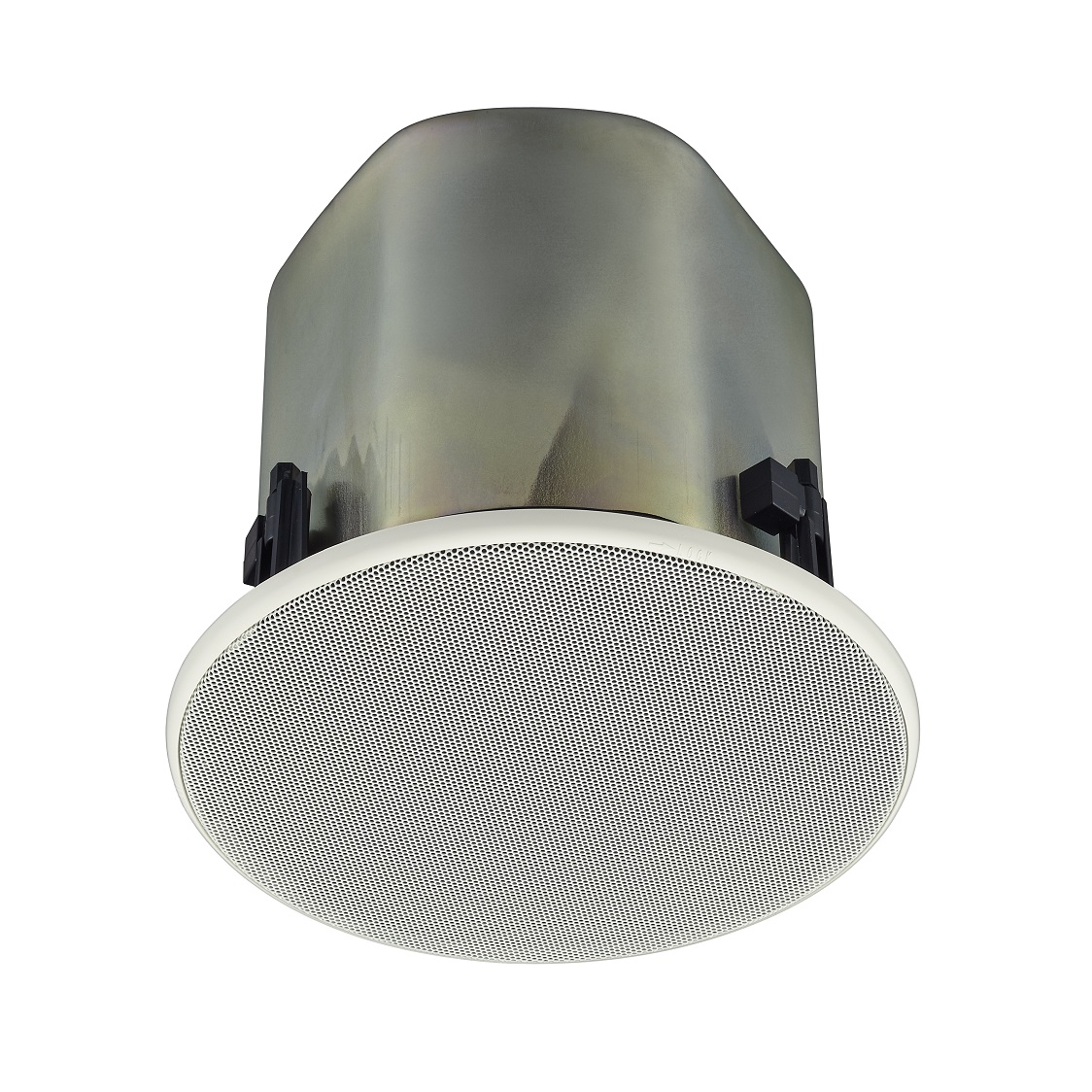

TOA F-2322C UL-Certified Wide-Dispersion Ceiling Speaker (Pair)

About: TOA F-2322C UL-Certified Wide-Dispersion Ceiling Speaker (Pair)

The F-2322CU2 ceiling-mounted speaker covers an extremely wide area and can be used for25 and 70 V line applications. Well-balanced sound can be heard uniformly at any location.

• Ported bass-reflex design
• 5” full-range driver
• Metal black-can and safety cable
• UL-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces (UL1480 UUMW/UEAY, UL2043)
• Removable terminal block with loop-through terminations
• Overload protection circuitry
• For medium ceiling height (2 to 4 m)

Specification

• Enclosure - Bass reflex type
• Rated Input - 30 W (High Impedance)
• Power Handling
  • Continuous pink noise: 60 W (8 Ω)
  • Continuous program: 120 W (8 Ω)
• Impedance
  • 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
  • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
  • 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
  • 8 Ω
• Sensitivity - 90 dB (1 W, 1 m)
• Frequency Response - 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
  • At installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
• Speaker Component - 12 cm cone-type
• Mounting Hole - Ø200 mm (Maximum ceiling thickness: 37 mm)
• Input Terminal - Removable locking connector with screw-down terminals
  • (2 input terminals and 2 bridge terminals)
• Cable Requirements
  • Solid copper wire: Ø0.5 - Ø1.6 mm (equivalent to AWG No. 24 - 14)
  • Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14)
• Compliance/Certifications - UL1480 (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
• Finish
  • Enclosure: Steel plate, plating
  • Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
  • Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
  • Punched net: Steel plate, white, paint
• Dimensions - Ø230 x 200 (D) mm
• Weight - 4.3 kg (9.48 lb) (including mounting accessories)
• Included Accessories
  • 1x Front grille
  • 1x Tile bridge
  • 1x Safety wire (approx. 60 cm (23.62)
