Muxlab Dante 2-Channel Analog Audio Encoder
Model: 500551
About: Muxlab Dante 2-Channel Analog Audio Encoder

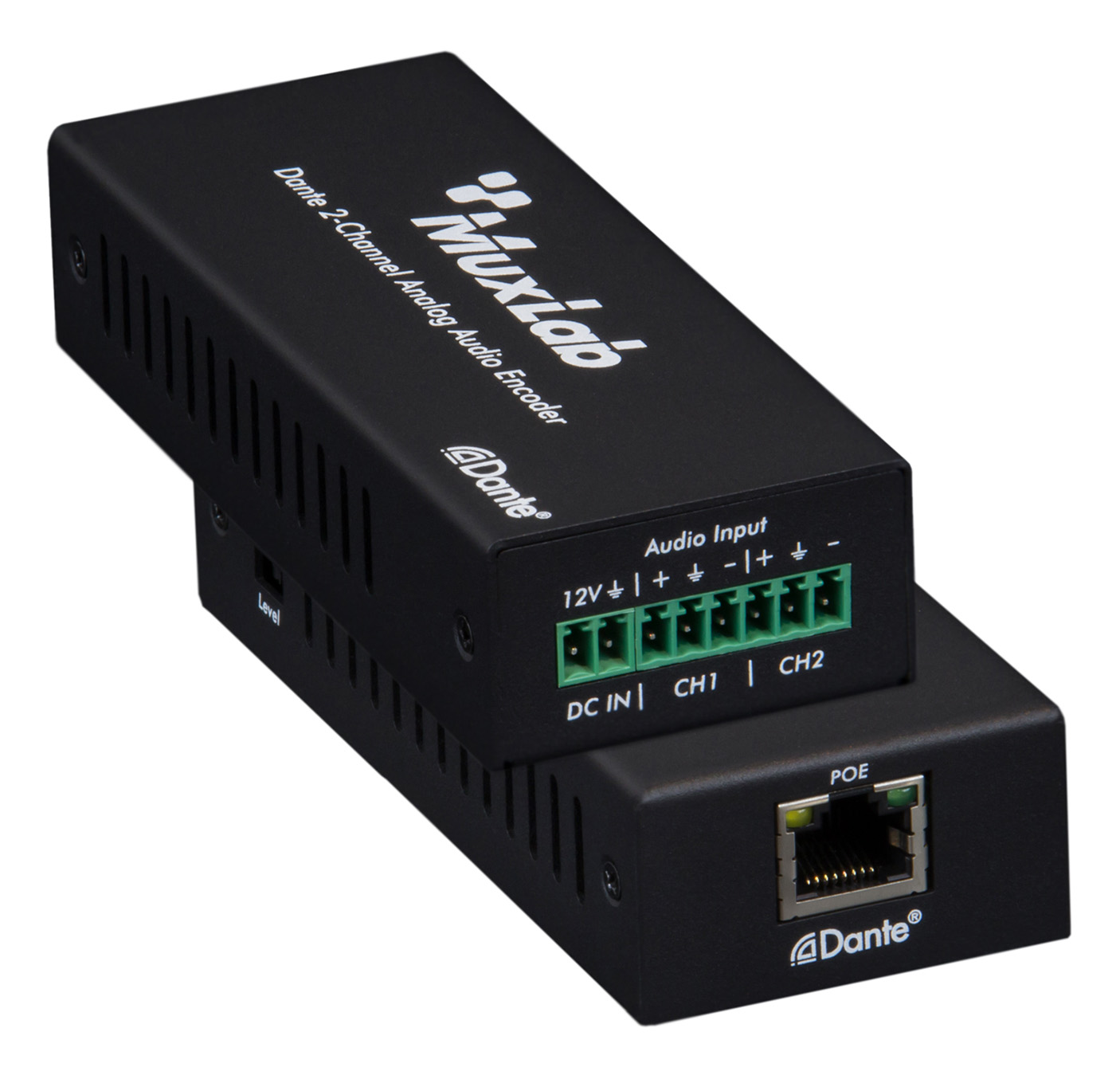

This Dante 2-Channel Analog Audio Encoder permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two-channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.
- Interface analog audio equipment to Dante audio equipment
- Supports balanced/unbalanced 2ch analogue audio input
- Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)
- Audio input supports 3-level gain adjustment:+18dBu, 0dBu (default) and-10dBV
- Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
- Supports AES67 RTP audio transport
Specification
- Technical
- Video Network Bandwidth - 100M
- Audio Formats - PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
- Transmission Distance - 100m (CAT6/6A)
- Control Method - Dante Controller
- Connection
- Inputs
- 1 x PWR [2-pin phoenix, 3.81mm]
- 1 x AUD [6-pin phoenix, 3.81mm]
- Output

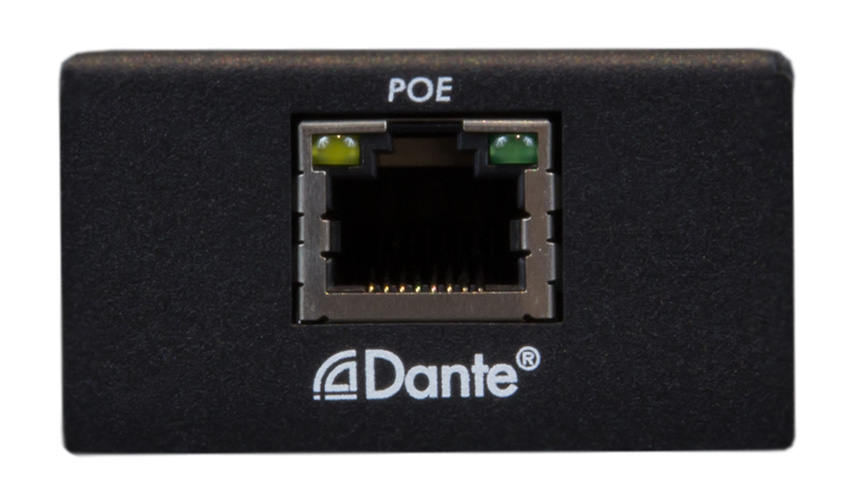

- 1 x DANTE [RJ45 connector, POE]
- Inputs
- Mechanical
- Housing - Metal Enclosure
- Color - Black
- Dimensions (WxDxH) - 120 x 47 x 26 mm
- Weight - 186g
- Power Supply
- DC input: 12V
- PoE input: IEEE802.3af Class 0
- Power Consumption - 1.2W
- Operation Temperature - 32 - 104°F / 0 - 40°C
- Storage temperature - -4 - 140°F / -20 - 60°C
- Relative Humidity - 20 - 90% RH (no condensation)
UPC: 627699005514
