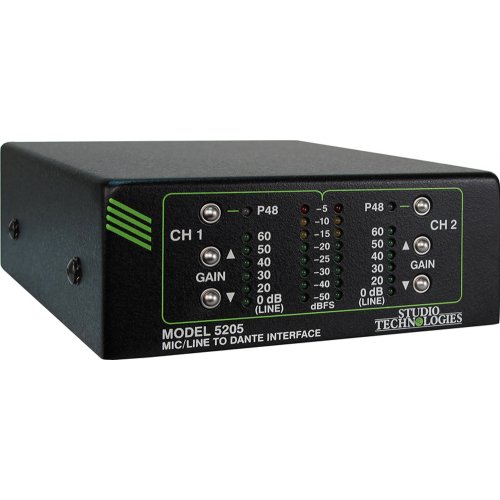

Studio Technologies Model 5205 Mic/Line to Dante Interface

Model: M5205

Studio Technologies Model 5205 Mic/Line to Dante Interface
Studio Technologies Model 5205 Mic/Line to Dante Interface
Studio Technologies Model 5205 Mic/Line to Dante Interface
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 7-10 Days
  • Not yet reviewed




About: Studio Technologies Model 5205 Mic/Line to Dante Interface

The Model 5205 Mic/Line to Dante Interface is a general-purpose audio device that supports applications utilizing the Dante® audio-over-Ethernet media networking technology. Two analog microphone or line-level audio signals can be connected to the Model 5205. They are amplified as required and then converted to digital audio channels on an associated Dante connection. With the inherent interoperability of Dante, the Model 5205 can be used with other Studio Technologies Dante-enabled products or a multitude of devices from many other manufacturers.

Microphone or line-level balanced analog audio signals are connected using two 3-pin XLR connectors. The gain of the associated preamplifier circuitry can be selected for 0, 20, 30, 40, 50, or 60 dB. P48 phantom power is provided to support condenser microphones. LEDs display the status of the gain and phantom power functions. Multi-step LED meters provide confirmation of the level of the two Dante transmitter (output) audio channels.

The gain of the preamplifiers and on/off status of the P48 phantom power sources can be selected locally using the pushbutton switches. They can also be monitored and selected remotely using the STcontroller application.

The audio quality of the Model 5205's two audio channels is excellent, with low distortion, low noise, and high headroom. Careful circuit design and rugged components ensure long, reliable operation. A wide range of applications can be supported, including TV, radio, and streaming broadcast events, corporate and government AV installations, and post-production facilities.

The Model 5205 requires an Ethernet connection to supply both the data interface as well as Power-over-Ethernet (PoE) power. This requires an Ethernet connection from a PoE-enabled Ethernet switch. Alternately, the Model 5205 can be powered by an external midspan PoE power injector.

Key Features

  • Dante audio-over-Ethernet technology
  • Two analog mic/line inputs to Dante digital audio outputs
  • Selectable preamplifier gain and P48 phantom power
  • Audio channel level metering
  • Excellent audio quality
  • Power-over-Ethernet (PoE) powered
  • Standard connectors; compact, lightweight design
  • Configured using STcontroller application

Specifications:

Network Audio Technology:

  • Type: Dante audio-over-Ethernet
  • AES67-2013 Support: yes
  • Dante Domain Manager (DDM) Support: yes
  • Bit Depth: 24
  • Sample Rates: 44.1, 48, 88.2, and 96 kHz
  • Number of Dante Transmitter (Output) Channels: 2
  • Dante Audio Flows: 2 transmitter
  • Analog to Digital Equivalence: a +4 dBu input with 0 dB gain selected results in a Dante digital output level of –20 dBFS

Network Interface:

  • Type: twisted-pair Ethernet with Power-over-Ethernet (PoE)
  • Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Power: Power-over-Ethernet (PoE) per IEEE 802.3af class 2 (low power, ≤6.49 watts)

General Audio Parameters:

  • Frequency Response (48 kHz Sample Rate): +0.0/–0.5 dB, 20 Hz to 22 kHz
  • Frequency Response (96 kHz Sample Rate): +0.0/–0.5 dB, 20 Hz to 40 kHz
  • Distortion (THD+N): 0.001% (–100 dB) at –1 dBFS, 40 dB gain, 22 kHz bandwidth
  • Dynamic Range: >114 dB, 0 dB gain, A-weighted
  • EIN: –123 dBu, 22 kHz bandwidth, 60 dB gain, 150 ohm source resistance
  • IMD (SMPTE): <0.002%, 60 Hz/7 kHz, 4:1, –20 dBFS

Mic/Line Inputs: 2

  • Type: electronically balanced
  • Input Impedance: 3.7 k ohms
  • CMRR: >75 dB, 20 Hz to 22 kHz, 40 dB gain
  • Gain, Nominal (Button Selected): 0 (line), 20, 30, 40, 50, and 60 dB
  • Gain, Actual (Button Selected): 0 (line), 19, 31, 40, 49, and 61 dB
  • Gain (Remote Control Selected): 0 dB (line), 10 dB, 19-70 dB in 3-dB steps
  • Compatibility: dynamic, ribbon, or phantom-powered mics
  • Phantom Power: P48 per IEC 61938 standard, +45 volts DC nominal, on/off selectable

Remote Configuration Capability: preamplifier gain and P48 phantom power on/off status (uses STcontroller application)

Meters: 2

  • Function: displays level of Dante transmitter (output) signals
  • Type: 8-segment LED, modified VU ballistics

Connectors:

  • Mic/Line Inputs: 3-pin female XLR
  • Ethernet: Neutrik etherCON RJ45
  • USB: type A receptacle

Dimensions (Overall):

  • 4.2 inches wide (10.7 cm)
  • 1.7 inches high (4.3 cm)
  • 5.1 inches deep (13.0 cm)

Mounting Option: bracket kit

Weight: 0.8 pounds (0.35 kg)
