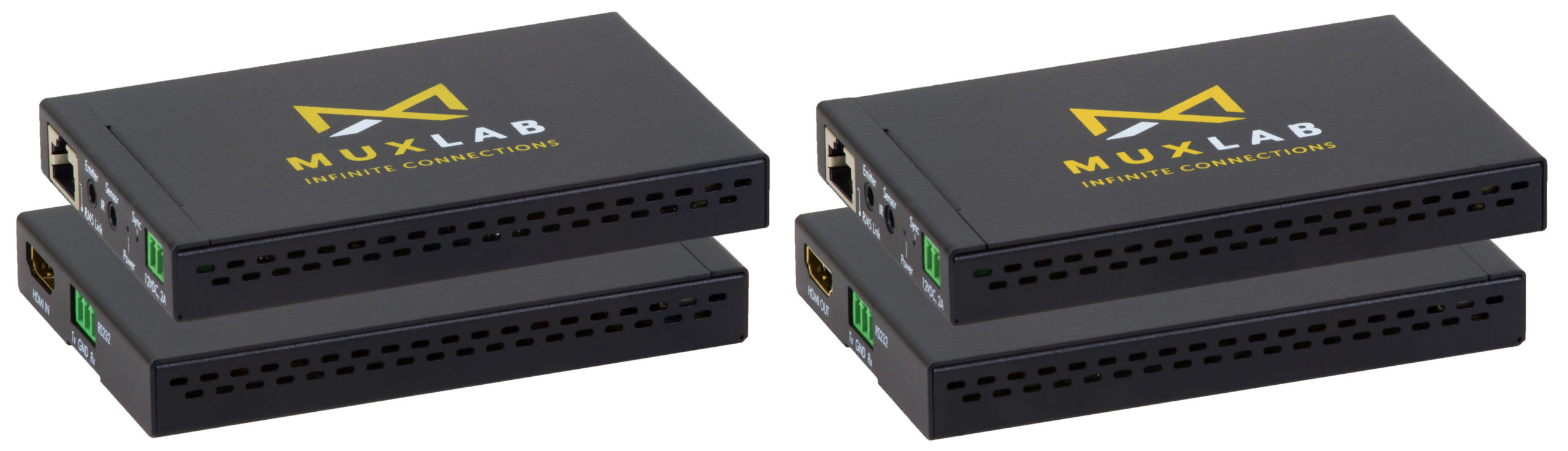

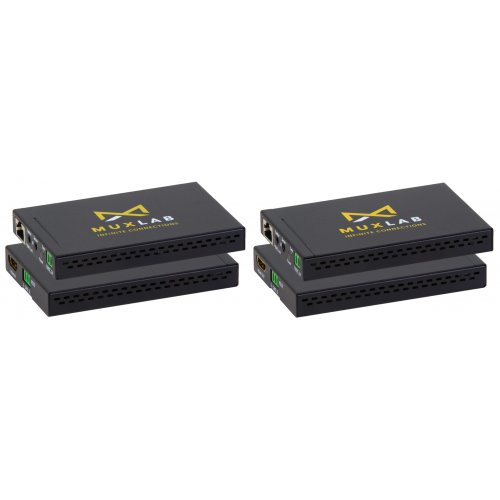

Muxlab HDMI Extender Kit 70m, HDBT, UHD-4K

About: Muxlab HDMI Extender Kit 70m, HDBT, UHD-4K

The HDMI Extender Kit 70m, HDBT, UHD-4K allows HDMI equipment to be connected up to 131ft (40m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0) resolution, or up to 230ft (70m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. Pass-through of bi-directional IR and RS232 along with CEC is supported for control of end devices.

The HDMI Extender Kit 70m, HDBT, UHD-4K supports PoC, allowing one unit to power the other. The kit comes with one (1) transmitter, one (1) receiver, two (2) IR Emitters, and two (2) IR sensors, two (2) phoenix plugs for RS232 and one (1) 12VDC @ 2A power supply.

• Supports 4K/30 (4:4:4) and 4K/60 (4:2:0) at up to 131ft (40m) over Cat5e/6 UTP
• Supports 1080p/60 with 3D pass-through at up to 230ft (70m) over Cat5e/6 UTP
• HDCP 1.4 & 2,2 compliant
• Supports bi-directional IR and RS232 pass-through, along with CEC to control end devices
• Supports pass-through of all digital audio modes
• Includes IR emitters and IR sensors (carrier-wave)
• Supports PoC, allowing one unit to power the other

Specifications

• Environment - HDMI 1.4a (3D)
• HDMI Devices - DVD players, Blu-ray players, Media players, projectors, monitors, TVs, PCs, laptops, servers.
• Transmission - Transparent to the user.
• Bandwidth - Up to 340MHz
• Signals - HDMI 1.4a protocol.
• Connectors
  • One (1) HDMI receptacle.
  • One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
  • Two (2) 3.5mm sockets for IR Sensor & Emitter.
• Cables (not included)
  • One (1) Cat 5e/6 or better twisted pair cable required for link connection.
  • Two (2) HDMI cables required for source and sink device connections.
• Max. Distance (Based on a maximum length of 6.6 ft (2m) of HDMI cable per end)
  • 4K/30 (4:4:4) and 4K/60 (4:2:0): 131ft (40m) via Cat 5e/6
  • 1080p/60 with Deep Color and 3D pass-through: 230ft (70m) via Cat 5e/6.
    • When installed in an electrically noisy environment, STP cable must be used. Also, cross- connection reduces the effective distance depending on the grade of twisted cable used.

• ​RJ45 Pin Configuration (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight- through wiring)
  • RJ45
    • Pin 1 (R) / Pin 2 (T)
    • Pin 3 (R) / Pin 6 (T)
    • Pin 4 (R) / Pin 5 (T)
    • Pin 7 (R) / Pin 8 (T)
• Power Supply - One (1) 110-240VAC @ 50-60Hz, to 12VDC @ 2A power supply with interchangeable blades.
• Power Consumption
  • Transmitter: 1.8 Watt
  • Receiver: 3.6 Watt
• Temperature
  • Operating: 0 to 40 C.
  • Storage:-20 to 85 C.
  • Humidity: up to 90% non-condensing.
• Enclosure - Metal
• Dimensions - 4.45 x 2.83 x 0.59 inch (11.3 x 7.2 x 1.5 cm)
• Weight - 1.3 lbs (0.6kg)
