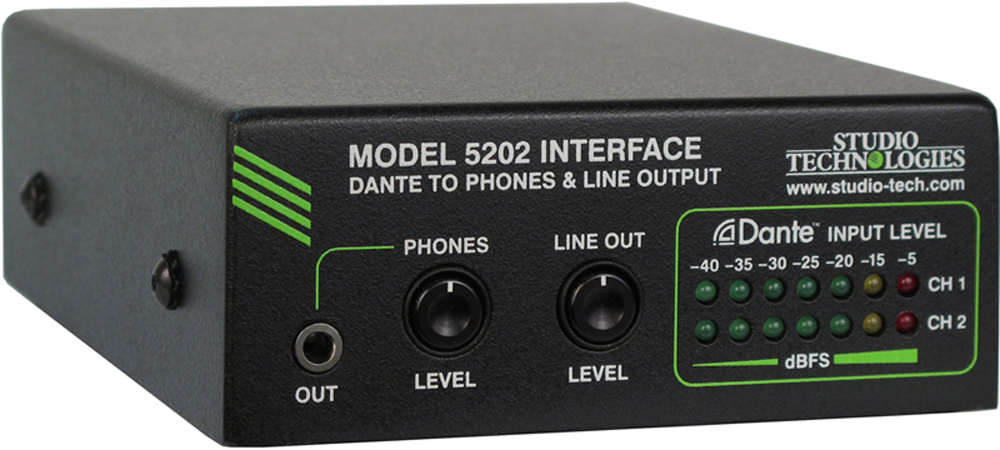

Studio Technologies Model 5202 Dante to Phones and Line Output Interface

Model: M5202

Studio Technologies Model 5202 Dante to Phones and Line Output Interface
Studio Technologies Model 5202 Dante to Phones and Line Output Interface
Studio Technologies Model 5202 Dante to Phones and Line Output Interface
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 7-10 Days
  • Not yet reviewed




About: Studio Technologies Model 5202 Dante to Phones and Line Output Interface

The Model 5202 Dante to Phones and Line Output Interface is a general-purpose audio device that supports applications utilizing the Dante® audio-over-Ethernet media networking technology. Two Dante-associated audio channels can be assigned to the Model 5202 which provides headphone and balanced line-level outputs. The audio quality is such that virtually any audio application can be supported, from simple headphone or loudspeaker monitoring to interfacing with high-performance on-air broadcast, stadium AV, or corporate audio systems. Multi-step LED meters provide confirmation of the level of the two input audio channels. The compact, lightweight design allows the Model 5202 to be used in portable or desktop situations or deployed as a permanent solution in fixed applications. Standard connectors ensure fast, reliable deployment. The unit requires only an Ethernet connection to supply both the data interface as well as Power-over-Ethernet (PoE) power.

Key Features

  • Dante audio-over-Ethernet technology
  • Headphone and balanced line outputs
  • Excellent audio quality
  • PoE powered
  • Audio channel level metering
  • Standard connectors
  • Compact, lightweight design

Specifications:

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2013 Support: yes
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rates: 44.1, 48, 88.2, and 96 kHz
Number of Receiver (Input) Channels: 2
Dante Audio Flows: 2 receiver
Digital to Analog Equivalence: at unity gain a Dante digital input of –20 dBFS results in an analog output of +4 dBu

Network Interface:
Type: twisted-pair Ethernet with Power-over-Ethernet (PoE)
Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Power: Power-over-Ethernet (PoE) per IEEE 802.3af class 1 (very low power, ≤3.84 watts)

General Audio Parameters:
Frequency Response: 20 Hz to 20 kHz, ±0.5 dB, Dante to line output
Distortion (THD+N): 0.01%, measured at 1 kHz, +4 dBu, Dante to line output
Dynamic Range: >100 dB, A-weighted, Dante to line output

Headphone Output:
Type: stereo, configured to drive headphones through 100 ohm series resistors
Compatibility: intended for connection to headphones with impedance of 100 ohms or greater
Level: adjustible using rotary level control
Maximum Voltage: 8 Vpp, 100 ohm load

Line Outputs: 2
Type: electronically balanced, capacitor-coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
Source Impedance: 200 ohms
Nominal Level: adjustable using rotary level control, +4 dBu @ 100% rotation
Maximum Level: +24 dBu into 2 k ohms

Meters: 2
Function: displays level of Dante input signals
Type: 7-segment LED, modified VU ballistics

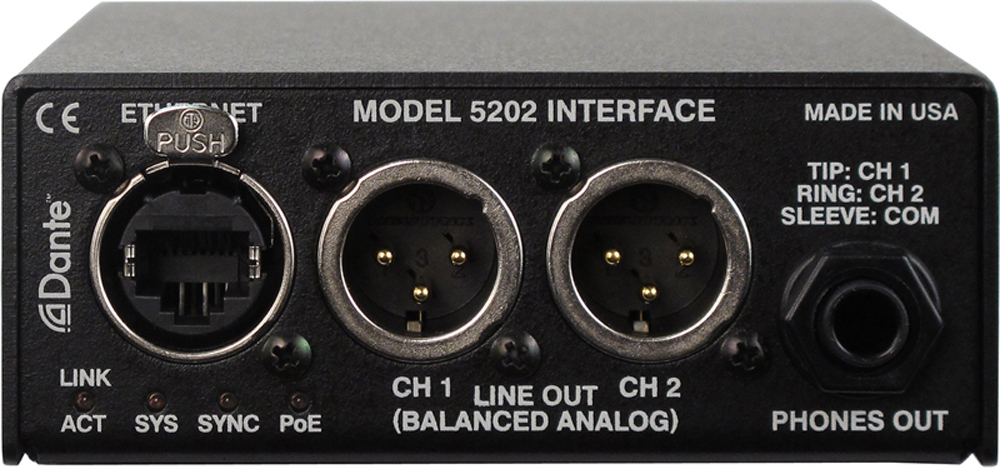

Connectors:
Ethernet: Neutrik etherCON RJ45
Headphone Output: 3.5 mm and ¼-inch 3-conductor jacks
Line Outputs: 3-pin male XLR

Dimensions (Overall):
4.2 inches wide (10.7 cm)
1.7 inches high (4.3 cm)
5.1 inches deep (13.0 cm)

Mounting Option: bracket kit

Weight: 0.8 pounds (0.35 kg)
