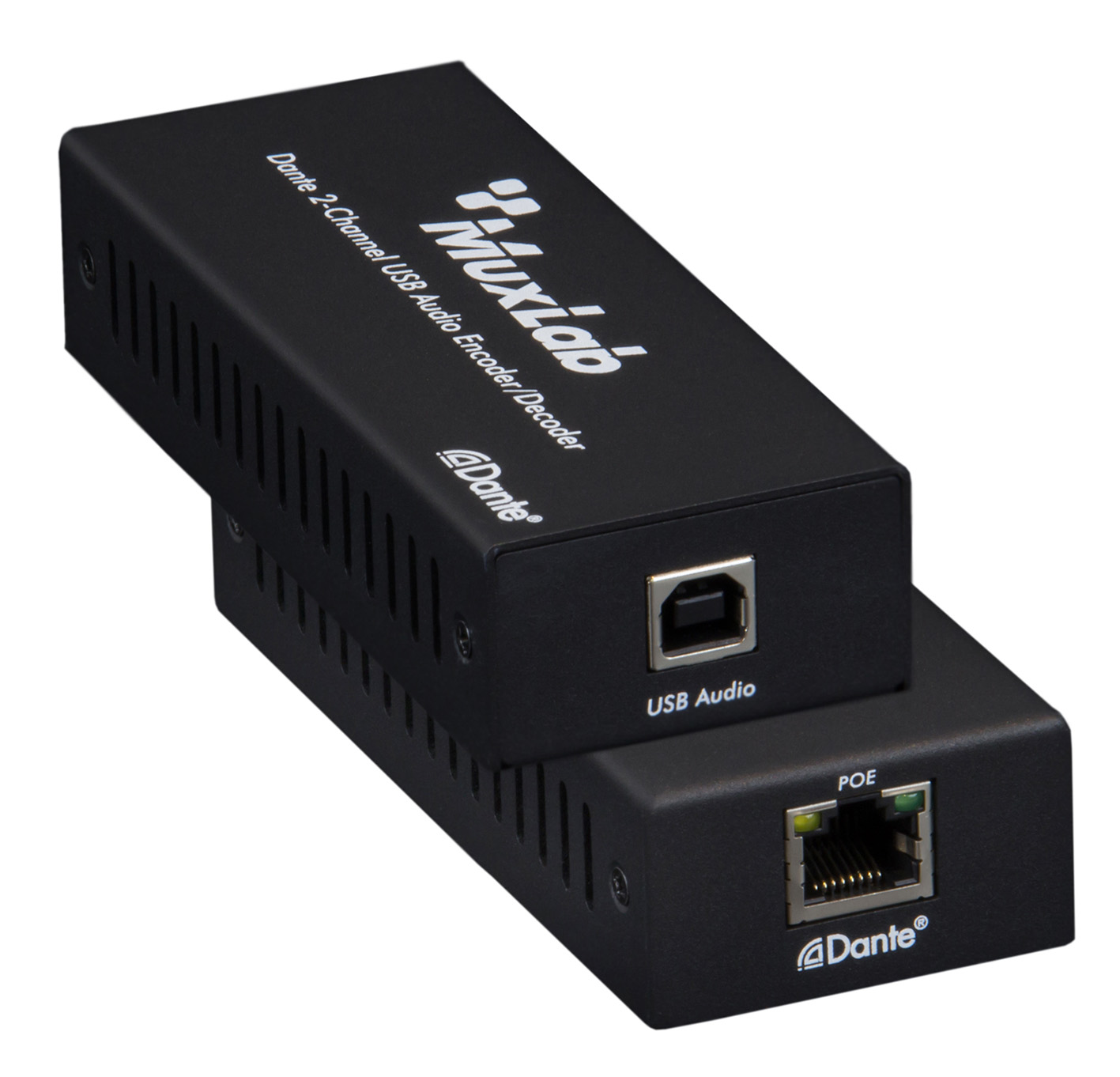

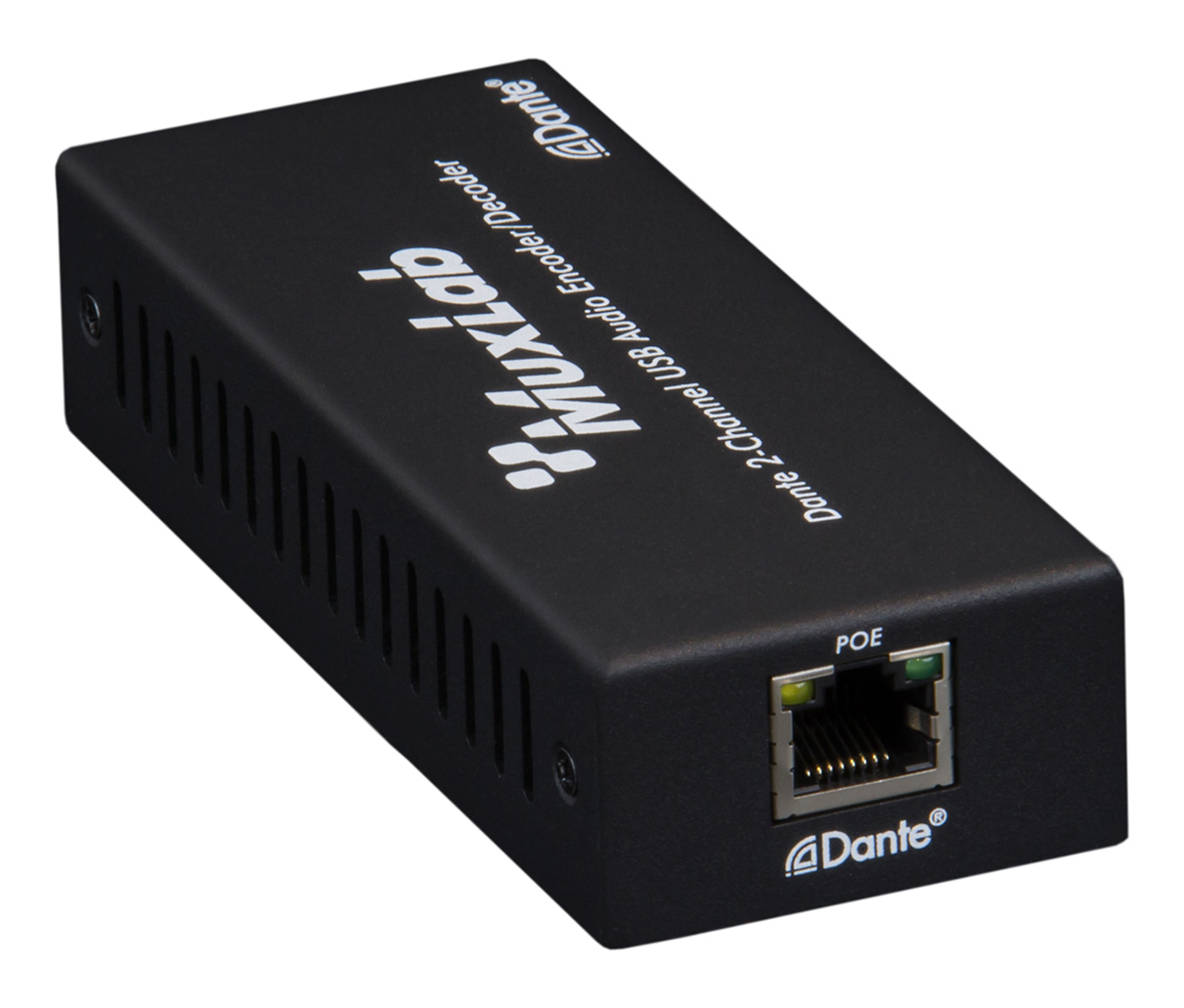

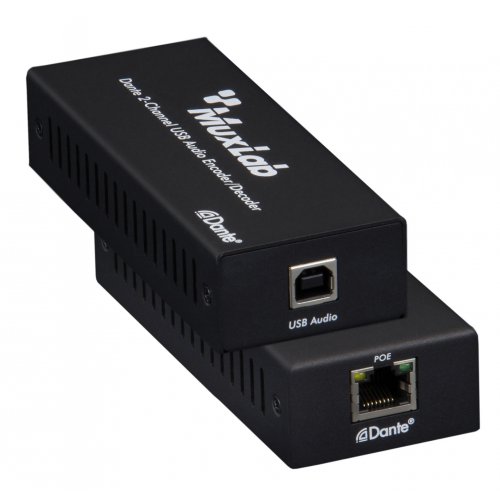

Muxlab Dante 2-Channel USB Audio Encoder/Decoder
Model: 500550
About: Muxlab Dante 2-Channel USB Audio Encoder/Decoder
The Dante 2-Channel USB Audio Encoder/Decoder is designed to both encode 2ch USB audio to a Dante digital signal, and decode a Dante digital signal to 2chUSB audio.
The unit is plug & play and can be powered using either PoE from any PoE network switch or via 5V from the USB device; In addition, the product is compact and easy to carry.
- Compliant with USB 2.0 Full Speed Operation
- Compliant with USB Audio Device Class
- Encodes USB audio to Dante digital signal
- Decodes a Dante digital signal to USB audio
- Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
- Support USB 5V power supply and PoE function (IEEE802.3af Class 0)
- Supports AES67 RTP audio trans
Specification
- Technical
- Video Network Bandwidth - 100M
- Audio Formats - PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
- Transmission Distance - 100m (CAT6/6A)
- Control Method - Dante Controller
- Connection
- Input & Output
- 1 x USB-B

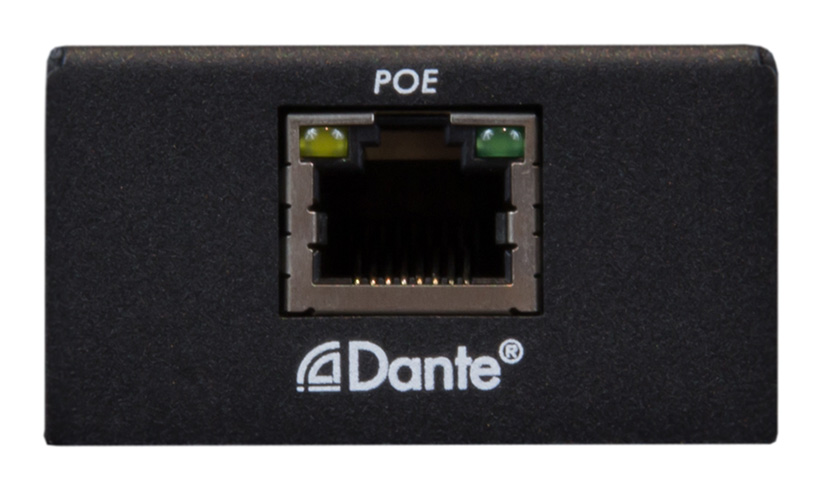

- 1 x DANTE [RJ45 connector, PoE]
- Input & Output
- Mechanical
- Housing - Metal Enclosure
- Color - Black
- Dimensions (WxDxH) - 120 x 47 x 26 mm
- Weight - 186g
- Power Supply
- USB input: 5V-500MA
- PoE input: IEEE802.3af Class 0
- Power Consumption - 1W
- Operation Temperature - 32 - 104°F / 0 - 40°C
- Storage temperature - -4 - 140°F / -20 - 60°C
- Relative Humidity - 20 - 90% RH (no condensation)
