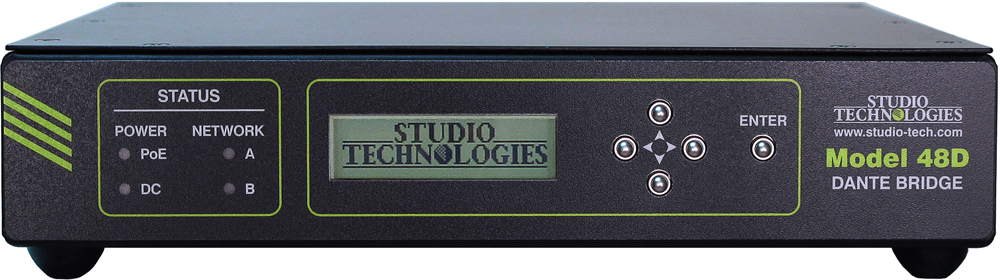

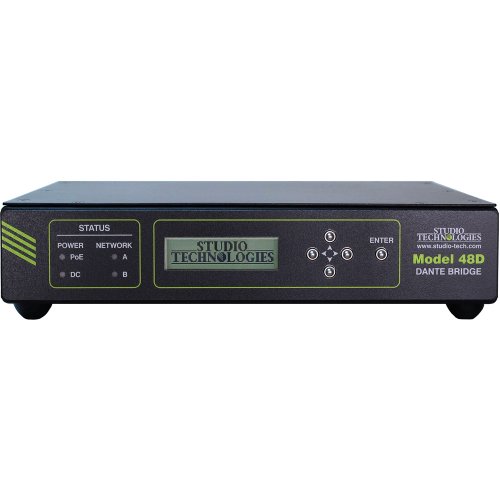

Studio Technologies Model 48D Dante Bridge (Open Box)

About: Studio Technologies Model 48D Dante Bridge (Open Box)

The Model 48D Dante Bridge provides a simple yet high-performance means of interconnecting, or "bridging," Dante® audio signals associated with two independent local-area-networks. The unit allows up to four audio channels to pass in each direction. Internal circuitry provides timing and bit-depth correction to ensure that audio signal integrity is maintained.

Key Features

• Two independent Dante network connections
• "Bridges" up to four audio channels in each direction
• High-performance sample rate conversion
• Excellent audio quality
• DDM and AES67 support
• PoE and optional 12 Vdc powering
• Standard connectors, simple setup
• Table-top, portable, or optional rack-mount installation

Specifications:

Power Sources:
Power-over-Ethernet (PoE): class 1 (low power, ≤3.84 watts) per IEEE® 802.3af
External: 10 to 18 volts DC, 0.15 A maximum (can be powered by optional PS-DC-02)

Network Interfaces: 2
Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" not supported)

Network Audio Technology (each Network Interface):
Type: Dante audio-over-Ethernet
AES67-2013 Support: yes
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rate: 44.1, 48, 88.2, 96 kHz
Pull-Up/Down Support: yes
Number of Transmitter (Output) Channels: 4 (44.1 and 48 kHz sample rate), 2 (88.2 or 96 kHz sample rate)
Number of Receiver (Input) Channels: 4 (44.1 and 48 kHz sample rate), 2 (88.2 or 96 kHz sample rate)
Dante Audio Flows: 4; 2 receiver, 2 transmitter
Input-to-Output Audio Processing Latency: <1.3 mSec

Audio Performance:
Type: fully-digital paths between network interfaces (by way of sample-rate-converter integrated circuits)
Dynamic Range: 147 dB at 48 kHz sample rate, 148 at 96 kHz sample rate, A-weighted
Distortion (THD+N): –140 dB at 48 kHz sample rate, –143 dB at 96 kHz sample rate, measured at –1 dBFS, 1 kHz

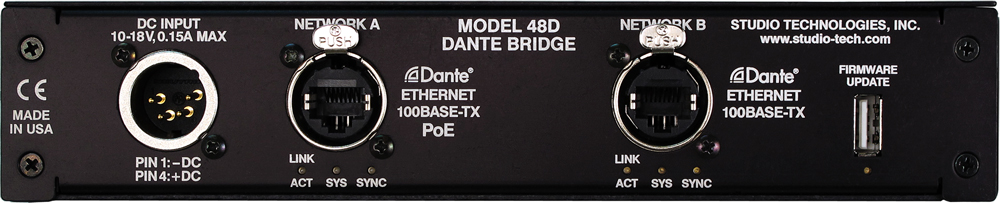

Connectors:
Ethernet: Neutrik NE8FBH etherCON RJ45 receptacles
External DC: 4-pin male XLR
USB: type A receptacle (used only for main firmware updates)

Environmental:
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)
Humidity: 0 to 95%, non-condensing
Altitude: not characterized

Dimensions – Overall:
8.7 inches wide (22.1 cm)
1.72 inches high (4.4 cm)
8.3 inches deep (21.1 cm)

Mounting Options: single-unit (RMBK-11) and dual-unit (RMBK-12) rack-mounting installation kits (purchased separately) use one space (1U) in a standard 19-inch rack

Weight: 1.8 pounds (0.80 kg); rack-mounting installation kits add 0.2 pounds (0.09 kg)
