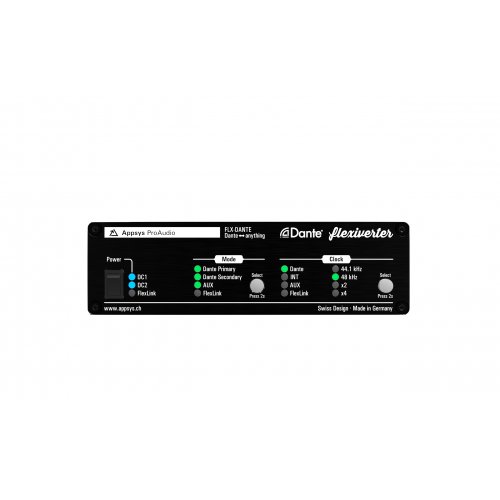

Appsys FLX-DANTE 64x64 Channel Format Converter for Dante

About: Appsys FLX-DANTE 64x64 Channel Format Converter for Dante

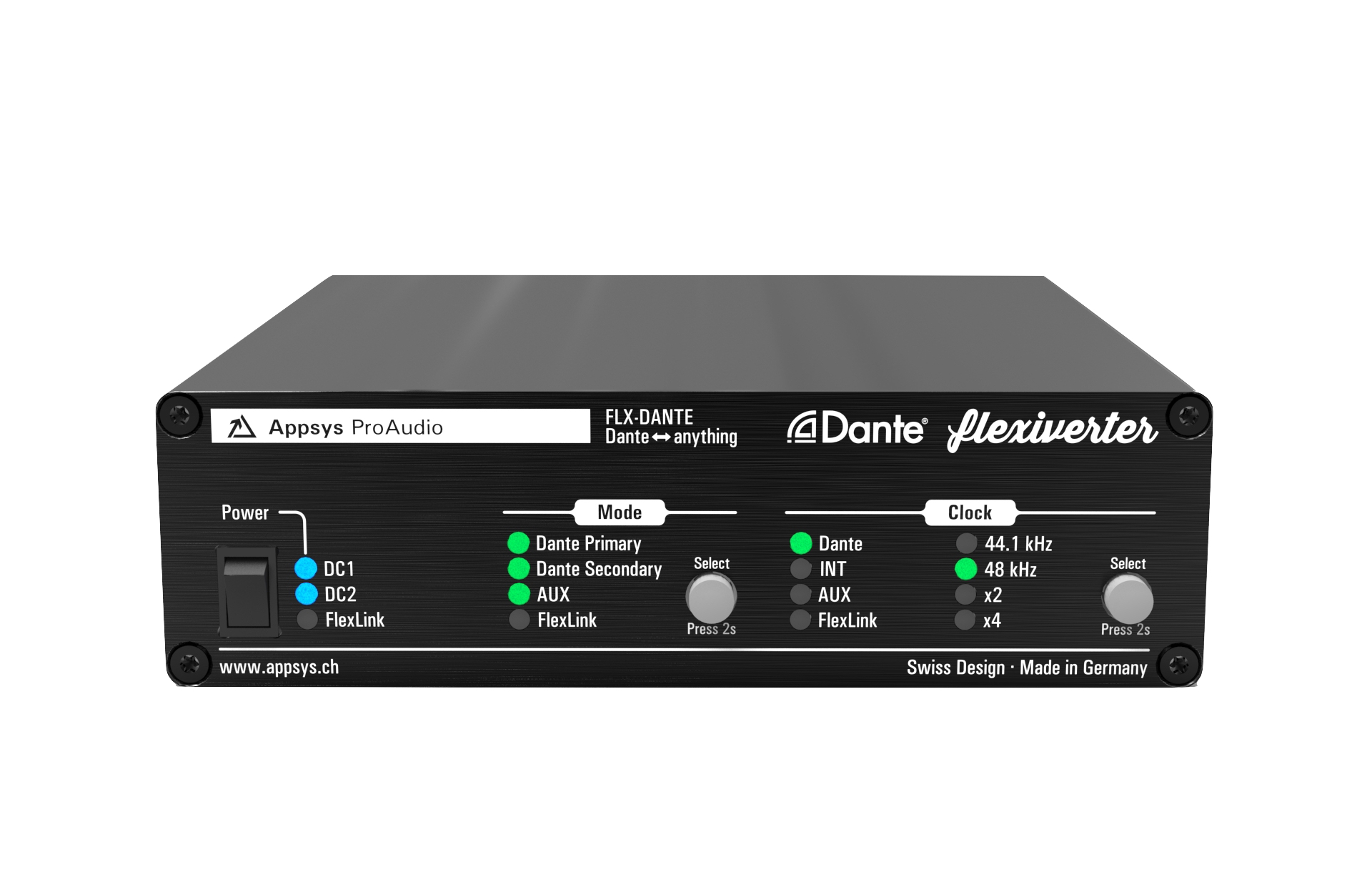

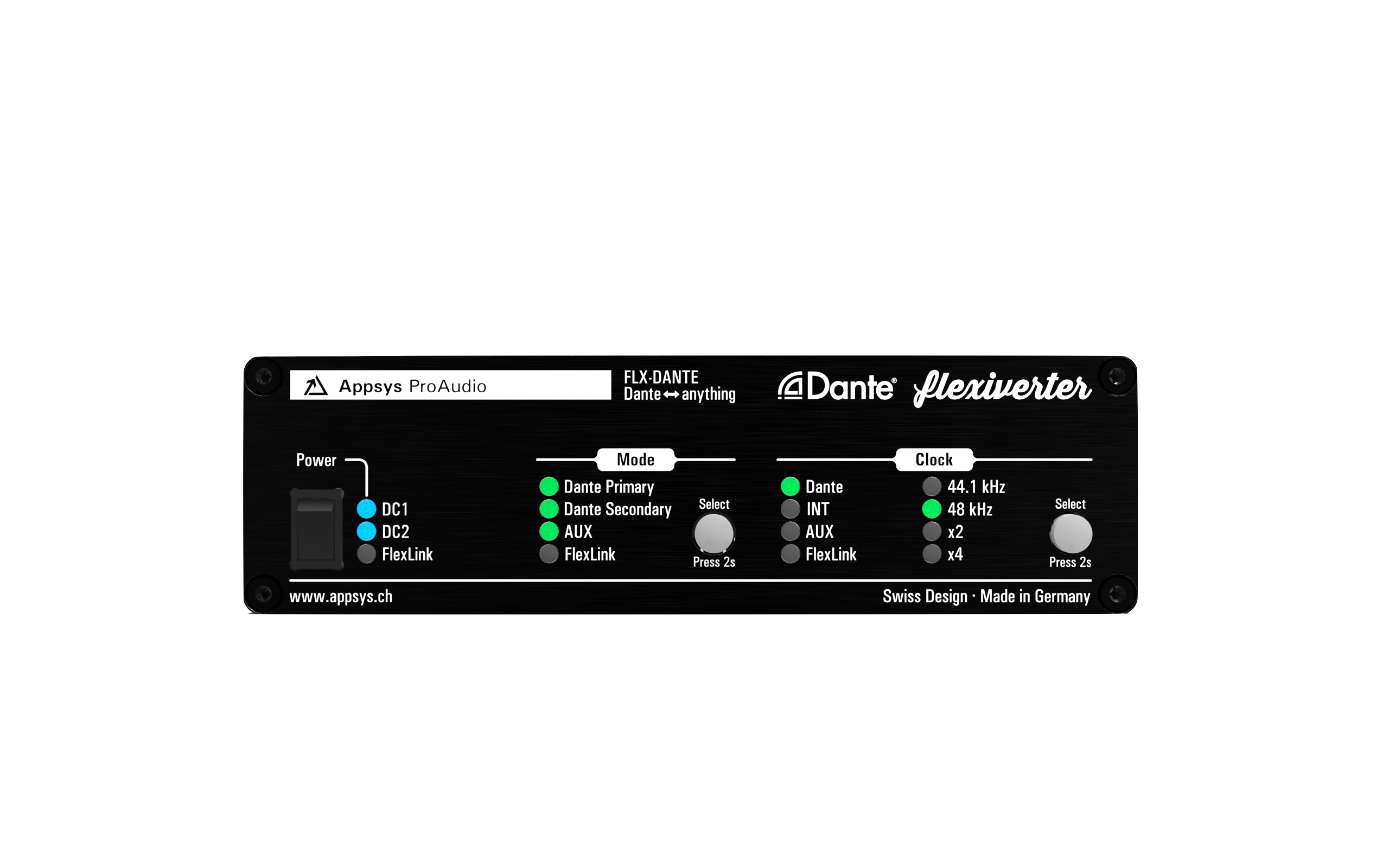

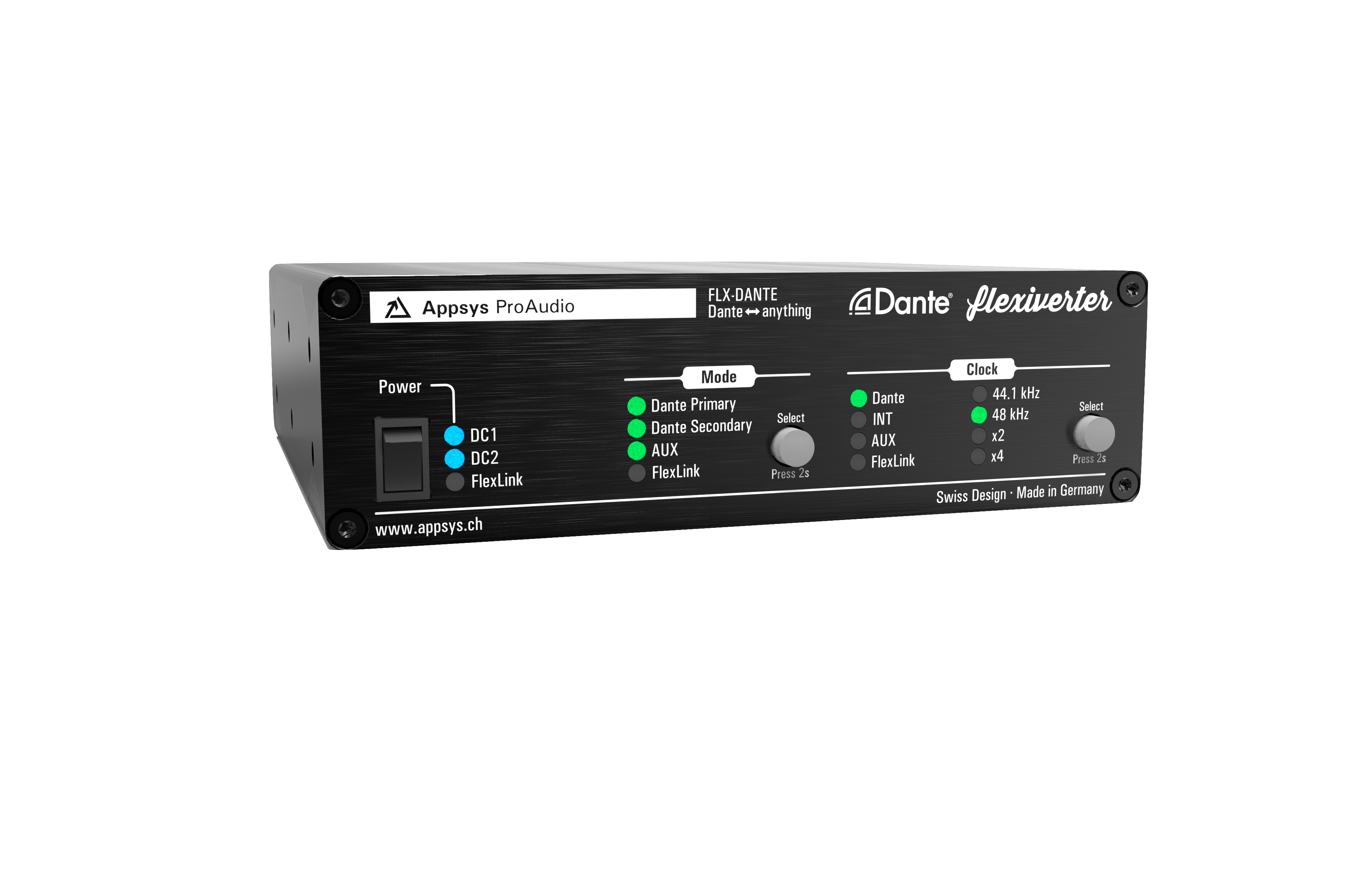

The FLX-DANTE is a compact DANTE-to-anything converter. It features a 64x64ch built in Dante Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

Features

• Two DANTE ports on Ethercon connectors
• AUX port accepting any AUX card as conversion source/destination
• Supports sample rates from 44.1 to 192kHz
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Triple-redundant power supply

Additional features when connected to the MVR-64

• True channel-wise routing of all available channels (built-in plus AUX card)
• Sample-rate conversion using the SRC-64
• Web or telnet based remote control

Specifications​

• Dimensions (WxHxD)
  • Excluding connectors/buttons - 5.98 x 1.73 x 6 inch (152 x 44 x 153mm)
  • Including device-side connectors/buttons - 5.98 x 1.73 x 6.42 inch (152 x 44 x 163mm)
• Weight -  1.28 lb (580 g)
• Operating temperature -  0 - +55°C, non-condensing
• Storage temperature -  -40 - +85°C, non-condensing
• Power consumption
  • +15V DC, 9W max (18W to power two devices via FlexLink)
  • Triple-redundant input (2x DC, 1x via FlexLink)
• Dante Network​ ports
  • 1000BASE-T (Gigabit), compatible to 100BASE-T
  • Primary/Secondary ports configurable as "Switched" (default) or "Redundant"
• Cable lengths
  • FlexLink - 1m / 3ft. max. recommended
  • Network
    • 100m/300 ft.
    • Cat5 or better cable required for 1000BASE-T operation
• Channel count
  • 64x64 @ 48kHz
  • 32x32 @ 96kHz
  • 16x16 @ 192kHz
  • Additional AUX channels depending on AUX card
• Sample rates -  44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Internal clock precision
  • Jitter: Phase RMS: <1ps, Peak-peak: <50ps.
  • Stability: ±25 ppm including all effects including aging, temperature, supply, calibration, shock, vibration

What's in the Box

• 1x FLX-AES50 Converter
• 1x HDMI cable 0.5m / 1.7 ft with locking screws
• 1x Power supply
• 1x Power cord
• Manual
