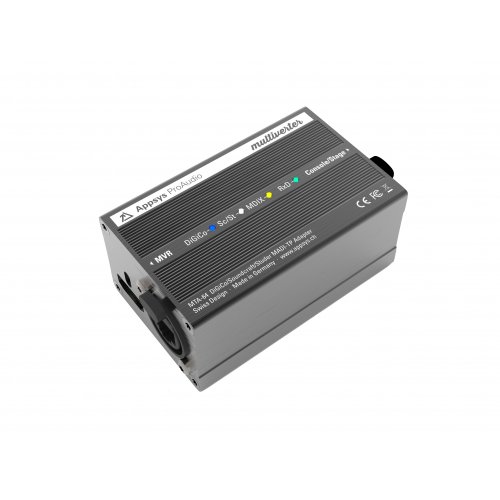

Appsys MTA-64 MADI Twisted Pair to DiGiCo/Soundcraft/Studer Format Converter

About: Appsys MTA-64 MADI Twisted Pair to DiGiCo/Soundcraft/Studer Format Converter

With the MTA-64, the MVR-64 Multiverter becomes capable of connecting to the MADI-TP (MADI over Twisted Pair) variants used in DiGiCo and Soundcraft/Studer/Harman desks. It's simply connected between the MVR-64's MADI-TP port and your console or stagebox and adapts signal levels and pinouts to your needs. What's more: you don't need any special crossover cables thanks to internal MDIX logic - any standard 1:1 Cat5 cable will do, no matter if you want to connect to your console or the stagebox.

Features

• Enables the multiverter's MADI-TP port to work with DiGiCo and Soundcraft/Studer/Harman variants of MADI-TP
• Supports up to 100 meters of MADI-TP over Cat5/Cat6 cable
• Transparent forwarding of stagebox remote control data
• Pinout selectable by software
• True bit-transparency allows any format and sample rate
• Super low latency of a few nanoseconds only
• Fully configurable via multiverter's menu, configuration saved in presets
• Extension port remains available
• Up to two MTA-64 can be connected to a multiverter, allowing two MADI-TP ports

Specifications

• Dimensions (WxHxD) -  3.27 x 1.54 x 2.05 in (83 x 39 x 52mm)
• Weight -  0.28 lb (128 g)
• Operating Temperature -  0..+70°C, non-condensing
• Storage Temperature -  -40..+85°C, non-condensing
• Power Consumption -  +15V DC from multiverter, 2W max.
• Cable Lengths
  • MVR-64 to MTA-64 / Cat5 - 5m max.
  • MVR-64 to MTA-64 / HDMI - 5m max.
  • MTA-64 to Console/Stagebox - 70..100m (depends on cable quality and counterpart)
• Channel Count
  • Up to 64x64 in x1 modes (44.1 / 48 kHz)
  • Up to 32x32 in x2 modes (88.2 / 96 kHz)
  • Up to 16x16 in x4 modes (176.4 / 192 kHz)
• Sample Rates -  Arbitrary sample rates between 32kHz and 192kHz
• Remote Control Data
  • Transparent forwarding of DiGiCo remoting data (contained in ch57)
  • Soundcraft/Studer remoting data (userbits of ch1-10) and others
• Latency -  The latency added by the MTA-64 is negligible (in the nanoseconds range)

What's in the Box

• 1x MTA-64 Adapter Box
• 1x Cat5 cable 0.5m / 1.7 ft
• 1x HDMI cable 0.5m / 1.7 ft with locking screws
• Manual
