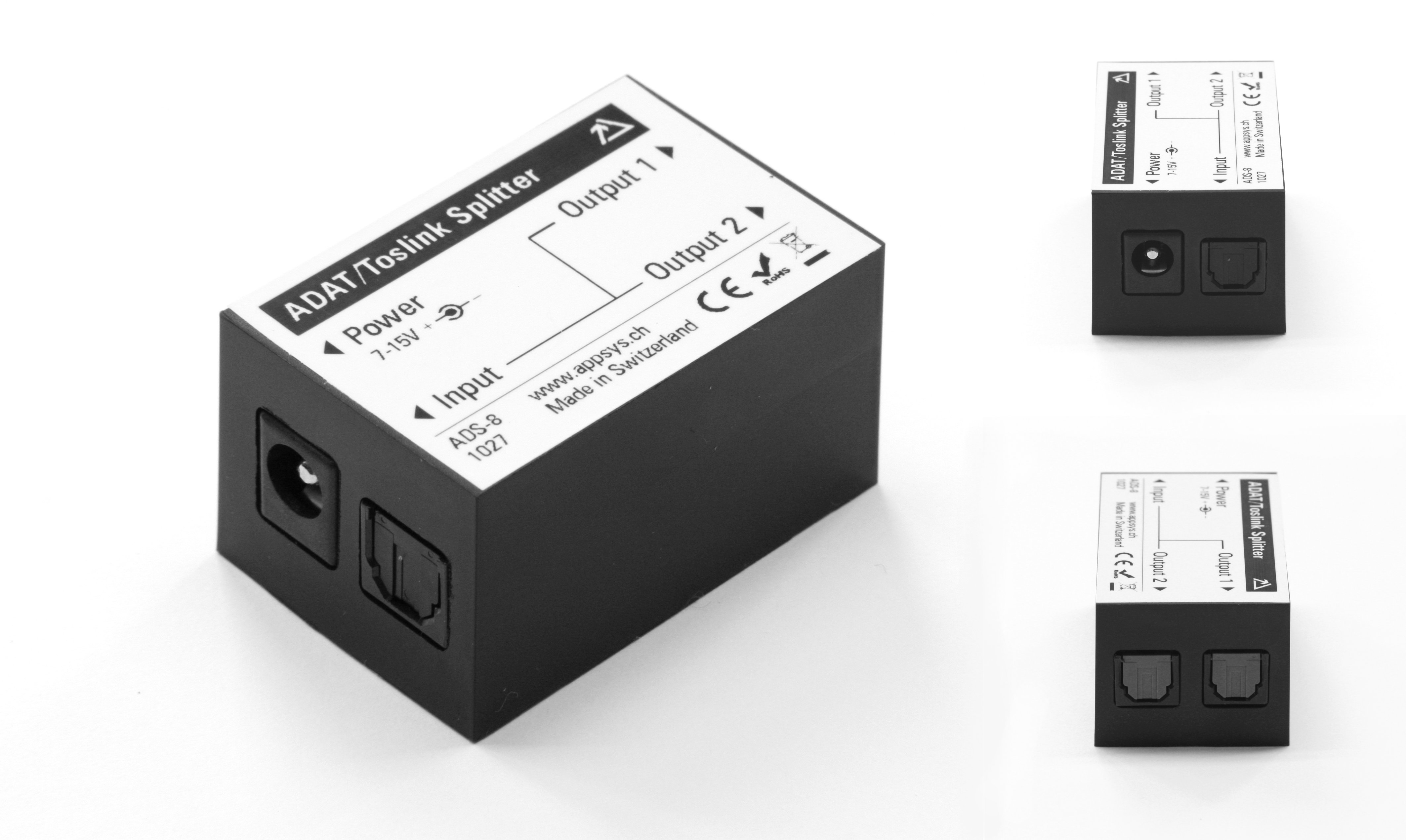

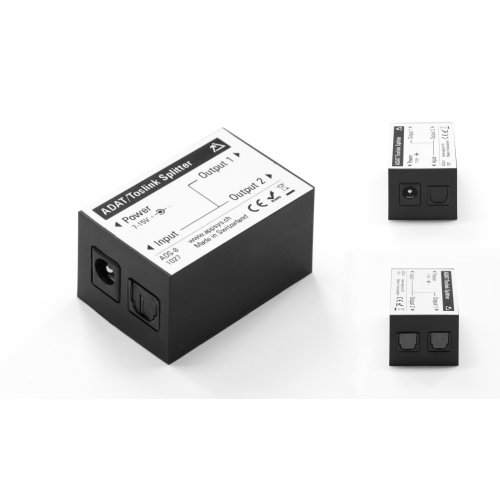

Appsys ADS-8 ADAT/Toslink Splitter
Model: ADS-8
About: Appsys ADS-8 ADAT/Toslink Splitter
The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.
Features
- Reliable, lossless, true bit-transparent splitting of any signal
- Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
- Near-zero latency (< 1µs)
- All channels present on the input are available on both outputs
- Compatible with all audio formats which can be sent over TOSLINK
- Quality product "Made in Switzerland"
Specifications
- Input/Outputs
- Optical connector,
- F05 Type TOSLINK compatible
- Supported audio formats
- ADAT Lightpipe
- S/PDIF (up to 96kHz / 24 bit)
- Dolby Digital 5.1 (AC-3)
- DTS
- all other TOSLINK compatible formats up to 13.2 MBit/s (NRZ-encoding)
- Power supply
- 7-15V DC 60mA, Polarity: Center Positive
- Plug: ID=2.5mm OD=5mm Length=9mm
What's in the Box
- ADS-8 Splitter
- Wide-range AC power adapter (country specific plug)
- Manual
