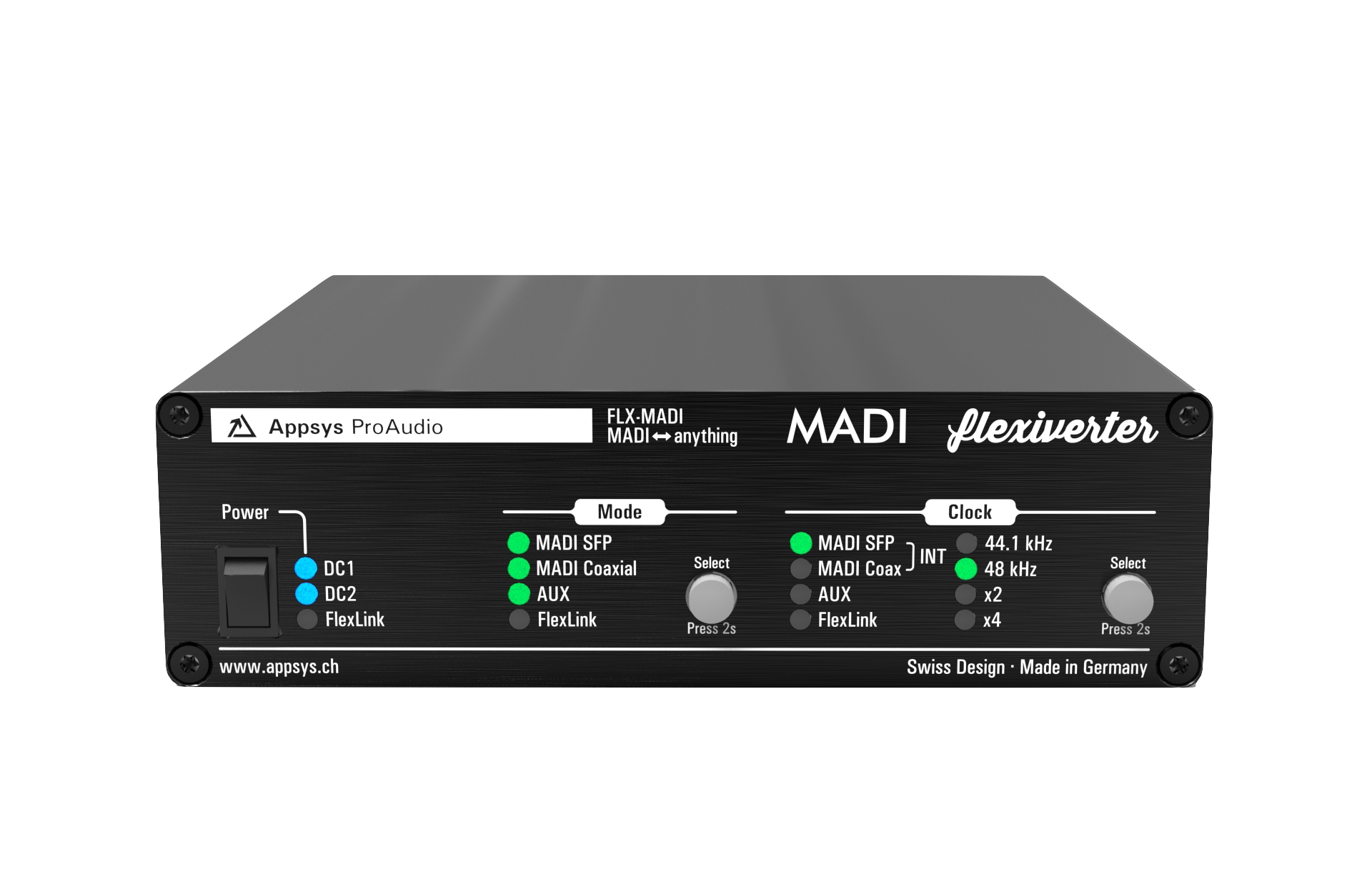

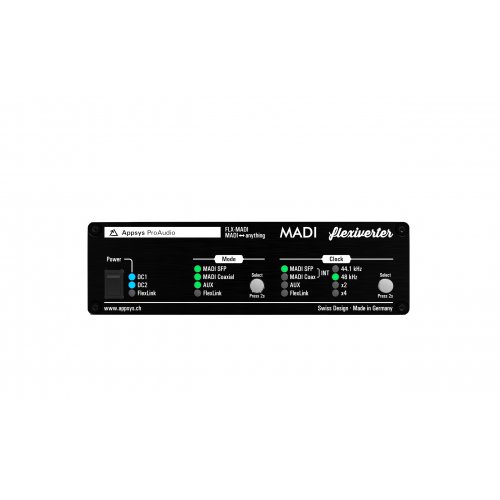

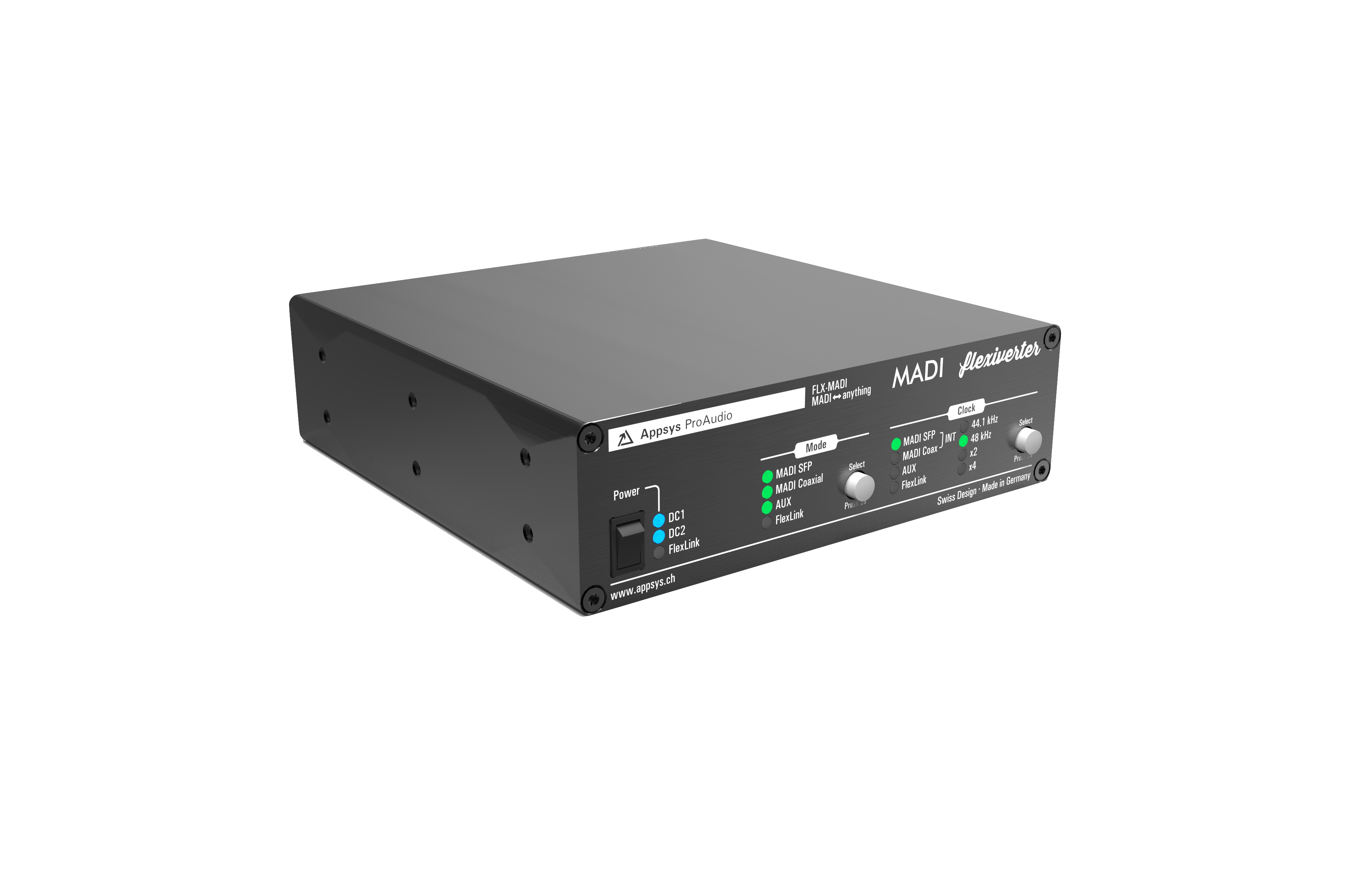

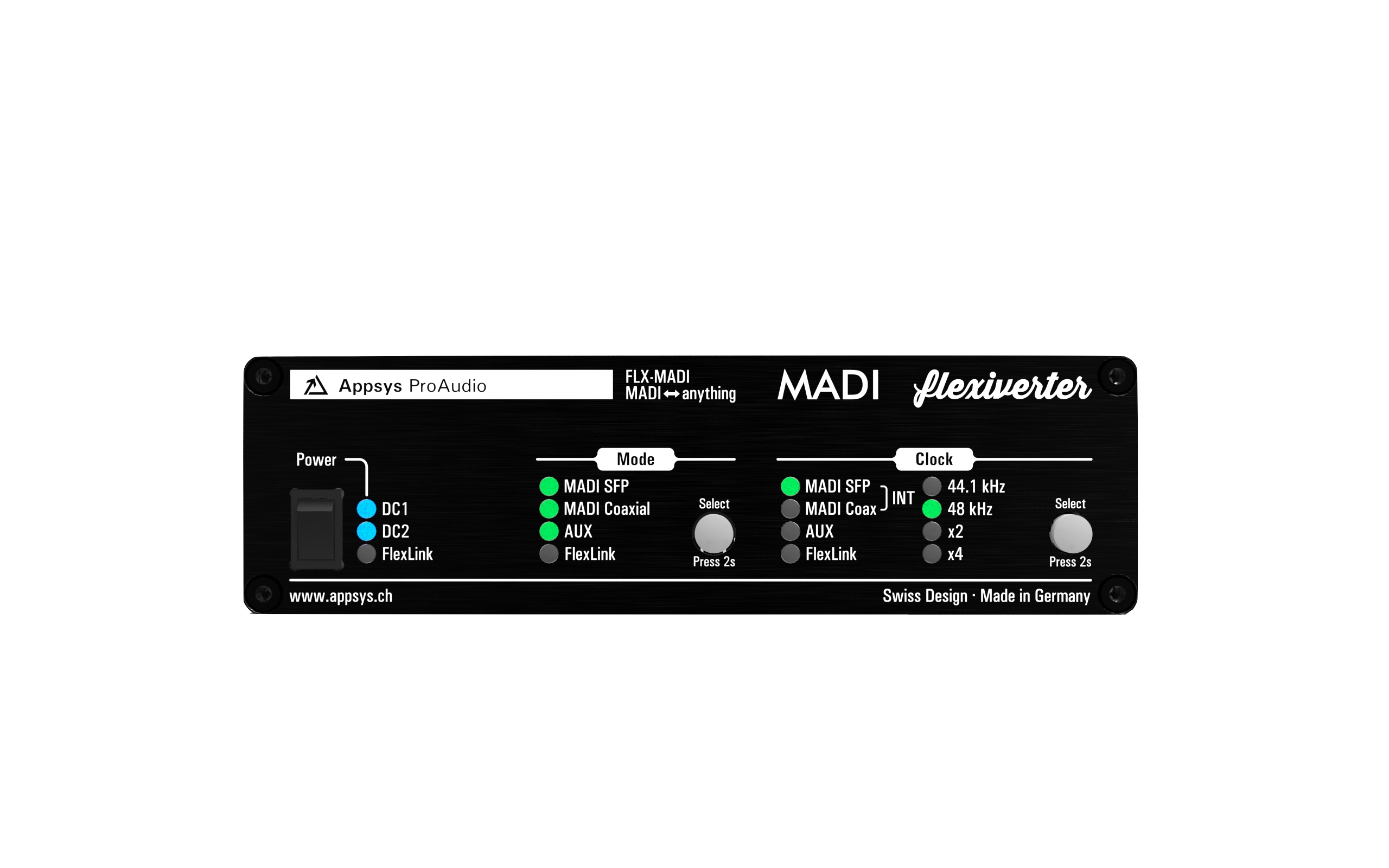

Appsys FLX-MADI 128x128 Channel Format Converter for MADI Optical & Coaxial

About: Appsys FLX-MADI 128x128 Channel Format Converter for MADI Optical & Coaxial

The FLX-MADI is a compact MADI-to-anything converter. It features one MADI SFP and one MADI coaxial port. The unit can be used to translate between the built-in ports, or can be used to convert to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

Features

• One MADI-SFP port with pre-installed 1310nm multimode SFP. Not vendor-locked, accepts any SFP module!
• One MADI-coaxial port
• AUX port accepting any AUX card as conversion source/destination
• Supports sample rates from 44.1 to 192kHz
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Triple-redundant power supply

Additional features when connected to the MVR-64

• True channel-wise routing of all available channels (built-in plus AUX card)
• Sample-rate conversion using the SRC-64
• Web or telnet based remote control

Specifications​

• Dimensions (WxHxD)
  • Excluding connectors/buttons - 5.98 x 1.73 x 6 inch (152 x 44 x 153mm)
  • Including device-side connectors/buttons - 5.98 x 1.73 x 6.65 inch (152 x 44 x 169mm)
• Weight -  1.23 lb (560 g)
• Operating temperature -  0 - +55°C, non-condensing
• Storage temperature -  -40 - +85°C, non-condensing
• Power consumption
  • +15V DC, 9W max (18W to power two devices via FlexLink)
  • Triple-redundant input (2x DC, 1x via FlexLink)
• Supported SFPs​
  • Ships with 1310nm, 125MBit Multimode SFP
  • Accepts any SFP (not SFP+) modules
  • No vendor lock
• Cable lengths
  • FlexLink - 1m / 3ft. max. recommended
  • MADI SFP (Depending on SFP type)
    • Multimode 500m/1600ft (up to 2km/1.2mi with Extended Range SFP),
    • Singlemode 10km/6mi (up to 80km/50mi with Extended Range SFP)
  • MADI Coaxial - 70m/230ft
• Channel count
  • 128x128 @ 48kHz
  • 64x64 @ 96kHz
  • 32x32 @ 192kHz
  • Additional AUX channels depending on AUX card
• Sample rates -  44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Latency
  • Conversion MADI <> FlexLink: 2 samples
  • Conversion MADI <> AUX: 4 samples plus AUX card latency (depending on AUX card)
• Internal clock precision
  • Jitter: Phase RMS: <1ps, Peak-peak: <50ps.
  • Stability: ±25 ppm including all effects including aging, temperature, supply, calibration, shock, vibration

What's in the Box

• 1x FLX-MADI Converter
• 1x HDMI cable 0.5m / 1.7 ft with locking screws
• 1x Power supply
• 1x Power cord
• Manual
