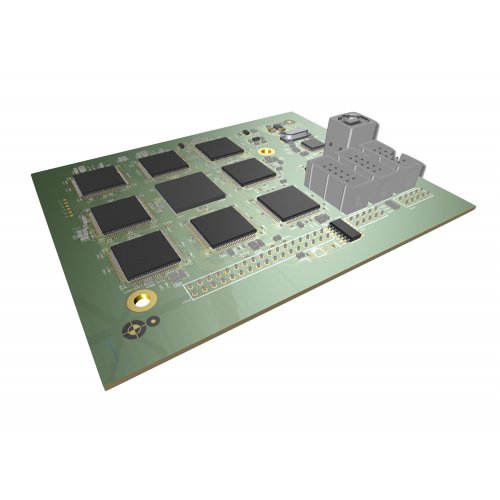

Appsys SRC-64 Sample Rate Converter Module for MVR-64

About: Appsys SRC-64 Sample Rate Converter Module for MVR-64

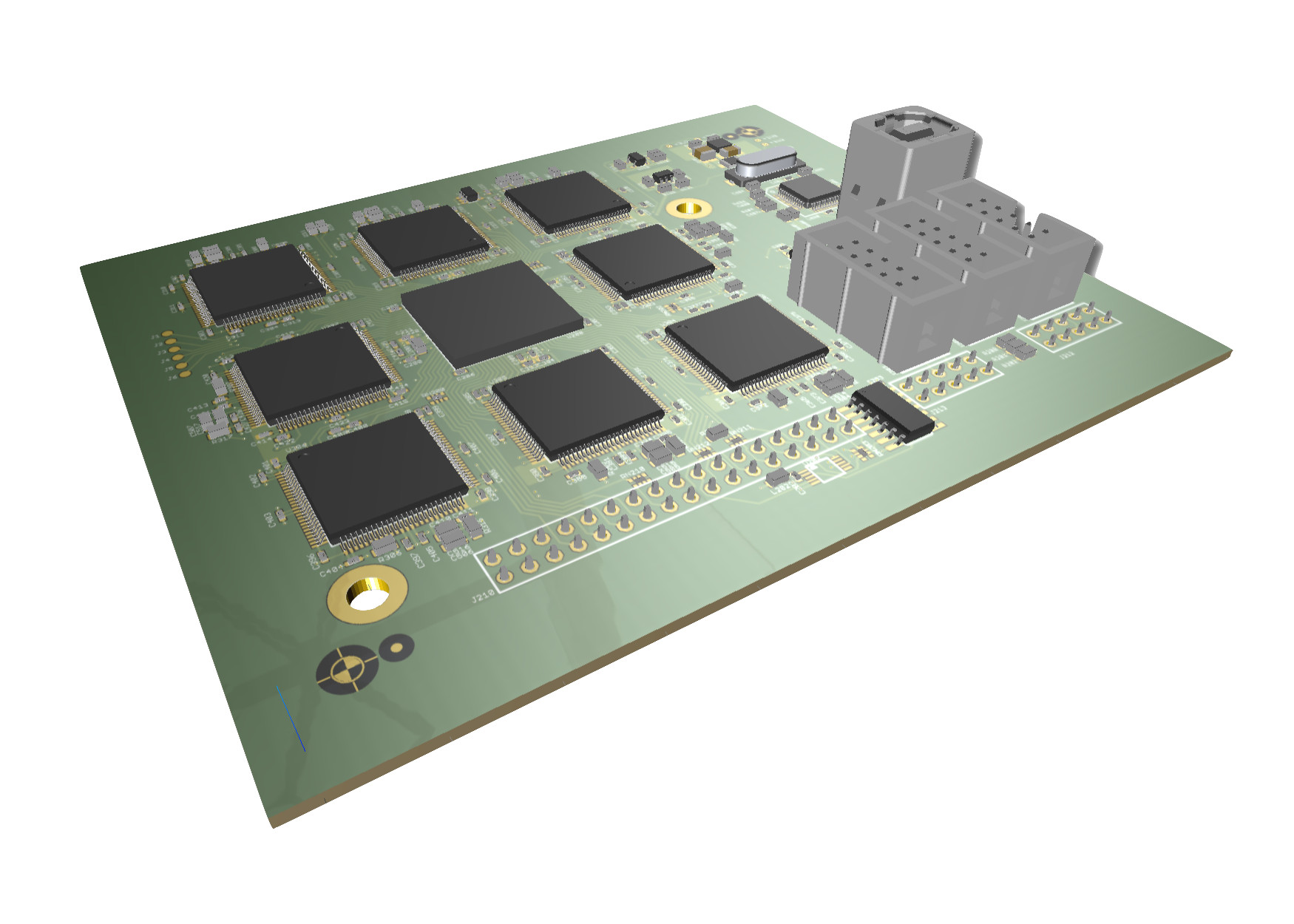

To add even more power to your Multiverter, a sample rate converter hardware module is available. The SRC-64 add-on module adds the capability of asynchronous sample rate conversion to your multiverter. Designed as internal add-on module, it leaves the "Extension" port available to other break-out boxes.

It features highest analog performance (THD+N -134dB typ.) , 64-channel, bi-directional conversion between any interfaces supported by the multiverter plus a number of special modes for maximum fexibility.

The SRC-64 can be assigned to any input interface and also any output of the multiverter, giving a true bi-directional conversion between both clock domains

Features

• Top-notch performance: THD+N = -133dB typ, -120dB max.
• True asynchronous, bi-directional conversion of 64x64 channels
• Supports arbitrary sample rates in the range from 32...192kHz
• Handles up to 64ch@48k, 64ch@96k, 32ch@192k
• Free selection of any multiverter interface as asynchronous input and/or asynchronous output
• Special aggregation modes exist to handle 64ch@96k by using two inputs and/or outputs together
  • (e.g. 2*AES50 48ch/96k <=> Dante 48ch/48k, 2*MADI 64ch@96k <=> MADI 64ch@48k etc.)
• Fully configurable via multiverter's menu, configuration saved in presets
• Asynchronous domain can be clocked from any input, or via internal hi-precision clock
• Can be disabled if required with a few clicks
• Mounts on internal socket: back extension port remains available
• Field-upgradable firmware

Specifications

• Dimensions (BxHxD) -  4.53 x 3.7 x 1.06 inch (115 x 94 x 27mm)
• Weight -  0.14 lb (65 g)
• Operating temperature -  0 - +70°C, non-condensing
• Storage temperature -  -40 - +85°C, non-condensing
• Power consumption -  7W max.
• Channel count
  • Up to 64 per direction in x1 modes (44.1 / 48 kHz)
  • Up to 64 per interface in x2 modes (88.2 / 96 kHz)
  • Up to 32 per interface in x4 modes (176.4 / 192 kHz)
• Sample rates -  ​Arbitrary sample rates between 32kHz and 192kHz
• Analog performance
  • THD+N: -133 dB typ. / -120dB max.
  • Dynamic range (A-weighted, 20 Hz to 20 kHz): 139 dB
• Latency
  • For up-sampling conversions: t/s = 16/fs_in + 32/fs_in

For down-sampling conversions: t/s = 16/fs_in + (32/fs_in)*(fs_in/fs_out)

What's in the Box

• 1x SRC-64 PCB Module
• 2x Screws M3x20 T10
• 2x Spacers
• Manual
