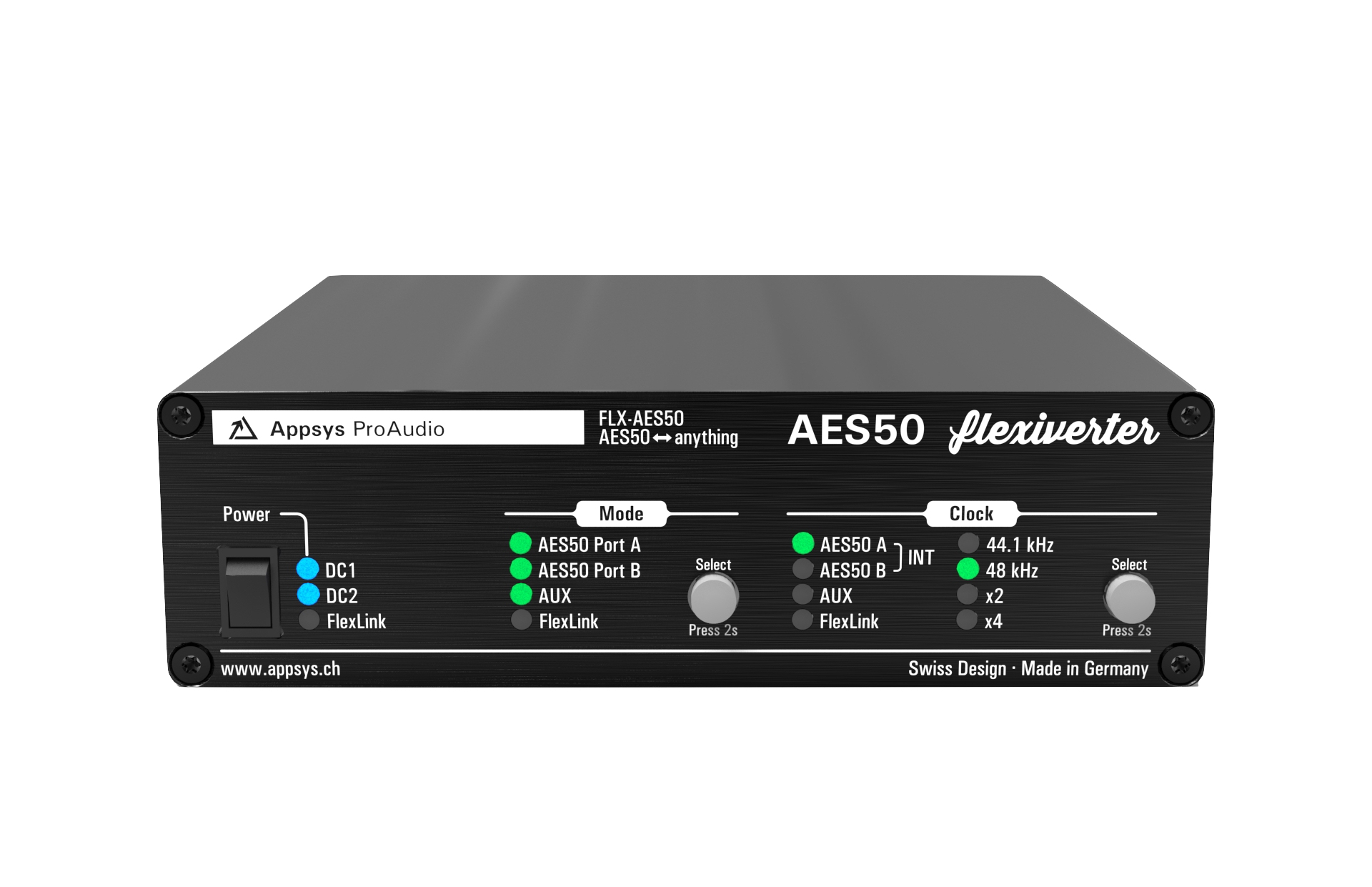

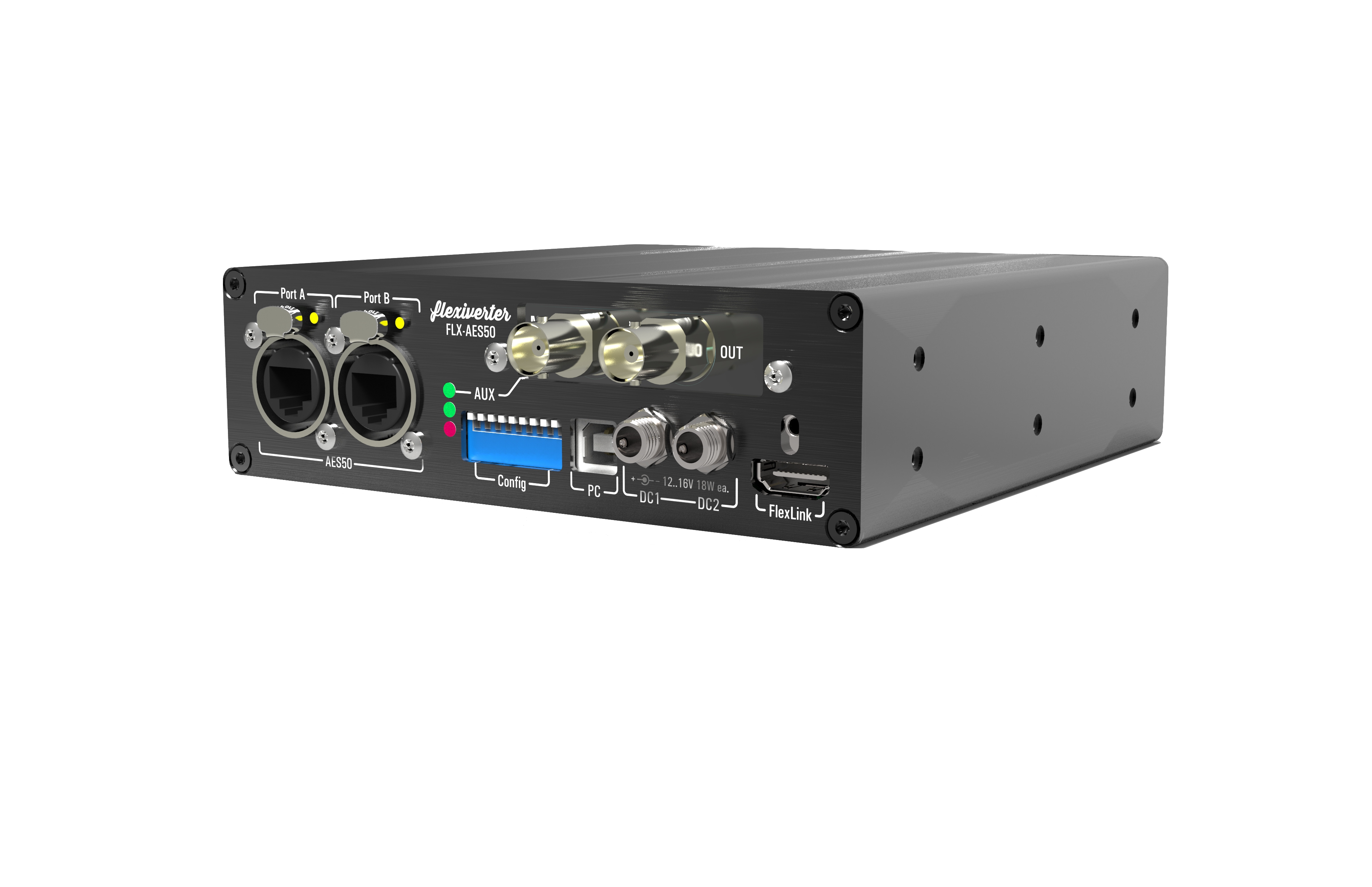

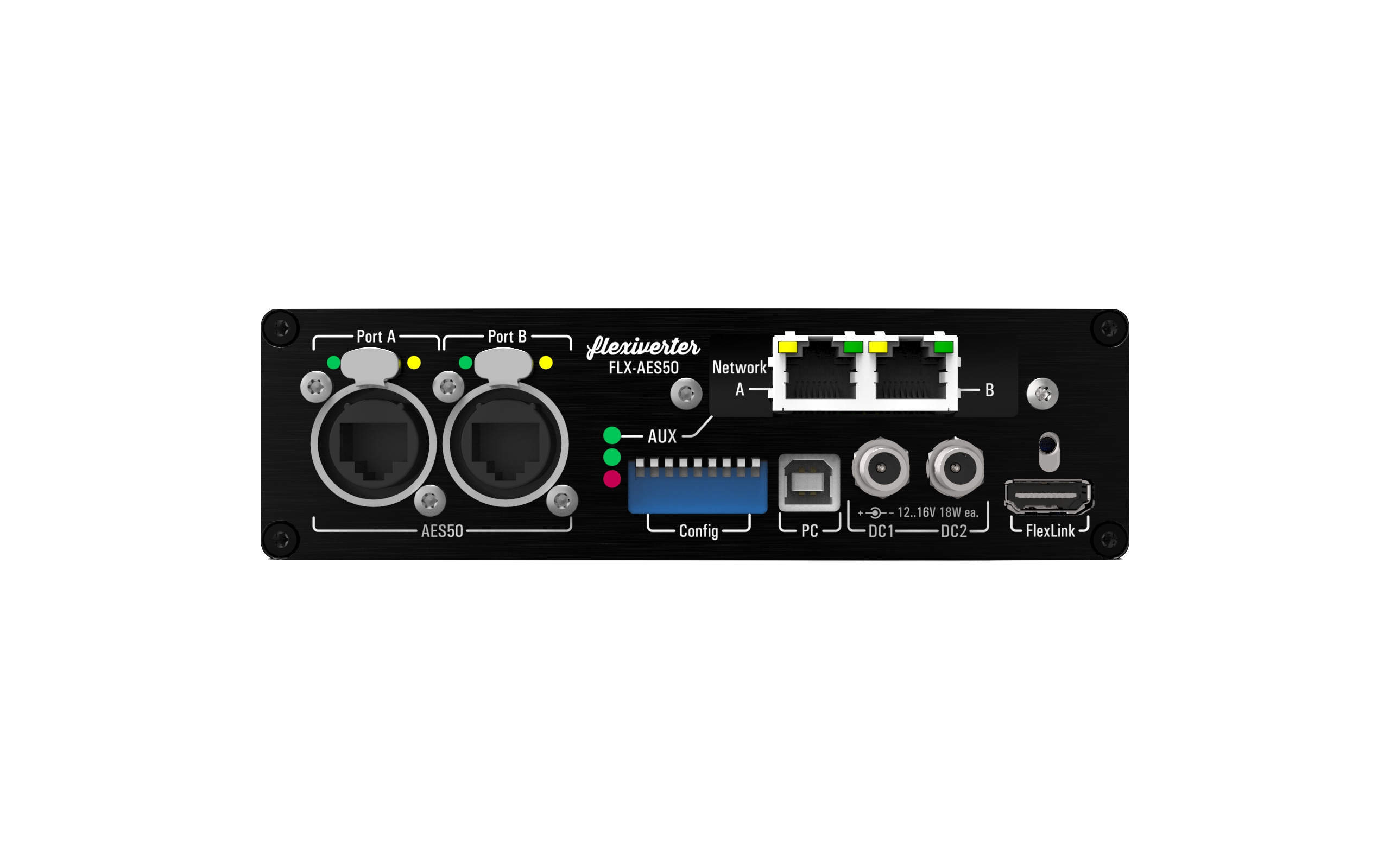

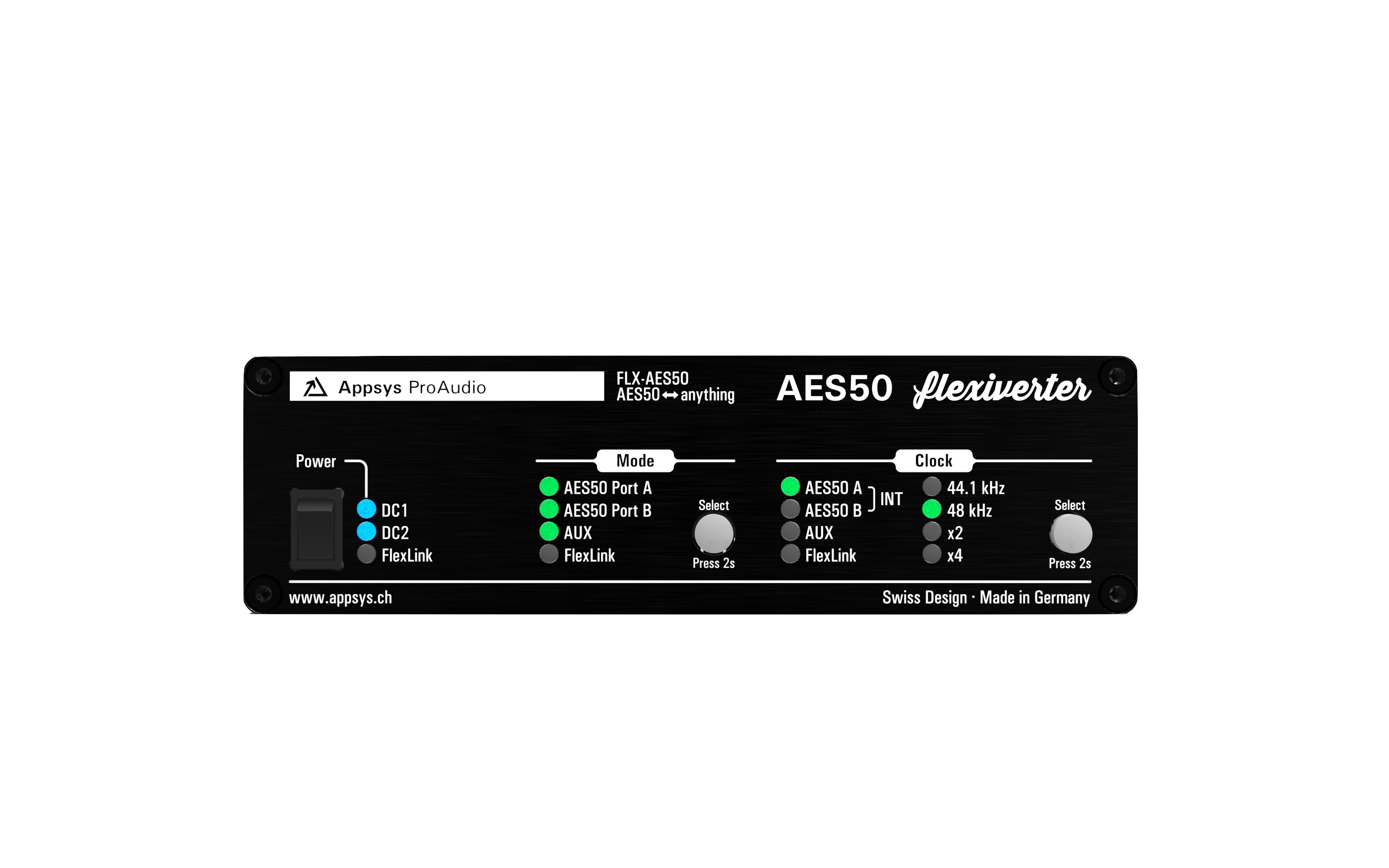

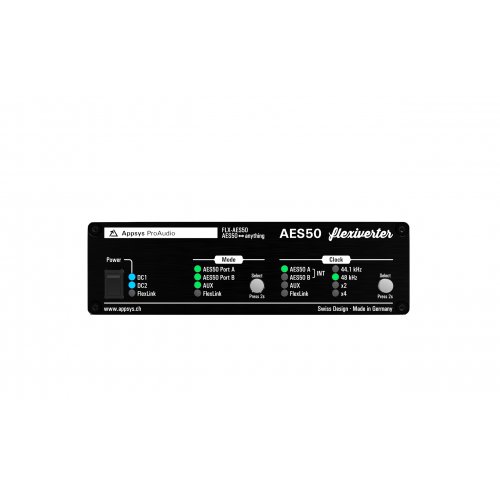

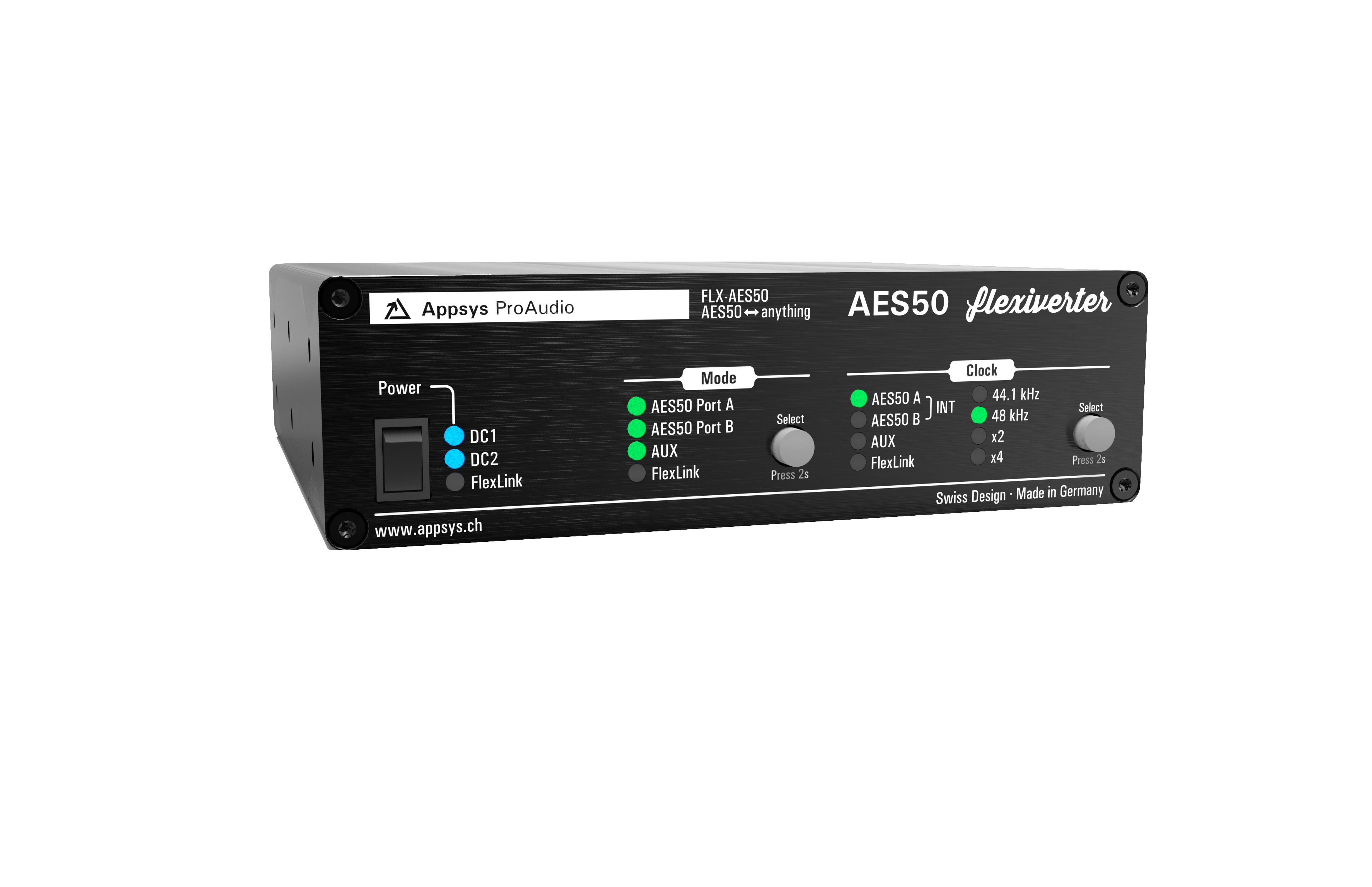

Appsys FLX-AES50 96x96 Channel Format Converter for AES50

About: Appsys FLX-AES50 96x96 Channel Format Converter for AES50

The FLX-AES50 is a compact AES50-to-anything converter. It has two ports (96x96 channels@48k, 48x48 channels@96k) of AES50 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

Features

• Two AES50 ports compatible to Behringer and MIDAS equipment
• AUX port accepting any AUX card as conversion source/destination
• Supports sample rates: 44.1/48/88.2/96kHz
• Forwarding of remote control (auxiliary) data between AES50 ports
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Triple-redundant power supply

Additional features when connected to the MVR-64

• True channel-wise routing of all available channels (built-in plus AUX card)
• Sample-rate conversion using the SRC-64
• Web or telnet based remote control

Specifications​

• Dimensions (WxHxD)
  • Excluding connectors/buttons - 5.98 x 1.73 x 6 inch (152 x 44 x 153mm)
  • Including device-side connectors/buttons - 5.98 x 1.73 x 6.42 inch (152 x 44 x 163mm)
• Weight -  1.23 lb (560 g)
• Operating temperature -  0 - +55°C, non-condensing
• Storage temperature -  -40 - +85°C, non-condensing
• Power consumption
  • +15V DC, 9W max (18W to power two devices via FlexLink)
  • Triple-redundant input (2x DC, 1x via FlexLink)
• AES50 ports
  • Compatible to Behringer/MIDAS implementations at 44.1/48kHz and 88.2/96kHz
  • Forwarding of Behringer/MIDAS Stagebox Remote Control Data between A and B
• Cable lengths
  • FlexLink - 1m / 3ft. max. recommended
  • AES50 - 100m/300 ft.
• Channel count
  • 96x96 @ 48kHz
  • 32x32 @ 96kHz
  • Additional AUX channels depending on AUX card
• Sample rates -  44.1kHz, 48kHz, 88.2kHz, 96kHz
• Latency
  • Conversion AES50 <> FlexLink: 4 samples
  • Conversion AES50 <> AUX: 4 samples plus AUX card latency (depending on AUX card)
• Internal clock precision
  • Jitter: Phase RMS: <1ps, Peak-peak: <50ps.
  • Stability: ±25 ppm including all effects including aging, temperature, supply, calibration, shock, vibration

What's in the Box

• 1x FLX-AES50 Converter
• 1x HDMI cable 0.5m / 1.7 ft with locking screws
• 1x Power supply
• 1x Power cord
• Manual
