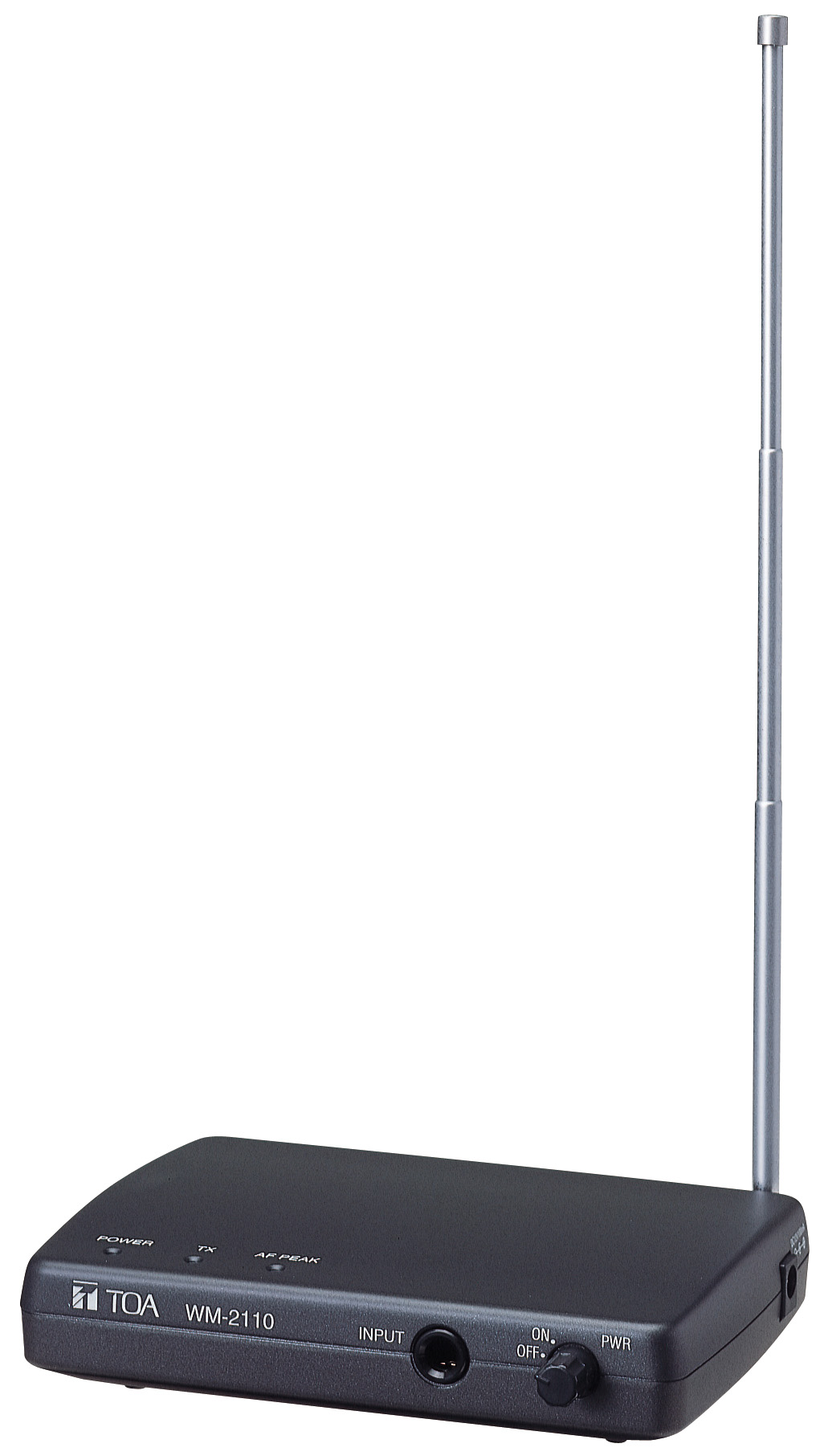

TOA Canada WM-2110 Desktop Transmitter
Model: WM-2110
About: TOA Canada WM-2110 Desktop Transmitter
TOA's WM-2110 is a Desk-top Transmitter designed to use 470 MHz band radio signals.
Specification
- Power Source 120 V AC, 60 Hz
- Power Consumption 3 W
- Modulation Frequency modulation
- Transmitting Frequencies 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
- RF Carrier Power 5 mW
- Oscillator PLL synthesizer
- Frequency Response 150 - 6,000 Hz (Desk-top transmitter → Potable receiver)
- Pre-emphasis 50 μs
- Input Level Standard input: -54 dB*/-60 dB*/-66 dB* (Mic)
- -12 dB*/-18 dB*/-24 dB* (Line)
- Maximum input: -30 dB*/-36 dB*/-42 dB* (Mic)
- +12 dB*/+6 dB*/0 dB* (Line)
- Mic/Line selection, 600 Ω, unbalanced, phone jack
- Remote Input Make contact input: Release voltage: 2 V DC, short-circuit current: 0.2 mA,
- loop resistance: under 100 Ω
- Remote control mode: Transmit radio signal when at make
- Operation Temperature -10℃ to +40℃
- Finish ABS Resin, dark gray
- Dimensions 140 (W) × 31 (H) × 119.5 (D) mm
- Weight 270 g
- Accessory AC-DC adapter (1.8 m)…1, Screw driver…1, 3-pole phone plug cord (2 m)…1
