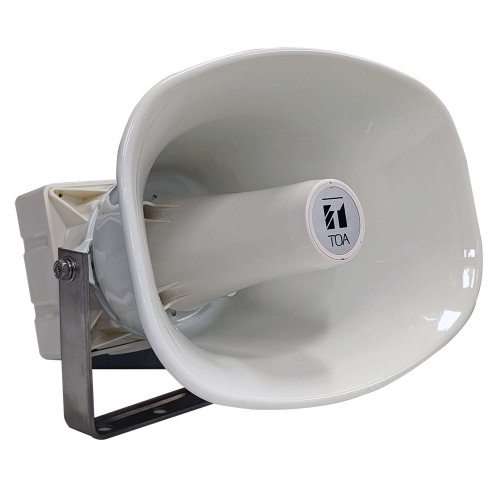

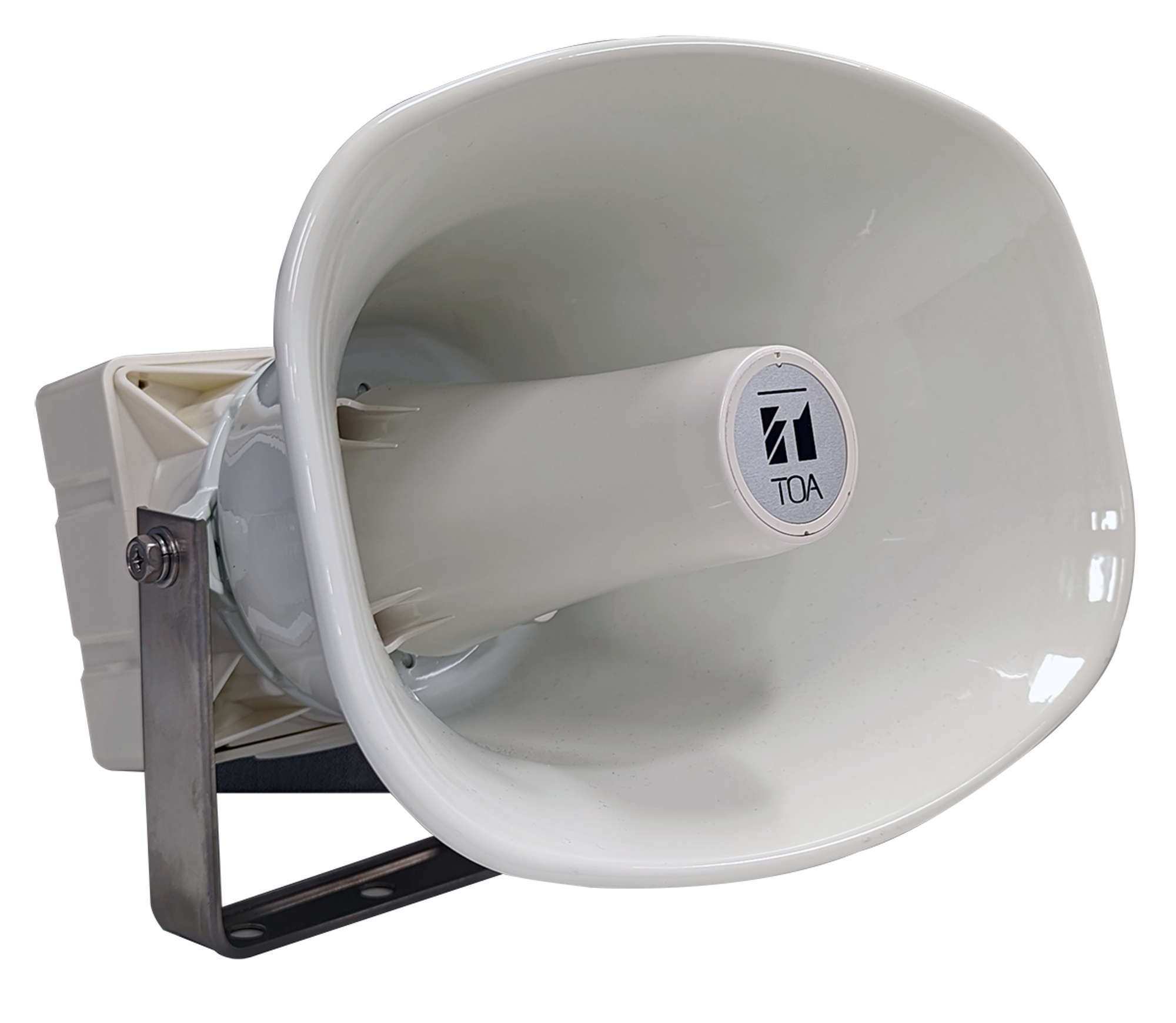

TOA Canada IP-SC15MC Bi-Directional Horn Speaker
Model: IP-SC15MC
About: TOA Canada IP-SC15MC Bi-Directional Horn Speaker
The IP-SC15MC is a network horn speaker with a microphone, which can receive broadcasts initiated by other terminals or servers and supports device configuration through a web browser. The device is also IP66 rated and can withstand temperatures as low as -45 °C, making it ideal for outdoor use. Powered by PoE/PoE+, the horn hosts audio files stored for playback, and provides an external dry-contact out for external device control. With loop fault detection function, the device can provide regular updates on its operation status.
Specifications
- Power Source
- DC24V / 2.7A, Removable terminal block (2 pins)
- PoE/PoE+ (IEEE 802.3af/at)
- Power Consumption - 15 W (+/- 10%)
- Sensitivity - 113dB (1W, 1m at 500 Hz to 2.5 kHz peak level)
- Frequency Response - 250 Hz - 10 kHz
- Broadcasting Mode
- SIP Broadcasting mode: MP3, LPCM, G711A, G711U, G722, G729
- Multicast Broadcasting Mode: G711A, G711U, G722, IMA-ADPCM
- VMS Broadcasting Mode: Audio Backchannel, PCMU
- Internal Message Broadcasting Mode
- Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
- Sound Source Files
- Maximum 128MB.
- Supported file formats: MP3 file, 32kHz sampling frequency, 128 kbps
- Trigger: Control Input or Remote API (HTTPS)
- Network I/F - 100BASE-TX, MDI/MDI-X, RJ45
- Network Protocol - TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP, SIP
- Microphone - Omni-Directional electret condenser microphone
- Control Input
- 2 channels, no-voltage make dry contact inputs (IN1/IN2/GND), open voltage: 5V DC, short-circuit current: 2mA or less
- Removable terminal block
- Control Output
- 1 channel, Relay Output (COM/NO (normal open) /NC (normal close), with stand voltage: 30V DC, control current: MAX. 50 mA
- Removable terminal block
- Indicator - Power (orange), Network Status (green)
- Dust/Water Protection - IP66
- Operating Temperature - –45 °C to +55 °C
- Operating Humidity - 90%RH or less (no condensation)
- Finish
- Horn are: Aluminum, Off-white, powder coating
- Reector horn and rear cover: ABS resin, off-white
- Cable Grant: Aluminum
- Brackets, screws, and bolts: Stainless steel
- Dimensions - 285 (W) x 227 (H) x 277 (D) mm (11.22" x 8.93" x 10.90")
- Weight - 1.95 kg
- Included Accessories
- 1x 6P Terminal-block
- 1x 2 P Terninal-block
