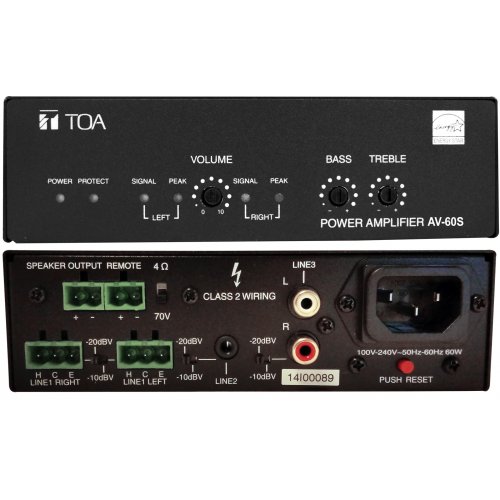

TOA AV-60S-AM Micro Amplifier

About: TOA AV-60S-AM Micro Amplifier

The AV-60S-AM is a single channel digital amplifier for speech and general announcement.

This compact amplifier is equipped switching power supply circuit inside, Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms. The unit is suited to use in board room, conference room and AV presentation room.

Specifications

• Power Source 100V-240V AC, 50Hz/60Hz
• Rated Output 60W @ 4 Ohms, 60W @ 70 V
• Power Consumption Rated Output Less than 85 W @ 70 V, Less than 110 W @ 4 Ohms
• Idle Power Consumption Less than 10 W @ 70 V, Less than 7 W @ 4 Ohms
• Power Consumption in Power Saving Mode Less than 1 W
• Frequency Response
  • 4 Ohms mode: 20Hz to 20KHz ±3dB
  • 70V mode: 60Hz to 20KHz ±3dB
  • (Line1 input with transformer: 100Hz to 20KHz)
• Total Harmonic Distortion  Less than 0.15%
• Input
  • Line 1: -10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminal block
  • Line 2: -10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack
  • Line 3: -10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks
• Output  Speaker output, removable terminal block (2P)
• Tone Control  Bass: ±10 dB at 100 Hz, Treble: ± 10dB at 10 kHz
• Controls
  • Master volume control
  • Remote volume control
  • Bass tone control, Treble tone control
  • 70 V / 4 Ohm switch
  • Input sensitivity switches (Line 1, Line 2, Line 3)
• Indicator Power LED, Protection LED, Signal LED, Peak LED
• Other Feature Automatic Level Control, Thermal/Over-current protection, Automatic power save function (EnergyStar rated)
• Operating Temperature -10°C to 40°C (14°F to 104°F)
• Case Black metal case
• Dimensions 150 (W) x 44 (H) x 156 (D) mm (5.9” x 1.73” x 6.14”)
• Weight 1.12 kg (2.5 lb)
• UL Standards UL2043
• Accessories 1/2” EMT adaptor plate
• Optional Accessories WPB-20, MB-AV20RM
