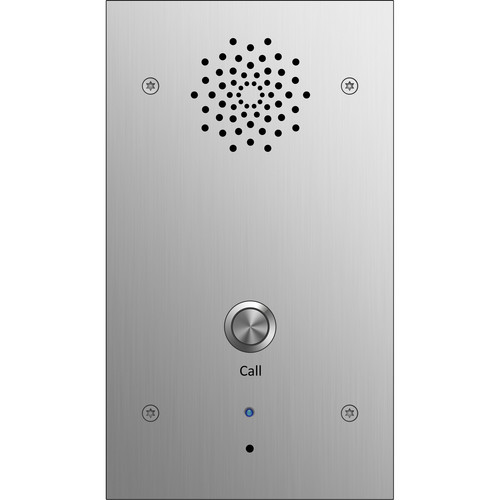

TOA N-SP80AS1 SIP Audio Door Station
Model: N-SP80AS1
About: TOA N-SP80AS1 SIP Audio Door Station
The N-SP80AS1 is a SIP compliant Audio door station designed for use in combination with the common IP telephone system. An audio echo canceller function assures high-quality hands-free conversation.Using the built-in relay output, you can unlock the nearby door.The N-SP80AS1 can be operated when connected to a PoE-compatible switching hub using a LAN cable.Another feature includes a multicast audio stream receiving function used for paging.
Specification
- Power Supply - PoE (IEEE802.3af) or 12 V DC
- Power Consumption - 12 W or less
- Speech Method - Hands-free conversation
- Audio Bandwidth - G.722 codec: up tp 7 kHz
- Hands-free - Speaker: 5 cm (1.97") Cone-type, Maximum output 1 W, 8 Ω
- Microphone: Omni-directional electret condenser microphone
- Control Input - 2 channels, no-voltage make contact input, open circuit voltage: 5 V DC, short-circuit current: 10 mA or less
- Control Output - 2 channels, relay output, normal open/normal close output, withstand voltage: 30 V DC, control current: 1 A
- DC Power Input - 12 V DC
- Operation Button - Call button ×1, Reset button ×1
- Indication - Status LED
- Network - Network I/F: 10BASE-T/100BASE-TX (Auto-Negotiation)
- Network Protocol: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP, SIP
- Packet transmission system: Unicast, Multicast
- Paging: Multicast receive ×1
- Connector: RJ45 2 ports (one supports PoE (IEEE802.3af))
- Quantifying bit number: Maximum 16 bits
- Voice encoding method: G.711 μ-law/A-law, G.722, G.729
- Security: Password protection, IP address filtering, SIP over TLS, HTTPS
- Speech Features - SIP: SIPv1 (RFC2543), SIPv2 (RFC3261)
- Audio features: Acoustic echo canceller, VAD (Voice Activity Detection), Comfort noise generator
- Others: Auto answer, Volume control, Peer-to-peer connection (Direct IP connection without SIP server)
- Installation Method - Flush-mount
- Operating Temperature: -20 ℃ to +55 ℃ (-4 ゜F to 131 ゜F)
- Operating Humidity: 10 % to 90 %RH (no condensation)
- Dust/Water Protection - IP65 (Panel)
- Finish - Panel: Stainless steel
- Dimensions - 120 (W) × 210 (H) × 49.5 (D) mm (4.72" × 8.27" × 1.95")
- Weight - 870 g (1.92 lb)
- Accessory - Box mounting torx screw …4, Torx screw driver …1
- Applicable Box - 4 size back box: YC-400
