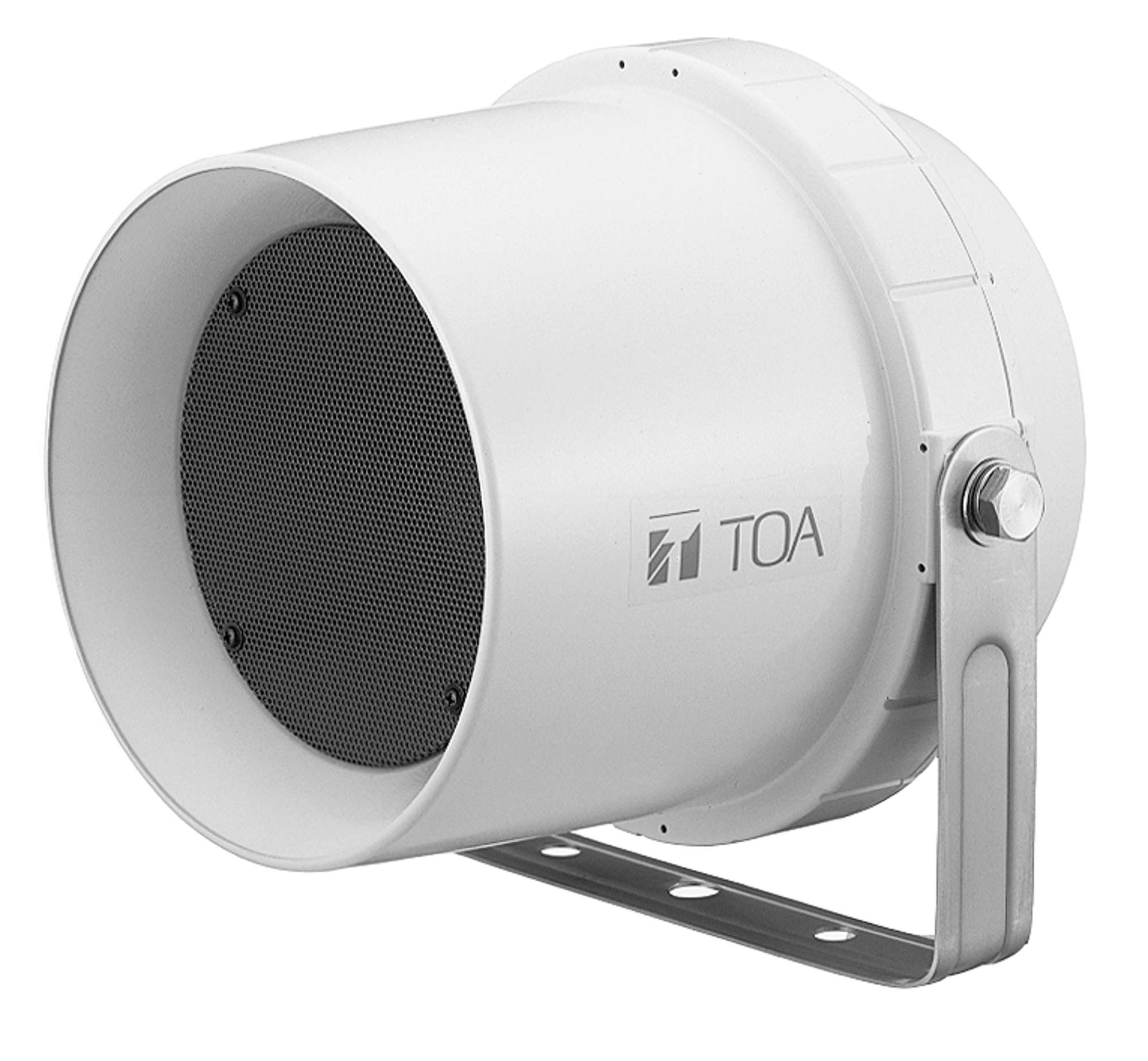

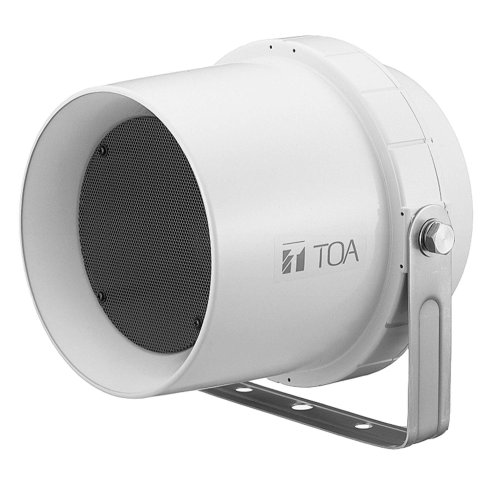

TOA Canada CS-64 6W 70V Outdoor Projection Speakers
Model: CS-64
About: TOA Canada CS-64 6W 70V Outdoor Projection Speakers
The CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs the rotary switch that facilitates impedance changes.
- Round wide-range speaker for paging, background music and tone signaling distribution
- Exponential horn improves directivity characteristics and ensure uniform and clear sound dispersion
- Wide temperature range: -20 to +55 °C
- Stainless steel hardware protects the speaker from corrosion
Specifications
- Rated Input - 6 W
- Rated Impedance
- 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity - 96 dB (1 W, 1 m)
- Frequency Response - 130 - 13,000 Hz
- Speaker Component - 12 cm cone-type (treated for splash proof)
- Speaker Cable - 2-core cabtyre cord with diameter of 6 mm
- Operating Temperature - -20℃ to +55℃
- Finish
- Horn, cover: ABS resin, off-white, paint
- Bracket: Stainless steel
- Panched net: Surface treated steel plate, dark-gray, powder coating
- Screw: Stainless steel
- Dimensions - 233 (W) x 224 (H) x 208 (D) mm
- Weight - 1.5 kg
