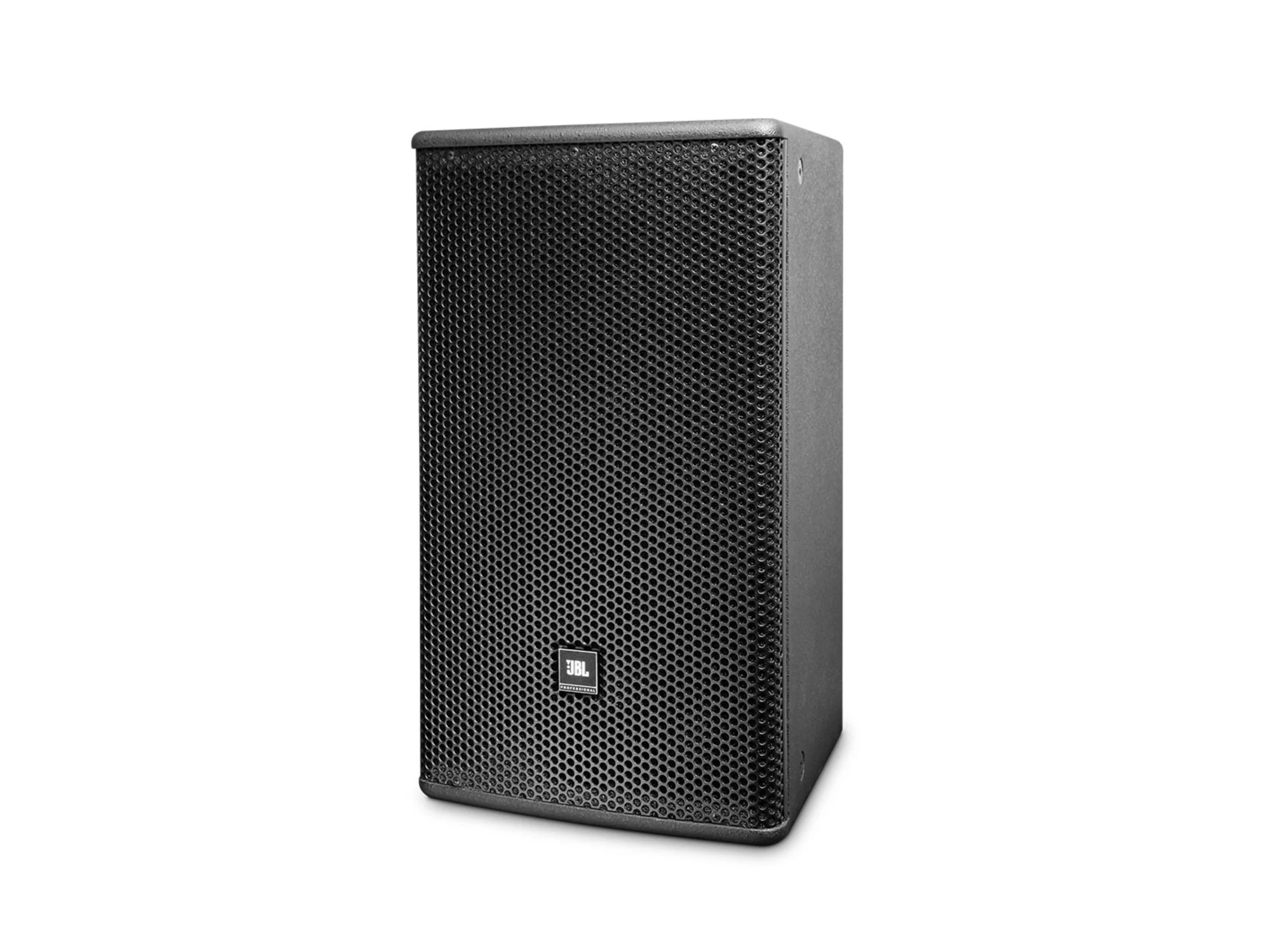

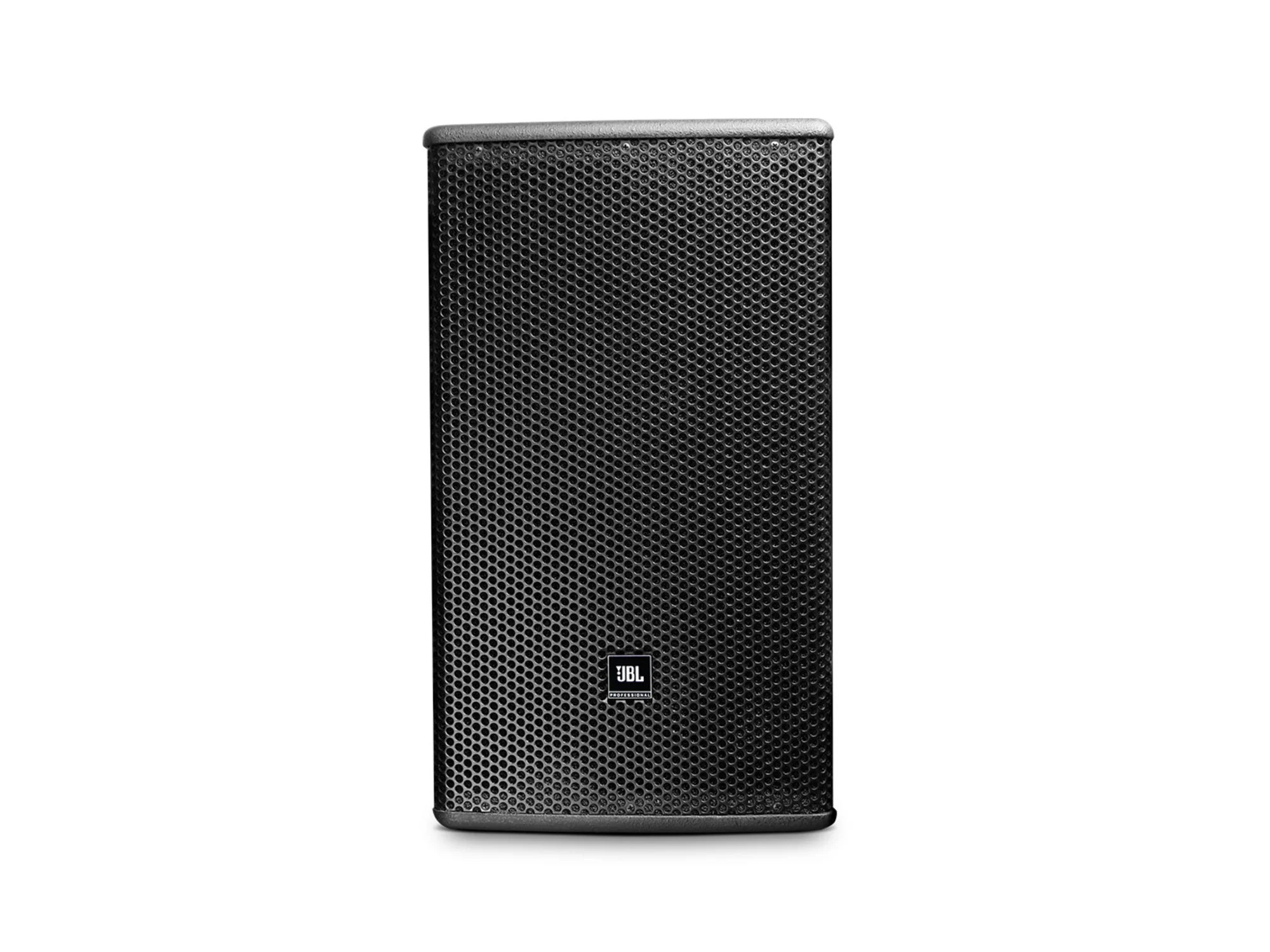

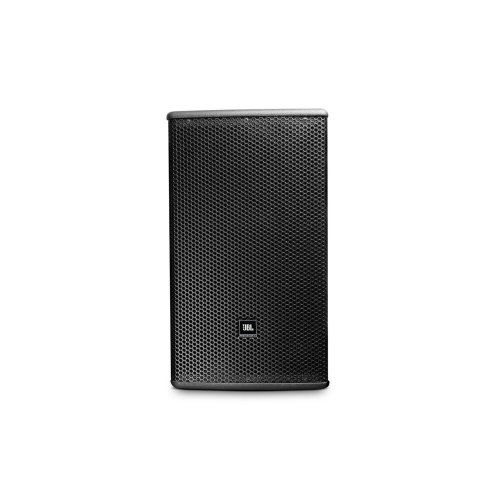

JBL AC195 10in Two-Way Passive Loudspeaker w/90° x 50° Horn (Each)
Model: AC195
About: JBL AC195 10in Two-Way Passive Loudspeaker w/90° x 50° Horn (Each)

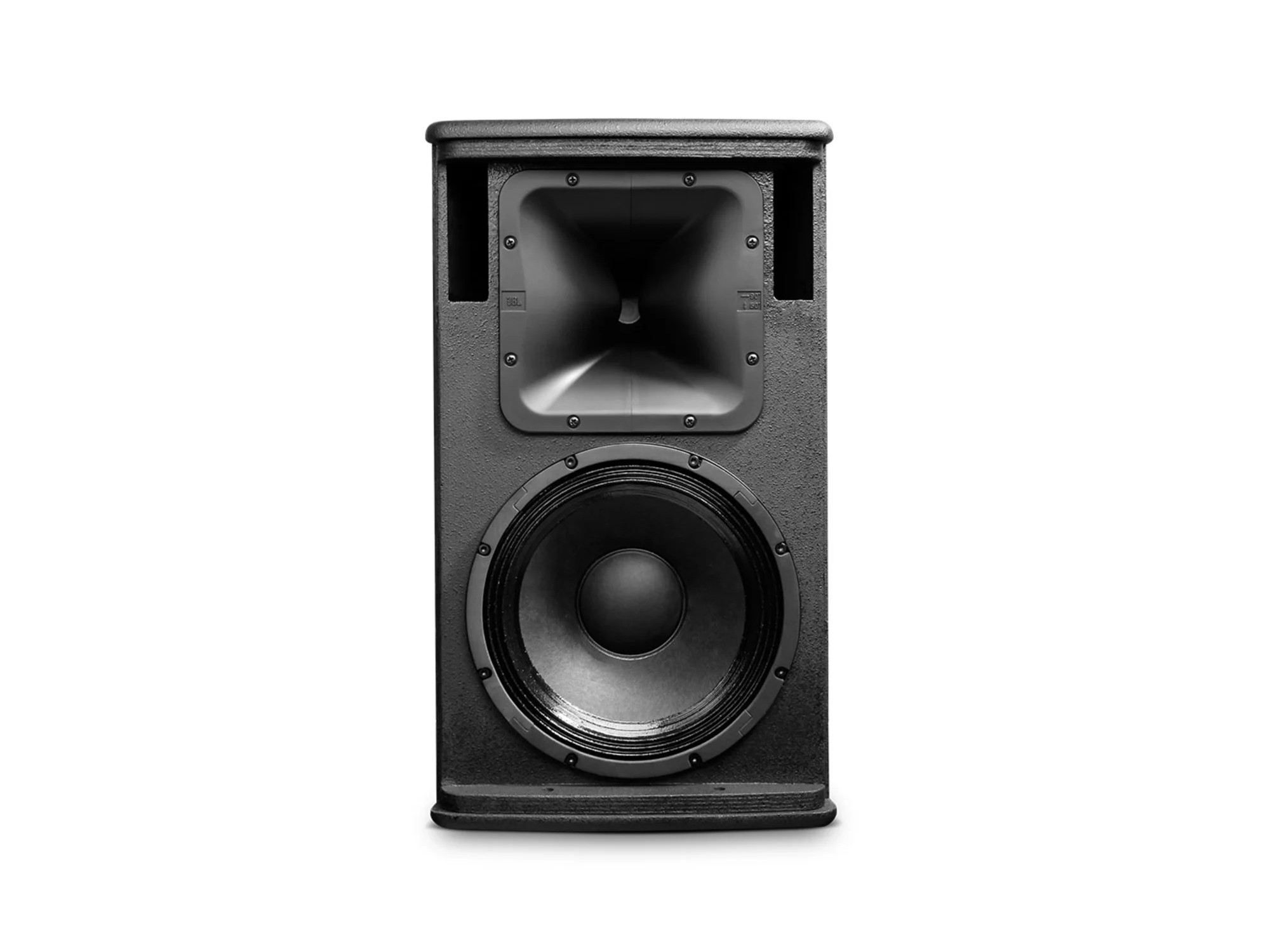

The JBL AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Specifications
- Frequency Range (-10dB): 68 Hz - 20 kHz
- Frequency Response (±3 dB): 85 Hz - 18kHz
- System Sensitivity (1w @ 1m): 95 dB
- Nominal Impedance: 8 ohms
- Maximum SPL (1m): 118 dB (124 dB peak)
- System Power Rating: 300W (1200W peak), 2 hrs (AES rated)
- Coverage Pattern: 90° x 50° (H x V)
- Crossover: 1.8 kHz
- LF Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
- HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
- Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure: 15 mm multi-ply hardwood plywood
- Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Nominal LF Driver Impedance: 8 ohms
- Nominal HF Driver Impedance: 8 ohms
- Dimensions (HxWxD): 21.0 x 12.2 x 12.9 inch (535 x 310 x 329 mm)
- Net Weight (each): 28.8 lbs (13.1 kg)
UPC: 691991001260
