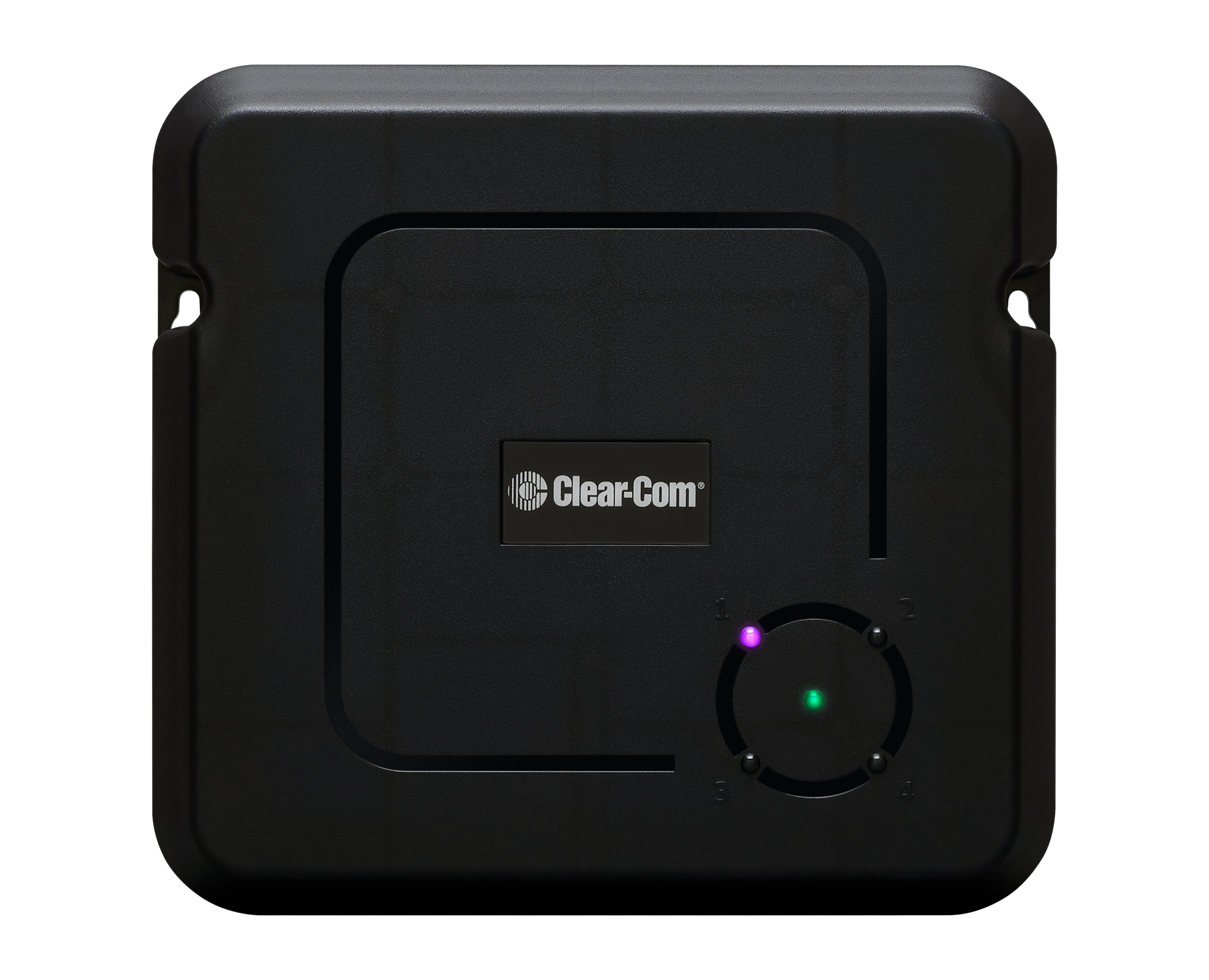

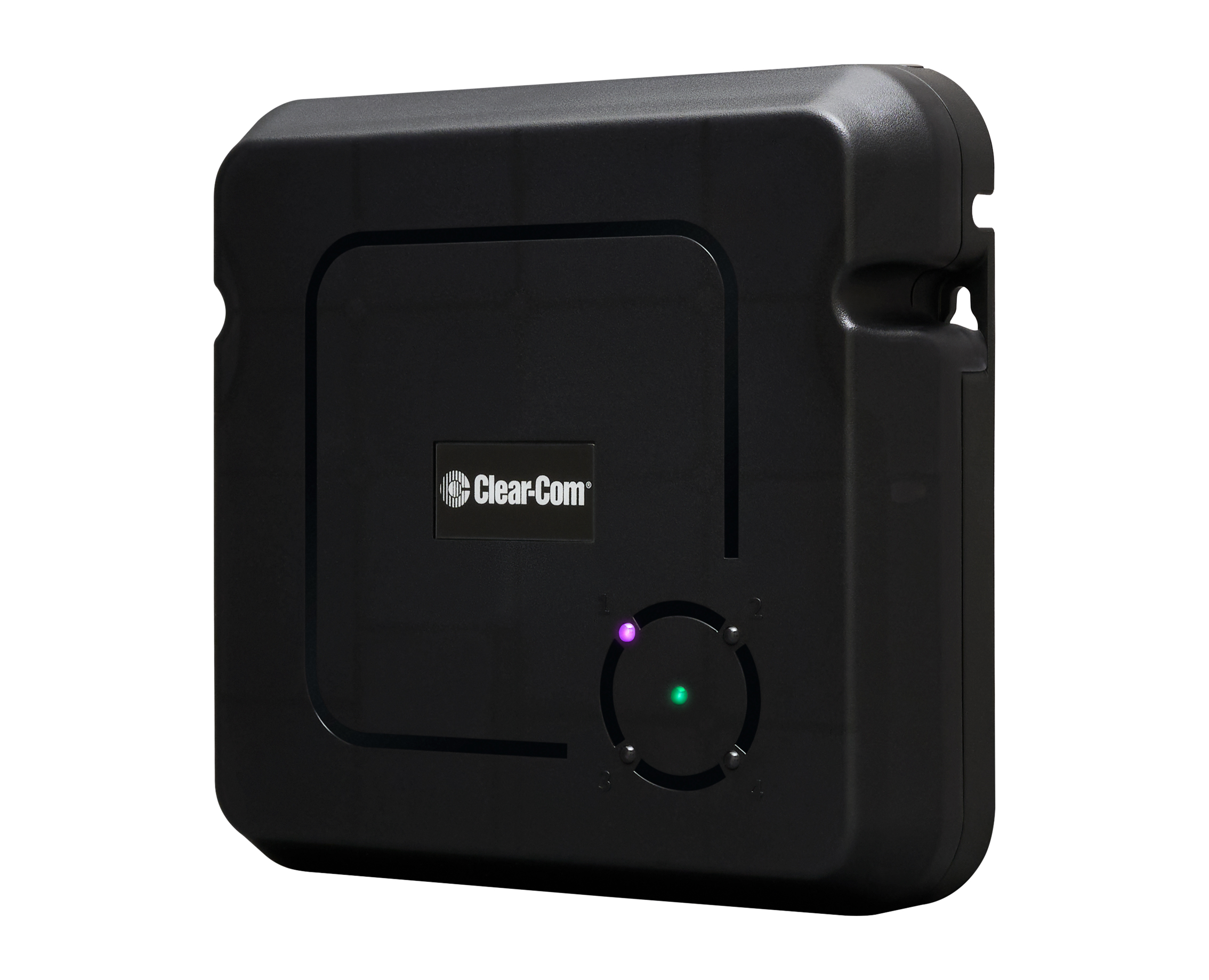

Clear-Com HME EQUIP 5GHz Transceiver Antenna
Model: EQP-TCVR
About: Clear-Com HME EQUIP 5GHz Transceiver Antenna
The EQUIP-TCVR is a digital remote transceiver for the EQUIP wireless intercom system, connecting to the EQUIP-WH all-in-one headsets to the EQUIP-BASE base station. Up to four of the rugged, wall mountable transceivers can be connected to a single base station to ensure maximum coverage range.
The EQUIP-TCVR is an omni-directional 5 GHz transceiver that provides connection for up to 40 wireless EQUIP headsets. Each transceiver is controlled and monitored by the EQUIP base station.
The EQUIP-TCVR is IP53 rated for wet weather or dusty conditions, making it ideal for outdoor environments.
Technical Specifications:
Connections:
Transport Protocol: Data and Audio with power up to 500 ft from the EQUIP Base
Front Panel: LED type: 5 x RGB, one for power and 4 for connection status
Rear Panel: RJ45 port
Frequency Range:
- Main Radio: 5.180 – 5.8525GHz
Power Supply:
- Voltage: 48V DC (powered from EP-BASE)
- Current: 60 mA pk-pk @ 48 V
- Power: 2.88W
Note: Frequency used in each country may vary based on local regulatory requirements.
Environmental
IP53 water and dust resistance:
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
Details:
- Power and audio to transceivers
- Remote monitoring from the EQUIP base station
- 5 GHz license free radio band
- Single CAT5/6 cable to EQUIP Base
- Centrally powered from the EQUIP Base Station
- Site Survey Mode for transceiver placement
- 40 Wireless headsets per system
- Status LEDs
Dimensions:
- 6.7 x 7.2 x 1.56 in (HxWxD)
- (170.31 x 181.8 x 39.6mm)
Weight:
- 14oz (396g)
