Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna
Model: FSII-TCVR-19-US
About: Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna
The FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 or FSIC-BP19 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas, a single radio space can support up to 65-90 FreeSpeak Icon and FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX cards, and FSII splitter hardware
- Supports 5 FSII-BP19 or FSIC-BP19 beltpacks per FSII-TCVR-19 transceiver
- Supports systems with up to 65-90 beltpacks when mixed with FSII-TCVR-24s
- Green LED status indicator on top and bottom

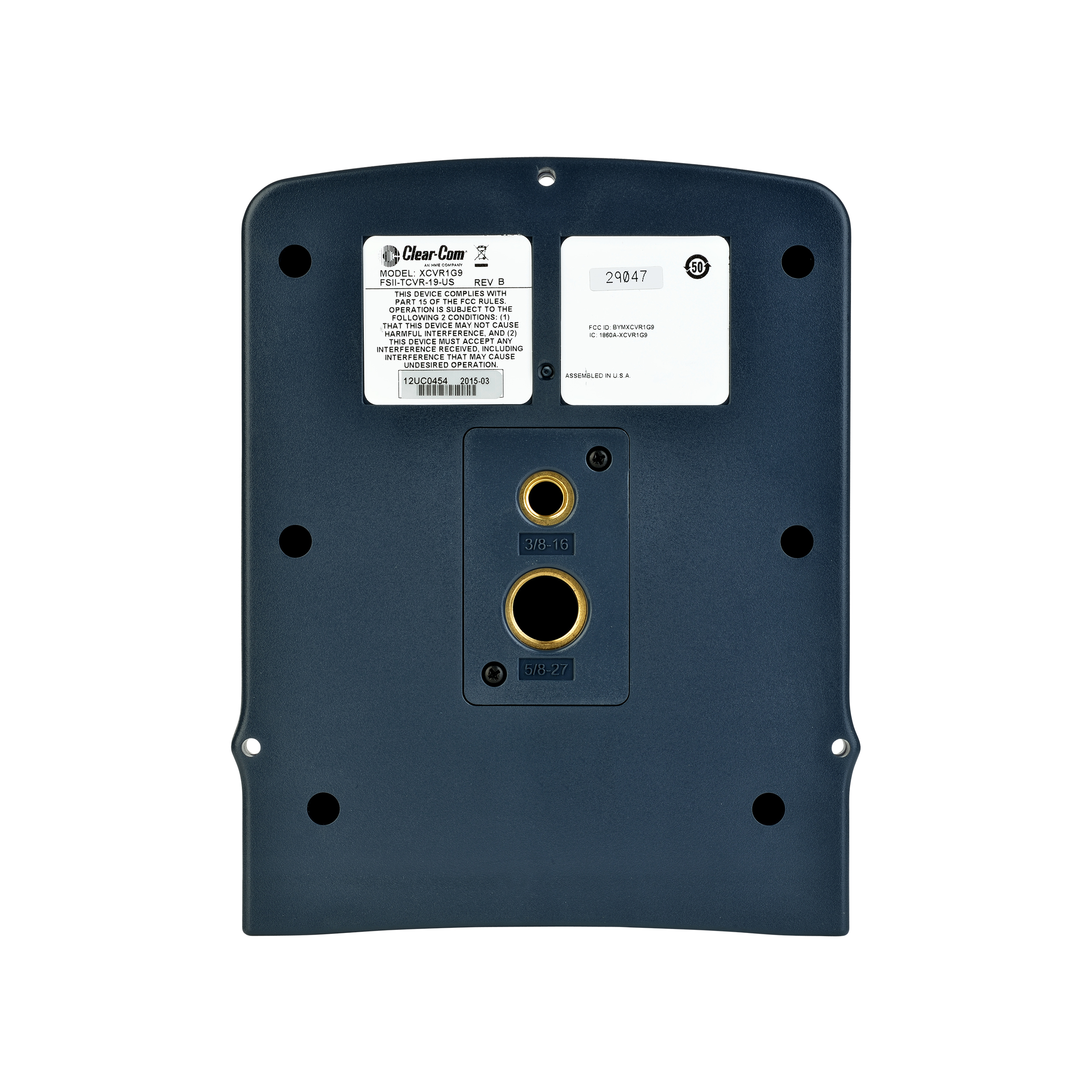

- Mic stand or wall mount orientation (metric and imperial threads)
- IP53 rating for wet and dusty conditions
Durability
The FSII-TCVR-19 is IP53 rated for wet weather or dusty conditions making them ideal for outdoor productions.
Specifications
- Frequency Spectrum
- Frequency: 1920-1930MHz (5 Channels)
- Transceiver Range Output Power: 100mW
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output: 18-20dBm
- Environmental
- IP Rating: IP53 water and dust resistance
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Dimensions (HxWxD): 7 x 5.7 x 2 in (178 x 144.8 x 51mm)
- Weight: 0.99 lbs (0.45kg)
Reviews: Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna
Warranty: Clear-Com FSII-TCVR-19 FreeSpeak II 1.9GHz Transceiver Antenna
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:
- Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
- Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
- Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
- Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
- Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
- All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Clear-Com do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
