Clear-Com BP50-X4 FreeSpeak Edge Digital Wireless Beltpack w/4-Pin Connector
Model: FSE-BP50-X4
About: Clear-Com BP50-X4 FreeSpeak Edge Digital Wireless Beltpack w/4-Pin Connector

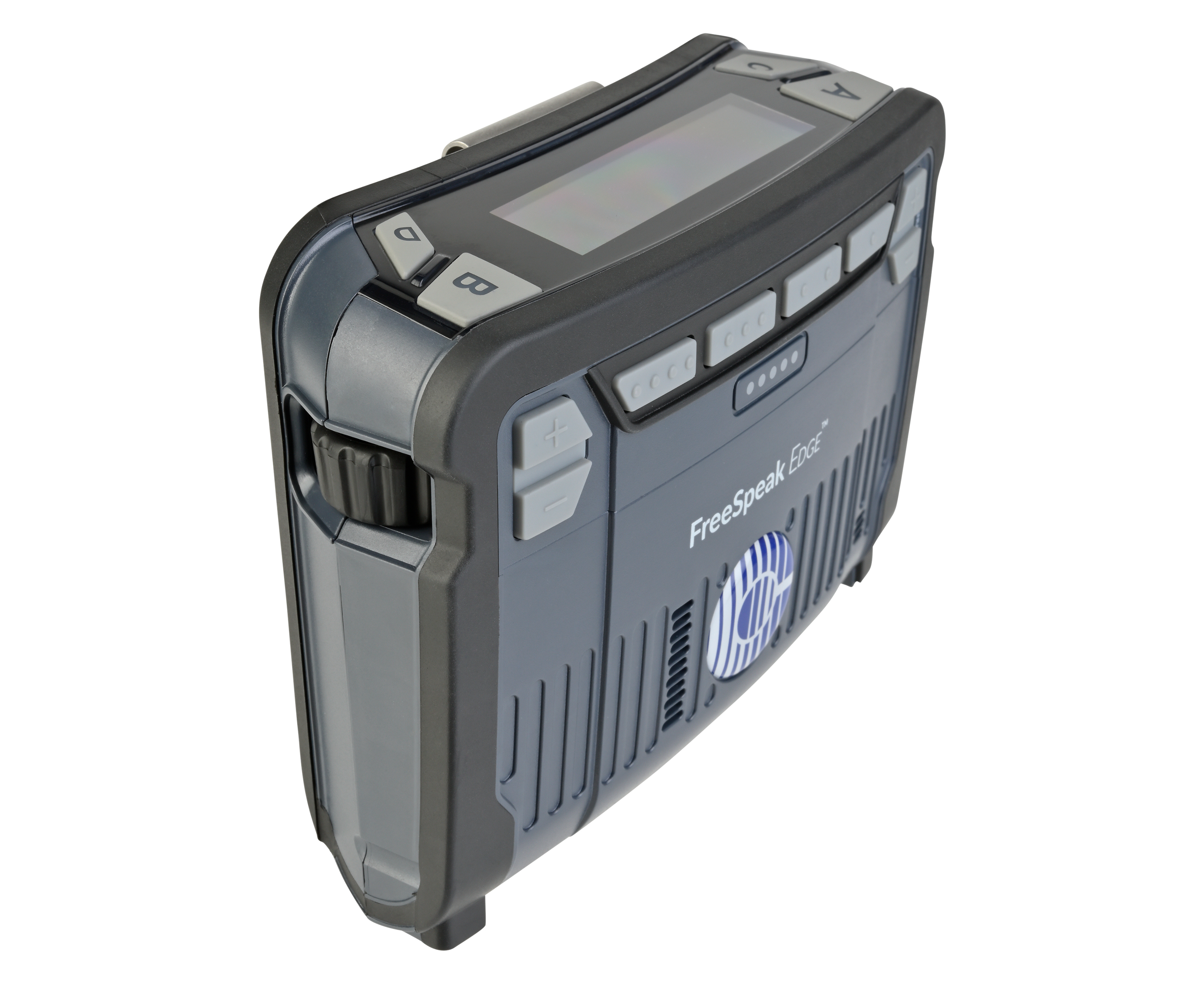

The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the 5 GHz frequency range, coupled with a dedicated modulation scheme to use signal reflection and multipath to deliver low-latency, best-in-class 12 kHz audio and data for a premier high-density wireless solution. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, a dedicated master volume control, and a built-in mic and speaker station mode.
- Beltpack
- Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- 1.9, 2.4 and 5.0 GHz beltpacks operate on a single system
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)

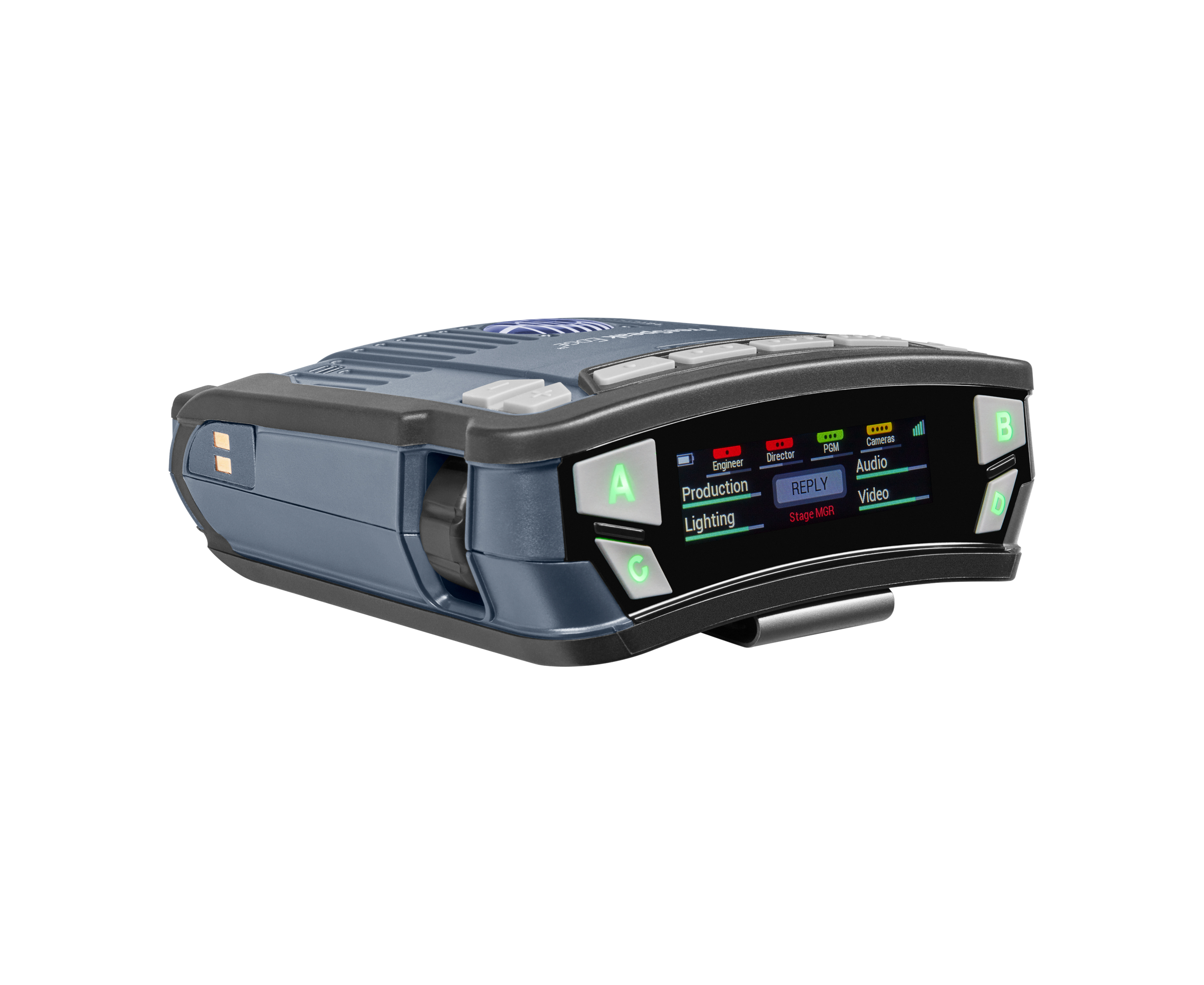

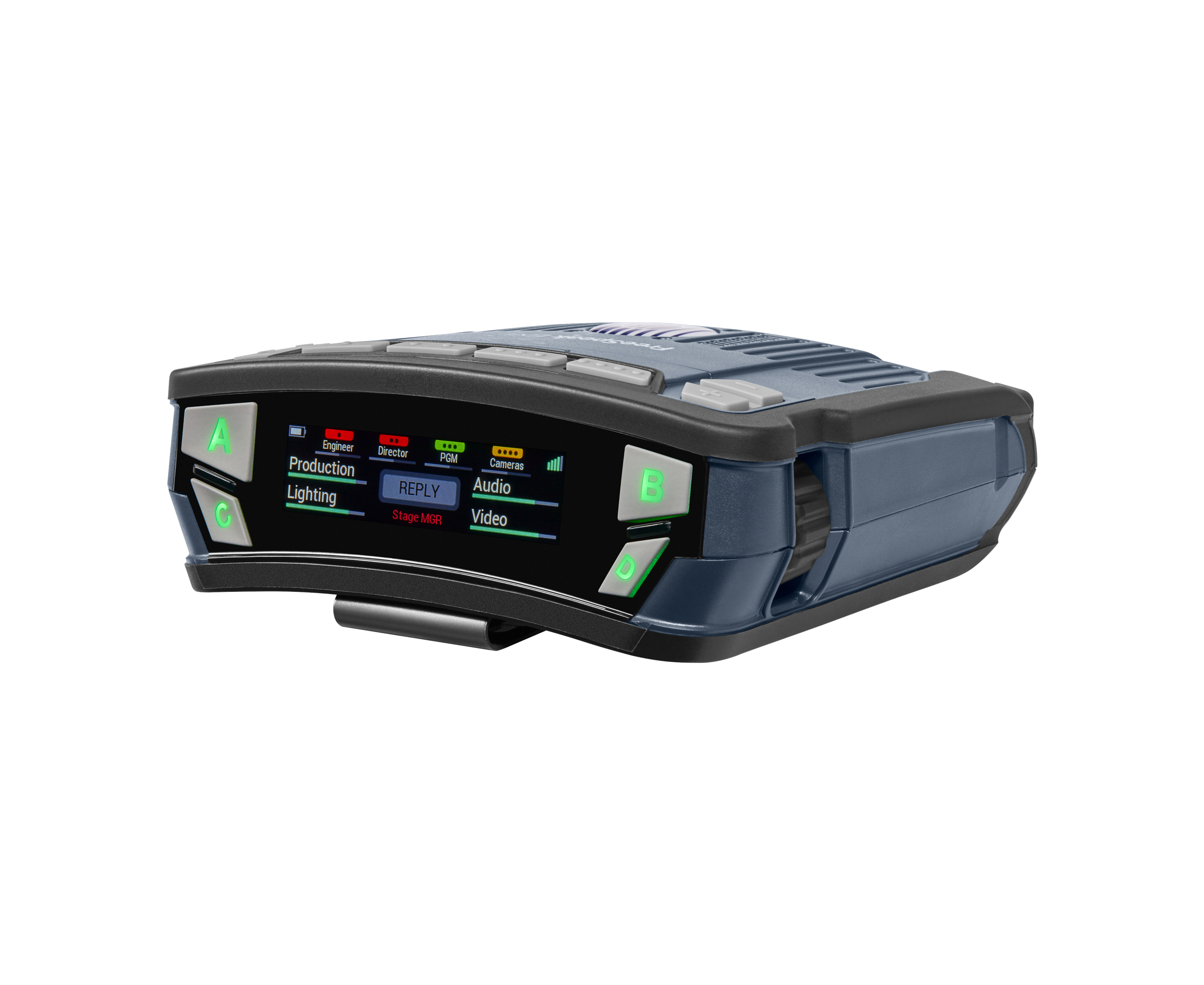

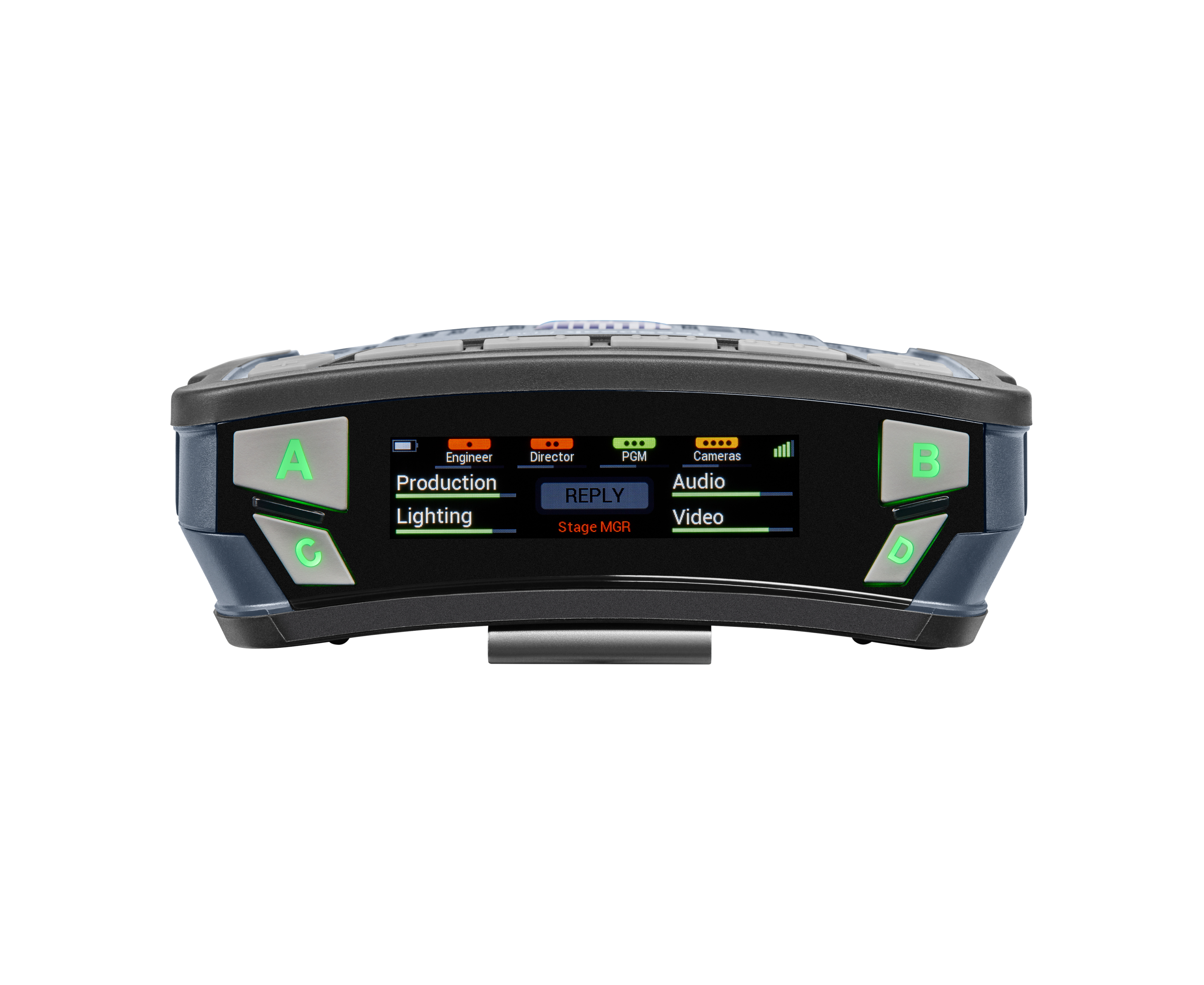

- TFT color display

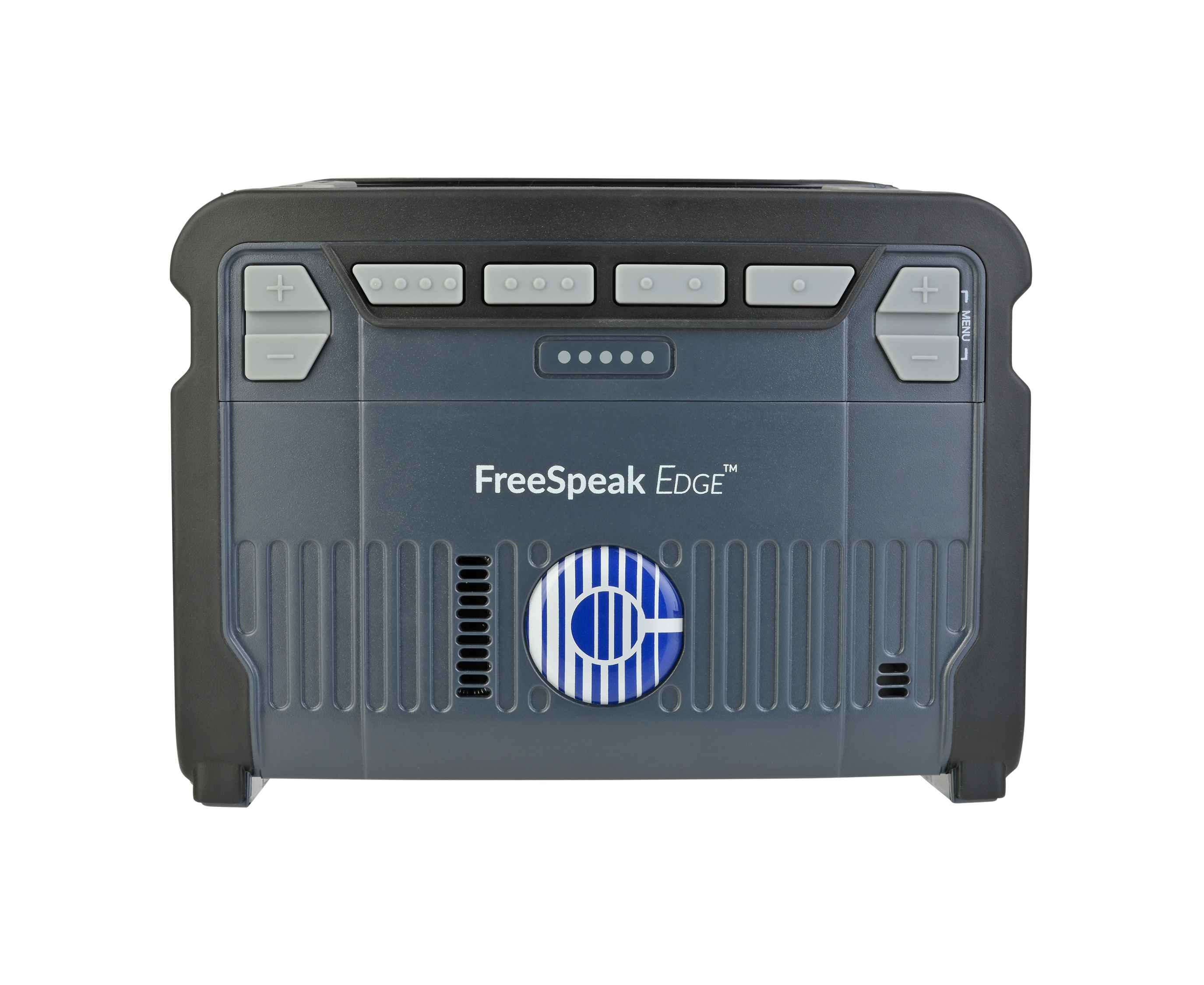

- 4 top buttons with individual level control
- 5 additional programmable buttons

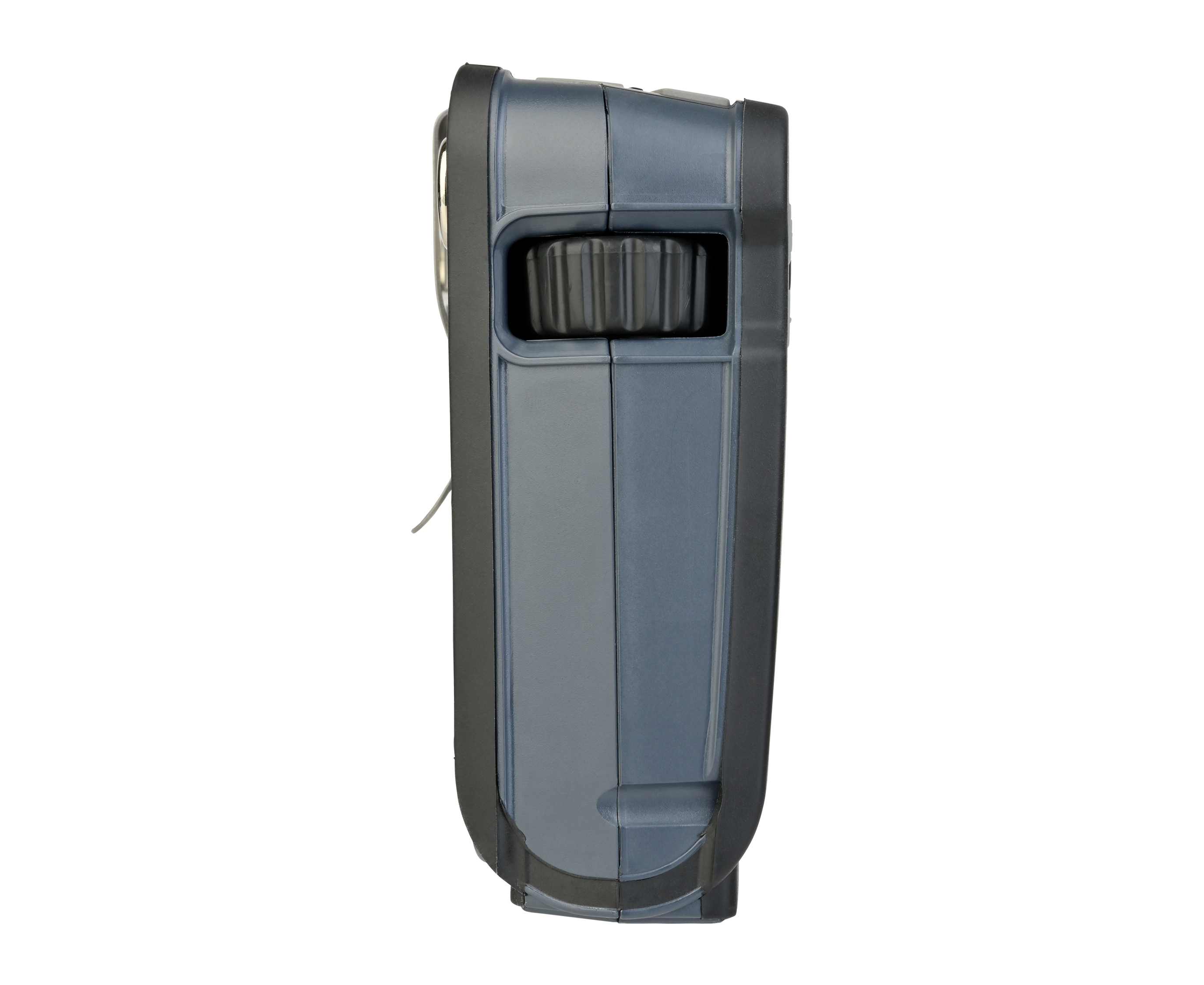

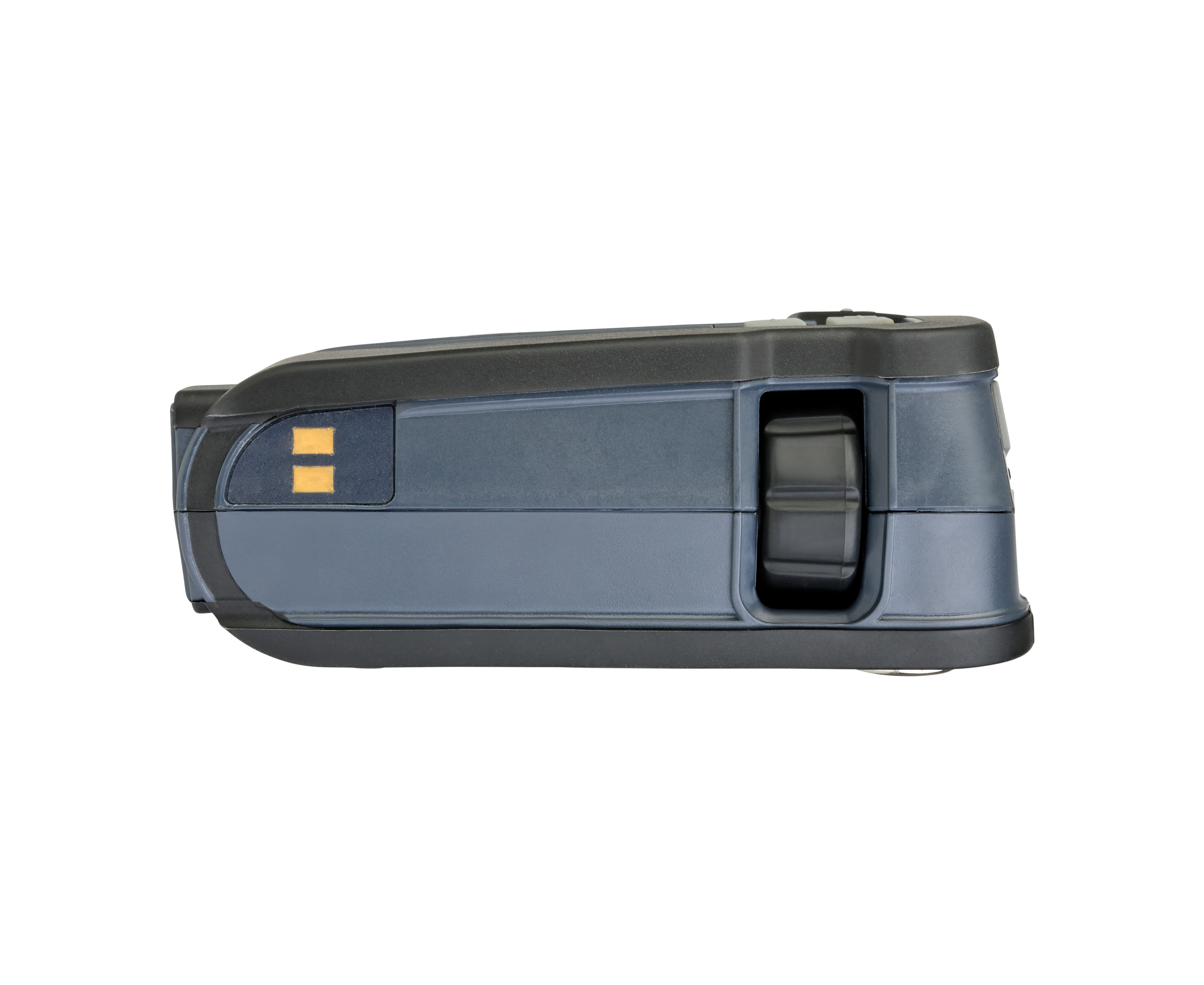

- Rotary controls on both sides and up/ down level controls
- Master volume control on bottom
- Built-in mic and speaker
- Built-in flashlight
- Drop-in and USB-C charging
- Connectivity
- 5 GHz radio frequency
- 20 - 27 radio channels (region specific)
- Robust radio link works in high multipath or reflective environments
- Dual redundant radios
- 2.4GHz radio; beltpack pairing and firmware updates over the air
- Low latency audio: < 35ms (60ms beltpack to beltpack)
- Wi-Fi coexistence
- 5 GHz Scanner Mode - built in scanning tool for selecting channels
- AES256 shared key encryption
- Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
Operation
FreeSpeak Edge beltpacks can be supported by a range of options, including the FreeSpeak Edge Base Station, the Arcadia Central Station, and the Eclipse HX digital matrix, all of which support the FSE-BP50 via the FSE-TCVR-50-IP transceiver (region specific). FSE-BP50 users can roam seamlessly between FSE-TCVR-50-IP transceivers over wide areas. When configured by an Eclipse matrix, the system can scale up to meet the needs of even the very largest productions.
Increase System Size
The FSE-BP50 can be mixed with FSII-BP19 and FSII-BP24 beltpacks on the same system, increasing the quantity of beltpack users in a single deployment. Eclipse supports 64 FSE-BP50 beltpacks on one E-IPA-HX IP card, however systems utilizing multiple E-IPA cards within a single Eclipse HX frame can support up to 200 beltpacks (see Capacity Chart for details).
Durability
The FSE-BP50 is IP54 rated for wet weather or dusty conditions, making it ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized over-mold to protect from the most rugged environments.
Battery
Using the included BAT80 Li-Ion battery, the FSE-BP50 has 12+ hours of battery. Housed within the beltpack is a USB-C charging port (cable included with package) for recharging or for continuous powered transmissions. The BAT80 can be charged within the AC80 battery charger.
Specifications
- Audio
- Audio Bandwidth: 200 - 12kHz
- No. of Full-Duplex Audio Paths: 9
- Mode of Operation: Full-duplex on all routes
- Level/Talk Controls: 9 pushbuttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control)
- Menu Button: 1

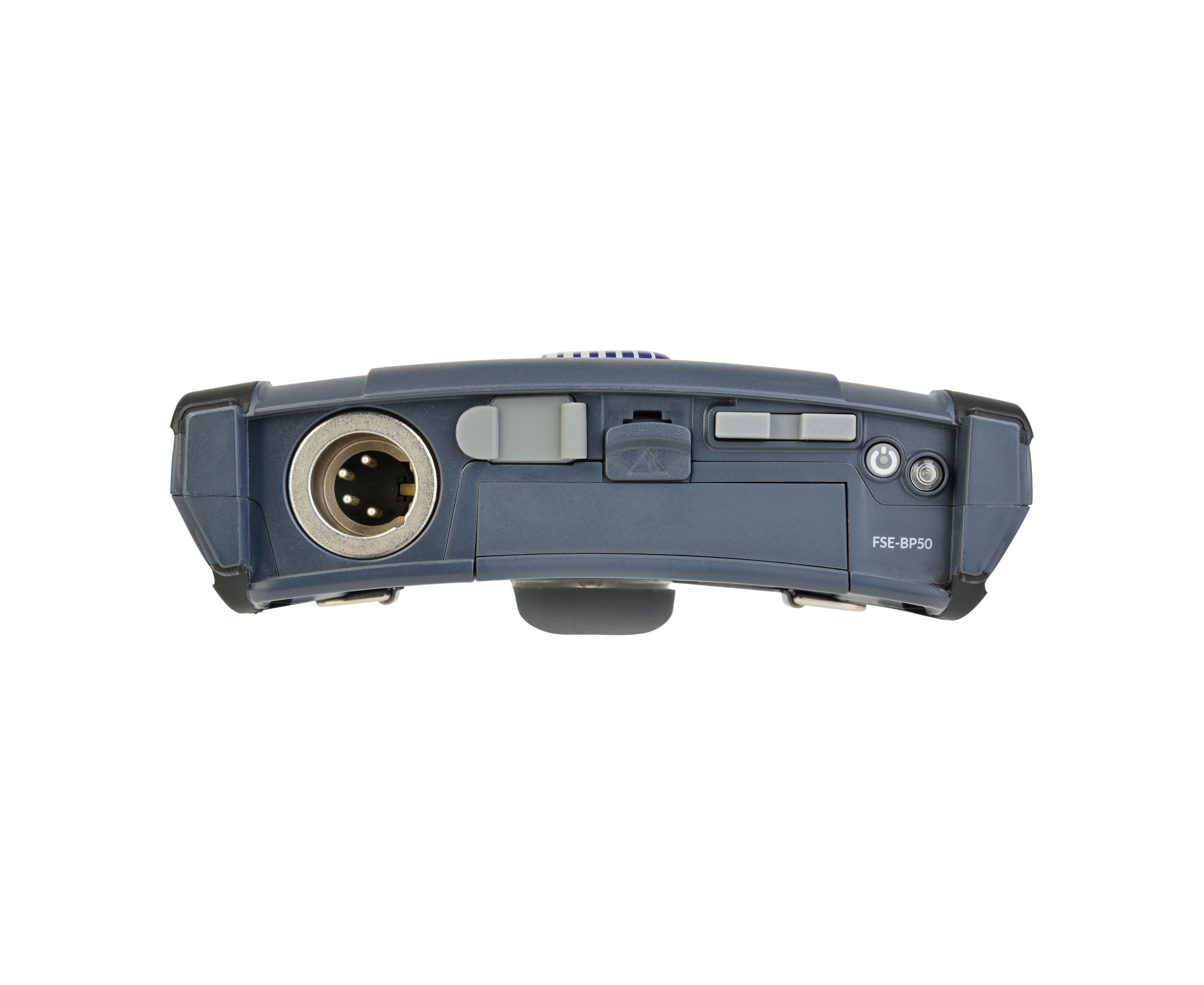

- Headset Connector: 4-pin male (Clear-Com)
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Headset Limiter: Selectable from beltpack menu
- Radio
- Frequency Spectrum: 5170 - 5875MHz (20MHz channels set by country)
- Output Power: Adjustable from 1 - 24dBm (Maximum output power is determined by selected channel and country)
- Modulation: OFDM
- Range: Typical indoor range 250ft (80m), outdoor range 750ft (230m)
- Battery
- Battery: 4400mAh
- Power: 16Wh
- Typical Voltage: 3.6V
- Battery Life: 12 hours
- Environmental
- IP Rating: IP54 water and dust resistance
- Operating: 32 to 113°F (0 to 45°C)
- Storage: -22 to 158°F (-30 to 70°C)
- Humidity: 20 - 90%, Non-Condensing
- Regulatory
- Regulatory Model: 1409
- FCC ID: BYM1409
- Dimensions (WxHxD): 5.31 x 4.07 x 1.92in (134.87 x 103.34 x 48.77mm)
- Weight
- Without Battery: 0.72lbs (0.37kg)
- With Battery: 0.96lbs (0.44kg)
