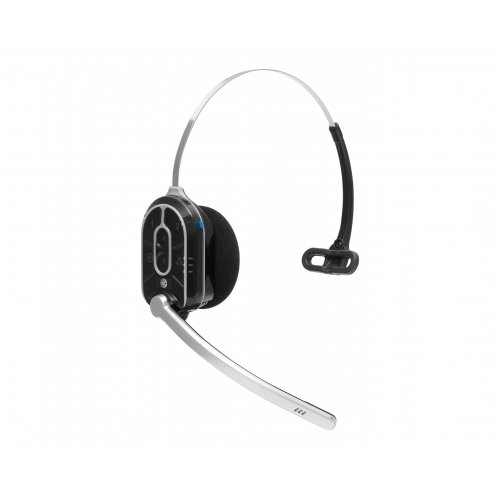

Clear-Com HME EQUIP All-In-One Headset (2 chan / 5 GHz)
Model: EQP-WH
About: Clear-Com HME EQUIP All-In-One Headset (2 chan / 5 GHz)

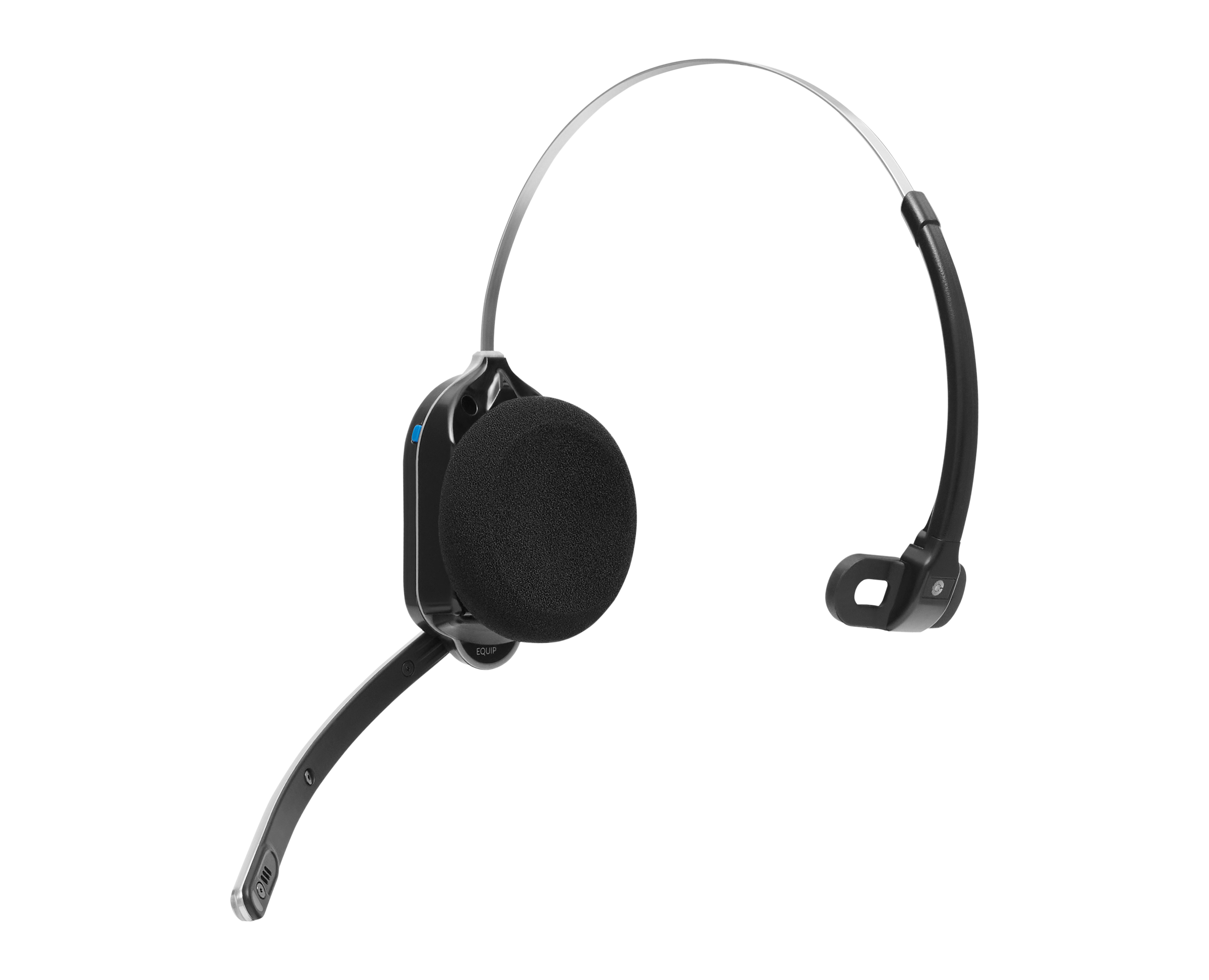

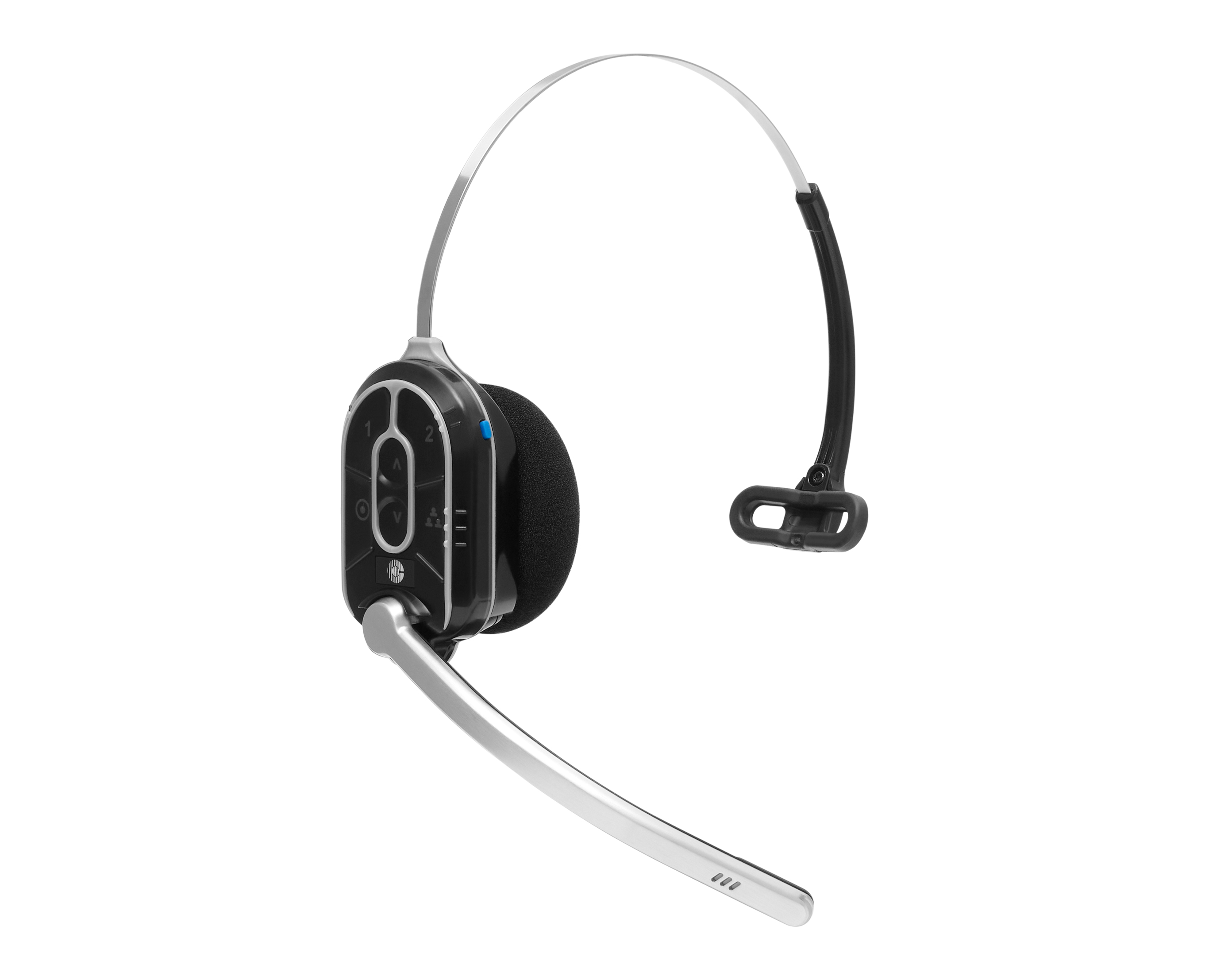

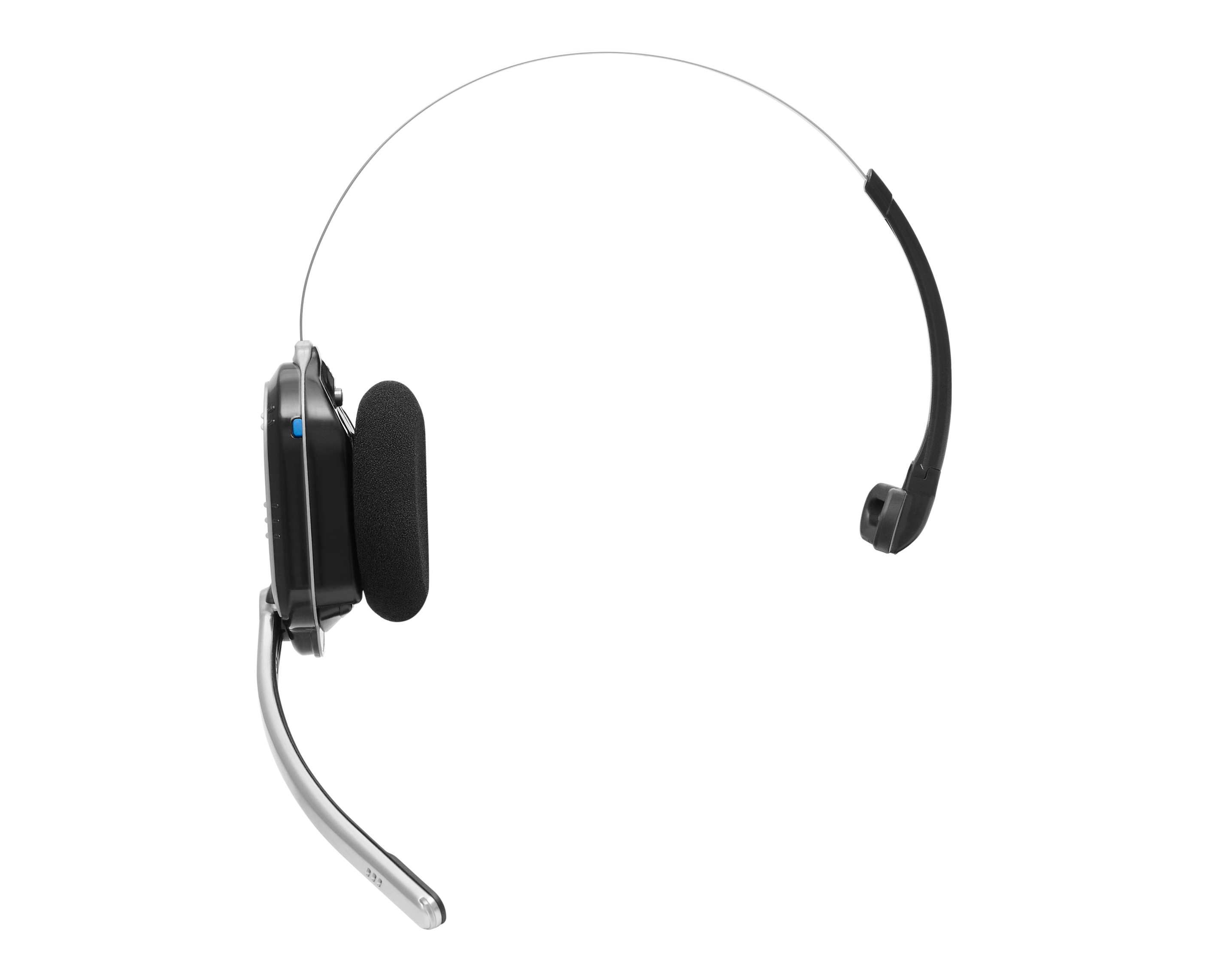

The EQUIP-WH is a rugged, water-resistant dual-channel all-in-one headset that operates in the ISM license-free 5 GHz frequency range. The all-in-one headset has an ergonomic design with tactile touch keys, level controls, and end of the boom talk indication LED. Slim durable metal headband and mic boom which can be worn on left or right side.
Rated for wet weather or dusty conditions, making it ideal for outdoor environments.
Connects to EQUIP-BASE Base via the EQUIP-TCVR transceivers. EQUIP-WH users can roam seamlessly between distributed transceivers over wide areas. The EQUIP-WH uses one rechargeable lithium-ion battery (BAT70). With moderate use in a typical environment, the headset will operate for approximately 8-12 hours on a single battery charge. It will alert the user when the battery charge is low. The EQP-WH uses NFC to facilitate easy pairing of the All-in-One headset; the headset simply needs a quick touch to the base unit to enable the headset to pair with the system. Headset users access one audio channel at a time and they can listen and talk on channel 1 or 2, however they cannot listen to both channels simultaneously.
Technical Specifications:
Frequency Range:
- Audio: 100 Hz to 7 kHz
Wireless:
- Main Radio: 5.180 – 5.8525GHz
- BLE Radio: 2.402 - 2.480GHz
Power:
- Voltage: 3.7V DC, powered from a rechargeable Lithium-ion battery
- Nominal Power with listening only: 0.314W
- Maximum Power with dedicated mode: 0.407W
- Environmental
- IP54 water and dust resistance
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
Details:
- Two Audio Channels
- 5GHz frequency range
- 7KHz wide band audio
- Lightweight cable-less operation
- Easy pairing using NFC
- LED indication of talk status
- Audio message prompts for level changes, talk paths, and battery status
- Up to 40 all-in-one headsets on a single system
- Replaceable rechargeable battery and charging system
- Fully charged battery lasts 8-12 hours depending on talk activity
Dimensions:
- 5.2 x 5.2 x 2.1in
- (132.1 x 132.1 x 53.3mm) without boom
- 9.2 x 5.2 x 2.1in (234.4 x 132.1 x 53.3mm) with boom extended down
Weight:
- 3.67oz (104.04g) with battery included
Reviews: Clear-Com HME EQUIP All-In-One Headset (2 chan / 5 GHz)
Warranty: Clear-Com HME EQUIP All-In-One Headset (2 chan / 5 GHz)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:
- Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
- Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
- Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
- Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
- Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
- All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
