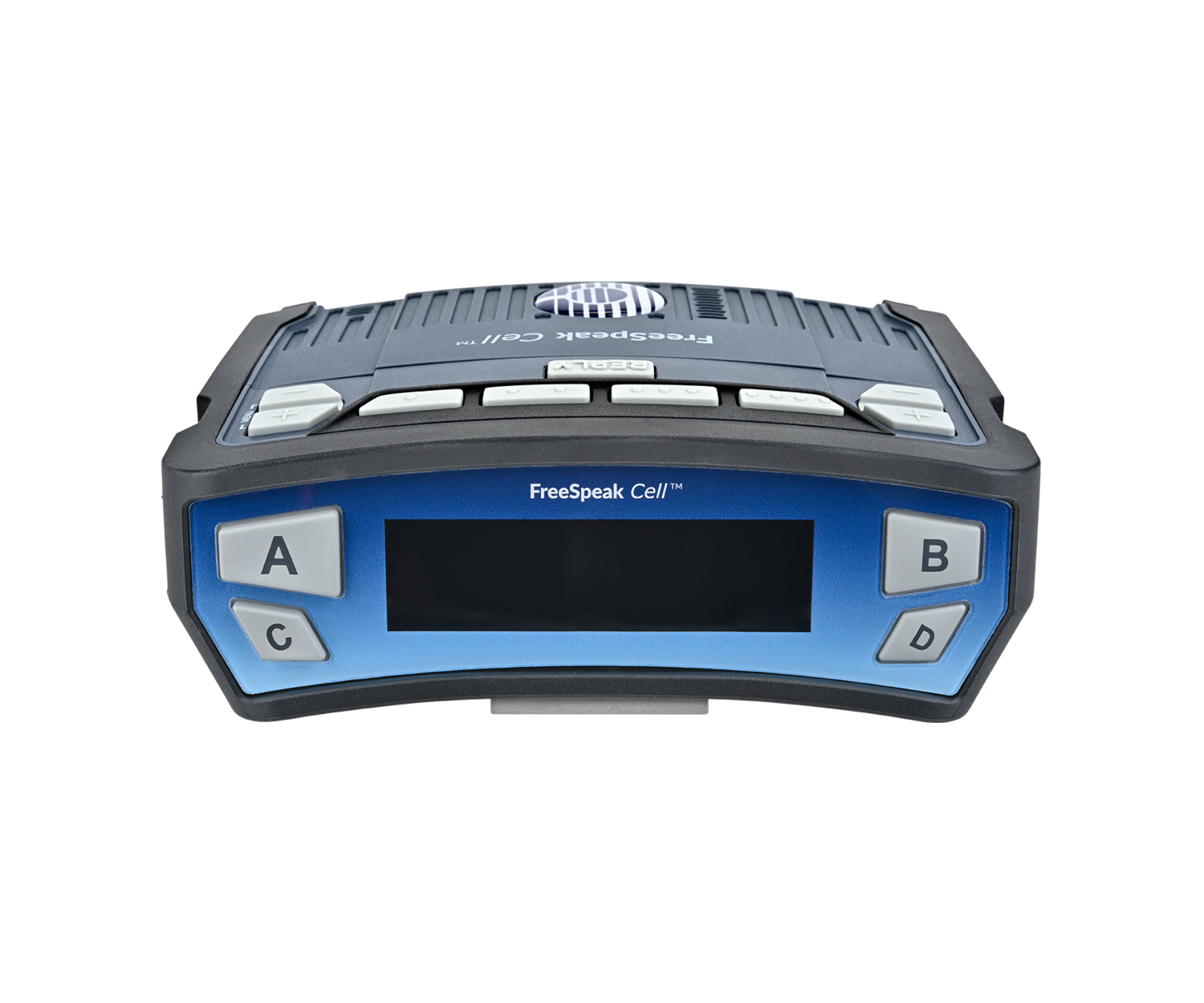

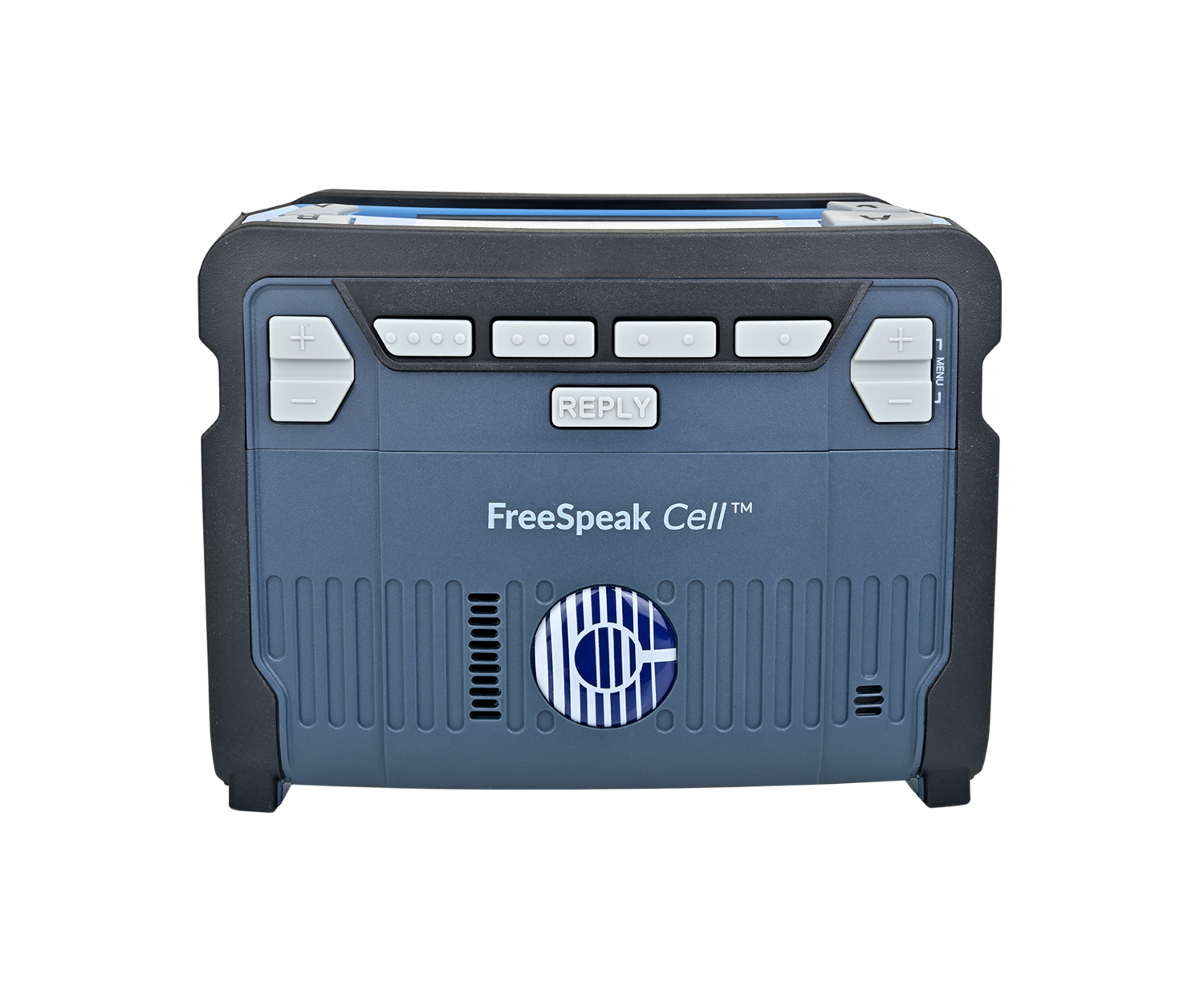

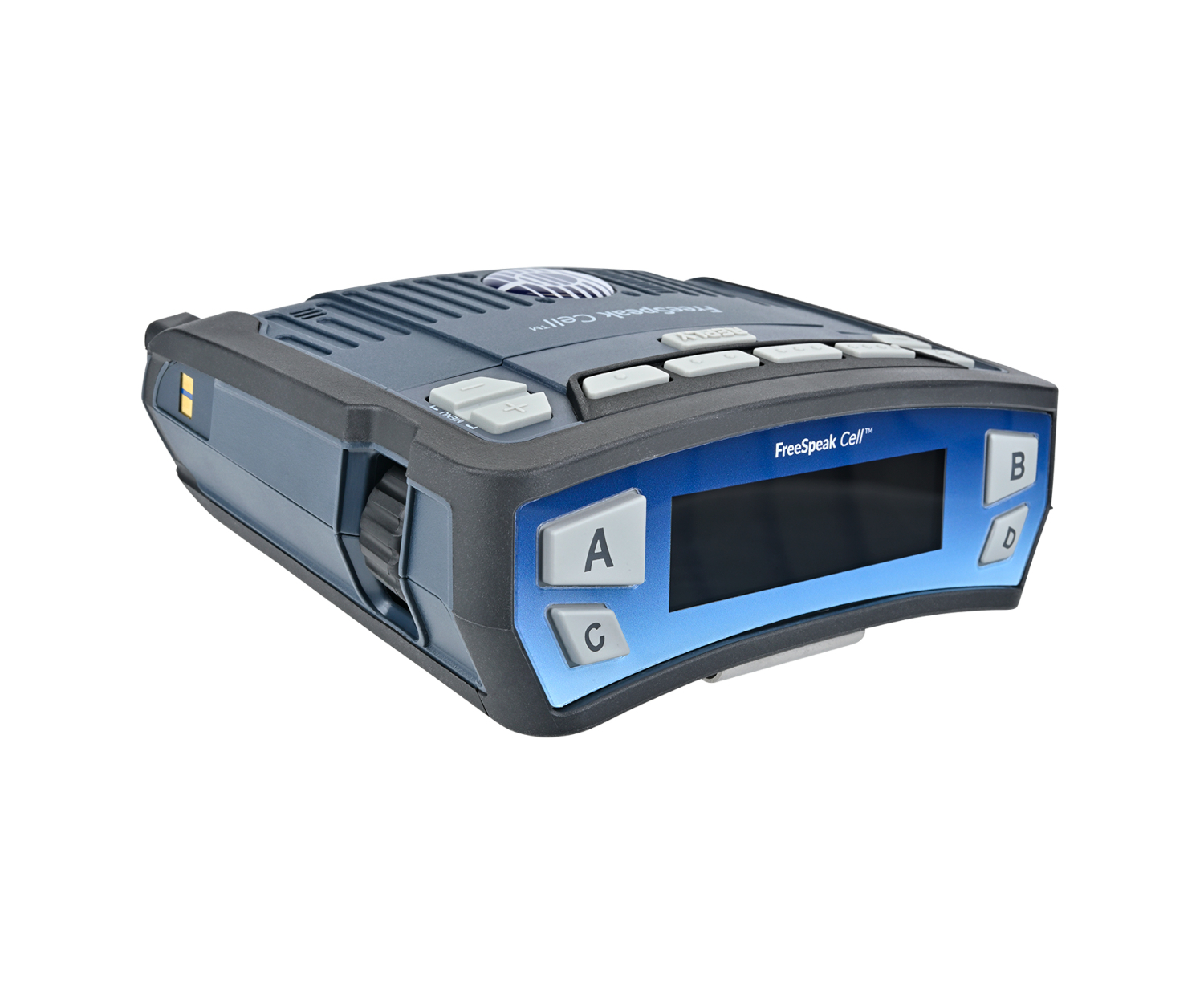

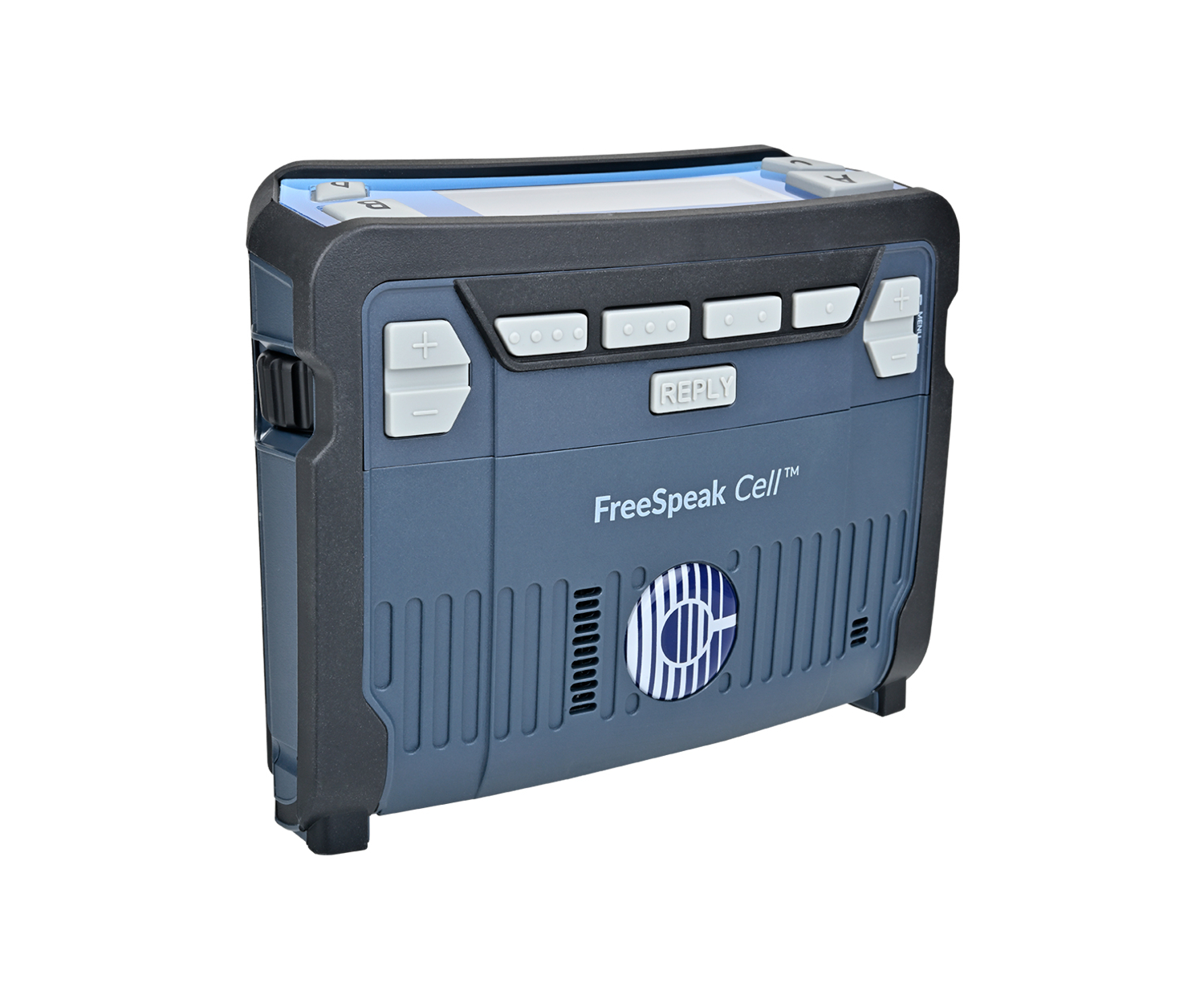

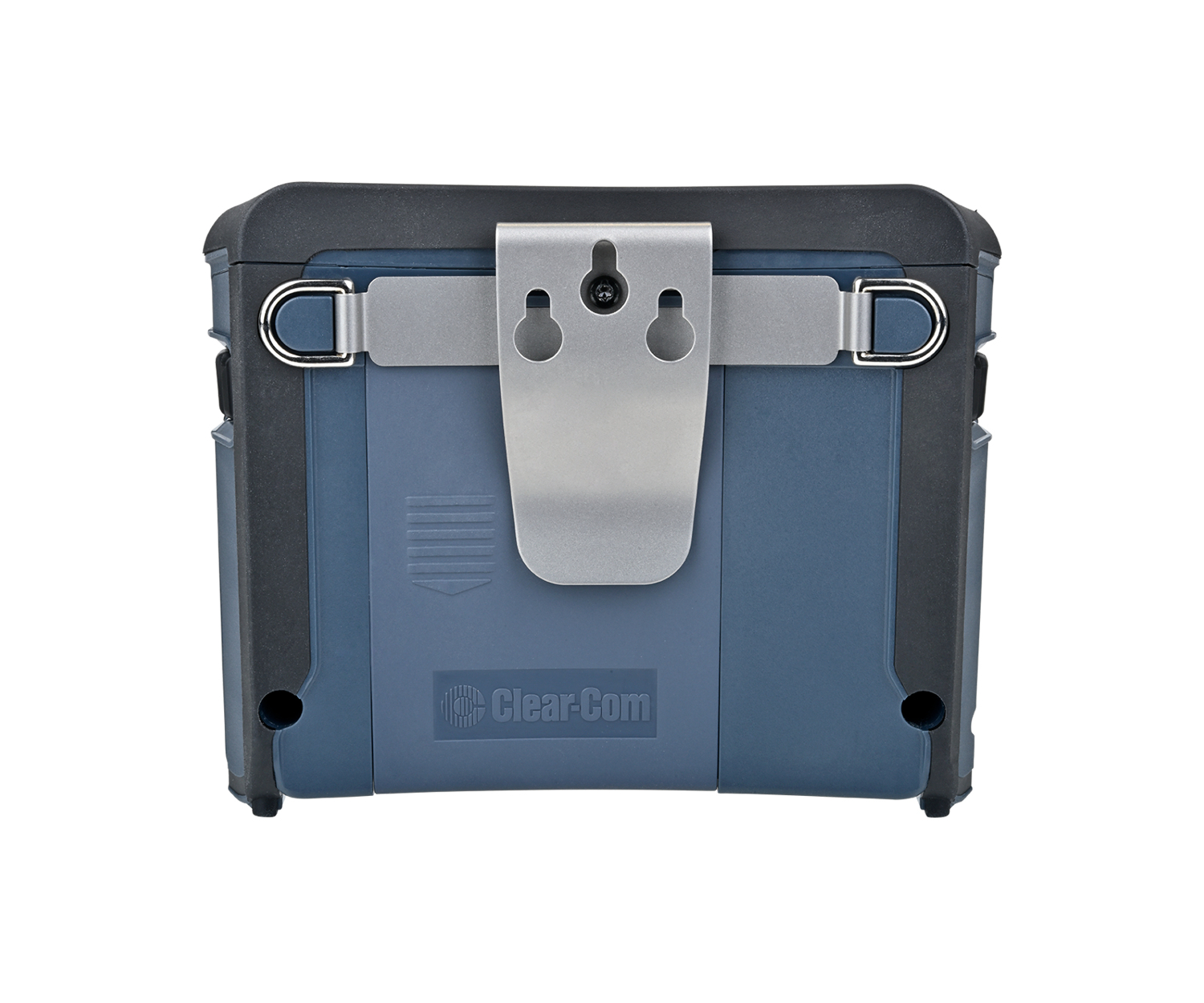

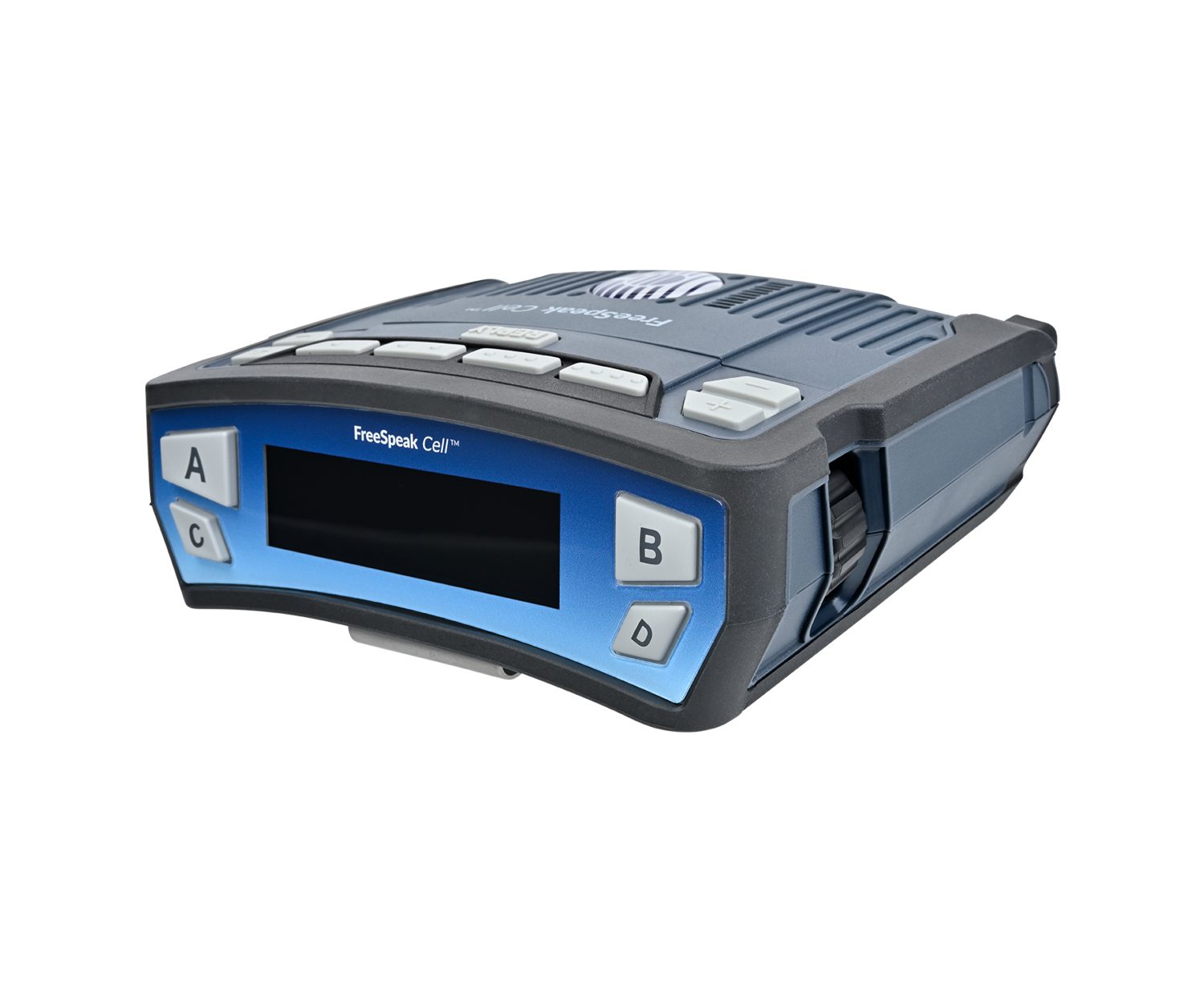

Clear-Com FSC-BP-C-X5 FreeSpeak Cellular Beltpack w/5-Pin Connector
Model: FSC-BP-C-X5
About: Clear-Com FSC-BP-C-X5 FreeSpeak Cellular Beltpack w/5-Pin Connector
The FreeSpeak Cellular Beltpack is a rugged, water-resistant multi-channel device designed for wide-area, interference-resilient communication over 4G LTE and 5G cellular networks. Powered by a global 4G LTE/5G radio, the beltpack delivers lowlatency, full-duplex audio and reliable roaming across private on-site networks or public cellular infrastructure. Its ergonomic design features a large color display, nine assignable keys for flexible talk/listen workflows, dedicated level controls, and an integrated mic and speaker for quick station-style operation. FreeSpeak Cell beltpacks scale to 400+ active users (network-dependent) and integrate directly with Eclipse HX (through EHX v15), providing a powerful new option alongside FreeSpeak II.
- Beltpack
- Functions with Eclipse HX via E-IPA cards
- Supports hundreds of beltpacks on a single system
- TFT color display (120x480)
- 9 buttons (8 programmable and 1 reply)

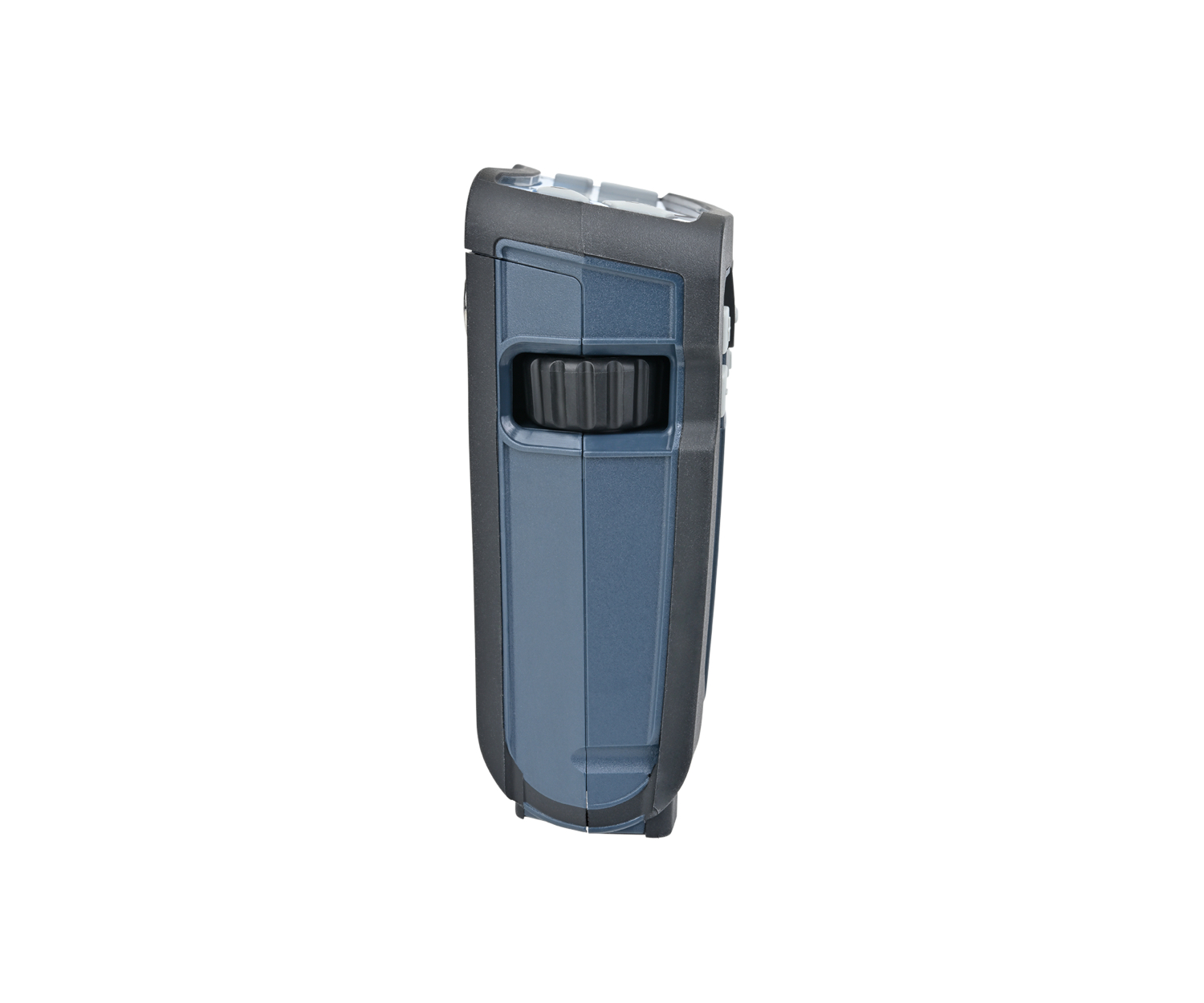

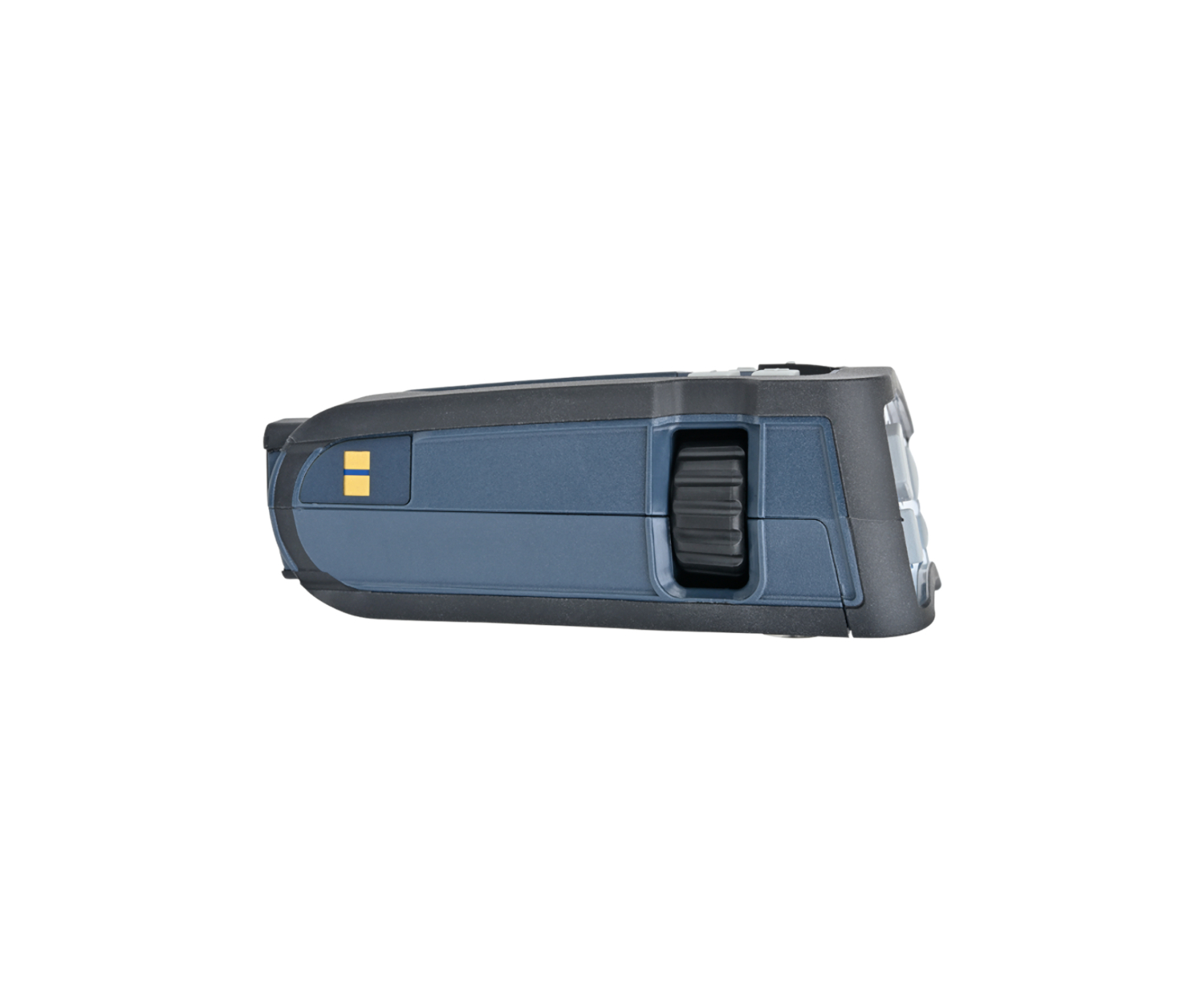

- Rotary controls on both sides and up/ down level controls
- Main volume control on bottom
- BLE (Bluetooth Low Energy) Radio
- Supports Bluetooth 5.3
- Built-in mic and speaker
- Built-in flashlight
- Drop-in and USB-C charging

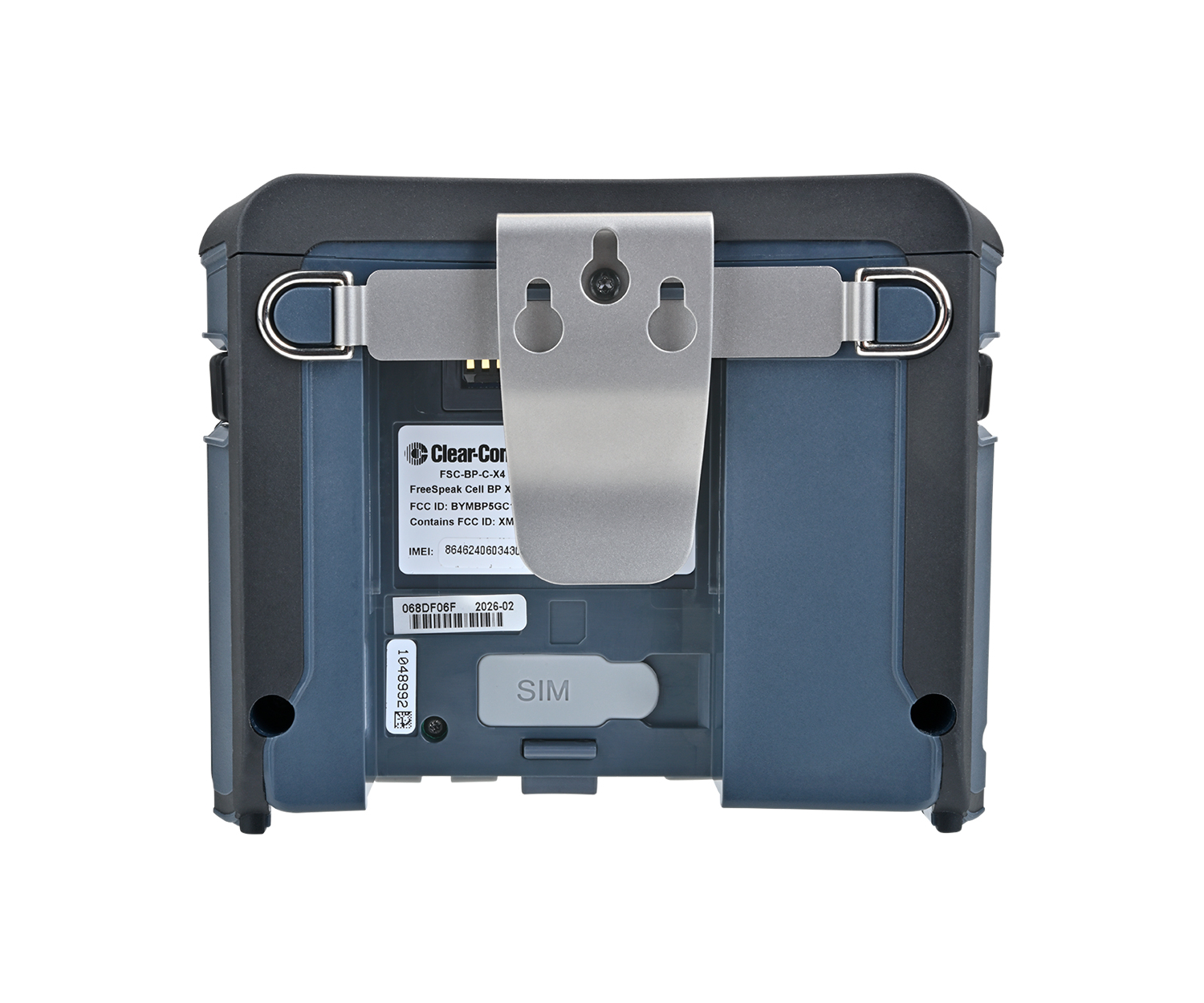

- eSIM & SIM card slot
- Dual SIM operation (switch between Private and Public cellular)
- Connectivity
- Designed for operation on 4G LTE and 5G Cellular networks (regional availability varies)
- USB-C port for beltpack pairing and firmware updates and charging
- Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
Specifications
- Audio
- Audio Bandwidth: 100Hz-7.5KHz
- No. of Full-Duplex Audio Paths: Up to 9 keys
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 9 buttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control
- Reply Button: 1
- Bluetooth: 5.3 Headset Profile
- Bluetooth Codec: MSBC using HFP (Hands Free Profile)
- Radio: Red Cap 4G LTE/5G SA
- Channel Bandwidth
- 5G FR1: 5, 10, 15, 20 MHz
- 4G LTE: 1.4, 3, 5, 10, 15, 20 MHz
- Supported Bands*
- 5G SA: n1/2/3/5/7/25/28/48/66/71/77/78
- 4G LTE: B1/2/3/4/5/7/12/13/20/28/48/66
- *Note: Hardware is designed for global band support. Additional bands are frequently added via regulatory updates.
- Connectors

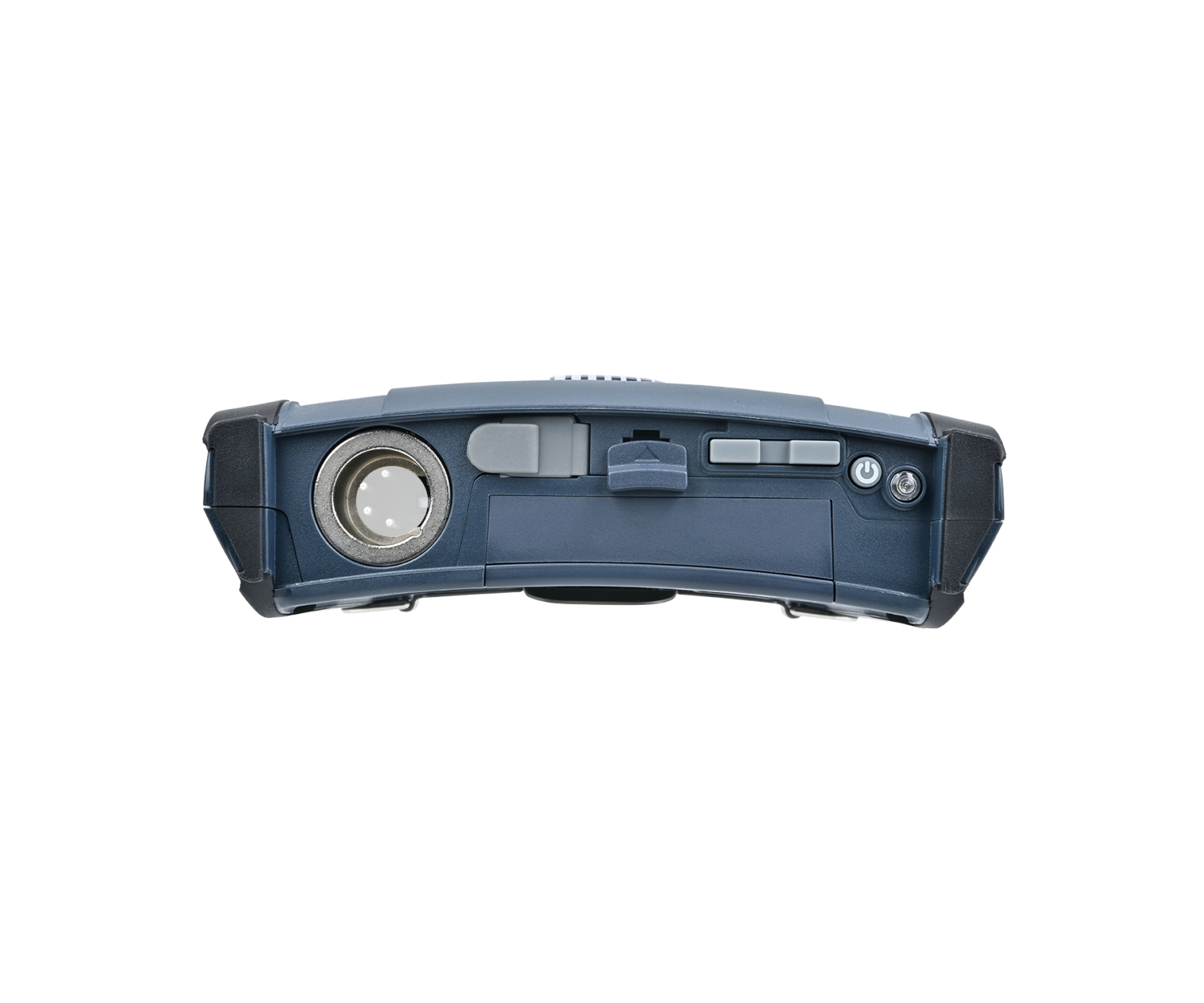

- Headset Connector: 5-pin female
- Headset Voltage: Maximum of ~+8dBu as set by firmware
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Microphone Voltage:
- Electret Mic: -40dBu
- Mic bias for Electret mode is 4.4V
- Dynamic Mic: -55dBu
- Mic bias for Dynamic mode is 1.8V
- Headset Limiter: Selectable from beltpack menu
- Power
- Battery: Li-Ion
- Battery Charging: Drop-in charger (AC80) or local USB
- Battery Life: 8+ hours
- Environmental
- IP Rating: IP54 water and dust resistance
- Operating: 14°-125°F (-10°-50°C)
- Storage: -22°-150°F (-30°-70°C)
- Humidity: Between 20% and 90% Non-Condensing
- Regulatory
- Regulatory Model: BP5GC1
- FCC ID: BYMBP5GC1
- Dimensions (WxHxD): 5.31 x 4.27 x 1.92in (134.87 x 108.46 x 48.77mm)
- *Tapered design at largest points
- Weight: 0.77 lbs (349g)
- With Battery: 1.01 lbs (460g)
