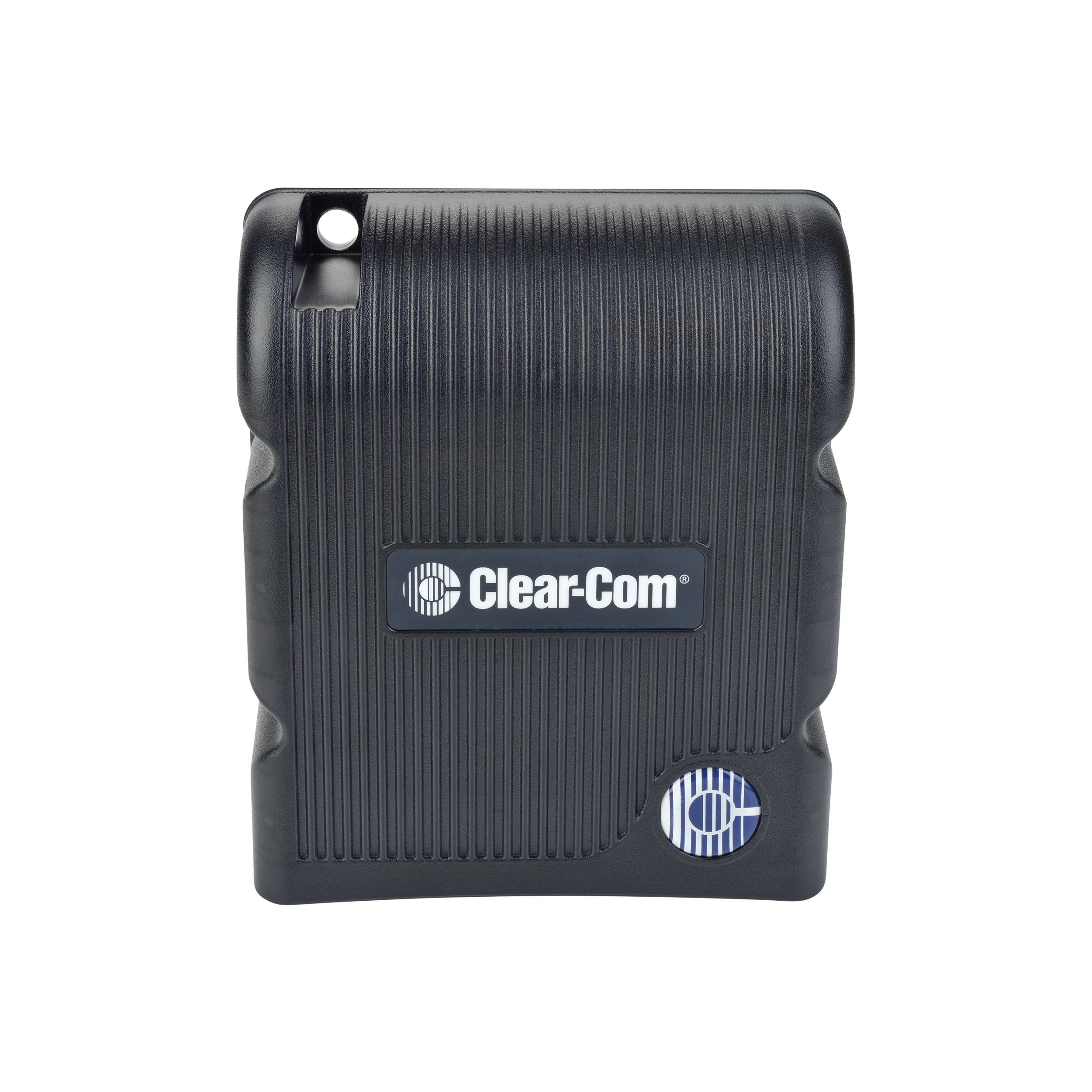

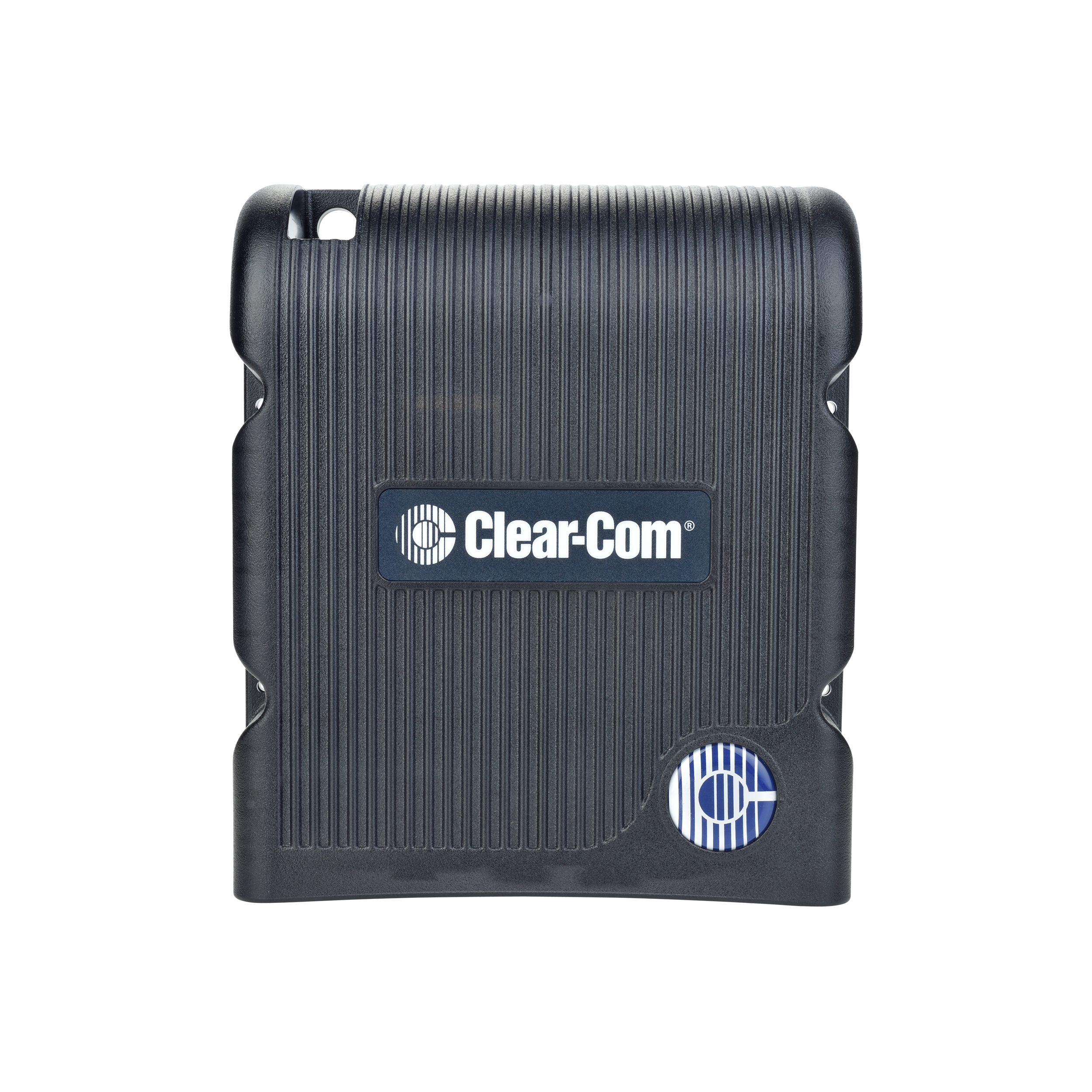

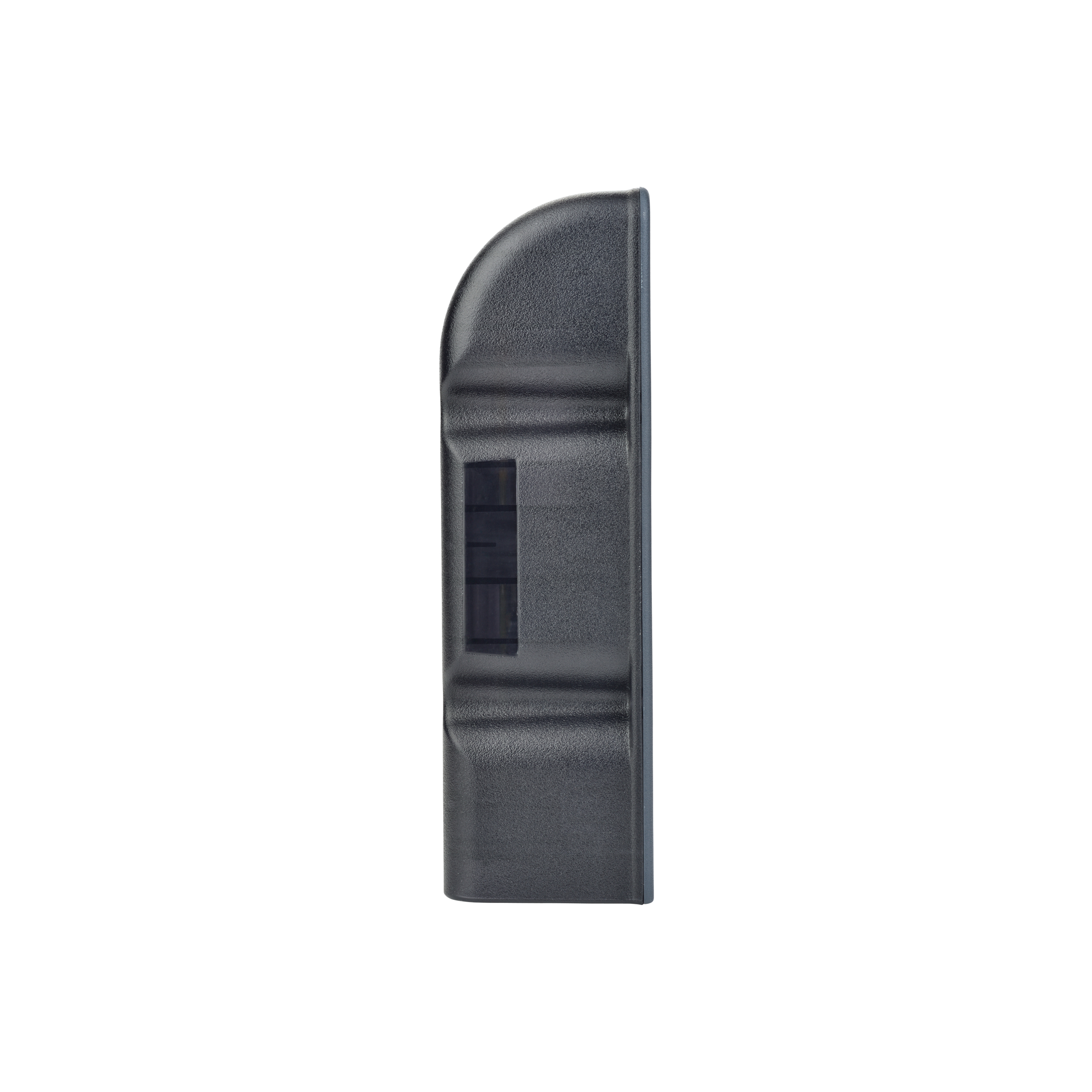

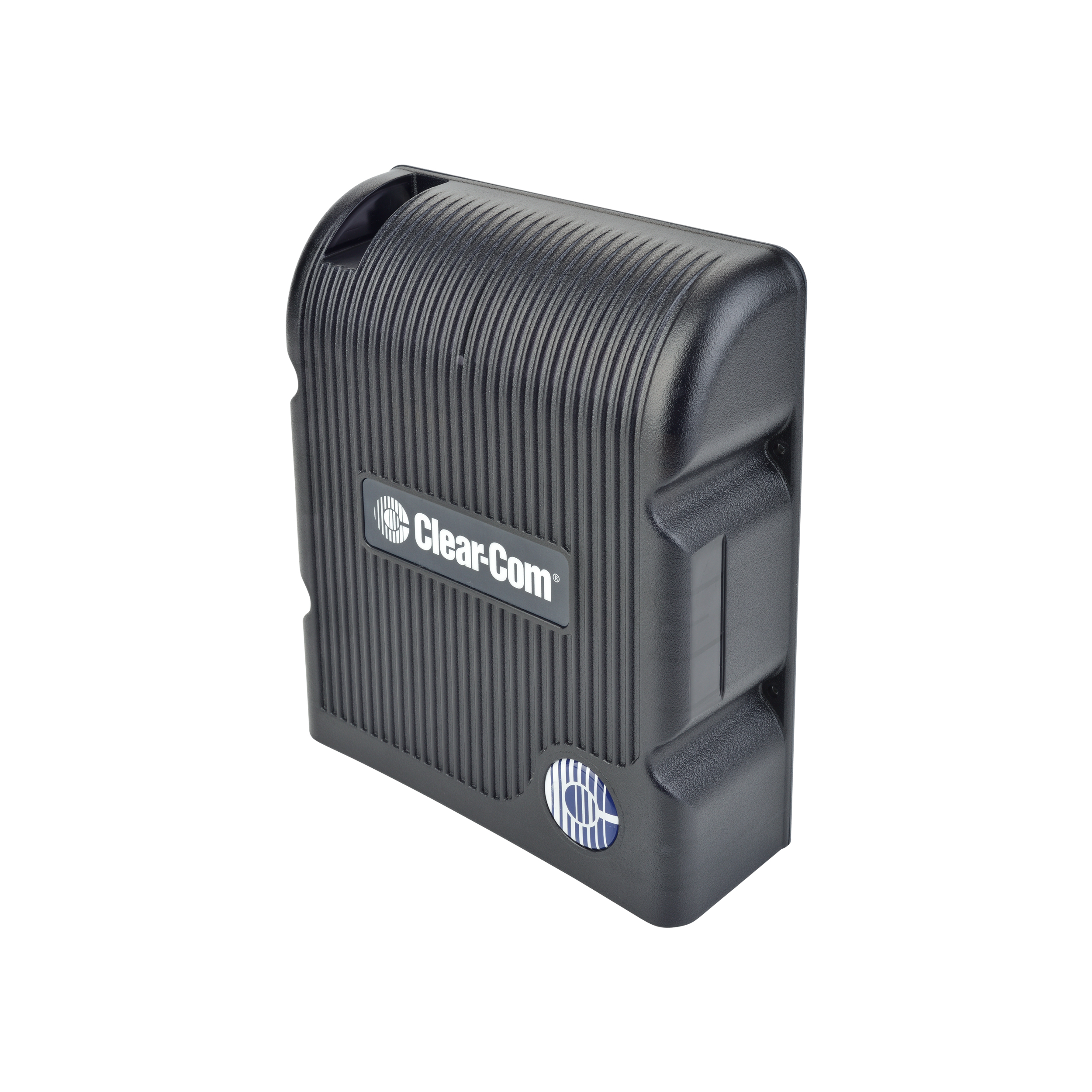

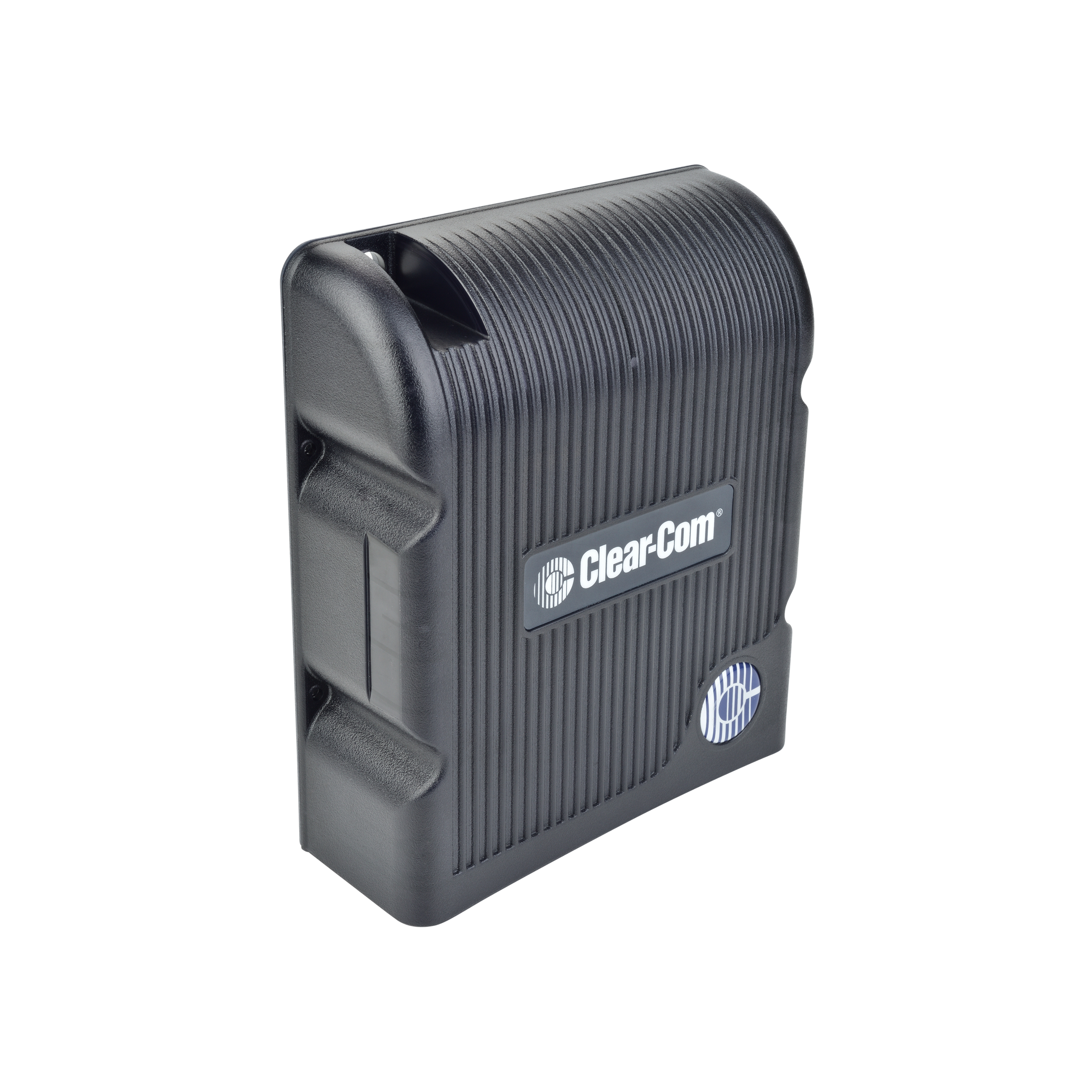

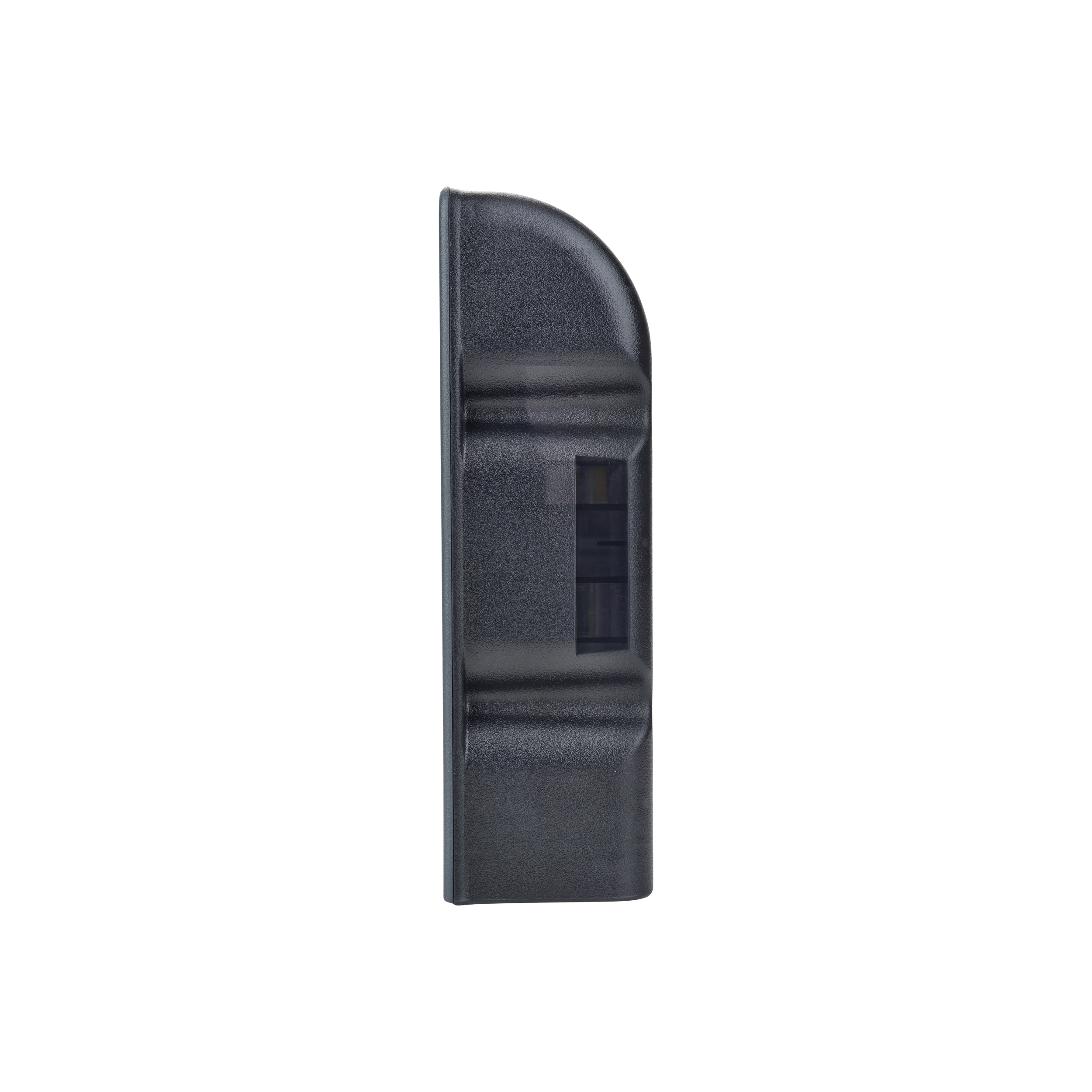

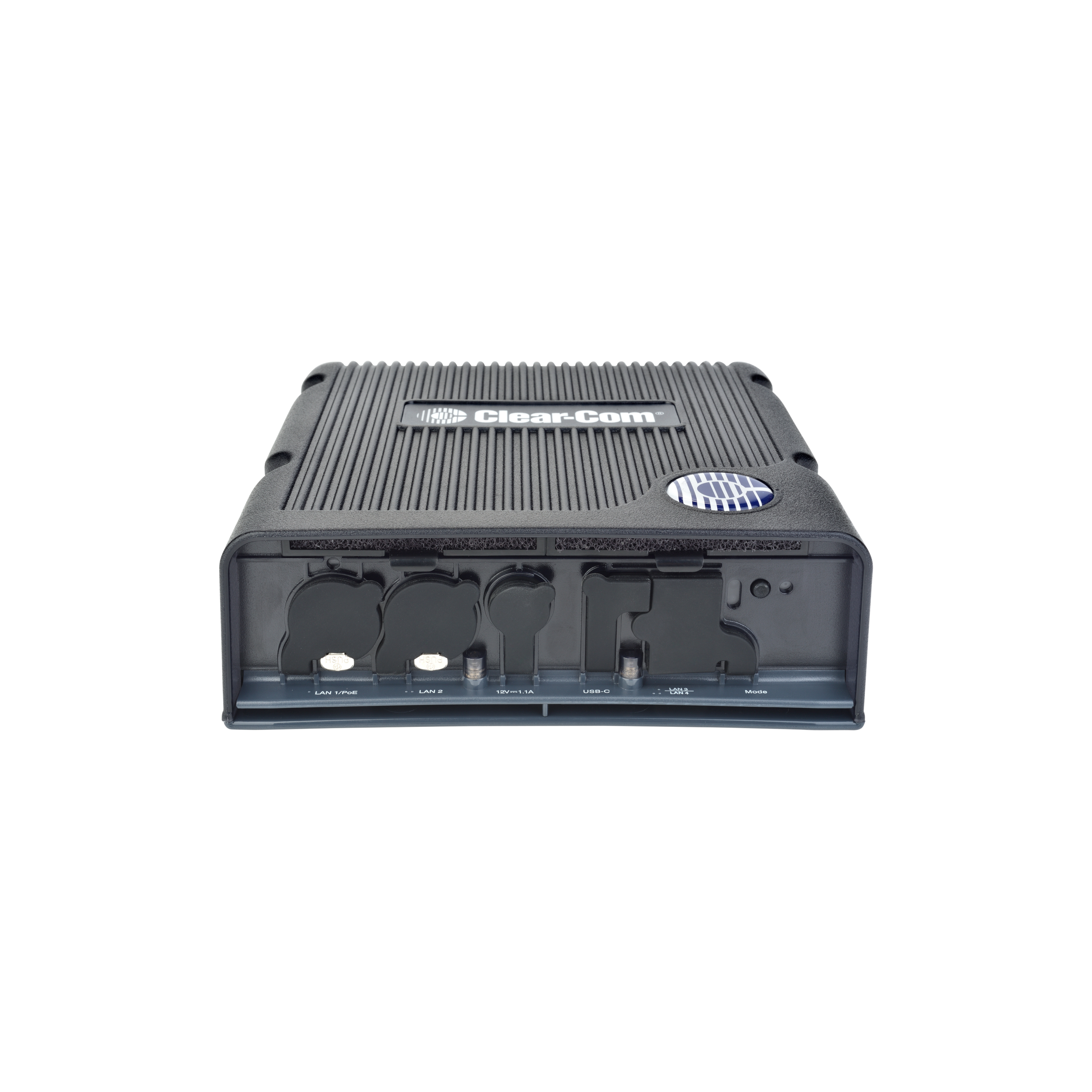

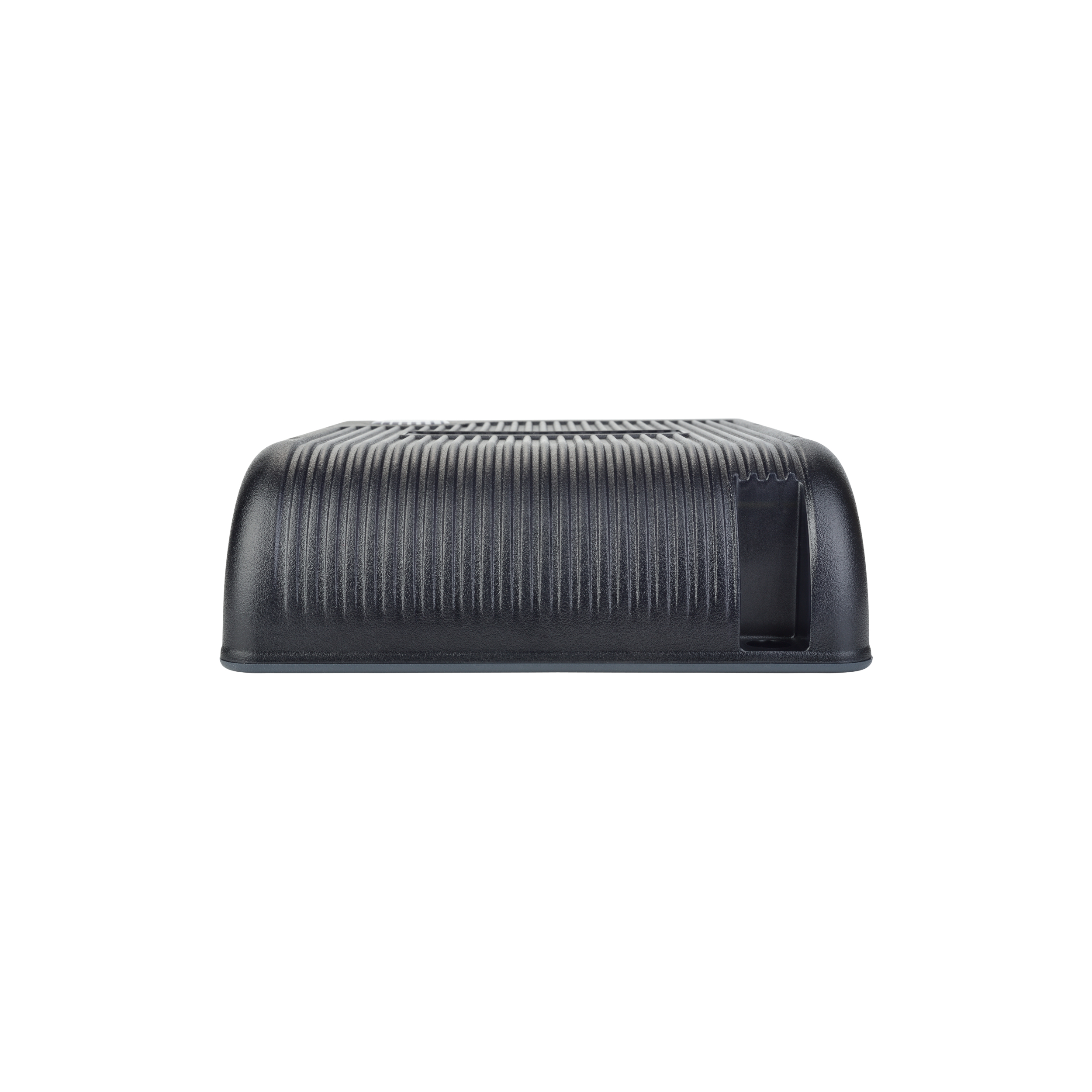

Clear-Com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz IP Transceiver Antenna
Model: FSII-TCVR-IP-19
About: Clear-Com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz IP Transceiver Antenna
The FreeSpeak FSII-TCVR-IP-19 is an active high-capacity IP antenna transceiver designed to support the RF coverage and capacity of FreeSpeak II and Icon 1.9GHz wireless beltpacks. Compatible with Eclipse HX with E-IPA interface card(s), Arcadia Central Station, and FreeSpeak Edge Base Station hosts, it connects via an AES67 capable IP network where transceivers can be centrally discovered and paired.
- FreeSpeak II IP Transceiver
- For FreeSpeak Wireless Intercom Systems
- High-Capacity Transceiver
- 1.9GHz DECT Wireless
- Omnidirectional Coverage
- Networked Infrastructure
- Remote Power - PoE
- Fiber Connectivity - SFP
- Ruggedized Design - IP53
- Capacity
- (10) FreeSpeak Beltpacks per Transceiver
- Beltpacks
- FreeSpeak Icon
- FreeSpeak II 1.9GHz
- System Core
- Eclipse E-IPA-HX
- Arcadia Central Station
- FreeSpeak Edge Base Station

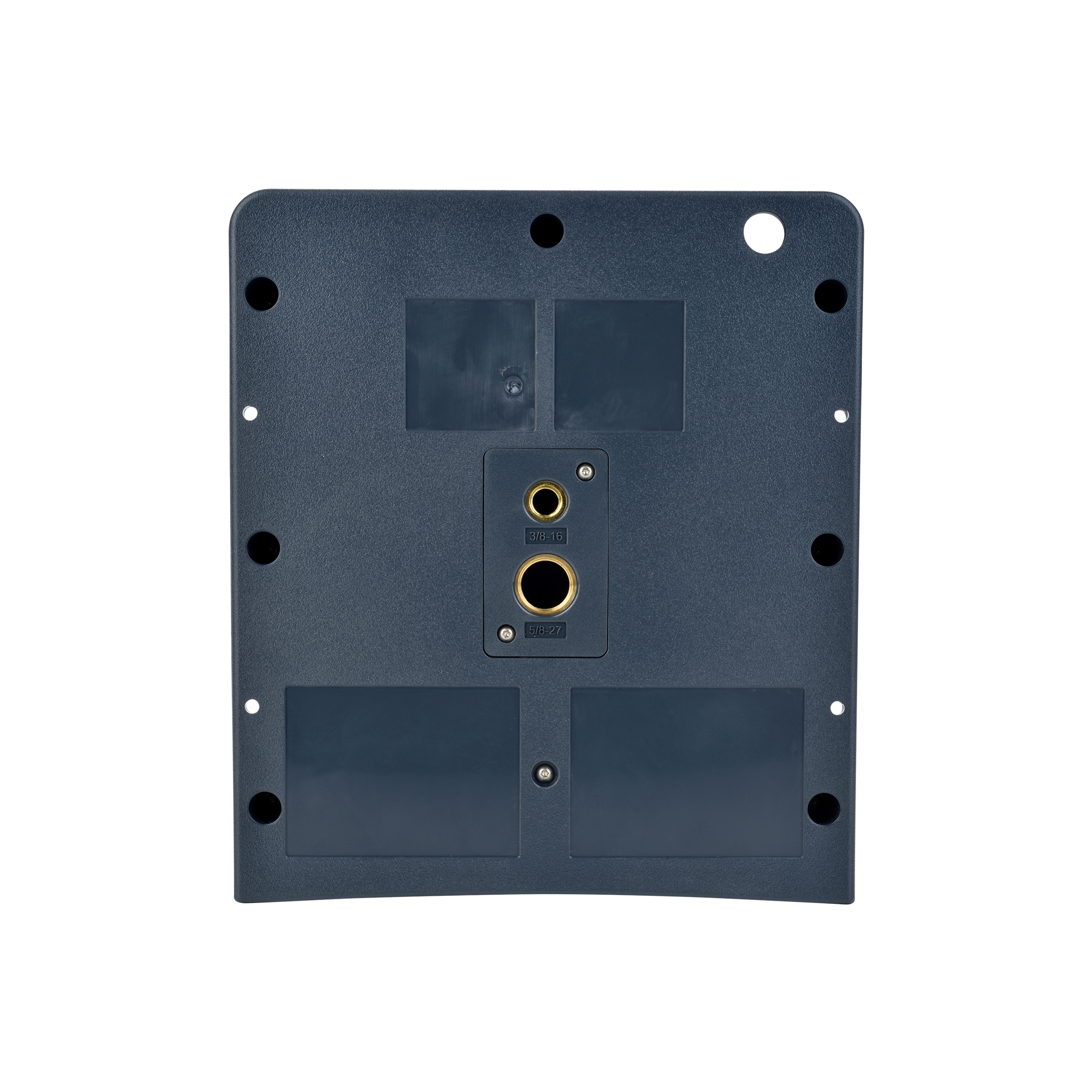

- Mounting
- Permanent - Screws
- Temporary - Strands & Safety Wire

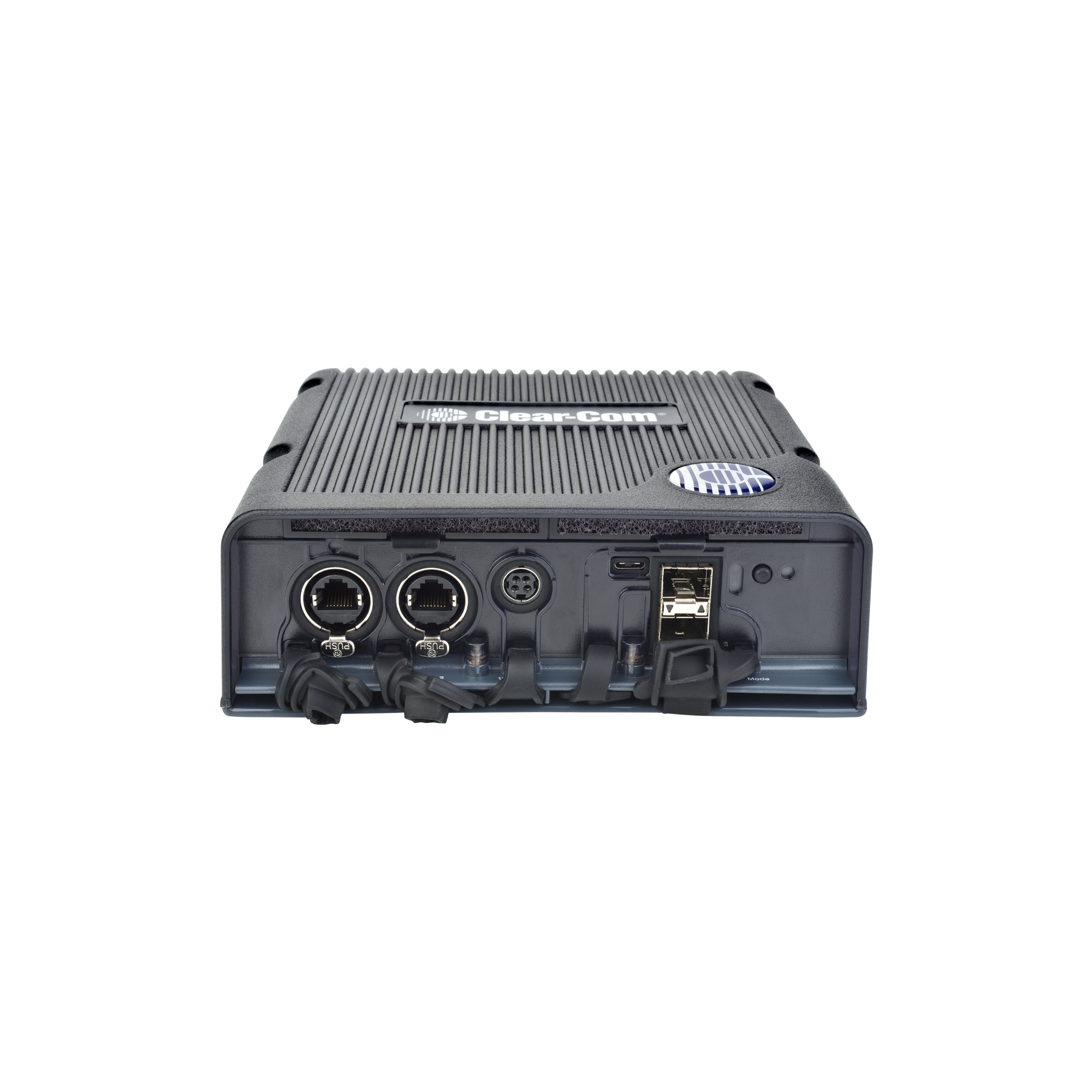

- Connectivity
- (1) DC Power Input
- (1) USB Power Input
- (2) LAN - RJ45 with PoE
- (1) LAN - SFP
- FreeSpeak Wireless Intercom
- Digital Wireless Intercom
- Individually Configured Roles
- Roaming Transceiver System
- Scalable Coverage & Capacity
- Multiple Frequency Bands
- Connectivity & Integration
- Central Management
Robust Wireless - Standardized Backbone
Transceivers utilize a custom Clear-Com ceramic filter to suppress out-of-band RF noise, ensuring robust performance for a high density of up to 10 beltpacks per unit. The system follows standard PTP clocking principles, allowing for simple setups to multi-level PTP Leader redundancy. Featuring a standalone site survey mode for environmental assessment, the device offers multiple power options (PoE, local DC power supply, or USB) for redundancy and comes in a durable IP53-rated housing with versatile permanent or temporary mounting options and safety cable provision for use in any environment.
Higher-Capacity & Redundant Eclipse-HX
When hosted on an Eclipse HX matrix with E-IPA, advanced deployment options are available, including Layer 3 networking and network redundancy by staggering Transceivers on Red and Blue SMPTE 2022-7 networks. This integration also facilitates floating port beltpack roaming across different E-IPA interface cards and supports automatic, unattended IP card redundancy for real-world critical system reliability.
