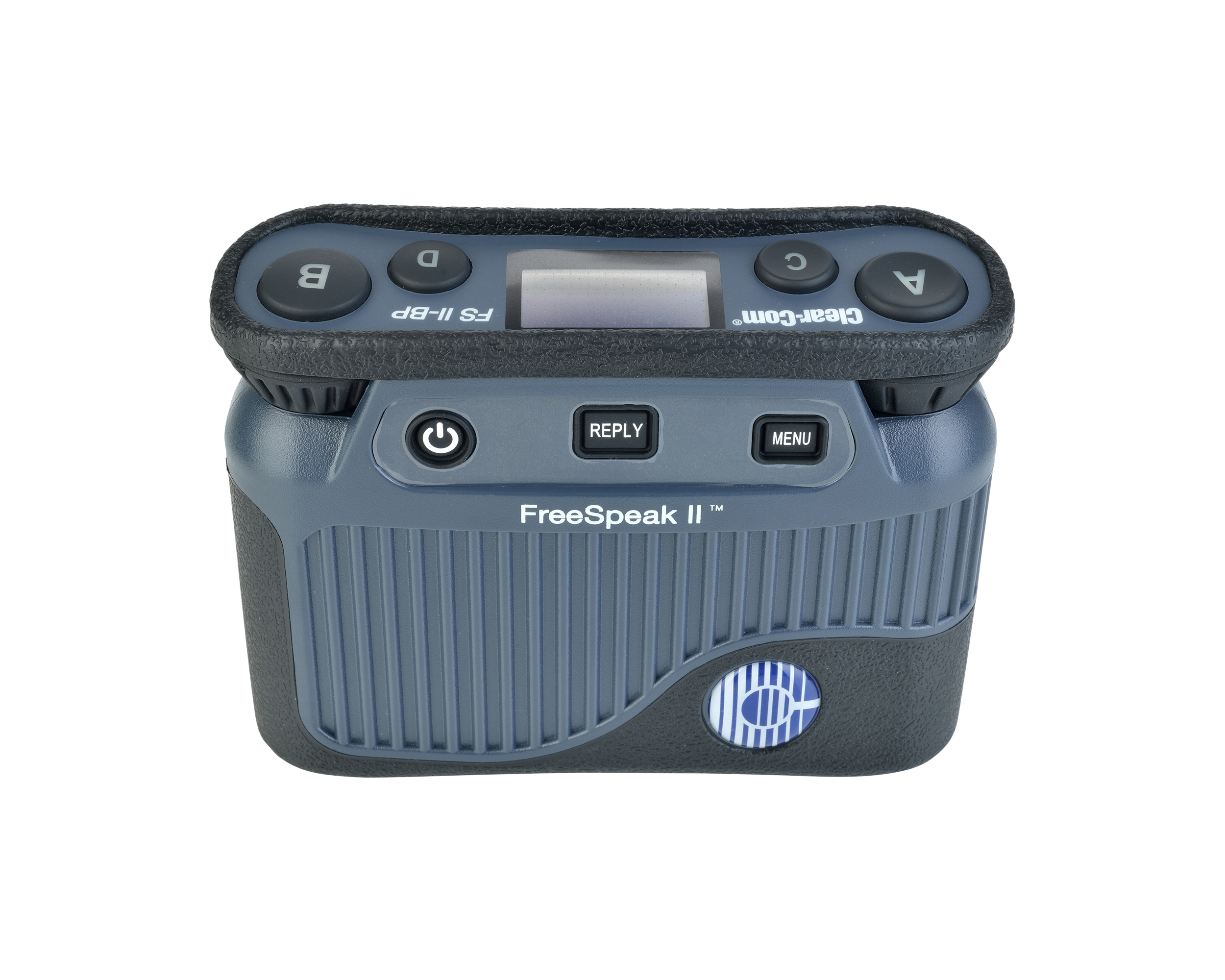

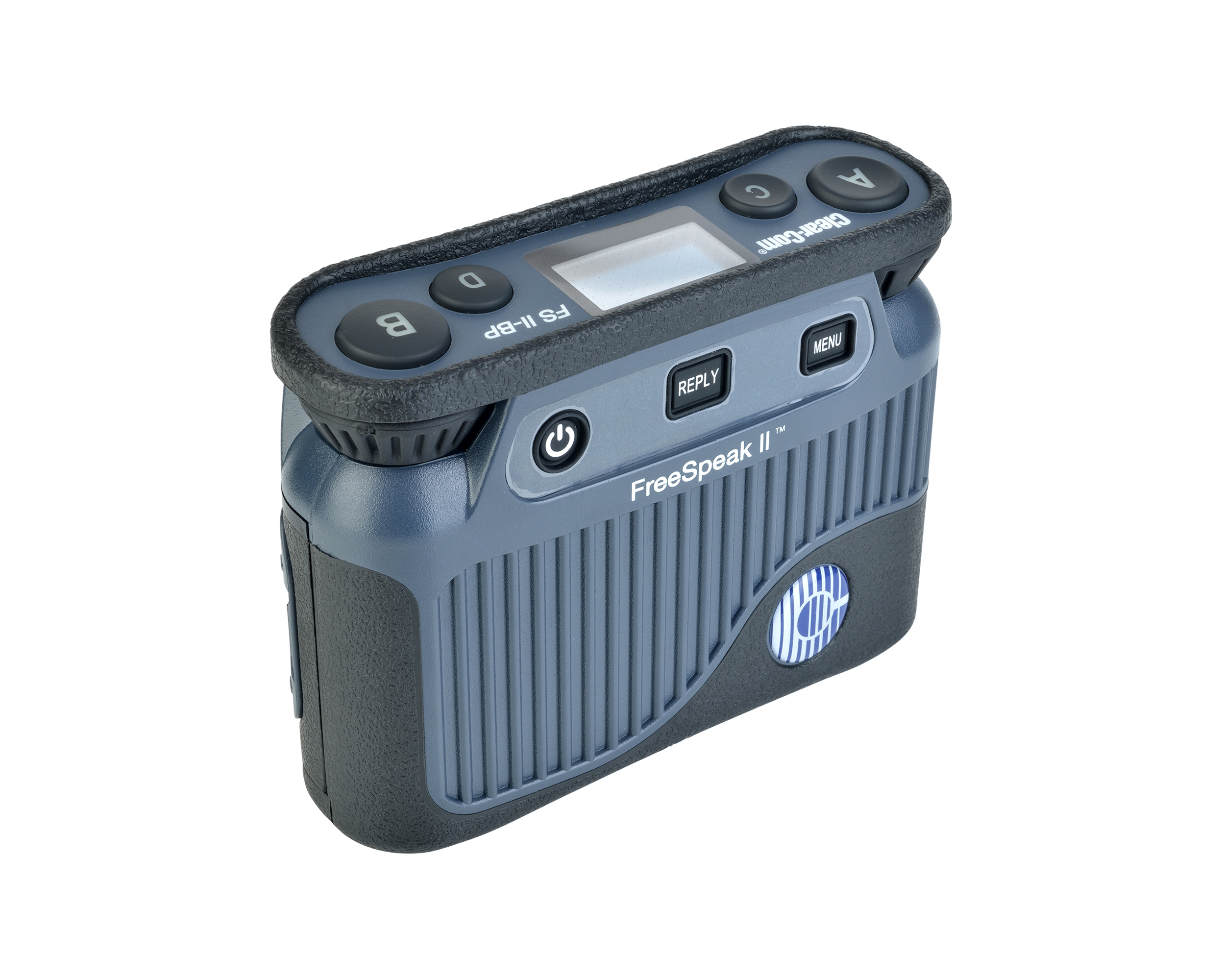

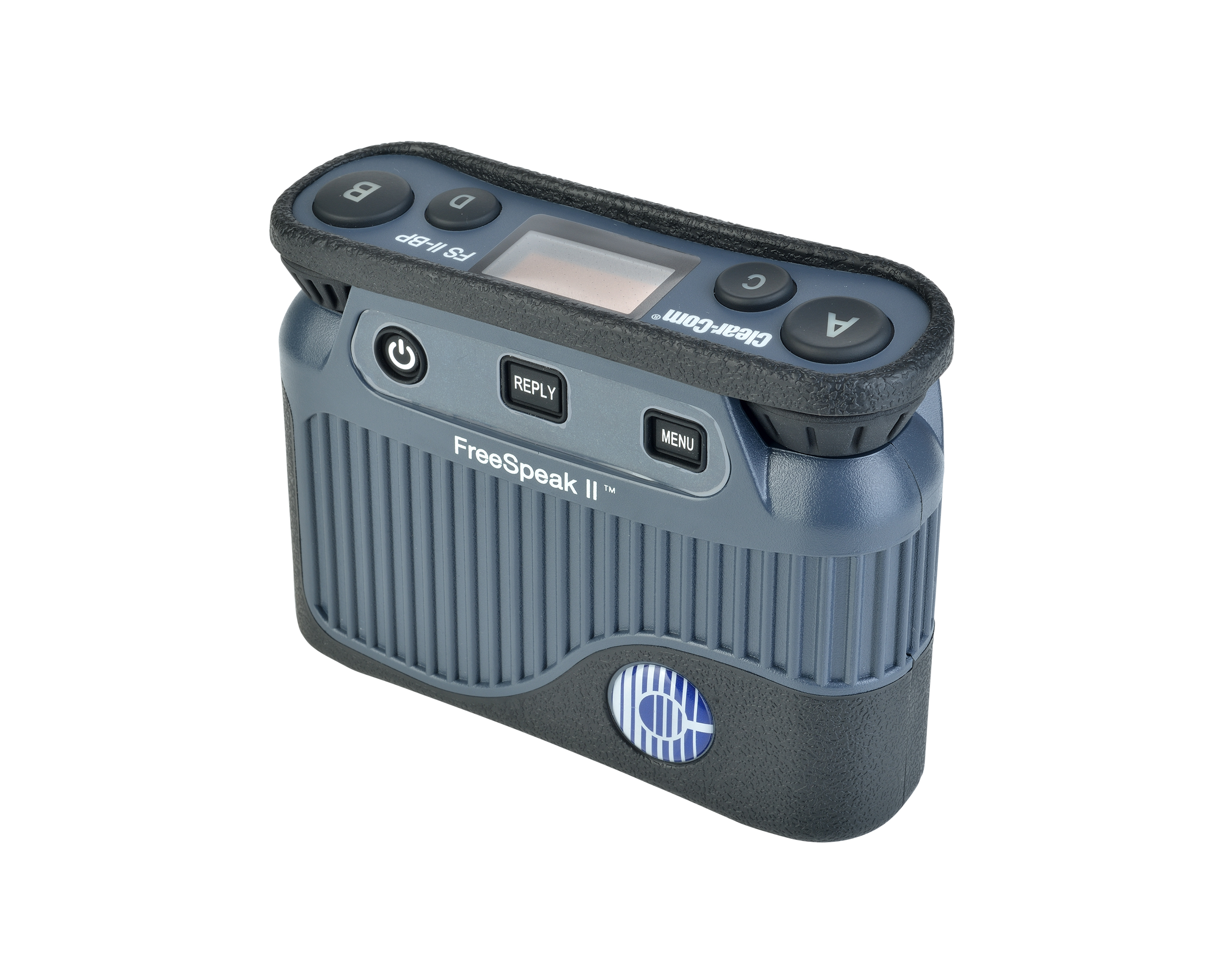

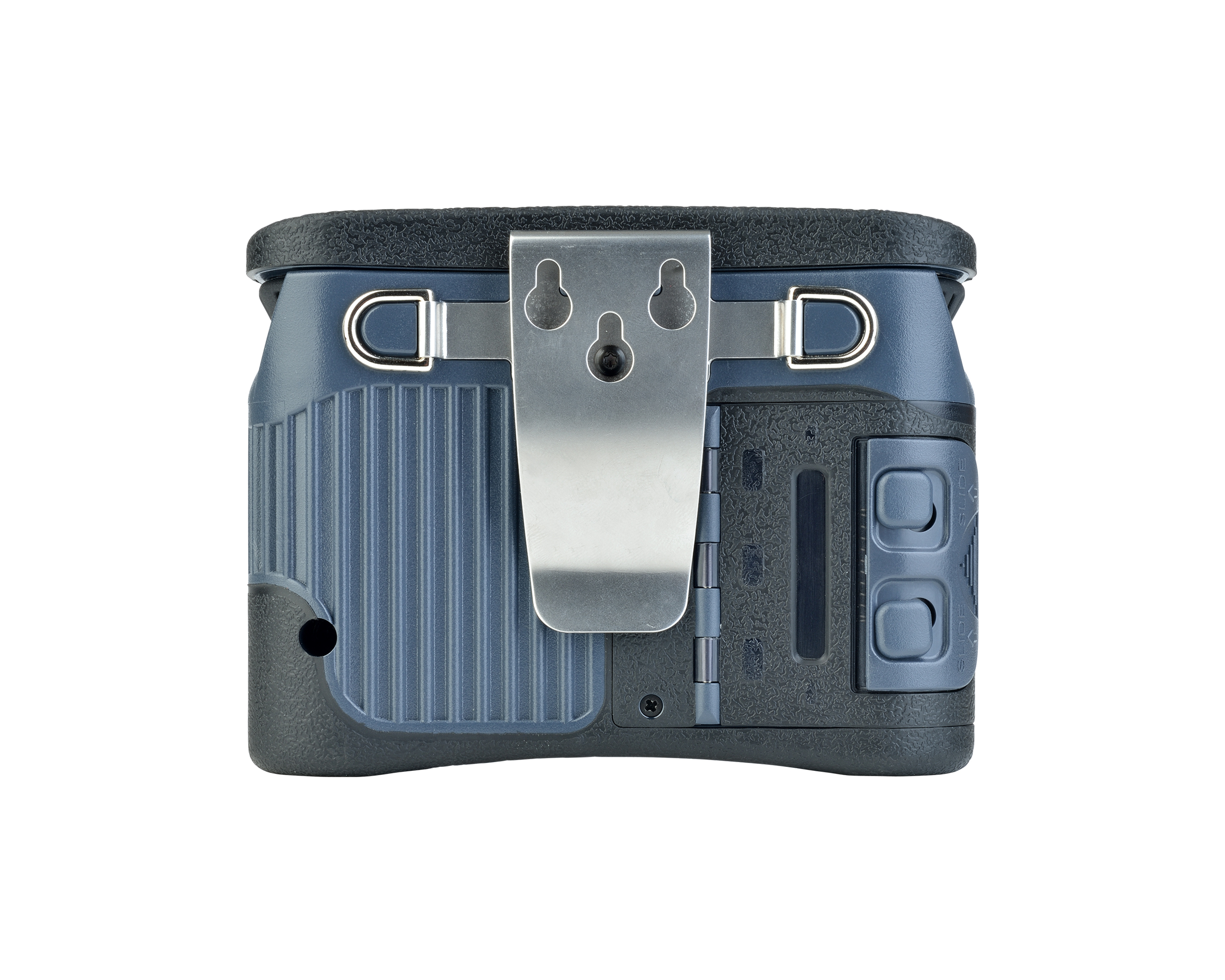

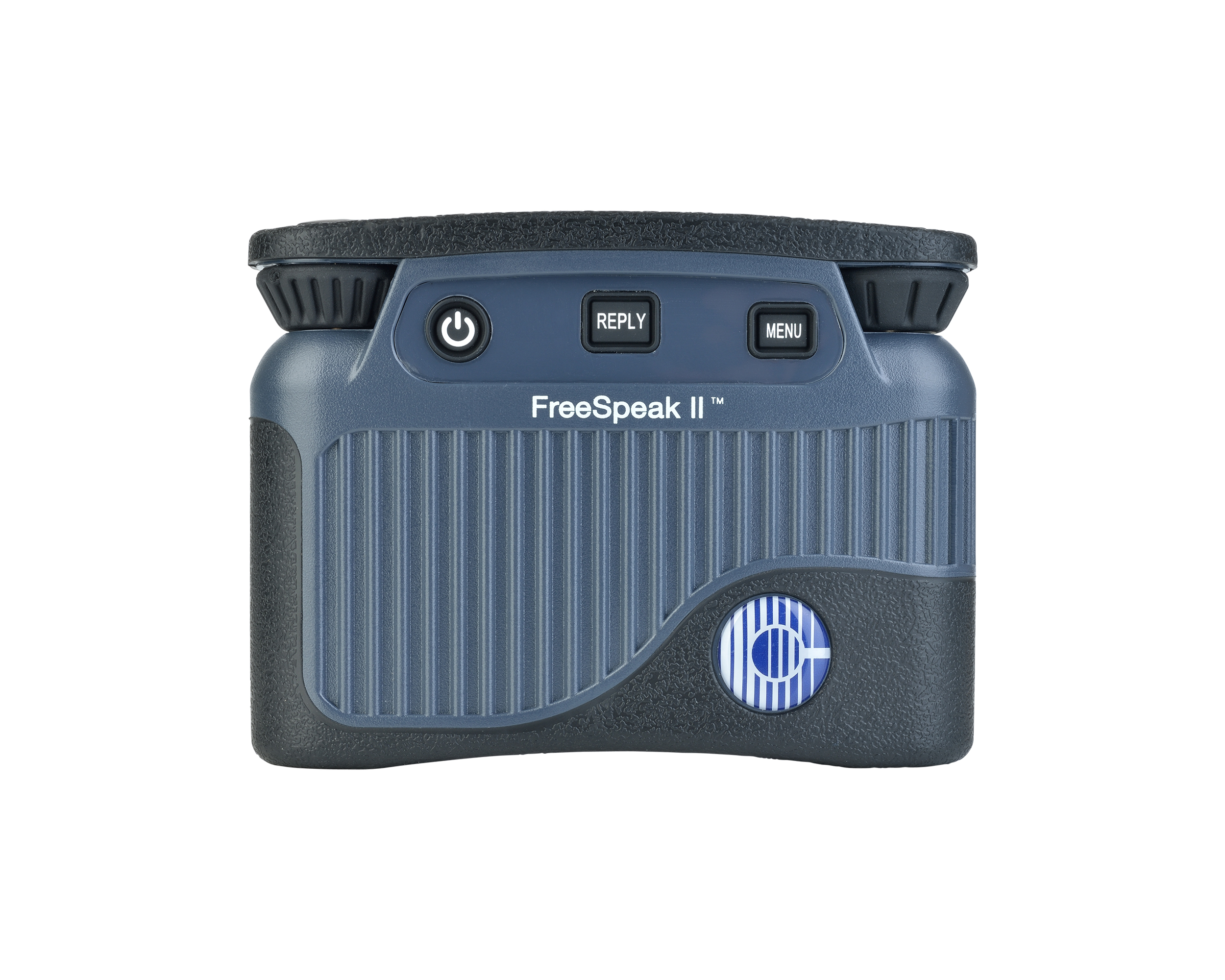

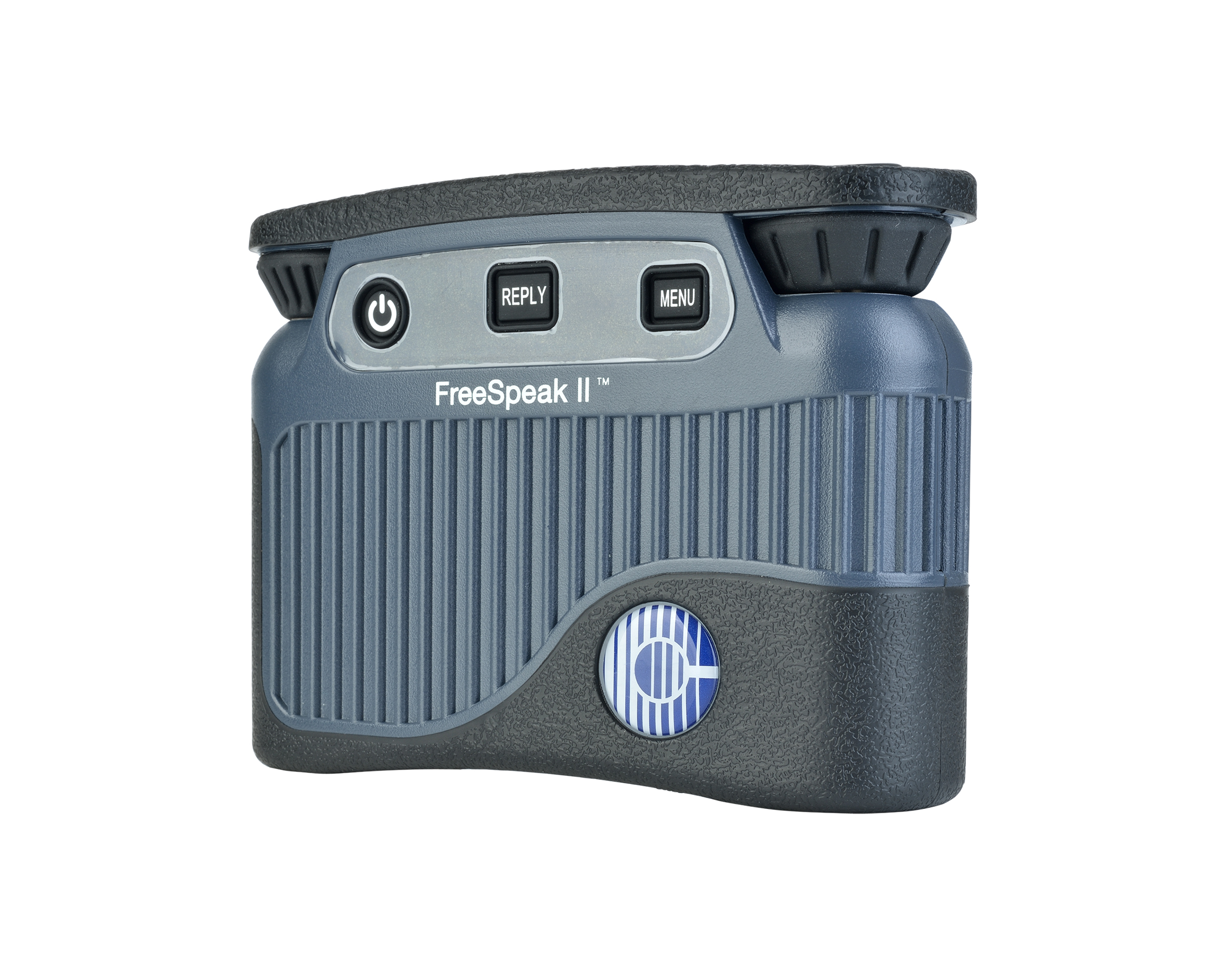

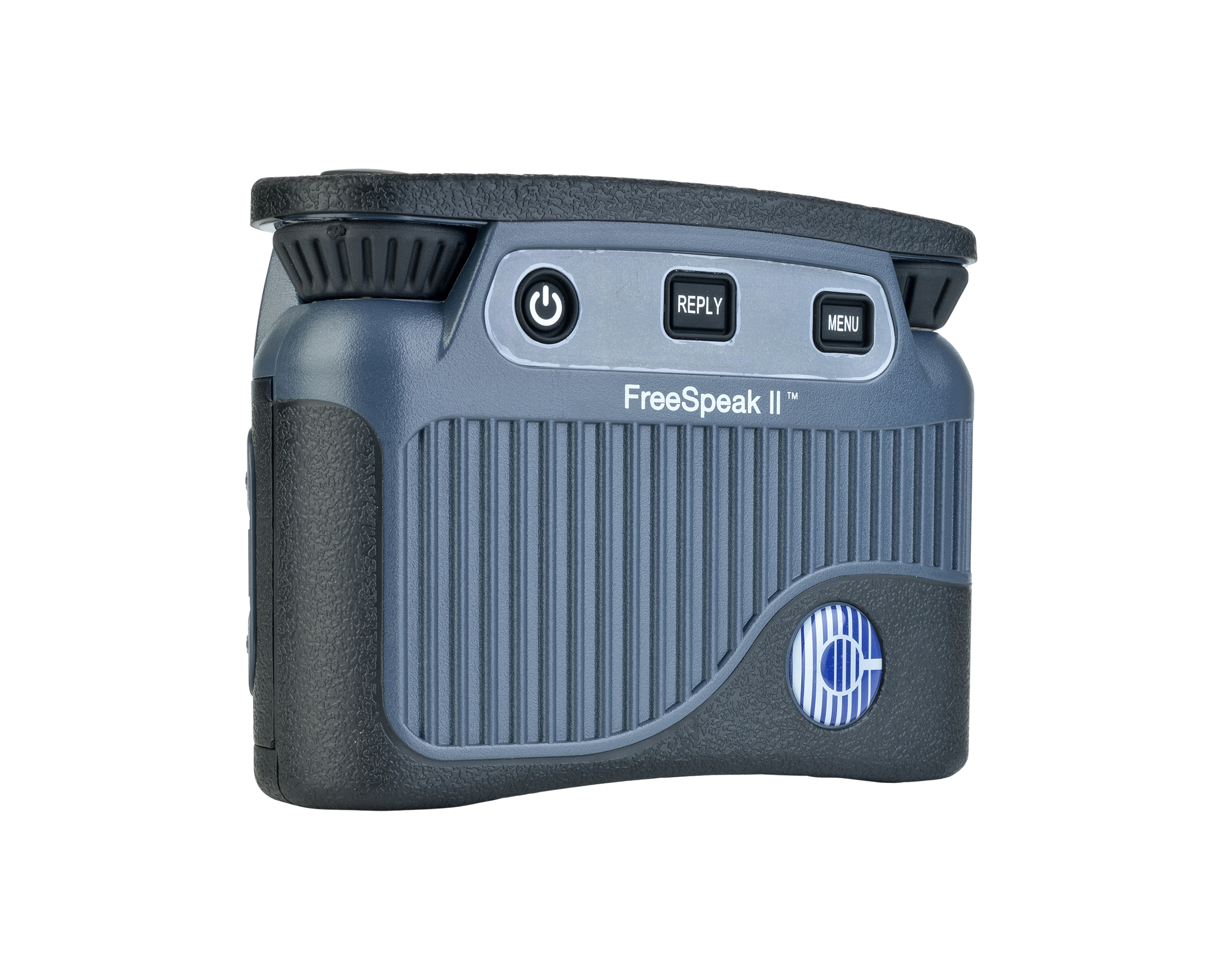

Clear-Com BP19-X5 FreeSpeak II 1.9GHz Wireless Beltpack w/5-Pin Connector
Model: FSII-BP19-X5
About: Clear-Com BP19-X5 FreeSpeak II 1.9GHz Wireless Beltpack w/5-Pin Connector
The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM license-free 1.9 GHz frequency range. Featuring the “Clear-Com Sound”, the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.
- Beltpack
- • Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- • 1.9, 2.4 and 5.0 GHz beltpacks operate on a single system
- • Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- • Encoder Volume Swap between A&C and B&D
- • “Listen Again” message replay
- • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- • Over-the-air beltpack registration
- Connectivity
- • 1.9 GHz radio frequency
- • Typical range 300ft (90m), outdoor range 800ft (240m)
- • Robust radio link works in high multipath or reflective environments
- • FSII 1.9 beltpacks with firmware version 5.3.32.0 upwards support Bluetooth headsets
- Mechanical
- • IP53 rating for wet and dusty conditions
- • 18+ hour battery life or USB port for continuous operation
Operation
The FSII-BP19 can connect to the FreeSpeak II Base Station, FreeSpeak Edge Base Station, Arcadia Central Station or to the Eclipse HX matrices using the E-IPA-HX interface card. FSII-BP19 users can roam seamlessly between either FSII-TCVR-19 or FSII-TCVR-IP-19 transceivers over wide areas. The “Listen Again” feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions. Volume Swap allows for independent level control on channels A, B, C, and D listens.
Increase System Size
The FSII-BP19 can be used interchangeably with any other FreeSpeak II or FreeSpeak Edge beltpack on the same system. Depending on what system you connect to, you can increase the quantities of beltpack users that operated on a single system (see Capacity Chart for details).
Durability
The FSII-BP19 is IP53 rated for wet weather or dusty conditions making it ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized over-mold to protect it from the most rugged environments.
Battery
Using the included BAT60 Li-Ion battery, the FSII-BP19 has 18+ hours of battery life. Using an alternative set of 3 AA cells, the battery life is 6-9 hours. The beltpacks also include an USB charging port for recharging or for continuous powered transmissions.
Specifications
- Audio
- Audio Bandwidth: 200Hz-7.5KHz
- No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
- Enter/Answer-Back Button: 1 Bluetooth 4.3 Headset Profile
- Codec: MSBC using HFP (Hands Free Profile)
- Frequency Spectrum
- Frequency: 1920-1930 MHz
- Transceiver Range Output Power: 100mW
- Connectors

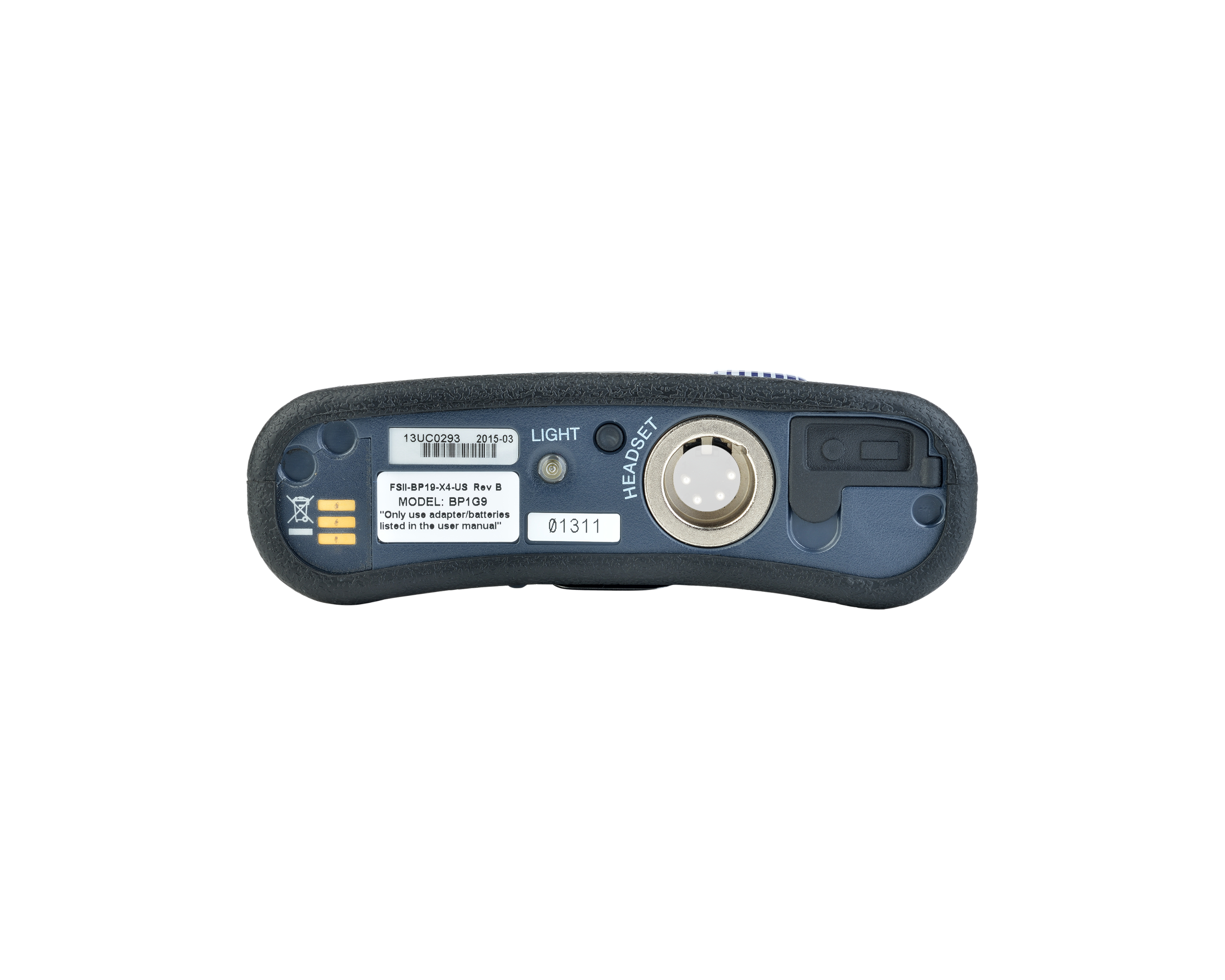

- Headset Connector: 5-pin female
- Headset Voltage: Maximum of ~+8dBu as set by firmware
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Microphone Voltage: Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
- Dynamic Mic: -55dBu
- Headset Limiter: Selectable from beltpack menu
- Max Distance (Beltpack To Transceiver, Indoor): ~300-500ft (90-150m)
- Max Distance (Beltpack To Transceiver, Outdoor): ~800-1500ft (240-450m)
- Power
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output: (US) 18-20dBm
- Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
- Battery: Li-Ion or 3 AA alkaline cells
- Battery Charging: Drop-in charger (AC60) or local USB
- Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
- Environmental
- IP Rating: IP53 water and dust resistance
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Dimensions (HxWxD): 3.9 x 5.1 x 1.8 in (99 x 129.5 x 45.7mm)
- Weight (including battery): 0.88 lbs (0.4kg)
