Clear-Com FSE-TCVR-50-IP FreeSpeak Edge Transceiver for 10 BeltPacks
Model: FSE-TCVR-50-IP-US
About: Clear-Com FSE-TCVR-50-IP FreeSpeak Edge Transceiver for 10 BeltPacks

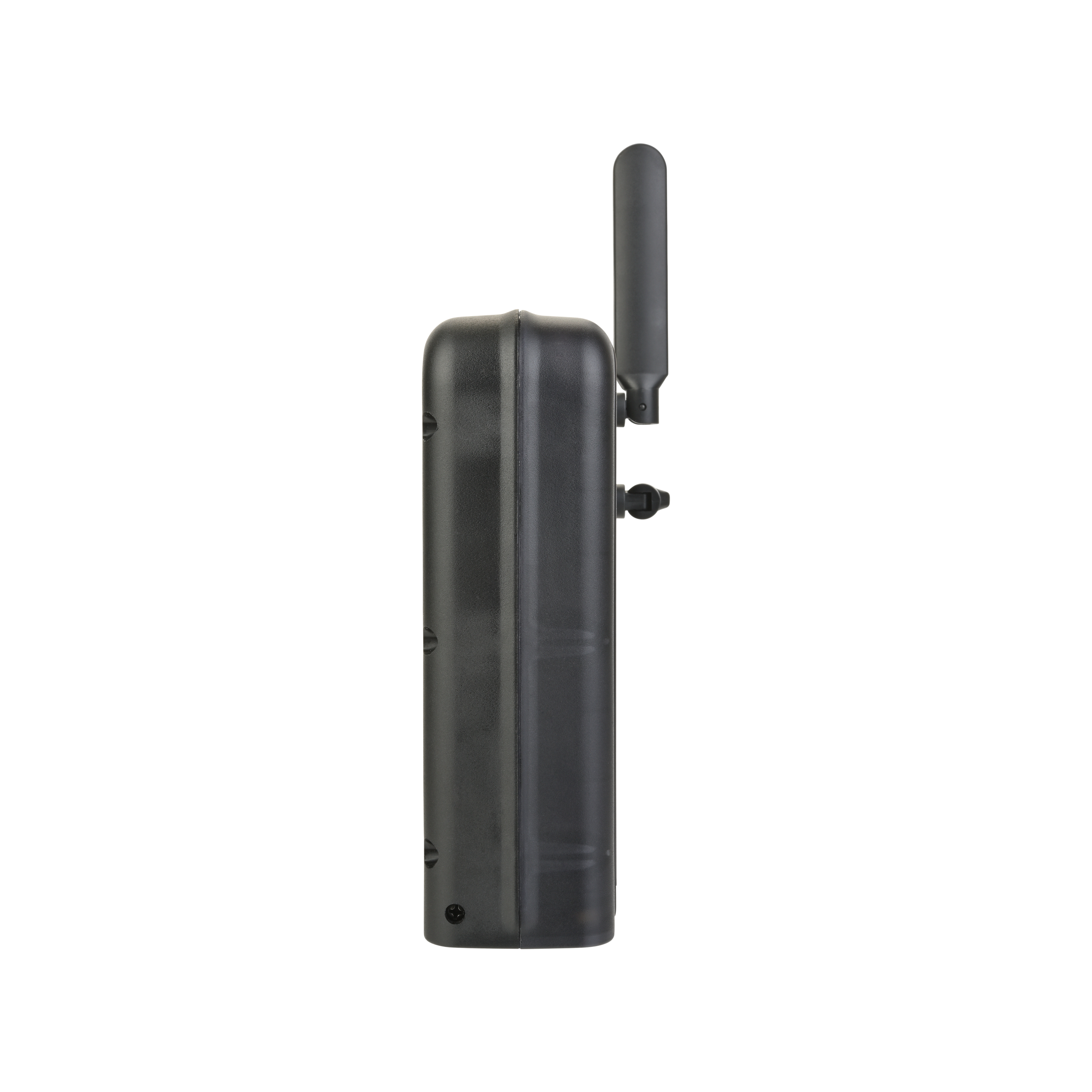

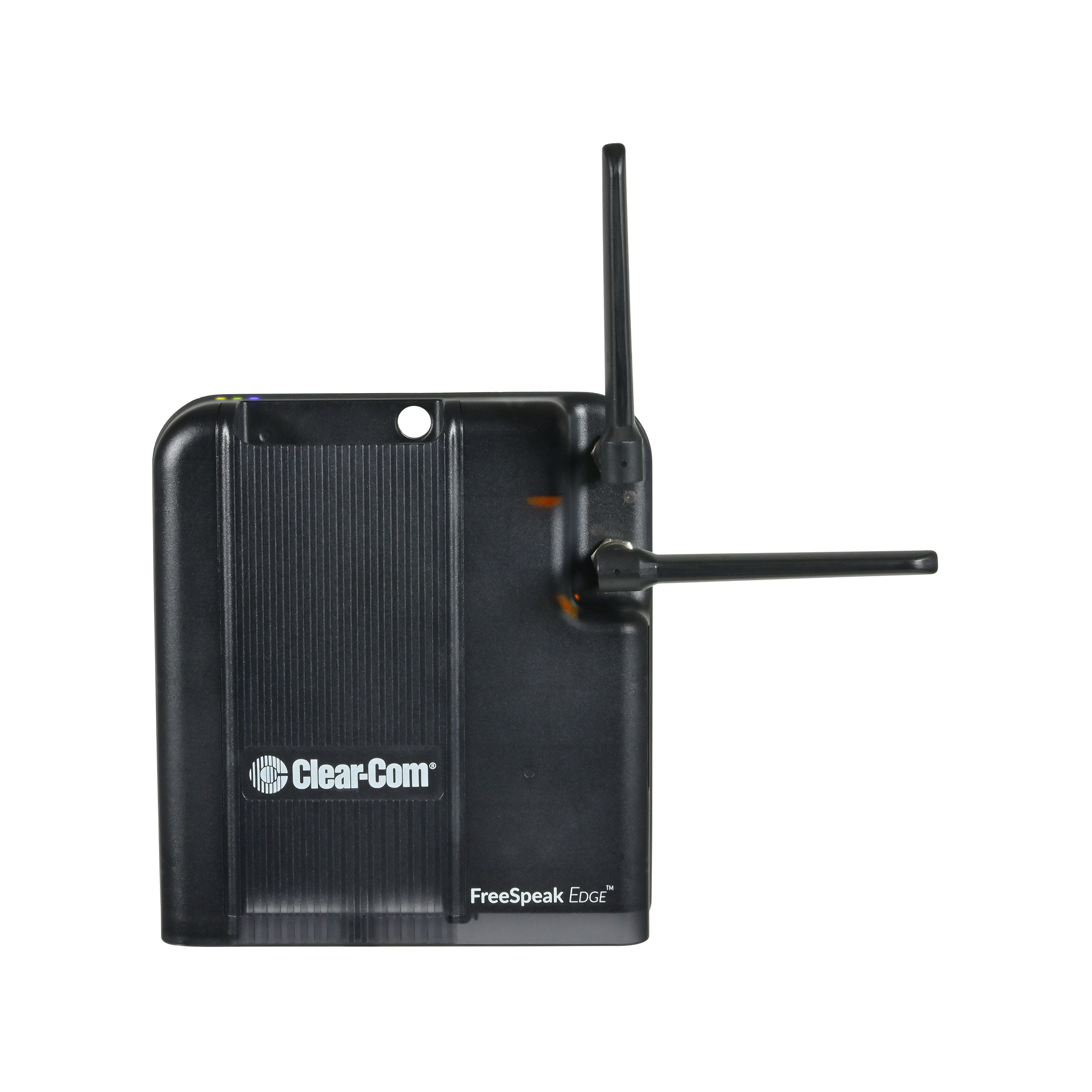

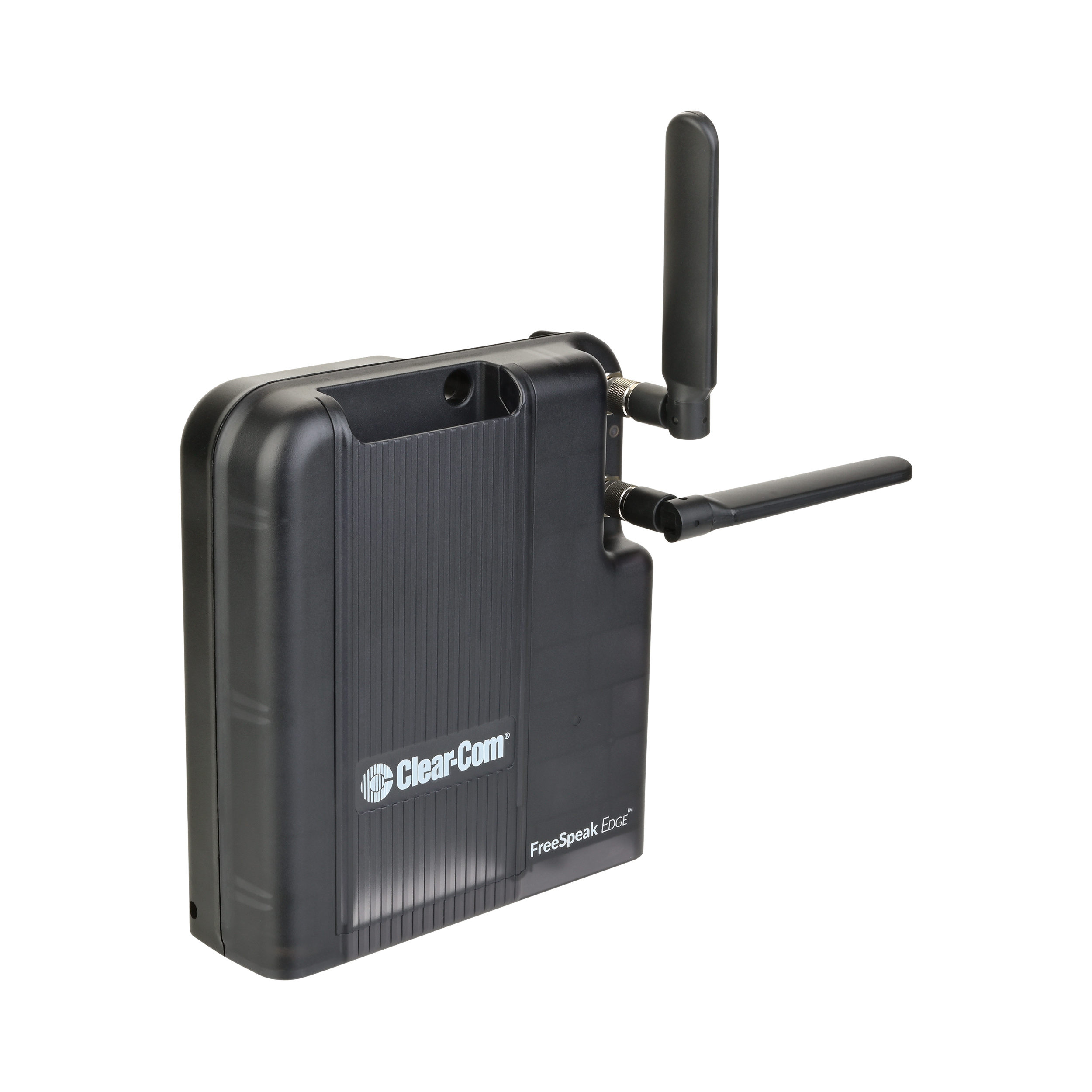

The FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge wireless system. The transceiver delivers duplex communications from the Eclipse HX matrix system via the E-IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system.
- Transceiver

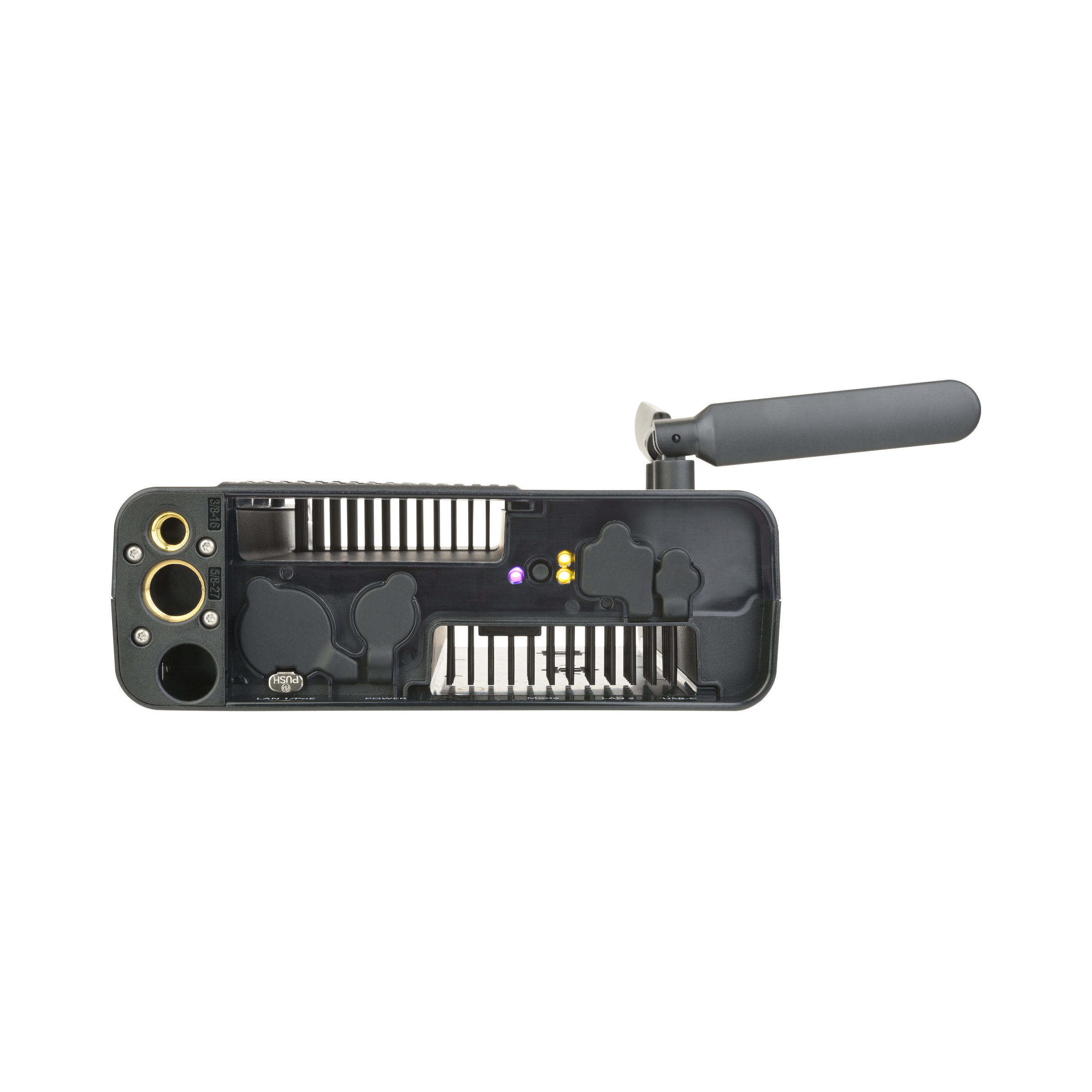

- LED status indicators on top and bottom of transceiver

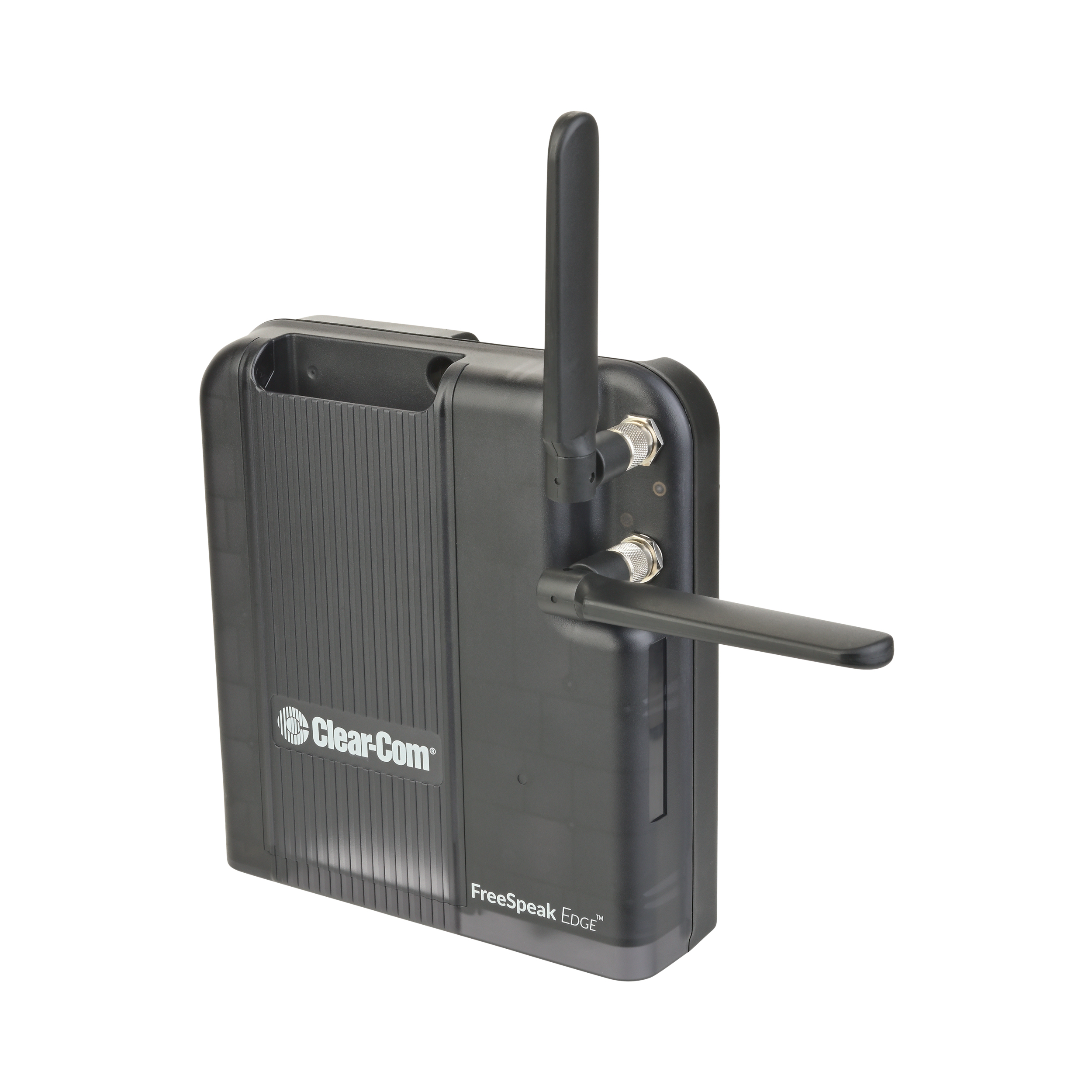

- External omnidirectional antennas for the transceiver
- Supports up to 200 beltpacks on a single system (see Capacity Chart for details)
- Dual redundant radios per beltpack and transceiver
- Separate radios for RF and radar scanning
- Wall-mount plate
- Microphone stand mounts (metric and imperial threads)
- Tripod spigot mount
- Connectivity
- Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
- Supports 10 FreeSpeak Edge beltpacks per transceiver
- Supports up to 64 transceivers on an Eclipse HX matrix system with 64 port E-IPA-HX card
- Robust radio link works in high multipath or reflective environments
- Wi-Fi coexistence
- Standalone mode for site survey and demo
- AES256 shared key encryption

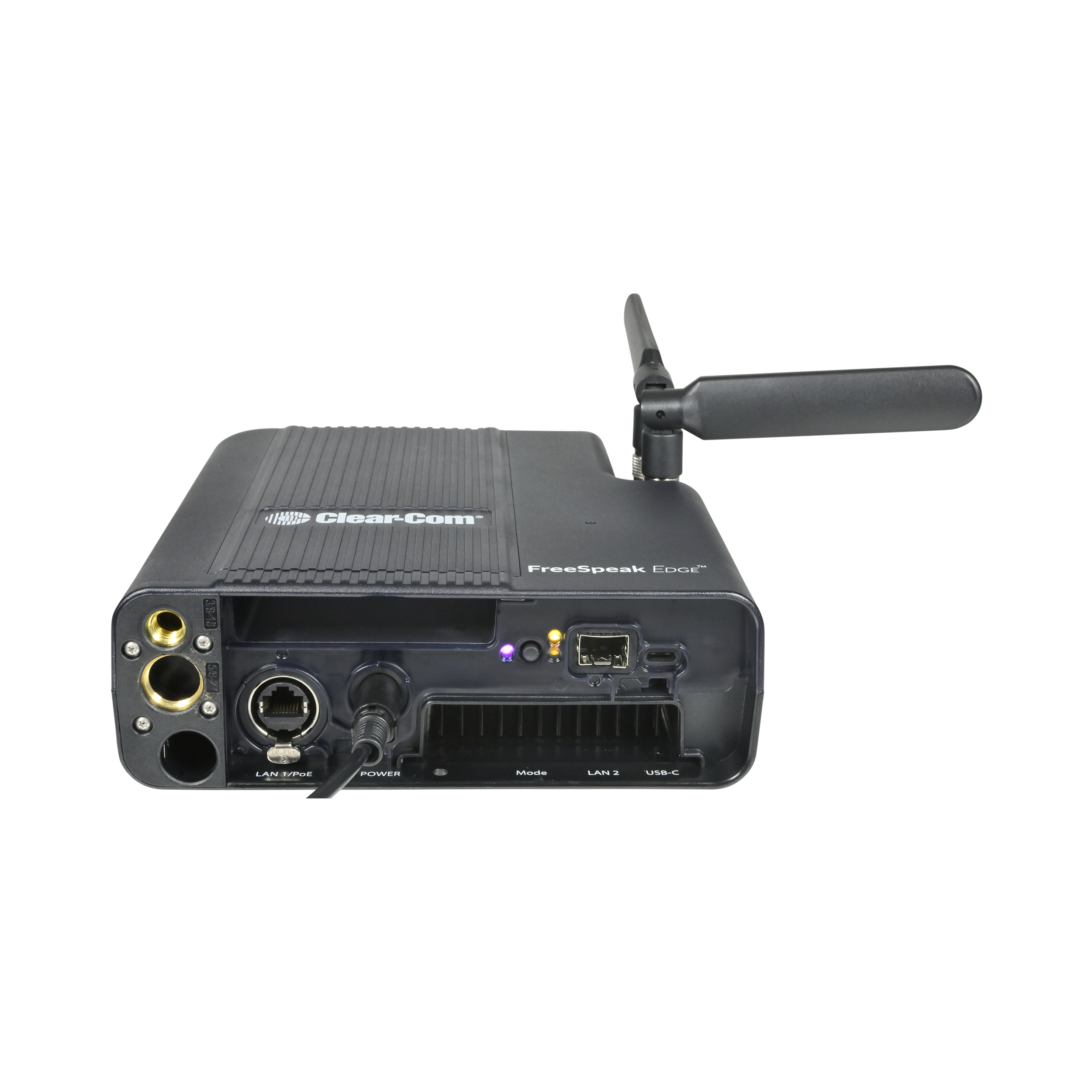

- Dual network connections
- etherCON RJ45 network connection
- High speed SFP fiber cage
- Power-over-Ethernet (PoE) up to 330ft (100m)
- Daisy-chaining up to three locally powered transceivers
- Mechanical
- IP53 rating for wet and dusty conditions
Operation
The FSE-TCVR-50-IP allows transceivers and beltpacks to be placed anywhere there is an AES67 IP network connection. The FSE-TCVR-50-IP connects to the E-IPA-HX card via copper or fiber over an AES67 compliant network switch. Transceivers can be connected by copper (etherCON RJ45) or fiber (high speed SFP cage).
Power
The FSE-TCVR-50-IP can be powered from a Power-over-Ethernet (PoE) switch, or locally via supplied external power supply.
Design
The FSE-TCVR-50-IP is IP53 rated for water and dust resistance. The transceiver has a mount for wall, microphone stand or tripod spigot. The wall mounting bracket enables easy installation and removal. Multi-color status lights are visible from either mounting orientations.
Specifications
- Technical
- Frequency Spectrum: 5170 -5875MHz (20MHz channels set by country)
- Output Power: Adjustable from 1 – 24dBm
- *Maximum output power is determined by selected channel and country
- Modulation: OFDM
- Antennas: 3dB Omni

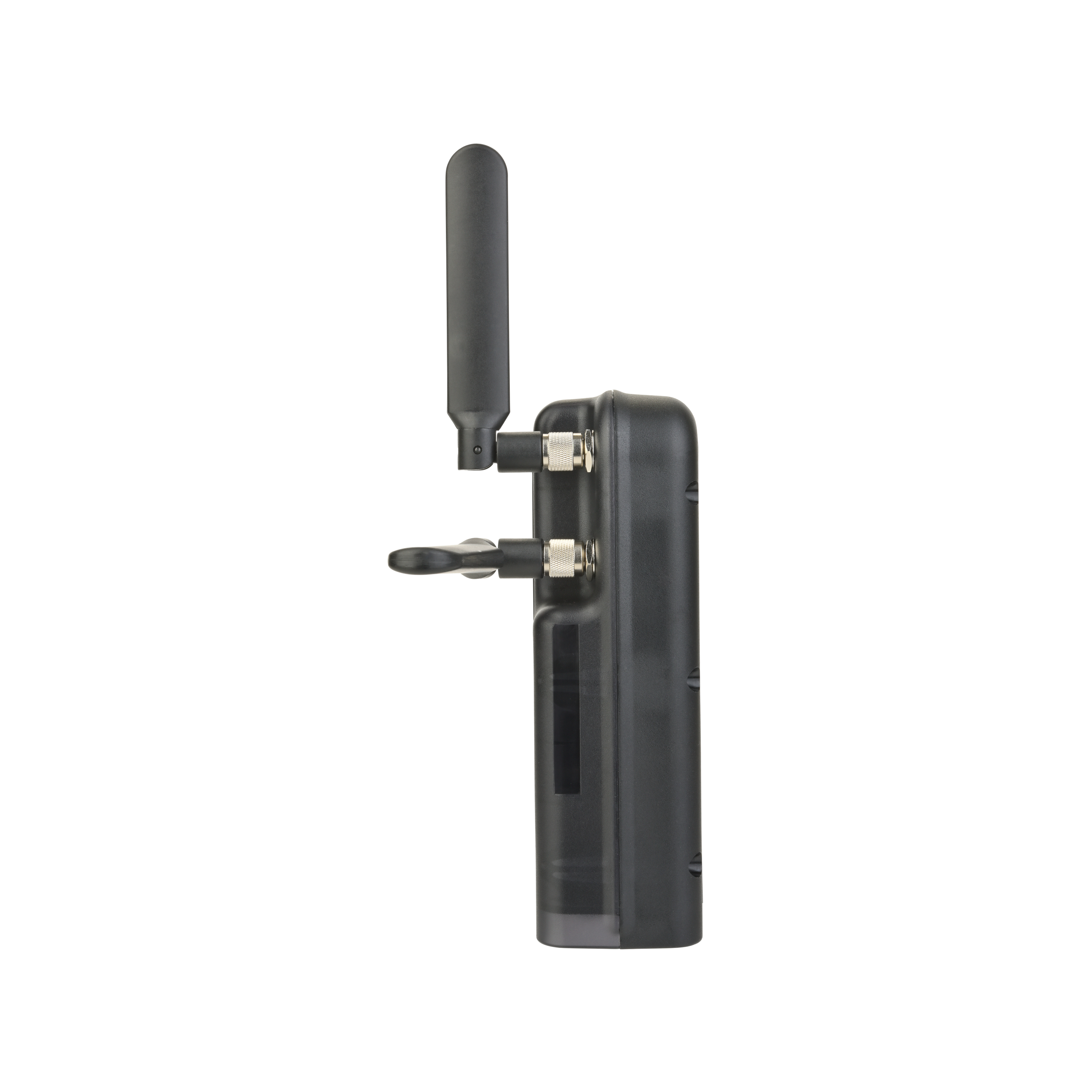

- Antenna Connector: RP-TNC
- Power Supply
- Input Voltage: 100 to 240V AC (50 - 60Hz)
- Output Voltage: 12V @ 5A (60W)
- MTBF (min.): 300,000 Hours (Calculated Hours At 25ºC by Telcordia SR-332)
- Environmental
- IP Rating: IP53 water and dust resistance
- Operating: 32 to 113°F (0 to 45°C)
- Storage: 86 to 158°F (30 to 70°C)
- Humidity: 20-90% Non-Condensing
- Coverage Distance
- Line of Sight Outdoors: 500-750 feet (160-230 meters)
- Indoors: 250-350 feet (80 – 107 meters)
- Reflective surfaces will increase distance
- Regulatory
- Regulatory Model: 1408-XX (X can be 0-9, A-Z or blank)
- FCC ID: BYM1408
- Dimensions (WxHxD)
- Transceiver
- With Mount Bracket: 7.60 x 8.25 x 4.12 in (193.04 x 209.6 x 104.65mm)
- Whithout Mount Bracket: 7.60 x 8.25 x 3.37 in (193.04 x 209.6 x 85.6mm)
- Transceiver Mount Bracket: 4.26 x 4.51 x 0.75 in (108.27 x 114.62 x 19.05mm)

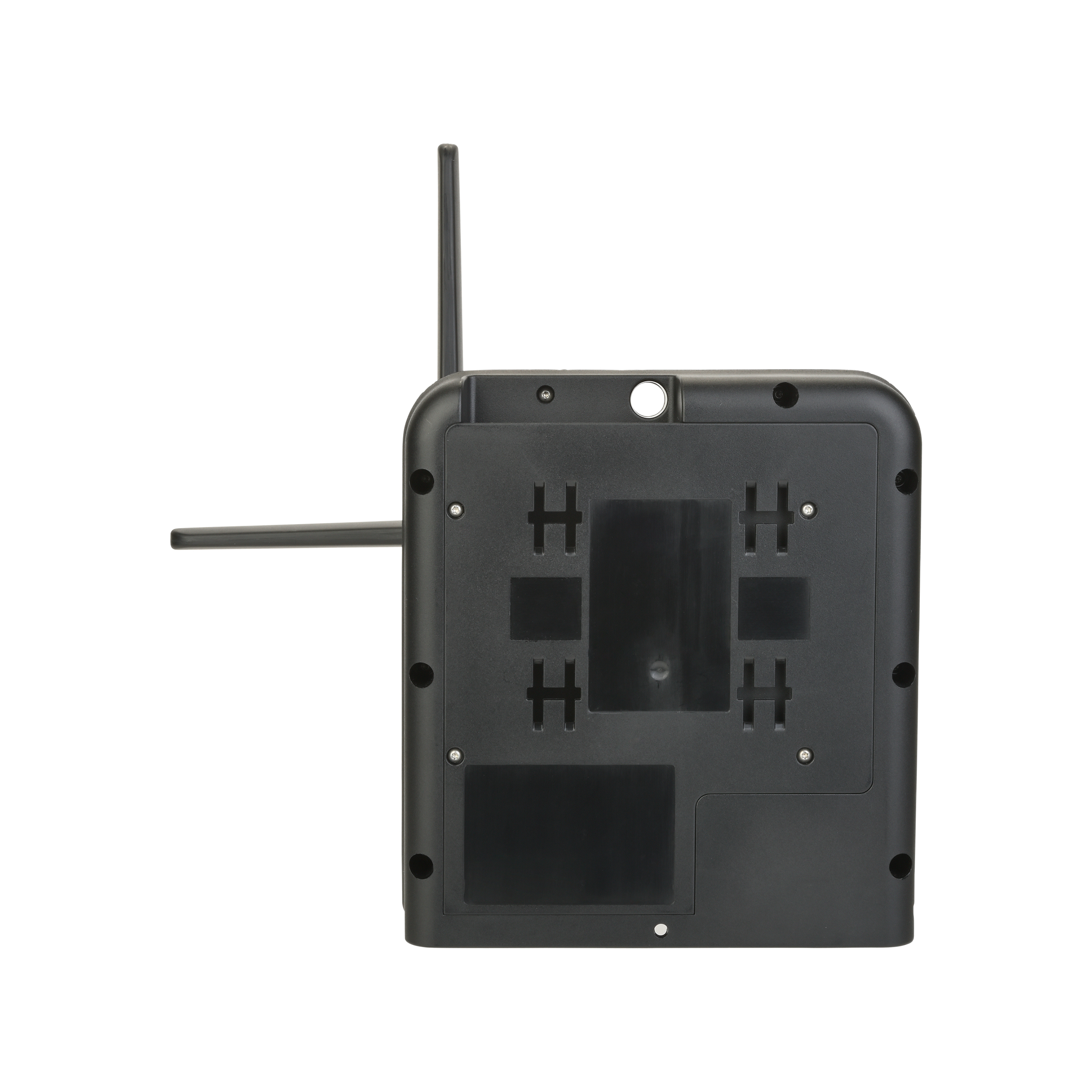

- Distance Between Vertical Screw Holes: 3.5in (88.9mm)
- Distance Between Horizontal Screw Holes: 3in (76.2mm)
- Weight
- With Mount Bracket: 2.527lbs (1.15kg)
- Without Mount Bracket: 2.252lbs (1.02kg)
