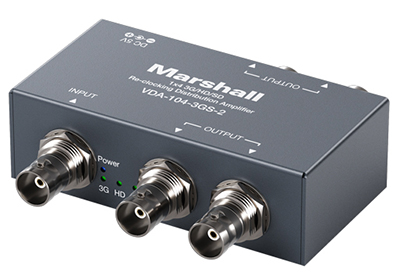

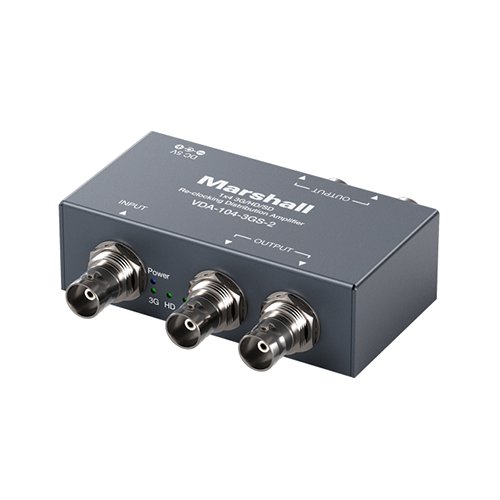

Marshall 1x4 3G-SDI Reclocking Distribution Amplifier
Model: VDA-104-3GS-2
About: Marshall 1x4 3G-SDI Reclocking Distribution Amplifier
The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.
- Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
- Supported video formats:
- SD: 480i59.94 "NTSC", 576i50 "PAL"
- HD: 720p24, 25, 30, 50, 59.94, and 60
1080i50, 59.94, and 60
1080p24, 25, and 30 - 3G: 1080p50, 59.94 and 60. Supports Level A and B
- 2K: 2048x1080p24 and 30
- Supported audio format up to 8 channels, 24-bit, and 48KHz
- Reclocking function reshapes the signal to improve transmission distance
- Video format LED indication
- Compact metal housing with mounting ears
UPC: 801813228755
