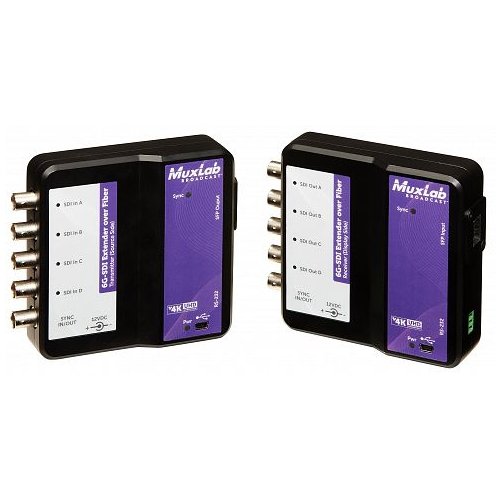

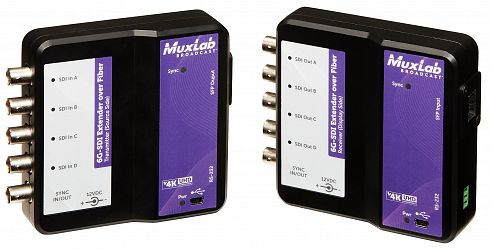

Muxlab 6G-SDI Extender over OM3 Fiber Optic 300M
Model: 500732
About: Muxlab 6G-SDI Extender over OM3 Fiber Optic 300M
The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber (model 500732), up to 1300ft (400m) using OM4 fiber (model 500732), up to 33,000ft (10km) using single mode fiber (model 500732-SM10), up to 132,000ft (40km) using single mode fiber (model 500732-SM40), and up to 264,000ft (80km) using single mode fiber (model 500732-SM80). This product allows for versatile combinations of sources, such as one 6G SDI source, two 3G-SDI sources, or four HD-SDI sources.
- Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for field upgradable firmware and diagnostics
- Standard SFP+ module for optical fibre interface, or other media
- Aluminum ruggedized enclosures
- Supports RS232 pass through
UPC: 627699007327
Videos: Muxlab 6G-SDI Extender over OM3 Fiber Optic 300M
Reviews: Muxlab 6G-SDI Extender over OM3 Fiber Optic 300M
Warranty: Muxlab 6G-SDI Extender over OM3 Fiber Optic 300M
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
PASSIVE PRODUCTS: LIFETIME WARRANTY*
ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Muxlab do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
