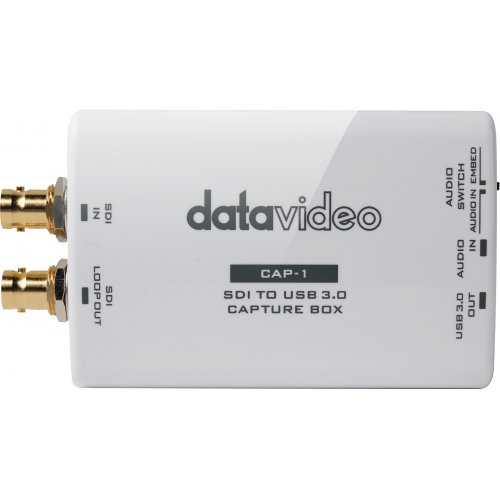

CAP-1 SDI to USB 3.0 Capture Box

Datavideo believes in sharing our innovative value with our customers. We are also inspired by several decades of industrial experience, and we believe that technological and vocational education is essential to have sustainable development for the industry. Thus, Datavideo Academy was established. Datavideo Academy is a comprehensive learning platform, which includes education,

SDI to USB 3.0 Capture Box

This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.

The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

USB 3.0 Interface

No external power is needed. Power source from USB connection.

Plug-and-Play

Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform

Compatible with various operating systems

• Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
• Linux: VLC, OBS
• Mac OS X: OBS, Quicktime player, VLC, Facetime

Stereo line in external audio

SDI Loop-out for monitoring or recording the video source.

Switched as SDI embedded audio or external Mini-Jack audio.

Specifications

• Input -  1x HD/3G-SDI
• Output
  • 1x USB 3.0 (Micro B)
  • 1x SDI loopthrough
• Input Video Bandwidth -  150MHz (pixel clock rate)
• Output Video Bandwidth -  Up to 350Mbps (USB)
• Supported Input Video Formats
  • 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
  • 1920 x 1080i 60/59.94/50 (de-interlaced out)
  • 1280 x 720p 60/59.94/50
• Supported Output Video Formats
  • 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
  • 1920 x 1080i 60/59.94/50 (de-interlaced out)
  • 1280 x 720p 60/59.94/50
• Audio Input -  SDI Embedded Audio & 3.5 mm stereo in
• Audio Format -  2-Channel, 16-bit PCM
• Capture Video Format -  YUY2 (USB3.0), MJPG (USB2.0/3.0)
• Firmware Update -  Via USB Port
• Software Compatibility
  • Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
  • Linux: VLC, OBS
  • Mac OS X: OBS, Quicktime player, VLC, Facetime
• Supported OS
  • Windows 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
  • OS X (10.10 or above)
  • Linux Ubuntu 14.04
• Power Supply -  Via USB
• Power Consumption -  3W
• Operation Temperature -  0~40°C
• Storage Temperature -  -20~60°C
• Humidity -  20~90% RH (no condensation)
• Minimum System Requirement
  • Windows 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
  • Note: The driver is required for Windows 7 OS
  • OS X (10.10 or above)
  • Linux Ubuntu 14.04
  • PC: Intel CoreTM i5-4440 3.10GHz + NVIDIA GeForce GTX 660 or higher
  • Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
  • 4GB RAM or higher
• Dimension (LxDxH) -  4.76 x 2.68 x 0.91 in (121 x 68 x 23 mm)
• Weight -  0.2 lb (92 g)

What's in the Box

• 1x CAP-1
• 1x USB 3.0 Cable
