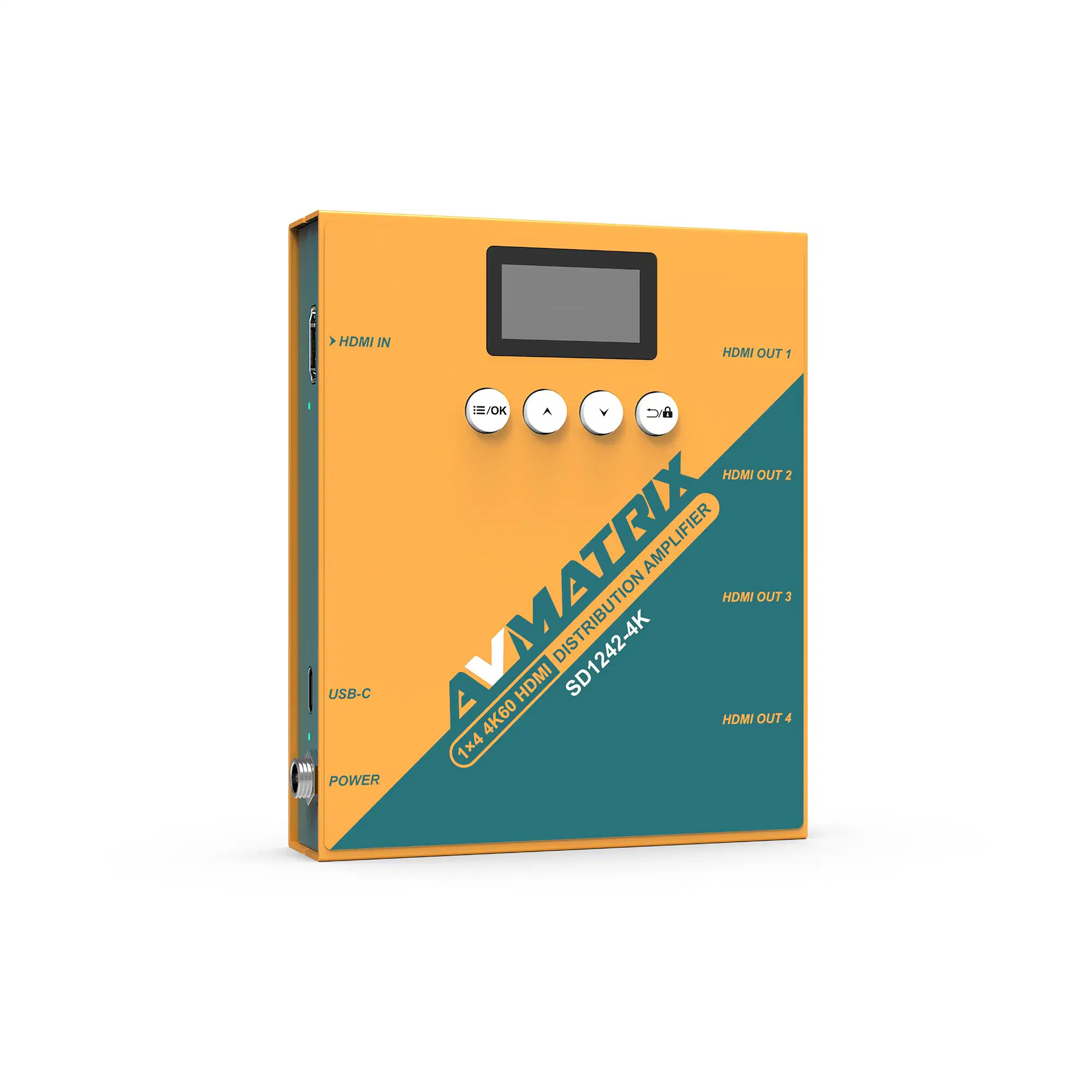

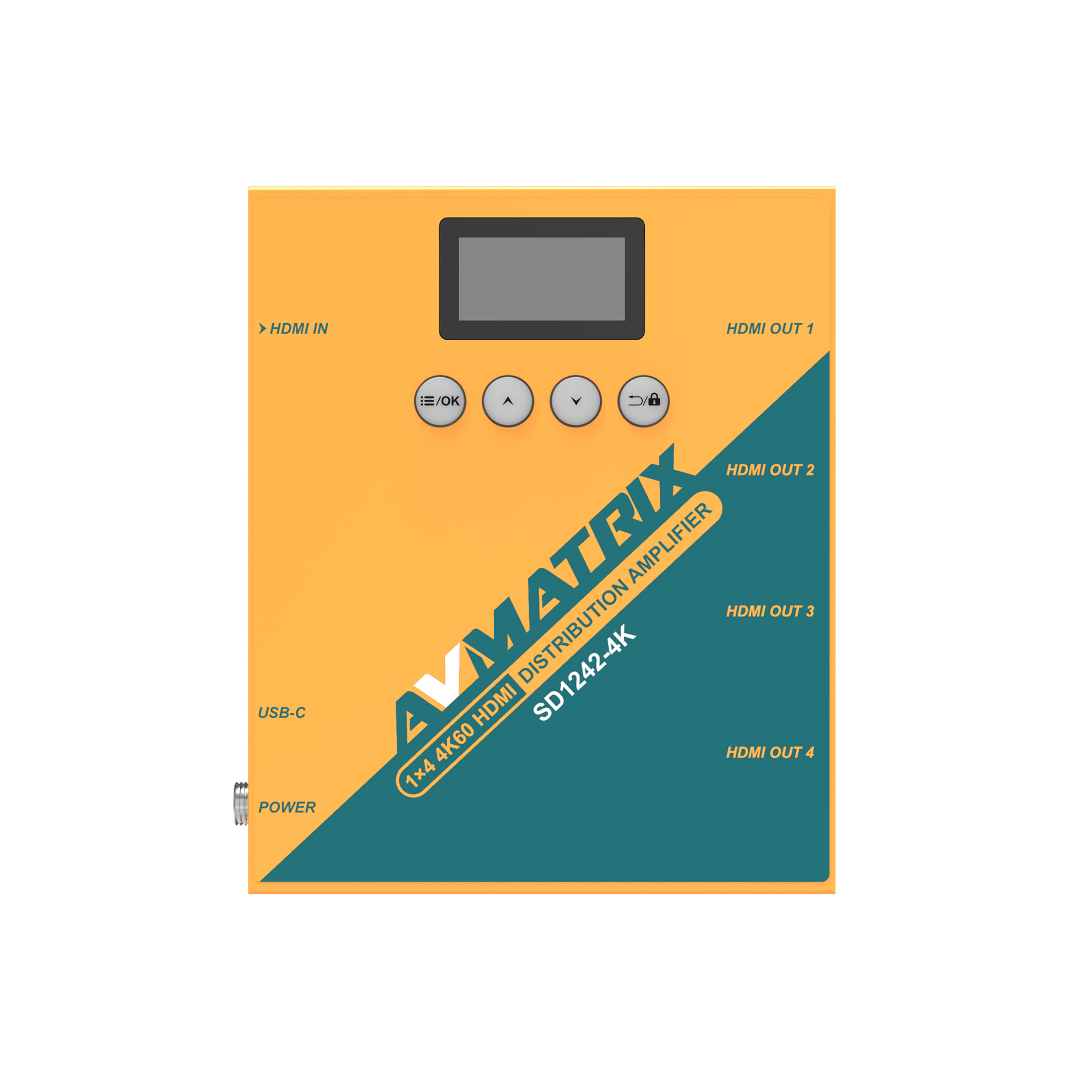

AVMatrix SD1242-4K 1x4 4K60 HDMI Distribution Amplifier
Model: SD1242-4K
About: AVMatrix SD1242-4K 1x4 4K60 HDMI Distribution Amplifier
The AVMatrix SD1242-4K 1x4 4K60 HDMI Distribution Amplifier allows you to input an HDMI 2.0 signal and split it out to 4x further target displays. With EDID management you can tailor each output to the target screen and be sure to maximize the screen real estate on each device. with control by either the panel on the front of the device, or a remote PC-Based management system, you have a wide option set for integration into your production workflow.
- Input: 1x HDMI 2.0 port
- Output: 4x HDMI2.0 ports
- System supports up to up to 4K60 Resolution
- EDID Management to allow for screen-accurate output feeds
- USB-C & DC Power supply for maximum portability
- Effortless Operation, Swift Control with panel or PC control software
- Detachable bracket available (Optional)
- Supported HDMI Input/Output Formats:
- 4096x2160p 60/59.94/50/30/29.97/25/24/23.98
- 3840x2160p 60/59.94/50/30/29.97/25/24/23.98
- 2560x1080p 60/59.94/50/30/29.97/25/24/23.98
- 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
- 1920x1080i 60/59.94/50
- 1280x720p 60/59.94/50/30/29.97/25/24/23.98
- 1440x576i 50
- 1440x480i 60/59.94
- 720x576p 50
- 640x480p 60/59.94
UPC: 6971118003235
