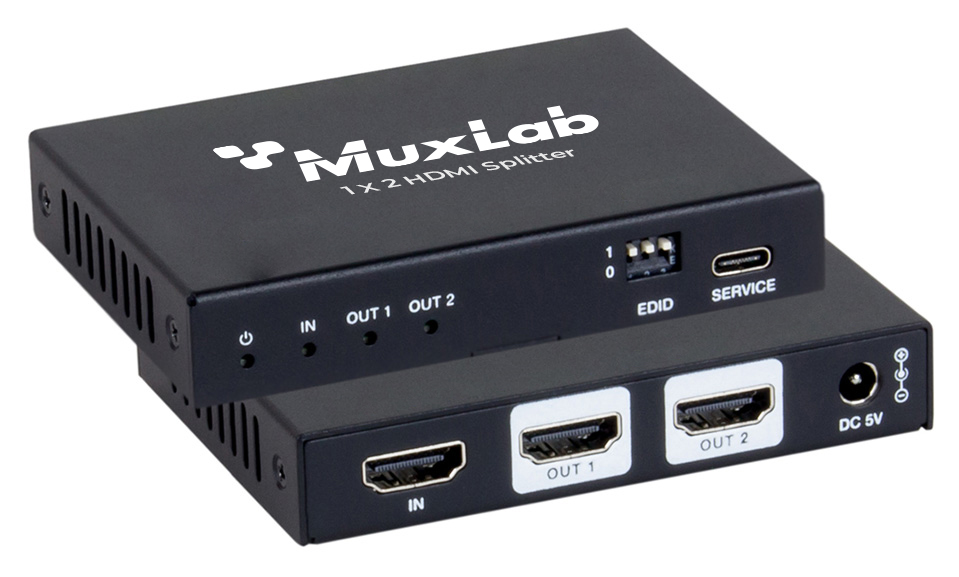

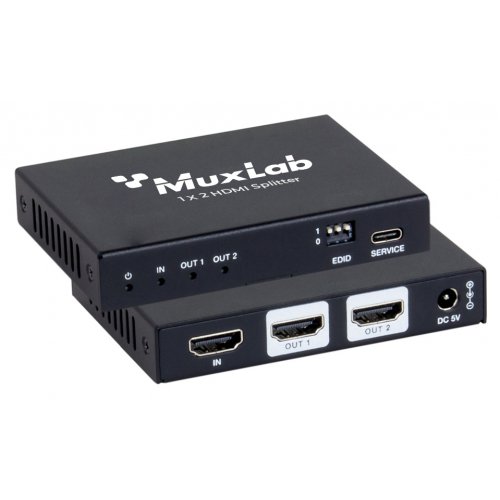

Muxlab HDMI 2.1 48Gbps 1x2 Splitter

About: Muxlab HDMI 2.1 48Gbps 1x2 Splitter

The HDMI 2.1 48Gbps 1×2 Splitter is a versatile device with various applications, offering advanced features for splitting HDMI signals.

The HDMI 2.1 48Gbps 1×2 Splitter’s ability to handle high data rates, support 8K resolution, and provide features like EDID management and cable equalization makes it suitable for a wide range of applications in both residential and commercial settings.

• HDMI 2.1 and HDCP 2.3 compliant
• Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
• Supports video resolution up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
• 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
• HDR to SDR auto converting on all outputs Advanced EDID management
• Compact design for easy and flexible installation

Specification

• Technical
  • HDMI Version - Support HDMI 2.1 and HDCP 2.3
  • Video Bandwidth - 48Gbps
  • Video Resolution - Up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
  • Color Depth - 8/10/12 bit
  • Color Space - RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • Audio formats
    • HDMI input/output:
    • LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
    • DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • HDR - HDR, HDR10, HDR10+, Dolby Vision, HLG
  • ESD Protection - Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• Connection
  • Input - 1 × HDMI IN [Type A, 19-pin female]
  • Output - 2 × HDMI OUT [Type A, 19-pin female]
  • Control - 1 × SERVICE [USB Type C, Update port]
• Mechanical
  • Housing - Black Metal Housing
  • Power Supply - Input: 100-240VAC 50/60Hz, Output: 5VDC/2A
  • Power Consumption - 4.3W Max
  • Operating Temperature - ​0°C ~ 40°C
  • Storage Temperature - -25°C ~ +70°C
  • Dimensions - 95mm (W) × 68mm (D) × 18mm (H)
  • Weight - 177g
