Muxlab HDMI 2.0 4K60 1x4 Splitter
Model: 100506
About: Muxlab HDMI 2.0 4K60 1x4 Splitter

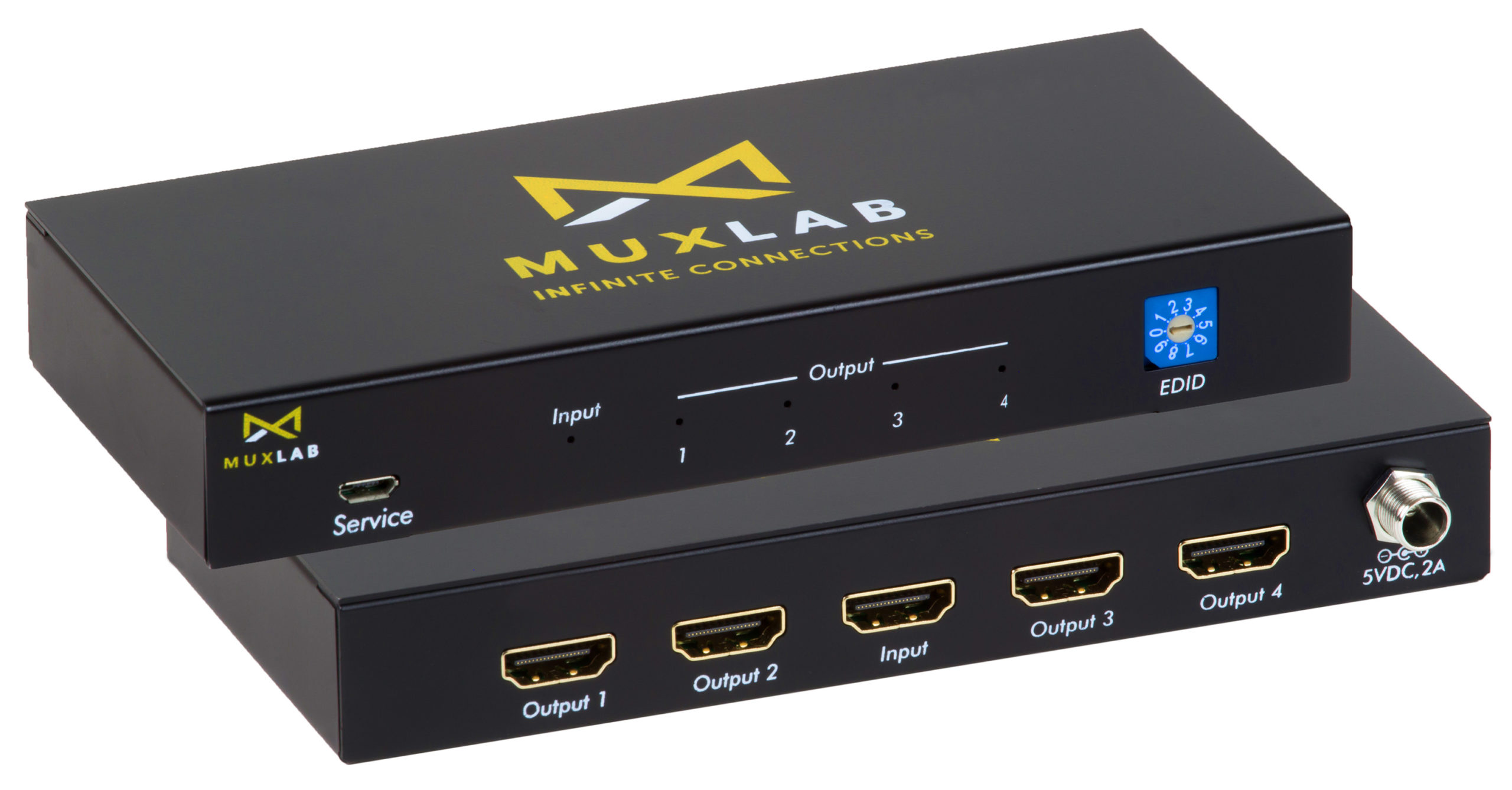

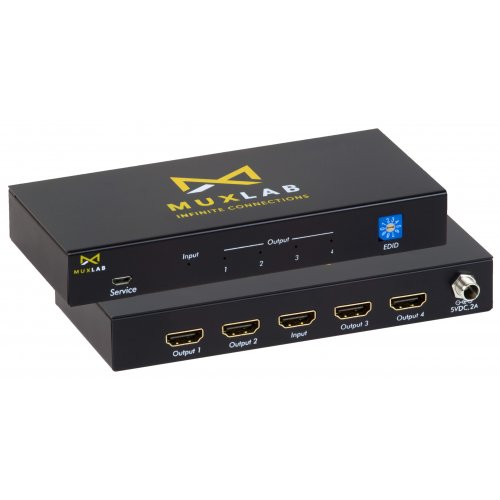

The 1×4 HDMI Splitter (100506) allows one (1) HDMI source to be distributed to up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID management and features LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.
- Distribute one HDMI 2.0 source to four displays
- Supports up to 4K @ 60Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports Dolby Vision, HDR and Deep Color
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Supports EDID management
- LED diagnostic
Specification
- Technical
- HDMI Version - Support HDMI 2.0a
- HDCP - Revision 1.4 & 2.2 compliant.
- Video Bandwidth - 18Gbps
- Video Resolution
- 480i to 1080p @ 50/60 FPS
- 1080p @ 24/50/60 FPS
- 3840 X 2160 @ 24/25/30/60 FPS
- Color Depth - 8/10/12 bit
- Audio formats: LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Mechanical
- Housing - Black Metal Housing
- Power Supply - Input: 100-240VAC 50/60Hz, A1
- Operating Temperature - 0°C ~ 40°C
- Storage Temperature - -20°C ~ +60°C
- Dimensions - 155mm (W) x 68mm (D) x 24mm (H)
- Weight - 1.1lbs (0.5KG)
UPC: 627699505069
