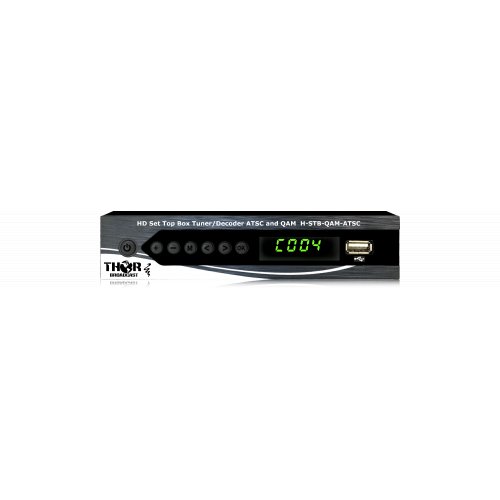

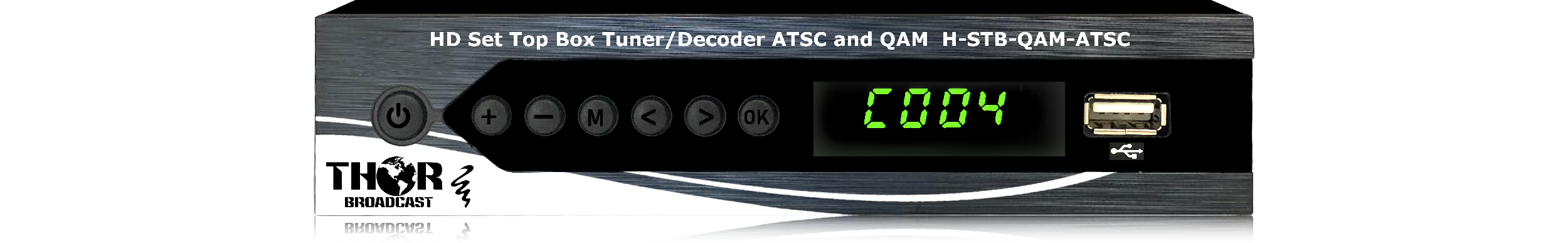

Thor Broadcast QAM CATV RF and ATSC RF to HDMI Decoder
Model: H-STB-QAM-ATSC
About: Thor Broadcast QAM CATV RF and ATSC RF to HDMI Decoder
H-STB-QAM-ATSC is a unique universal dual-standard Set Top Box - IRD Integrated Receiver Decoder and PVR Recorder -Digital TV converters
1) CATV RF Off the Air antenna digital ATSC signal Tuner Decoder
2) CABLE TV Digital DVB-C Annex B QAM 64/256 Tuner Decoder.
This decoder can decode ATSC and Clear QAM Modulated RF.
The decoder has 4 Major Outputs:
1) HDMI output up to 1080p60
2) YPbPr component Audio Video Output up to 1080i (RCA connectors )
3) CVBS Analog Baseband Video and Audio output (RCA connectors)
4) CATV RF Analog Output NTSC/PALchannel 3 and 4 ( Application - Digital RF to Analog NTSC /PAL converter)
It could be used for the following applications :
1) Decoding ATSC OFF the Air signal from the Antena
ATSC to HDMI
ATSC to YPbPr
ATSC to CVBS Digital to Analog conversion
ATSC to ANALOG RF CH 3/4 as a Digital to Analog converter
2) Decoding Clear CABLE TV QAM RF
QAM to HDMI
QAM to YPbPr
QAM to CVBS - Digital to Analog conversion
QAM to ANALOG RF CH 3/4 as a Digital to Analog converter
The unit has also built-in recoding PVR Recorder using external USB storage source like USB stick
Features:
- Auto & Manual search, 4000channels for TV & Radio
- ATSC and DVB-C Annex B QAM 64/256
- EPG for enhanced program information, favorite channel and station list
- USB2.0 PVR for record&playback TV channels
- 16:9 full screen, 4:3 letterbox & fullscreen
- Support Teletext and DVB subtitle
- Timer On/Offsetting
- Parental guidance lock
- Full function remote control
- Low power mode
- HDMI output up to 1080p/60
- YPbPr video output up to 1080i/60
- CVBS baseband video ouput up to 480i
- ANALOG RF OUTPUT CH 3 or 4 selectable NTSC/PAL
