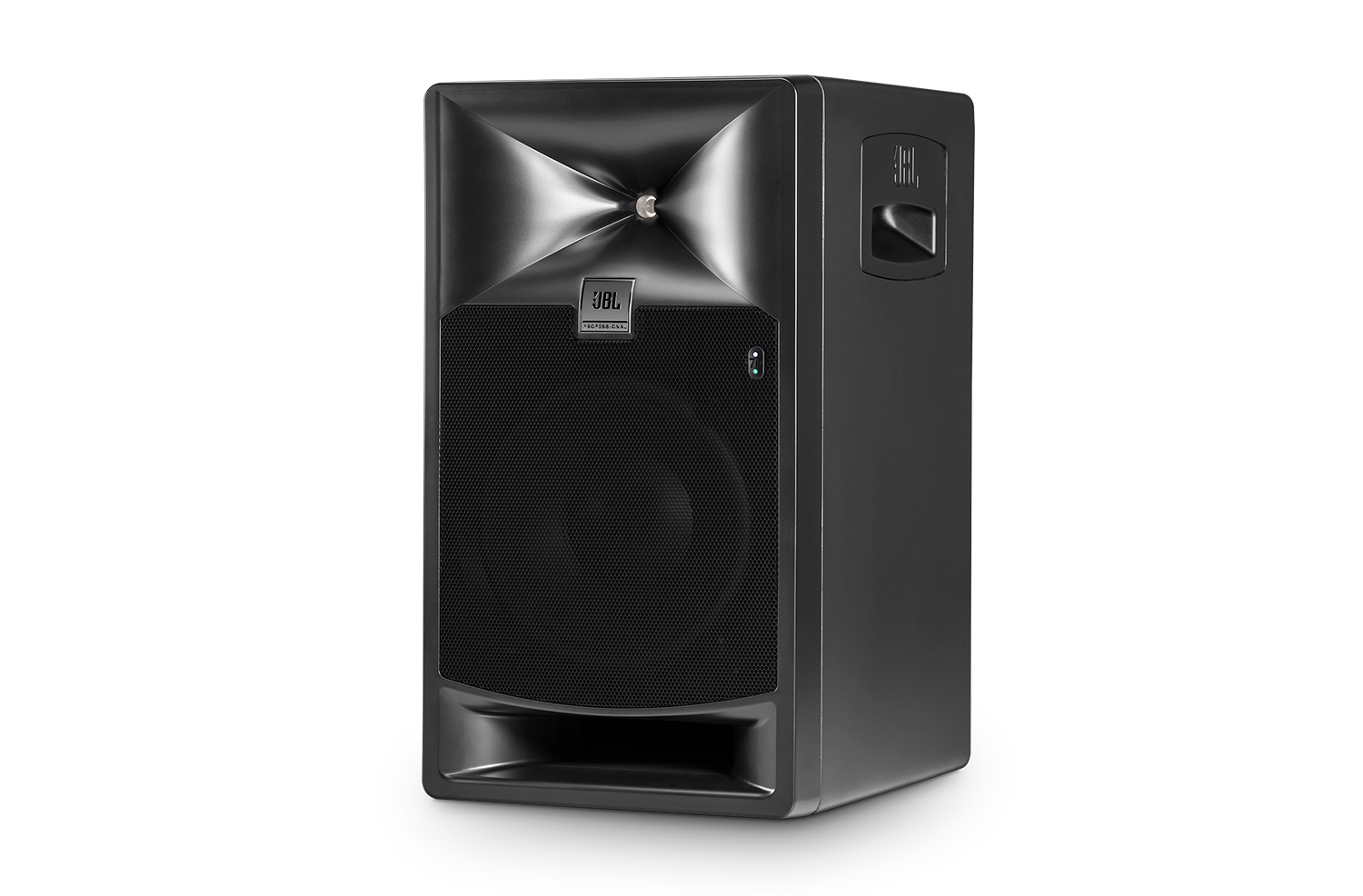

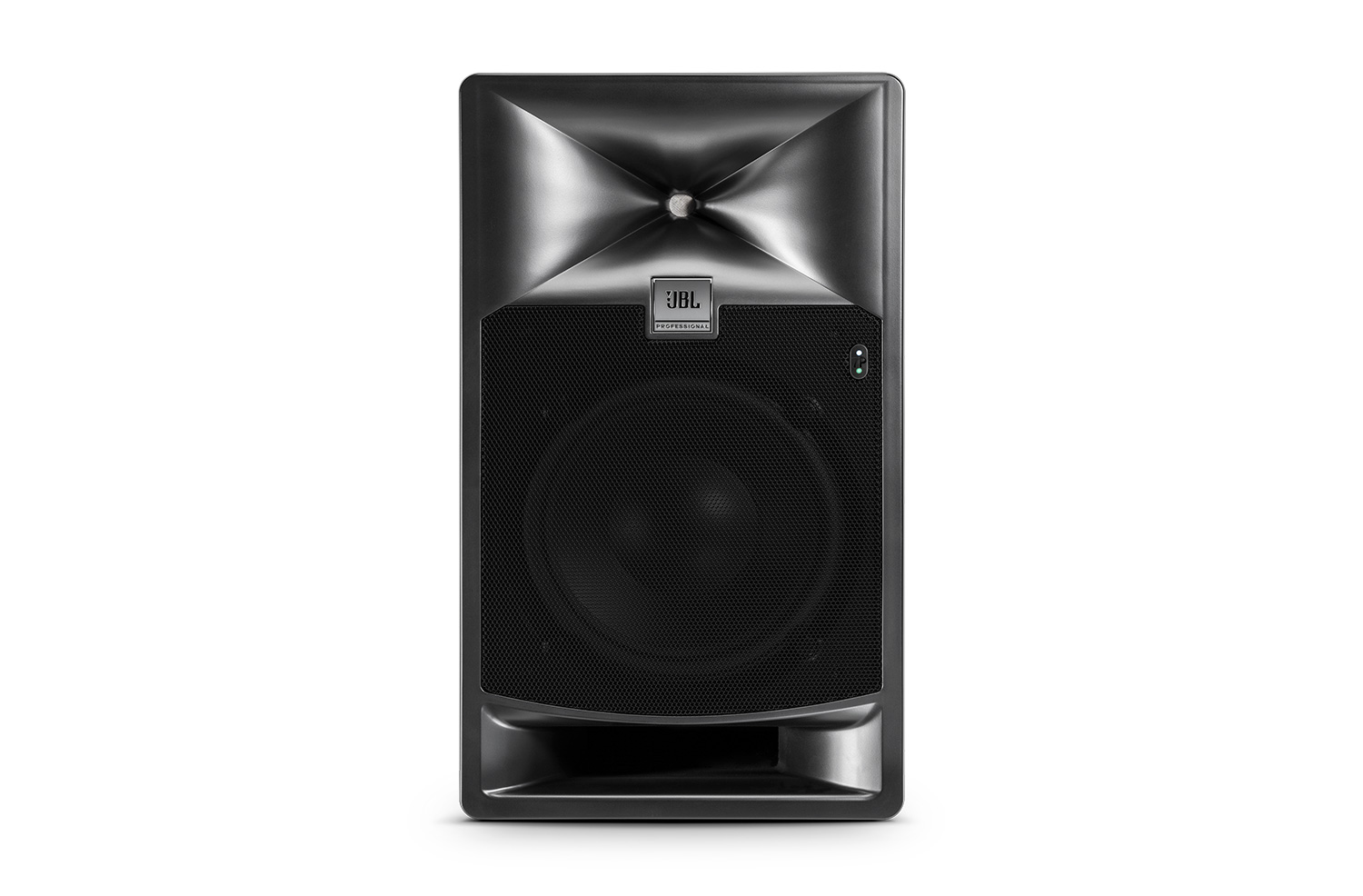

JBL 708P 8in Bi-Amplified Master Reference Monitor (Each)
Model: 708P
About: JBL 708P 8in Bi-Amplified Master Reference Monitor (Each)
JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.
FEATURES
- Next-generation JBL driver technology
- Patent-pending Image Control Waveguide
- Integrated dual amplification system with internal floating-point DSP
- Comprehensive room EQ and delay controls
- Compact enclosures for easy placement and installation
- JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL
- JBL 2409H high-frequency transducer with low-mass annular diaphragm
- JBL-designed patent-pending Image Control Waveguide
- 2-channel Class-D amplifier HF 250W / LF 250W
- 192 kHz 32-bit floating point processing
- 12 bands of Room EQ, 8 Bands of User EQ
- 6 factory presets, 6 user-defined presets
- 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
- 1 x XLR-1/4" balanced combination analog audio input
- 1 x XLR AES3 format digital input with 1 x XLR pass-through output
- Digital input will accept sample rates of up to 192 kHz
- User enabled sample rate converters
- RJ-45 network connection for Harman HiQnet connectivity
- Rear-panel multi-function controls and LCD display allow selection of ofinput sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
- Integrated handles
- Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
- Protective steel grilles
SPECIFICATIONS
- Frequency Response -1.5 dB @ 45Hz – 23kHz
- Frequency Range 35Hz – 36 kHz
- Max SPL (80 Hz - 20 kHz) >108 dB SPL / 1m
- Maximum Peak SPL (80 Hz - 20 kHz) >114 dB SPL / 1m
- HF Driver 2409H
- LF Driver 728G
- Dividing Network
- Transition Frequency 1.7 kHz
- Input Types 1 x XLR-1/4" balanced combination analog audio input
- 1 x XLR AES3 format digital input with 1 x XLR pass-through output
- Digital input will accept sample rates up to 192 kHz
- Dimensions (HxWxD) 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)
- Weight Each 25.2 lb (11.5 kg)
- Enclosure Birch plywood reinforced for mounting
- Mounting Top, bottom and rear mounting points. 4-hole mounting pattern
