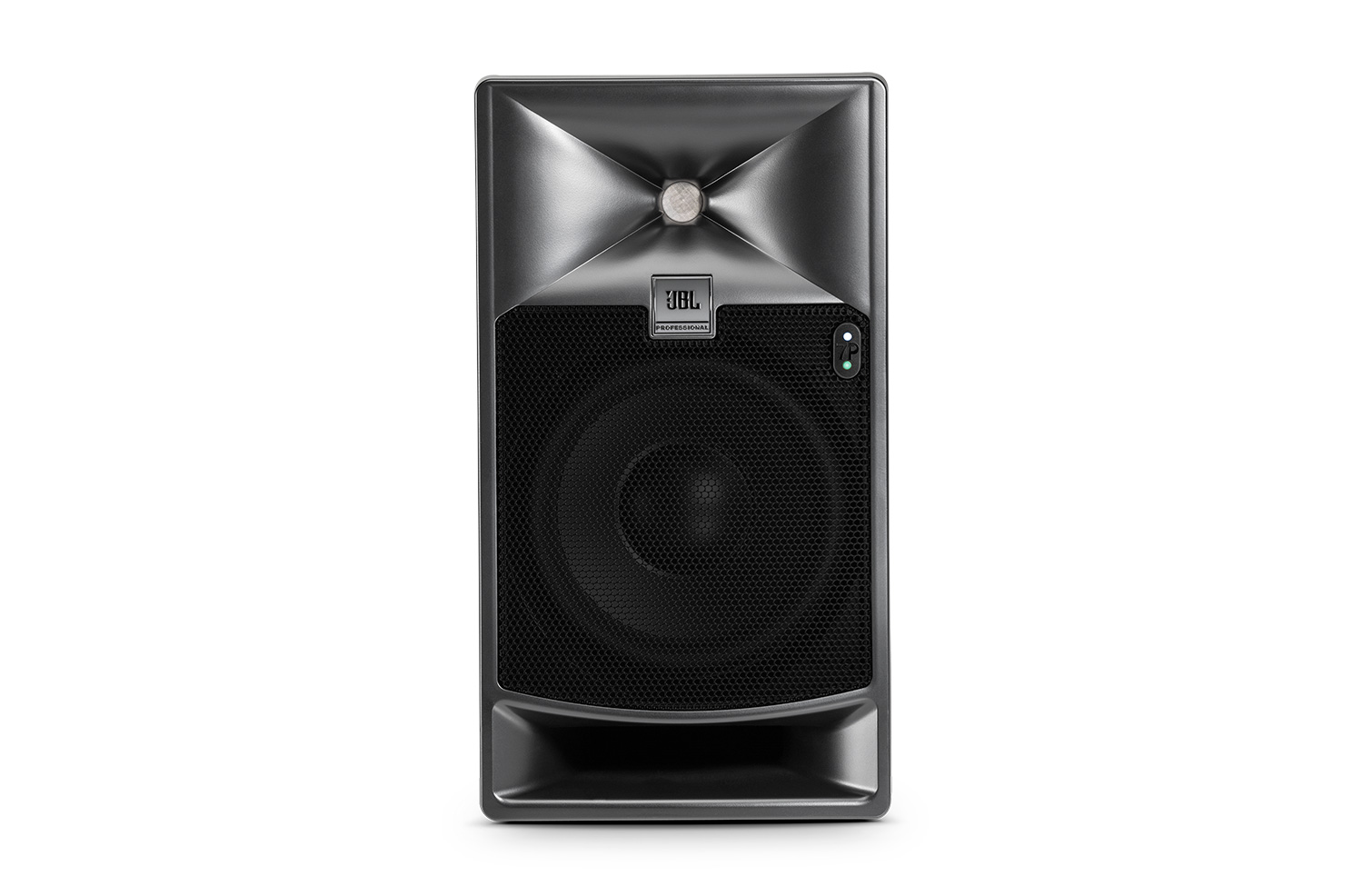

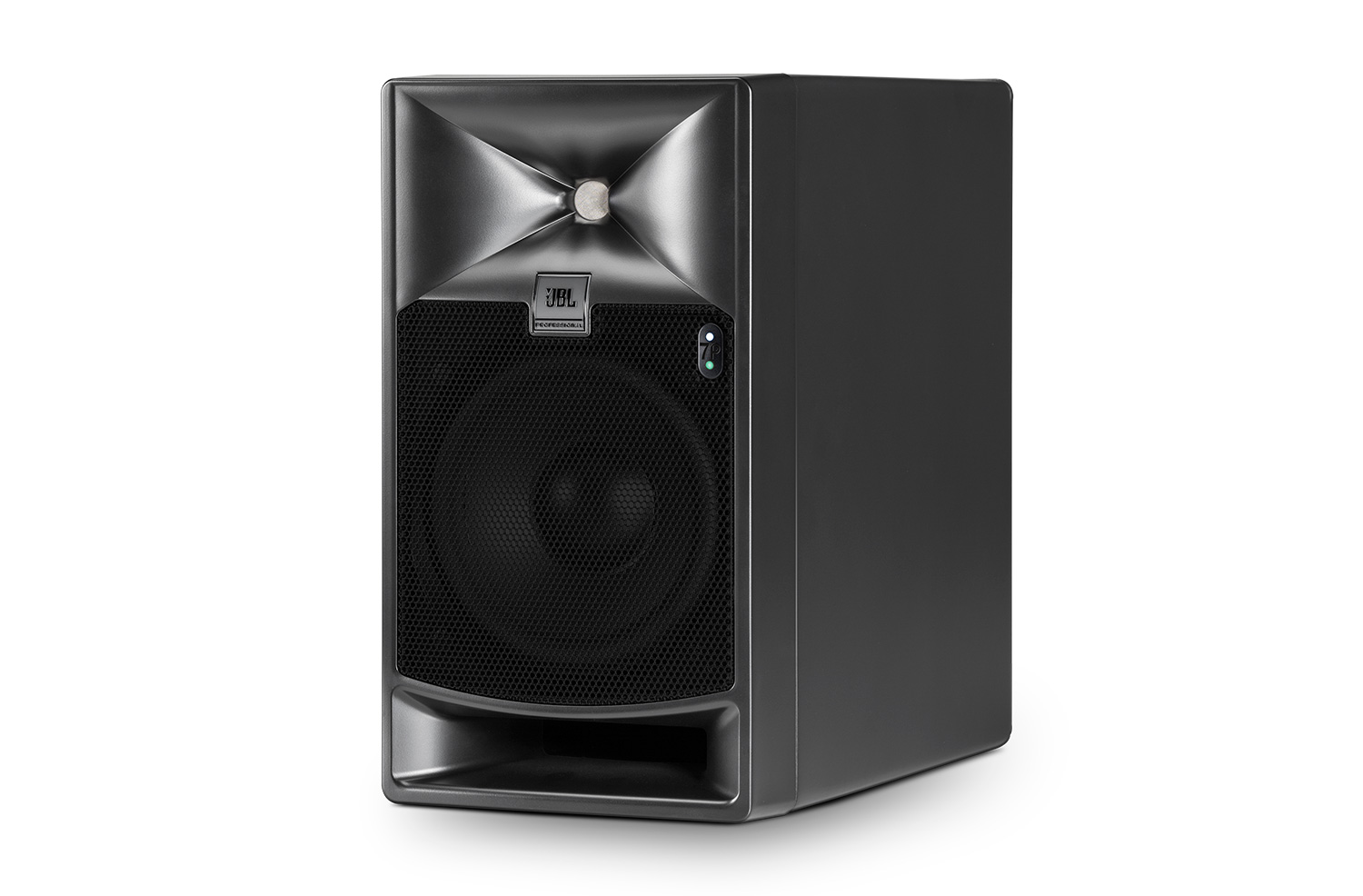

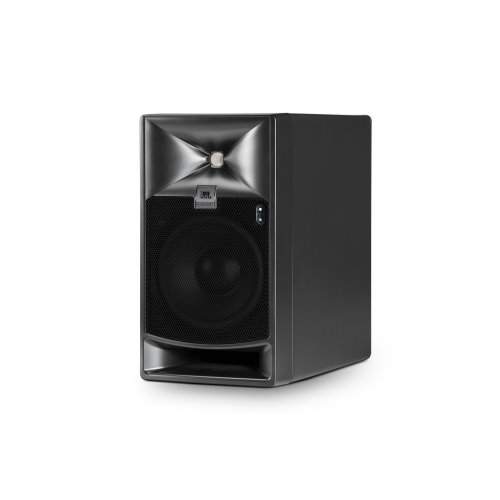

JBL 705P 5in Bi-Amplified Master Reference Monitor (Each)
Model: 705P
About: JBL 705P 5in Bi-Amplified Master Reference Monitor (Each)
The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.
FEATURES
- Next-generation JBL driver technology
- Patent-pending JBL Image Control Waveguide
- Integrated dual amplification system with internal floating-point DSP
- Comprehensive room EQ and delay controls
- Compact enclosures for easy placement and installation
- JBL 725G low-frequency transducer delivers low-distortion and high SPL
- JBL 2409H high-frequency transducer with low-mass annular diaphragm
- JBL-designed patent-pending Image Control Waveguide
- 2-channel Class-D amplifier HF 250W / LF 250W
- 192 kHz, 32-bit floating point processing
- 12 bands of Room EQ, 8 bands of User EQ
- 6 factory presets, 6 user-defined presets
- 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
- 1 x XLR-1/4" balanced combination analog audio input
- 1 x XLR AES3 format digital input with 1 x XLR pass-through output
- Digital input accepts sample rates of up to 192 kHz
- User-enabled sample rate converters
- RJ-45 network connection for Harman HiQnet connectivity

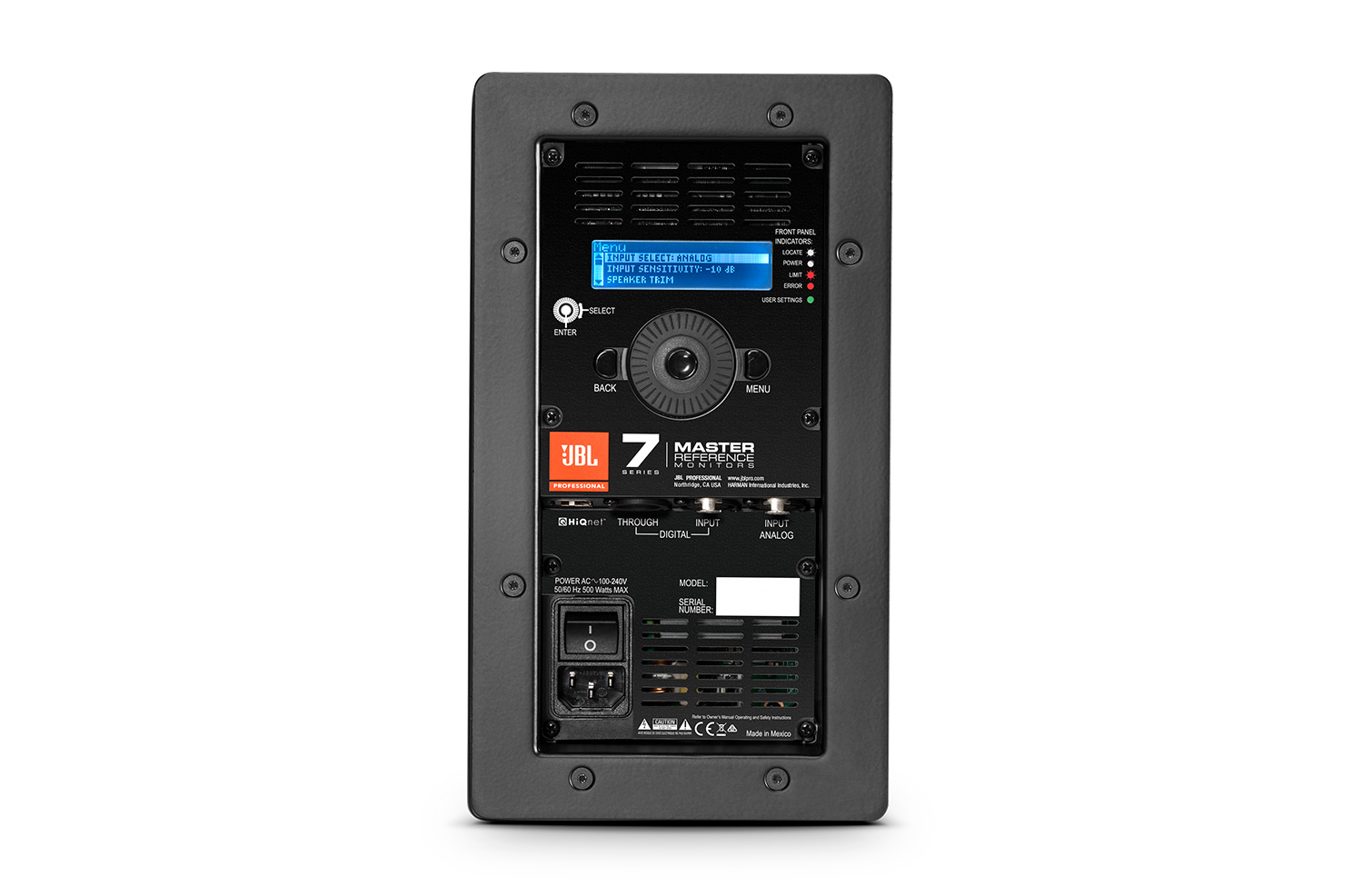

- Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
- Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
- Protective steel grilles
SPECIFICATIONS
- Frequency Response -1.5 dB @ 48Hz – 23kHz
- Frequency Range 39Hz – 36 kHz
- Max SPL (80 Hz - 20 kHz) >101 dB SPL / 1m
- Maximum Peak SPL (80 Hz - 20 kHz) >107 dB SPL / 1m
- HF Driver 2409H
- LF Driver 725G
- Dividing Network
- Transition Frequency 1.9 kHz
- Input Types 1 x XLR-1/4" balanced combination analog audio input
- 1 x XLR AES3 format digital input with 1 x XLR pass-through output
- Digital input will accept sample rates up to 192 kHz
- Dimensions (HxWxD) 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
- Weight Each 9.0 lb (4.08 kg)
- Enclosure Birch plywood reinforced for mounting
- Mounting Top, bottom and rear mounting points. 2-hole mounting pattern
