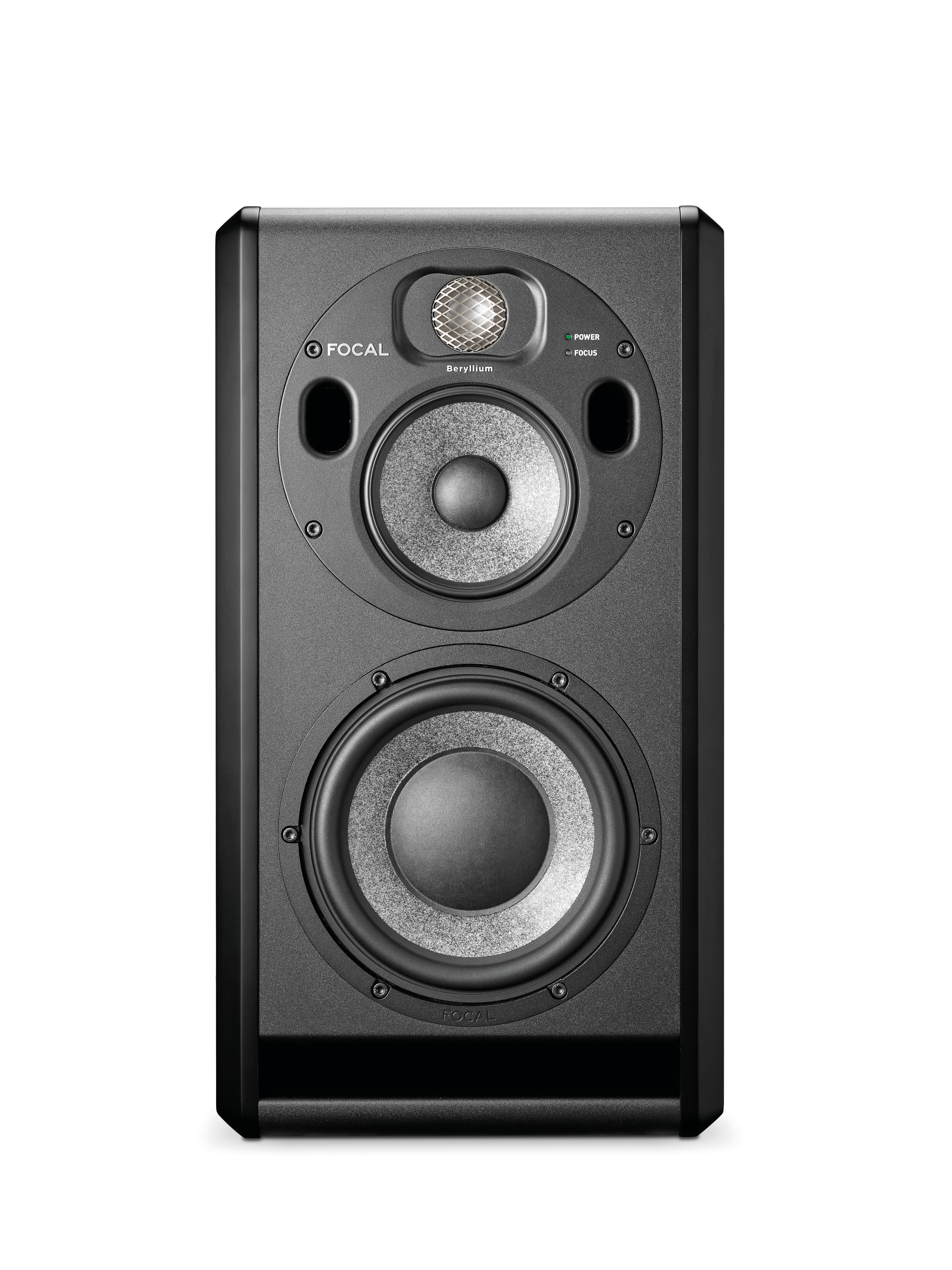

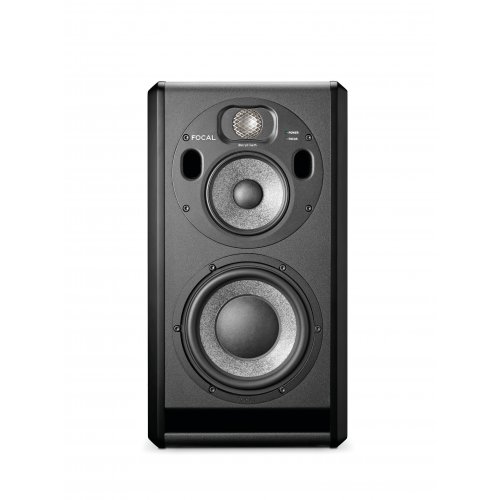

Focal TRIO6 Three-Way Studio Monitor (Black Finish)

About: Focal TRIO6 Three-Way Studio Monitor (Black Finish)

Trio6 is a professional monitoring loudspeaker offering flawless transparency, dynamics and sonic precision. Reliability and versatility are also its hallmarks, as evidenced by its dual Focus Mode, which enables Trio6 to form three monitors in one, for perfectly crafted, controlled mixes.

• Beryllium inverted dome tweeter: very low directionality, excellent linearity and dynamics
• Optimised baffle tweeter: excellent dispersion control
• 'W' composite sandwich cone: sound neutrality, no distortion
• Dual Focus Mode: three monitors in one: three-way monitor, two-way monitor (midrange woofer and tweeter alone) and full-range one-way monitor (midrange woofer alone)
• Large laminar port: no port noises or distortion
• Auto stand-by mode disengageable
• Settings: activatable/deactivatable, LF shelving, HF shelving, LMF @ 160Hz

VERSATILITY AND FUNCTIONALITY

Trio6 includes a variable high-pass filter, a 160 Hz parametric filter to reduce console reflections and a switchable automatic standby mode. With its smooth speakers, full analogue filtering and performance-oriented design, this monitor is a versatile and reliable work tool.

FOCAL TECHNOLOGIES

Beryllium inverted-dome tweeter, "W" diaphragm for woofer and subwoofer, TMD® suspension, large laminar air vent, IAL: Trio6 incorporates Focal's best innovations. The sound is remarkably neutral throughout the spectrum, with a precise midrange, impactful bass and excellent dynamics with very low distortion.

DUAL FOCUS MODE

A highlight is the Focus Mode, which lets you switch from a 3-way to a 2-way monitor, offering a different speaker configuration at the touch of a pedal. Trio6 features a dual Focus Mode for extreme versatility: a 3-way monitor, a 2-way monitor (midrange and tweeter) and a 1-way full-range monitor (midrange only).

REINFORCED CABINETRY

The ST6 cabinets are made of thick, sturdy MDF and feature internal reinforcements to provide damping and rigidity, while limiting vibration and therefore distortion.

Specifications

• Type: 3-way monitor
• Frequency response (@ -3dB): 35Hz – 40kHz
• Focus mode 1: 100Hz – 15kHz
• Focus mode 2: 80Hz – 40kHz
• Maximum SPL (Average CEA2034 50–10kHz free field @ 1m): 115dB
• Focus mode 1 (Average CEA2034 100–10kHz free field @ 1m): 112dB
• Focus mode 2 (Average CEA2034 100–10kHz free field @ 1m): 112dB
• Input: Balanced XLR 10kΩ
• Bass amplifier stage: 100W RMS, G-class
• Midrange amplifier stage: 100W RMS, G-class
• Treble amplifier stage: 50W RMS, AB-class
• Nominal power supply
  • 100 – 120V~ 50/60Hz
  • 220 – 240V~ 50/60Hz
• User controls
  • Sensitivity
  • Auto standby
  • Focus mode
  • HPF
  • LF Shelv
  • LMF EQ
  • HF Shelv
• Fuses
  • ~100–120V
  • 50/60Hz
  • T3.15AH/250V~220–240V
  • 50/60Hz
  • T1.6AH/250V
• Bass: 8" 'W' cone
• Midrange: 5" 'W' cone
• Treble: 1.5" Beryllium
• Shielding: No
• Construction: 7/8" (22mm) MDF

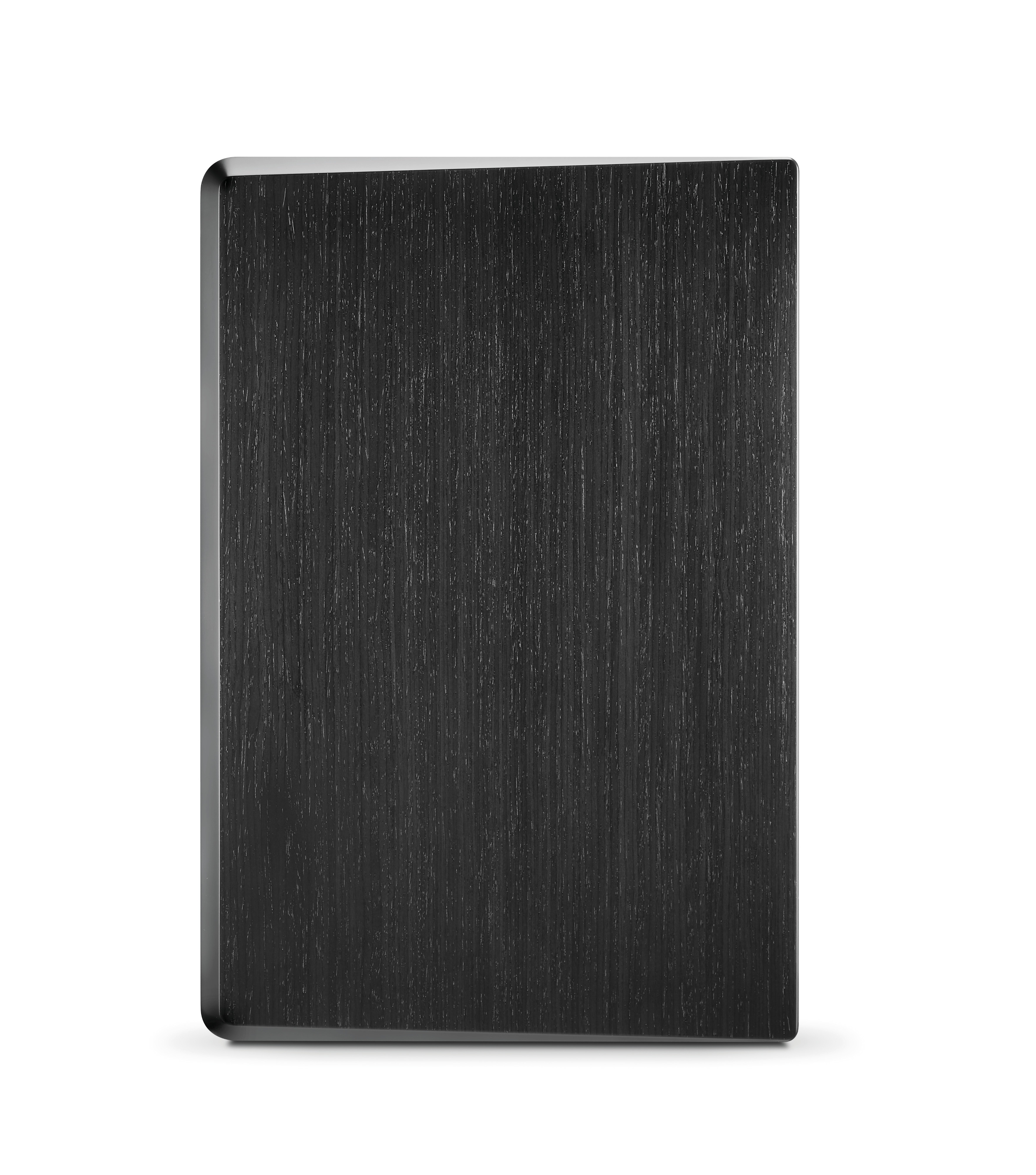

• Finish: Black natural veneering side panels, black body
• Temperature range
  • During use: 5–35°C
  • During storage: 0–50°C
• Dimensions (HxLxD) -  21.14 x 11.5 x 14.53 inch (53.7 x 29.2 x 36.9 cm)
• Weight -  55.12 lbs (25 kg)
