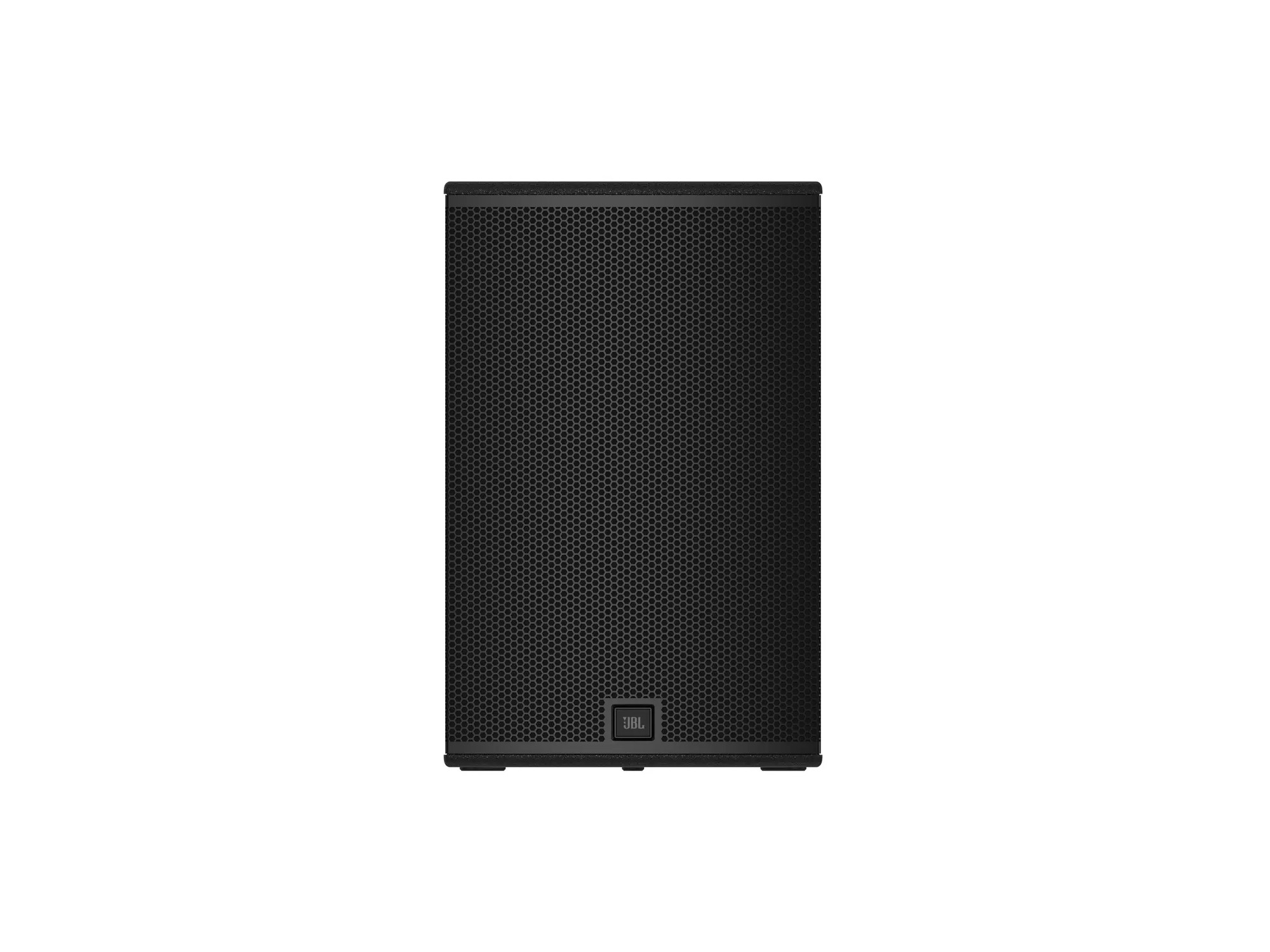

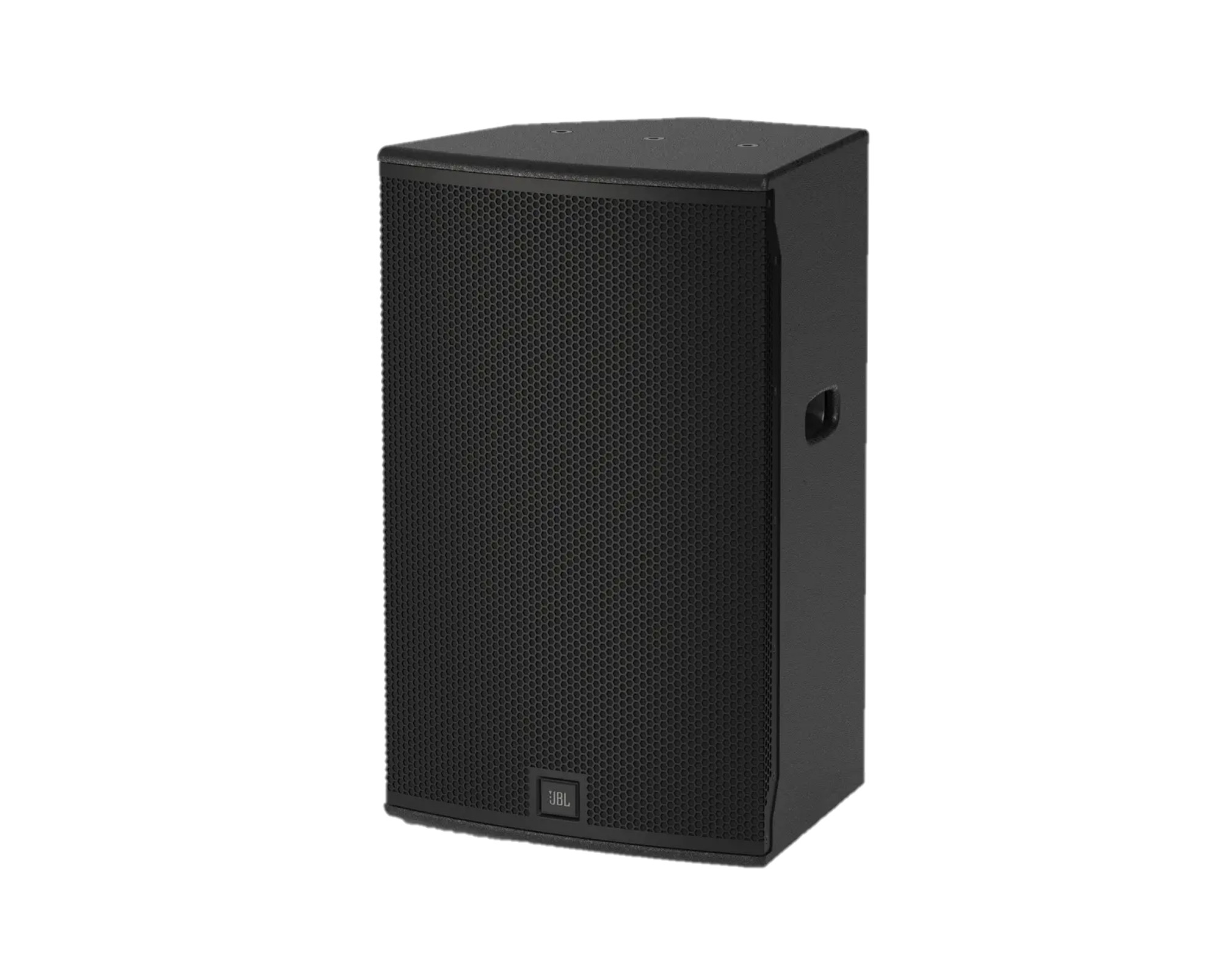

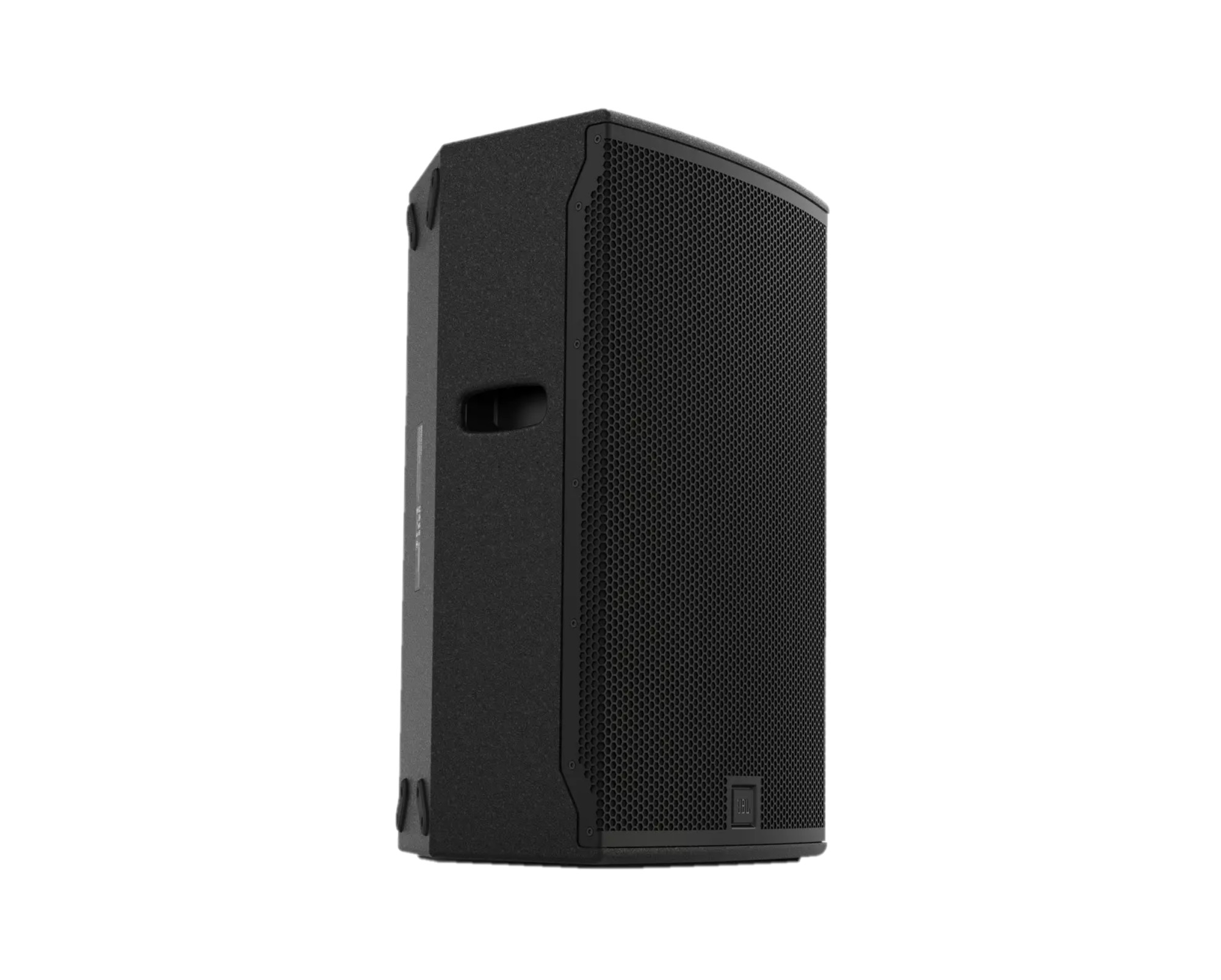

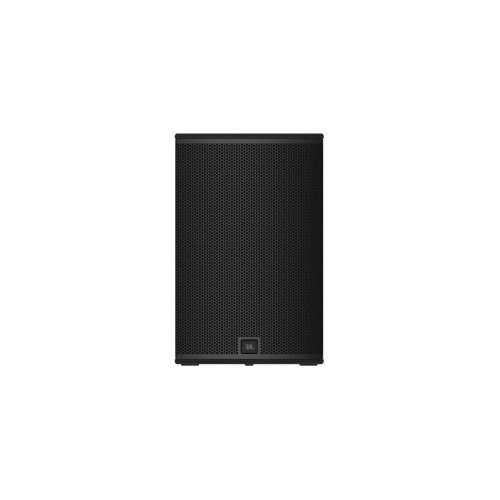

JBL SRX915M 15in Powered Multi-Purpose Speaker

About: JBL SRX915M 15in Powered Multi-Purpose Speaker

The SRX915M is a high-output, multi-purpose, two-way 15-inch powered point-source loudspeaker designed for applications that require greater low-frequency extension and increased headroom. It is ideally suited for use as a main PA or as a high-performance stage monitor. When deployed as a monitor, the enclosure’s multi-purpose design provides a 45-degree monitor angle in a low-profile package. Multiple M10 QuickLink suspension points support quick and secure integration with a variety of dedicated accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. JBL transducers and proprietary Progressive Transition waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

• Includes single 15-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
• 275F woofer employs JBL’s patented Differential Drive technology
• Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
• 90° × 60° rotatable Progressive Transition waveguide ensures smooth, predictable coverage
• LF extension reaches down to 50 Hz
• 80 Hz high-pass preset available for applications using SRX900 subwoofers

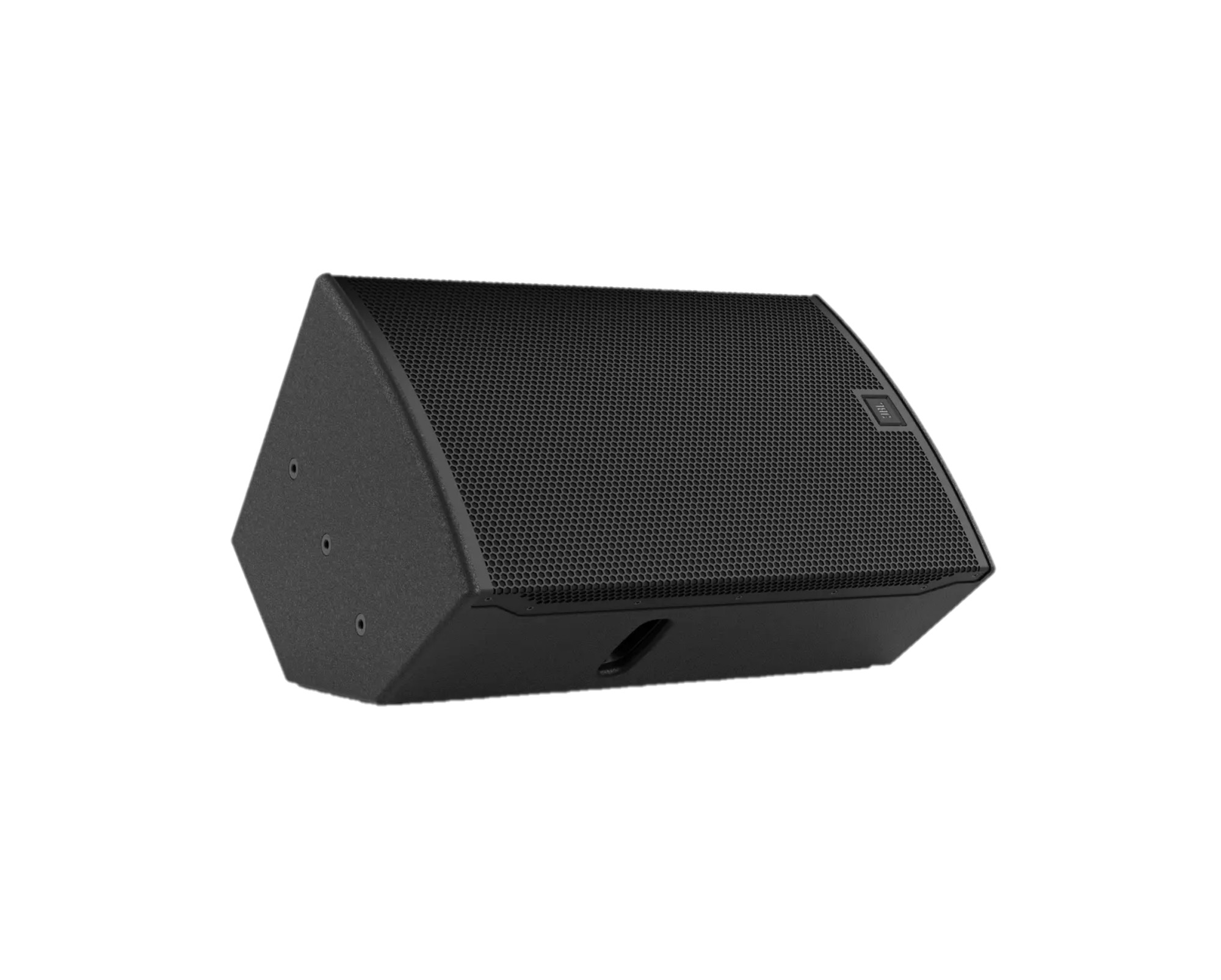

• 45-degree monitor angle for use as a high-performance, full-range stage monitor
• Voicing and phase response optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation
• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
• Seven M10 Quick-Link attachment points included for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

ACOUSTIC DESIGN

The SRX915M is a two-way powered loudspeaker featuring a single 15-inch low-frequency driver and a neodymium 1.5-inch annular-diaphragm compression driver. The 275F woofer employs JBL’s patented Differential Drive technology, using dual 2-inch voice coils and a ferrite magnet to provide an ideal balance of output, weight, and thermal performance. A 90° × 60° rotatable Progressive Transition waveguide ensures smooth, predictable coverage and excellent gain before feedback. LF extension reaches down to 50 Hz, while an 80 Hz high-pass preset is available for applications using SRX900 subwoofers. Voicing and phase response have been optimized to match SRX900 line-source products, enabling effortless system integration.

POWERED SOLUTION

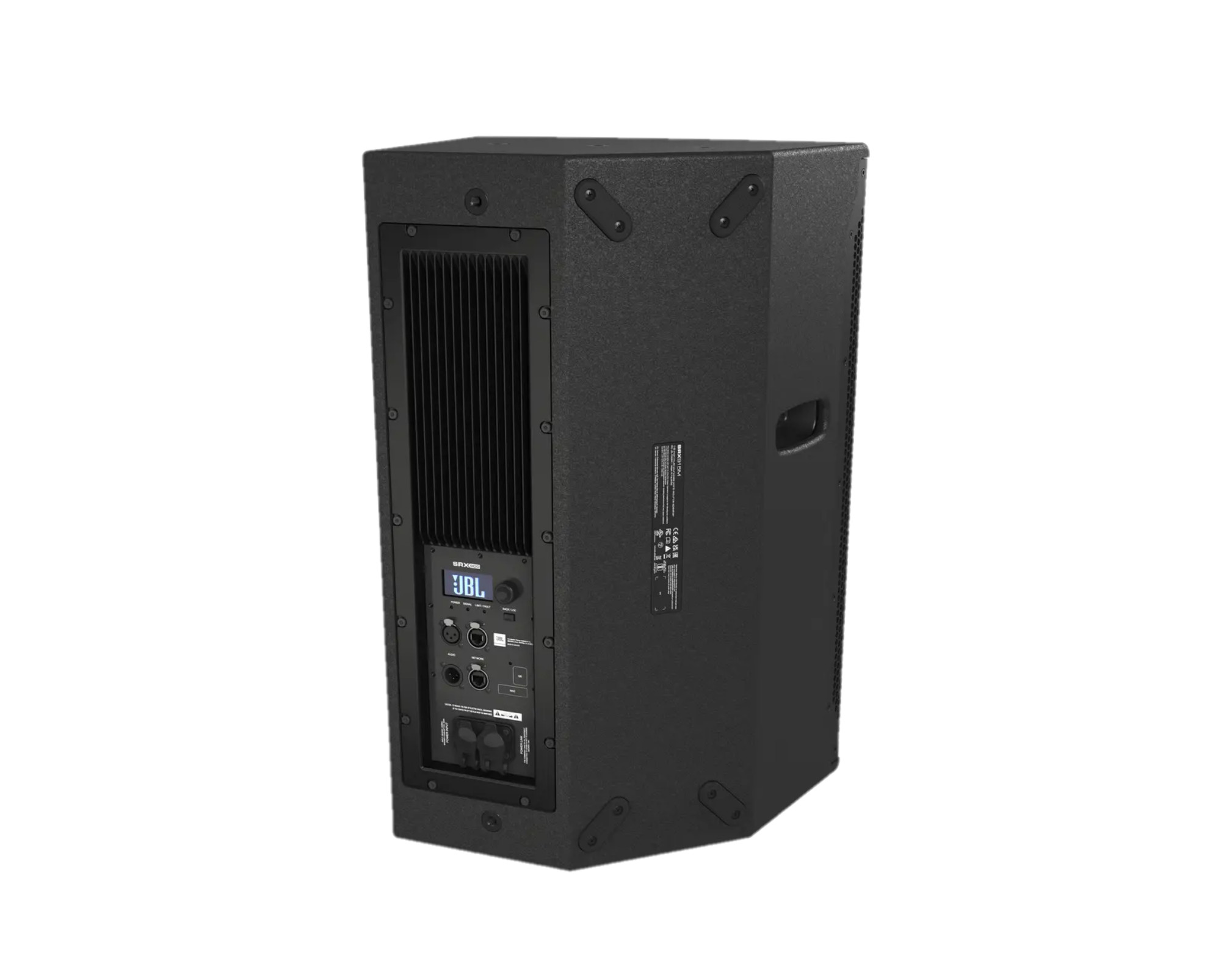

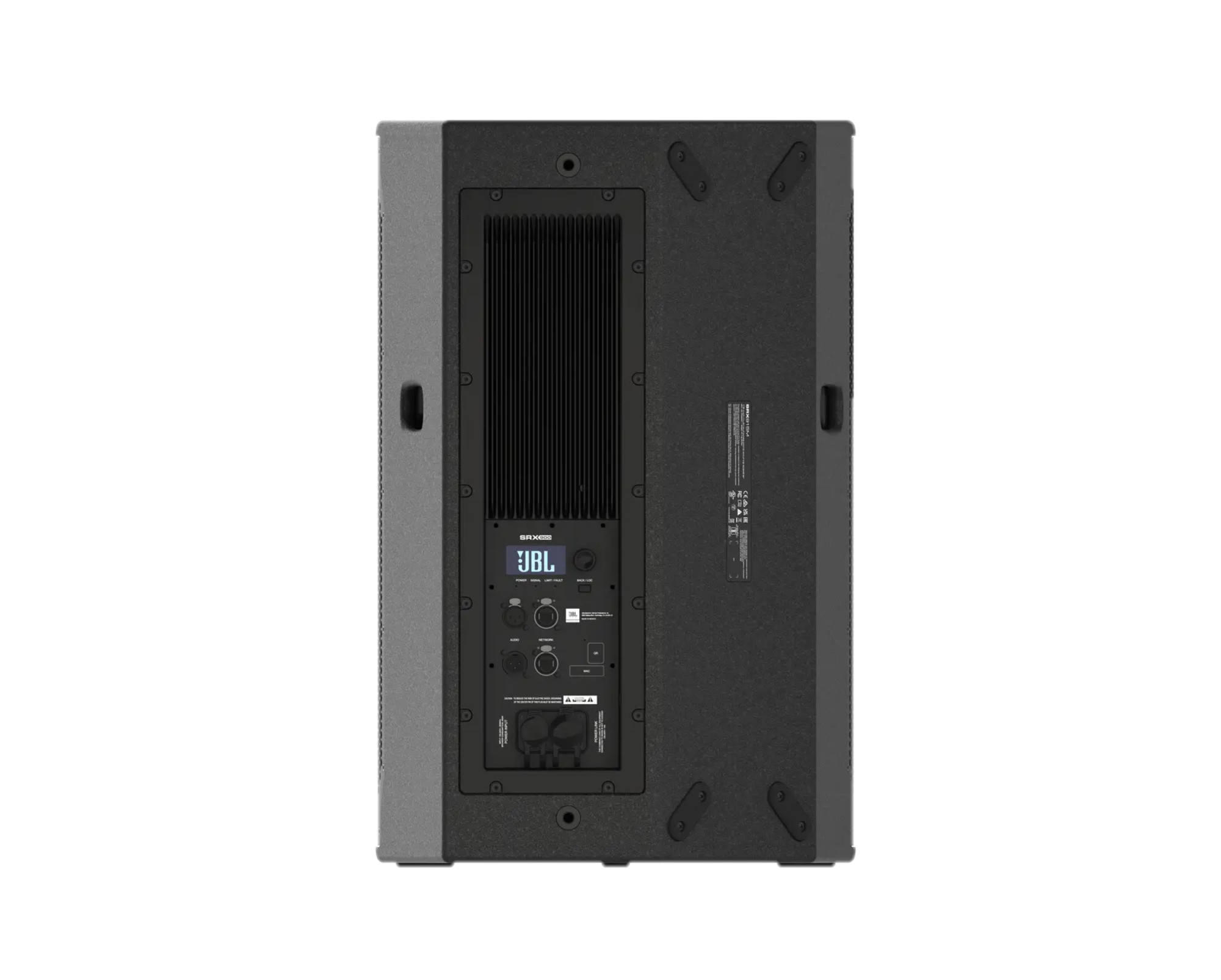

Integrated amplification delivers plug-and-play operation, while the rear LCD enables fast configuration. The DSP offers 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools.

PRO BUILD QUALITY, INSIDE AND OUT

The SRX915M is constructed from outdoor-grade Baltic birch plywood, providing excellent durability and a clean, modern, professional appearance suitable for any application.

VERSATILE AND SCALABLE

The SRX915M offers unmatched versatility when used with the comprehensive set of dedicated accessories. Seven QuickLink M10 attachment points are available for suspension using standard M10 eye bots. Dedicated vertical and horizontal U-Brackets facilitated a variety of fixed and portable mounting options. Truss-mounting is possible using standard off-the-shelf clamps or the versatile RC100 rotating clamp. The U-Brackets are compatible with the 50 mm Pole Mount adapter for additional vertical angle flexibility in pole mounted applications. A 45 degree monitor angle allows the SRX915M to be used as a high-performance, full-range stage monitor. The SRX900 RC2 rain cover can be used when the system is used outside.

Specifications

• Frequency Range (-10dB) - 50 Hz-20 kHz
• Coverage Pattern - 90° x 60°
• Maximum SPL - 134 dB
• System Type - Multi-purpose point-source, two-way powered
• Amplifier Design - Class-D
• Continuous Power Rating - 600 Watts | LF: 400 Watts | HF: 200 Watts
• LF Driver - (1) JBL 275F, 15 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive
• HF Driver - (1)  JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
• Suspension - (7) JBL QuickLink M10 points
• Enclosure - Exterior grade birch plywood, DuraFlex finish, two integral handholds
• Dimensions (HxWxD) - 26.2 x 16.9 x 14.5 inch (666 x 428 x 367 mm)
• Net Weight (each) - 54.45 lbs (24.7 kg)
