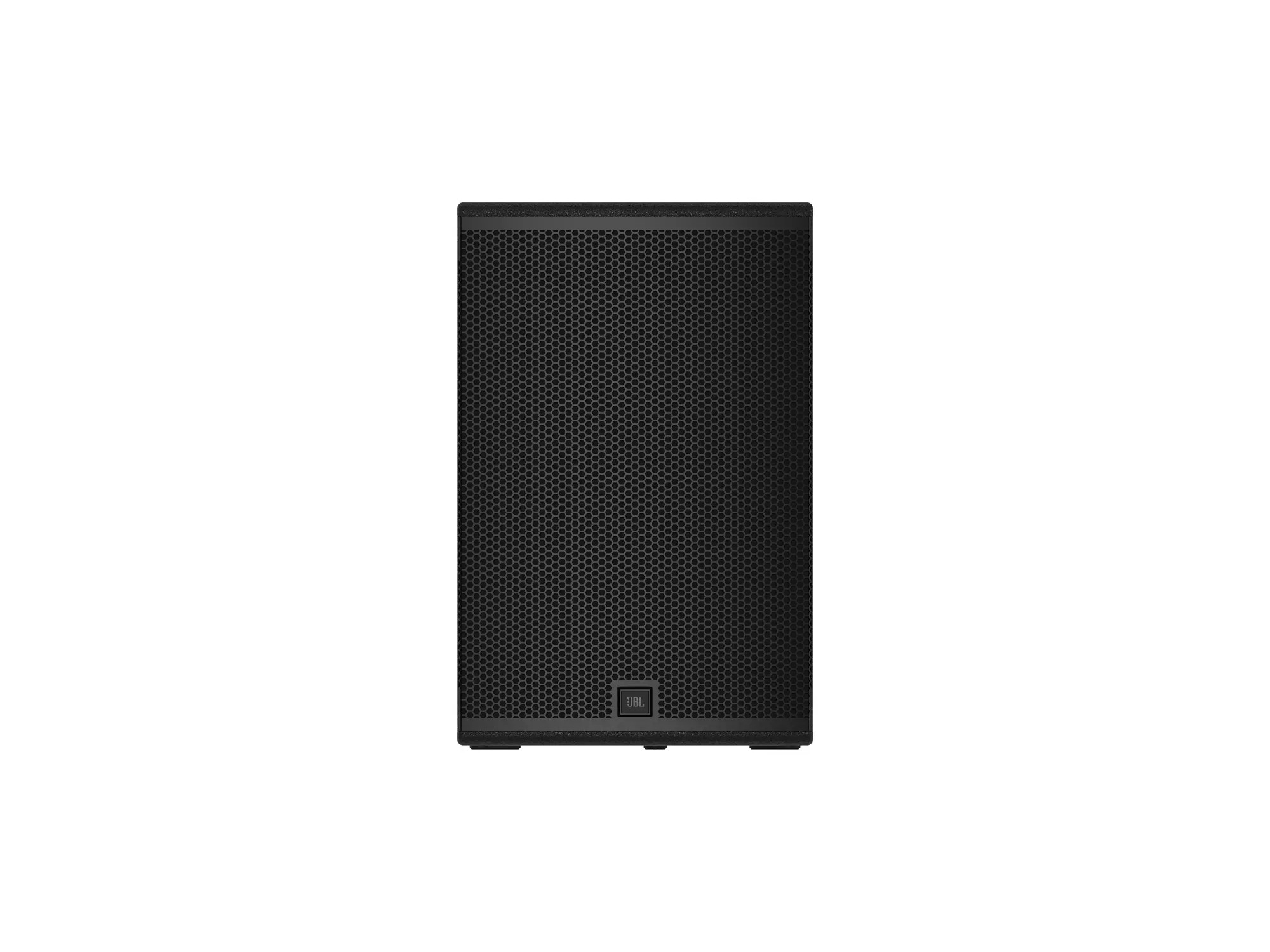

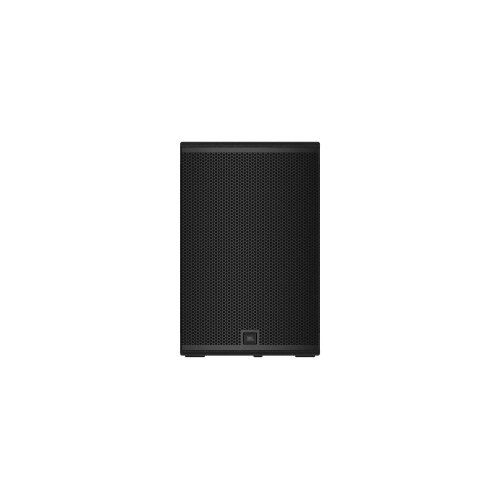

JBL SRX912M 12in Powered Multi-Purpose Speaker

About: JBL SRX912M 12in Powered Multi-Purpose Speaker

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package. Multiple M10 QuickLink suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. JBL transducers and proprietary Progressive Transition waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.​

• Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
• 272F woofer employs JBL’s patented Differential Drive technology
• Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
• 90° x 60° Progressive Transition waveguide ensures smooth, predictable coverage
• LF extension reaches down to 50 Hz
• 80 Hz high-pass preset available for applications using SRX900 subwoofers

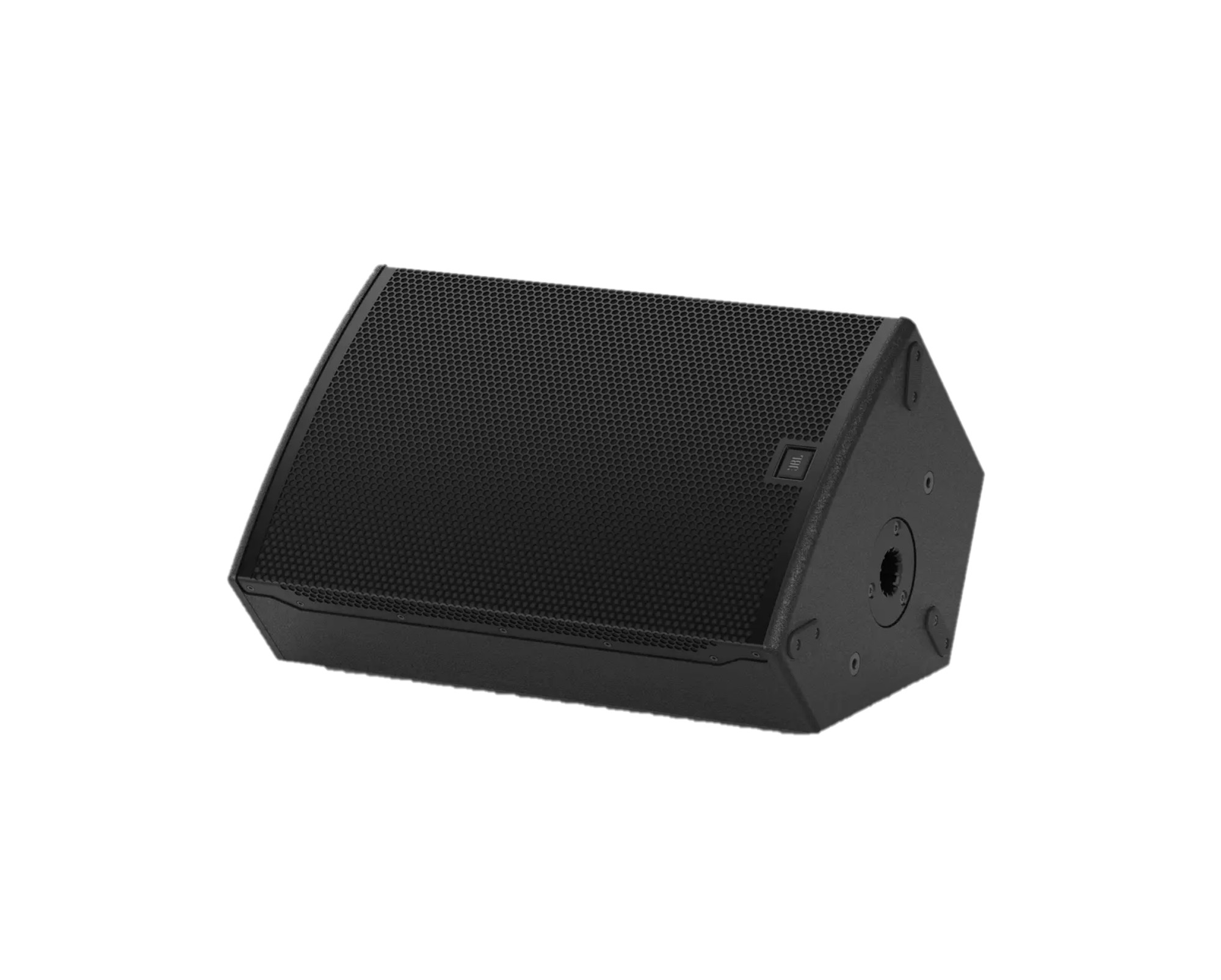

• 42-degree monitor angle for use as a high-performance, full-range stage monitor
• Voicing and phase response optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation
• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
• Six M10 Quick-Link attachment points are provided for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

ACOUSTIC DESIGN

The SRX912M is a two-way powered loudspeaker featuring a single 12-inch low-frequency driver and a neodymium 1.5-inch annular-diaphragm compression driver. The 272F woofer employs JBL’s patented Differential Drive technology, using dual 2-inch voice coils and a ferrite magnet to provide an ideal balance of output, weight, and thermal performance. A 90° × 60° Progressive Transition waveguide ensures smooth, predictable coverage and excellent gain before feedback. LF extension reaches down to 50 Hz, while an 80 Hz high-pass preset is available for applications using SRX900 subwoofers. Voicing and phase response have been optimized to match SRX900 line-source products, enabling effortless system integration.

POWERED SOLUTION

Integrated amplification delivers plug-and-play operation, while the rear LCD enables fast configuration. The DSP offers 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools.

PRO BUILD QUALITY, INSIDE AND OUT

The SRX912M is constructed from outdoor-grade Baltic birch plywood, providing excellent durability and a clean, modern, professional appearance suitable for any application.

VERSATILE AND SCALABLE

The SRX912M offers exceptional versatility when paired with its comprehensive set of dedicated accessories. Six M10 QuickLink attachment points are provided for suspension using standard M10 eye bolts. Dedicated vertical and horizontal U-Brackets support a wide range of fixed-installation and portable mounting configurations. Truss mounting is supported through standard off-the-shelf clamps or the RC100 rotating clamp, which provides full 360-degree horizontal rotation. Both U-Brackets are compatible with a 50 mm Pole Mount adapter, enabling additional vertical angle flexibility in pole-mounted applications. For outdoor use, the SRX900 RC2 rain cover provides protection against moisture while maintaining access to essential controls and connections.

Specifications

• Frequency Range (-10dB) - 50 Hz-20 kHz
• Coverage Pattern - 90° x 60°
• Maximum SPL - 133 dB
• System Type - Multi-purpose point-source, two-way powered
• Amplifier Design - Class-D
• Continuous Power Rating - 600 Watts | LF: 400 Watts | HF: 200 Watts
• LF Driver - (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive
• HF Driver - (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
• Suspension - (6) JBL QuickLink M10 points
• Enclosure - Exterior grade birch plywood, DuraFlex finish, one integral handhold
• Dimensions (HxWxD) - 23.0 x 15.0 x 13.4 inch (585 x 380 x 341 mm)
• Net Weight (each) - 45.42 lbs (20.6 kg)
